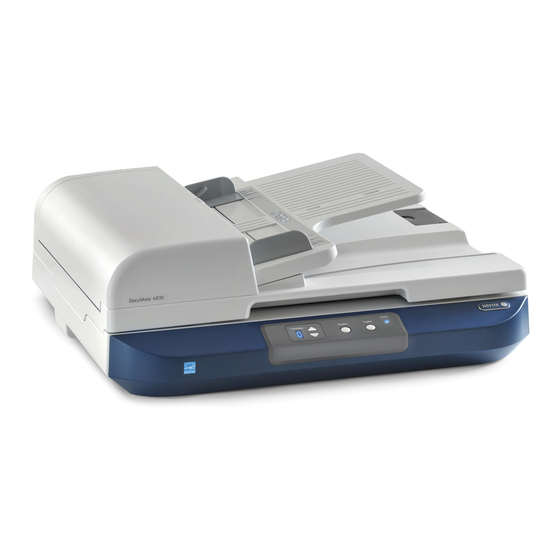

Xerox DocuMate 4830 User Manual

Hide thumbs Also See for DocuMate 4830:
Table of Contents

Advertisement

Quick Links

Download this manual
OneTouch 4.6
March 2014
05-0861-100
Xerox
DocuMate
4830
®
®
User's Guide

Advertisement

Table of Contents
loading

Related Manuals for Xerox DocuMate 4830

Summary of Contents for Xerox DocuMate 4830

  • Page 1: Xerox Documate

    OneTouch 4.6 March 2014 05-0861-100 Xerox DocuMate 4830 ® ® User’s Guide...
  • Page 2 Design © 2014 Xerox Corporation. All rights reserved. Xerox , Xerox and Design and DocuMate are registered trademarks of Xerox Corporation in the United States and/or other countries. BR1506 ® Content © 2014 Visioneer, Inc. All rights reserved. The Visioneer brand name and OneTouch logo are registered trademarks of Visioneer, Inc.

  • Page 3: Table Of Contents

    The Xerox DocuMate 4830 Scanner ........
  • Page 4 Adding Text Editor Applications to OneTouch ......... . . 96 ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 5 Disabled Options in this Section ............153 ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 6 Xerox DocuMate 4830 Scanner Specifications ........

  • Page 7: Documate ® 4830

    Energy Star for the USA ..............207 Index ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 8 Table of Contents ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 9: Safety

    Electrical Information on page 12 • Emergency Power Off on page 13 • Maintenance Information on page 14 • Product Safety Certification on page 15 • Environmental Health and Safety Contacts on page 16 ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 10: Safety Introduction

    Please read the following instructions carefully before operating the machine and refer to them as needed to ensure the continued safe operation of your machine. Your Xerox product and supplies have been designed and tested to meet strict safety requirements. These include safety agency evaluation and certification, and compliance with electromagnetic regulations and established environmental standards.

  • Page 11: Operational Safety Information

    • Always unplug this equipment from the electrical outlet before cleaning. Note: Your Xerox machine is equipped with an energy saving device to conserve power when the machine is not in use. The machine may be left on continuously. Do Not Do These •...

  • Page 12: Electrical Information

    Plug the power cable directly into a correctly grounded electrical outlet. If you are not sure whether or not an outlet is correctly grounded, consult an electrician. Do not use an adapter to connect any Xerox equipment to an electrical outlet that lacks a ground connection terminal.

  • Page 13: Emergency Power Off

    A wall panel circuit breaker, fuse, or other safety device has been tripped. • Liquid is spilled into the machine. • The machine is exposed to water. • Any part of the machine is damaged. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 14: Maintenance Information

    Do not perform any maintenance procedures unless you have been trained to do them by an authorized local dealer or unless a procedure is specifically described in the user manuals. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 15: Product Safety Certification

    Product Safety Certification This product is certified by the following Agency using the Safety standards listed: Standard UL60950-1 (USA) CSA 22.2 No. 60950-1 (Canada) IEC 60950-1 ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 16: Environmental Health And Safety Contacts

    Environmental Health and Safety Contacts Contact Information For more information on Environment, Health, and Safety in relation to this Xerox product and supplies, please contact the following customer help lines: USA & Canada: 1-800-828-6571 Europe: +44 1707 353 434 ®...

  • Page 17: Welcome

    Documentation on page 20 • The Xerox DocuMate 4830 Scanner on page 21 Your new Xerox scanner can quickly scan stacks of documents with the Automatic Document Feeder (ADF), or single items on the Flatbed glass. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 18: What's In The Box

    What’s in the Box Before proceeding, check the contents of the box. If items are missing or damaged, contact the dealer where you purchased the scanner. Xerox DocuMate 4830 Windows™ Scanner Quick Install Guide Technical Support Card Installation Disc USB Cable...

  • Page 19: System Requirements

    Color quality of 16-bit or 32-bit – Resolution set to at least 800 x 600 pixels Refer to your Windows documentation for instructions on setting the color quality and resolution for the monitor. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 20: Documentation

    Nuance OmniPage user’s guide—contains detailed instructions on using the software, including information on using Optical Character Recognition to create editable text files from the scanned documents. • Nuance PDF Converter user’s guide—contains detailed information on using the application to create and modify PDF files. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 21: The Xerox Documate 4830 Scanner

    The Xerox DocuMate 4830 Scanner Input Tray Paper Guides ADF Cover Scanner Lid Control Panel Output Tray Paper Stop USB Port Power Jack Input Tray—Holds documents in the Automatic Document Feeder (ADF) for scanning. Paper Guides—Adjust to support various document widths.

  • Page 22: Xerox Documate User's Guide

    ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 23: Scanner Setup

    Scanner Setup This chapter includes: • Unpack and Assemble the Scanner on page 24 • Connect the Scanner Power Cord on page 26 ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 24: Unpack And Assemble The Scanner

    Open the automatic document feeder cover and remove any tape or protective foam from inside the feeder. Close the feeder cover when you are finished. Lift the scanner lid. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 25 Remove any tape and protective foam from around or on the flatbed glass. Slide the locking tab to the unlocked position. Close the scanner lid when you are finished. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 26: Connect The Scanner Power Cord

    Connecting any other type of power supply may damage your scanner, and will void its warranty. Plug the power supply into the power port on the scanner. Plug the power cord into the power supply and into a wall outlet. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 27: Installation

    • Install the Software and Connect the Scanner on page 29 • Installing Additional Applications on page 35 • View the User Guides on page 36 • Register Your Scanner on page 37 ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 28: Before You Begin

    If you already have a scanner connected to your computer, it is recommended that you remove that scanner’s driver program prior to installing your Xerox scanner. You can remove these programs from the Windows Control Panel. Please refer to the user manual provided with your other scanner hardware for instructions about removing the driver and software for that unit.

  • Page 29: Install The Software And Connect The Scanner

    Double-click the icon for your DVD-ROM drive. • The Installation menu for the disc should now open. If the menu does not open: • From the list of files on the disc, double-click the file named setup.exe. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 30 Make sure the boxes for Scanner Driver and Visioneer OneTouch are selected, as well as any other applications you want to install. Note: The software provided with your scanner may differ slightly from the list shown in the window. Click Install now. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 31: Installing The Scanner Driver

    The scanner driver installation will start first. The Welcome screen for the scanner driver Setup Wizard opens. Click Next. On the Xerox License Agreement window, read the license agreement. If you accept the terms, select I Agree then click Next.

  • Page 32: Connect The Usb Cable And Turn On The Power

    The status light comes on and flashes indicating that the scanner is receiving power. Your computer recognizes that a scanner has been plugged into the USB port and automatically loads the appropriate software to run the scanner. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 33 When you’re certain that the software has completely loaded, return to the “Complete the installation by connecting your hardware” window. Click OK to complete the installation process. Click Close on the Installation Complete window to close and exit the driver installer. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 34: Installing Visioneer Onetouch

    Note: If you selected other software to install from the DVD the installation for that software will automatically start after you click Close on the Installation Complete window. Follow the instructions on-screen to install each application you selected. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 35: Installing Additional Applications

    Combining unparalleled functionality, built-in intelligence and ease of use, PDF Converter Professional 7 enables users to create, convert, edit, assemble and securely share PDF files like never before for enhanced professionalism, productivity and collaboration. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 36: View The User Guides

    When you’re finished, click Main menu to return to the Main menu window and click Exit. Remove the installation disc and store it in a safe place. That’s it! Installation is finished and your Xerox scanner is ready to scan. ®...

  • Page 37: Register Your Scanner

    Press Enter on your computer’s keyboard or click the option on screen to go to the web address. When the Xerox scanners web page loads click on Register Your Product. Fill in the registration form, all required fields have an asterisk (*).
  • Page 38 ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 39: Loading Documents To Scan

    Loading Documents to Scan This chapter includes: • Scanning from the Automatic Document Feeder (ADF) on page 40 • Scan from the Flatbed Glass on page 43 • Scanning Interfaces on page 44 ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 40: Scanning From The Automatic Document Feeder (Adf)

    Thermal or photosensitive paper. • Overhead projector sheets, plastic film, camera film, and any other type of transparent or partially transparent plastic item. • Documents that have been glued together. • Cloth or metallic sheets. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 41: Supported Document Types

    Pinch the ends to align the leading edges slantwise to help prevent multiple pages from being fed through at a single time. ‡. The maximum page length is 38 inches (965 mm) when scanning in Black and White at 600dpi. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 42: Loading Documents

    Load the stack of documents face up, with their tops into the Automatic Document Feeder. You can now scan the documents using the scanner buttons, OneTouch, or one of the other scanning interfaces. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 43: Scan From The Flatbed Glass

    Open the scanner lid and place the page on the scanner glass, face down. Align the item with the arrow on the reference frame then close the cover. You can now scan the document using the scanner buttons, OneTouch, or one of the other scanning interfaces. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 44: Scanning Interfaces

    ® Xerox DocuMate 4830 scanner. • OneTouch Control Panel—When you press the Simplex or Duplex button on the scanner, the scanner starts scanning using the settings for the current LED number. The scanned image is then sent to a destination on your computer or network drive.

  • Page 45: Scanning And Configuring Onetouch

    127 • Hardware Properties on page 131 Based on the recommended full installation of the scanner driver and the Visioneer OneTouch software, OneTouch is your main scanning interface for using the scanner. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 46 Email) and the icon of the destination (called the Destination Application) where the images will be sent when scanning is finished. The OneTouch button panel shows which application the button is configured to send images to. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 47: Default Onetouch Settings

    8.5 x 11 inches. • If Metric is the selected measurement, the default page size in each profile is based on the ISO 216 standard and the majority of the profiles will default to A4. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 48: Scan From The Onetouch Button Panel

    • Right-click on a Destination Application icon to open the OneTouch Properties. • Left-click on the arrow buttons, on the right side of the panel, to view the rest of the OneTouch buttons. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 49 Single-click on the detailed information to open the OneTouch Properties. The Hardware View • Left-click on the scanner icon to return to the Button view. • Right-click on the scanner icon to open the scanner’s hardware properties. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 50: Changing The Button Settings

    Select a file format in the Select format panel. The formats are based on the type of Destination Application you select. The icon names indicate their file types. See File Formats on page 63 for more information about the available formats. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 51 OK/Cancel/Apply buttons—OK accepts any changes and closes the window. Apply accepts any changes but leaves the window open so you can continue making additional changes. Cancel closes the window without accepting any changes. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 52: Selecting Options For Onetouch

    Fax and Print is for sending your scanned documents directly to your printer or fax software. • STI event forwarding is for using another application’s interface for scanning. The OneTouch Event Forwarding dialog box opens so you can select which application to use to continue scanning. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 53 {MMMM}—inserts the full name of the month (August). • {YY}—inserts the two-digit year (97). • {YYYY}—inserts the four-digit year (1997). • {h}—inserts the 12-hour clock hour without a zero added to single-digit time values (2). ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 54 2 files. As each destination application link is different, there is no standard filename type you can create to use for all destinations. If you scan and the images are not grouped in the file(s) as needed, try deselecting Use custom file naming and then scan again. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 55: Scan Configurations

    In the Scan Configuration Properties window, the Scan Settings, Page Settings, Advanced Settings, and Redaction Settings tabs are always available. When the Visioneer Acuity module is installed, the Acuity Settings tab will also be available for all destinations. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 56: Scan Settings Tab

    Key and Lock icon—if you want to lock the configuration, click the key icon to change it from a Key to a Lock. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 57: Page Settings Tab

    If you are scanning using an Automatic Document Feeder, and the page is fed through at too great of an angle, the image may not straighten correctly. In that case, re-scan the page using the paper guides to feed the paper in straight. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 58 6. When Skip Blank Originals is enabled, and 2 of the 3 pages in the stack are blank on one side, the total number of images counted is 4 not 6. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 59: Advanced Settings Tab

    It is recommended that you keep the default Gamma value or adjust this setting before adjusting the other options. This option is available for both Color and Grayscale scanning. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 60: Redaction Settings Tab

    From top—input the upper-left corner start position measured from the top of the page. • Width—input the width of the area to be removed. Height—input the height of the area to be removed. • ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 61 • Make sure the page size selected on the Page Settings tab is correct for the documents you are scanning, otherwise the redaction may not occur in the correct area. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 62 For example, if you selected Red as the color dropout, but then specify red for the redaction region, the final image will have the redacted region filled with gray when scanning Grayscale, or black or white when scanning in Black&White. Click the name to toggle between inches and millimeters. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 63: File Formats

    Select an image file format for photos, artwork or other documents that you want to save as images. BMP and TIFF are standard image file formats generally used if you want to do additional image processing, such as photo touch- up or color correction. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 64 To select a JPEG file size: Select JPG as the page format. Right-click on the JPG icon. A menu opens. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 65 PDF selected as the file format are not affected, so you can set the PDF file size/image quality independently for each button. Click OK or Apply on the OneTouch Properties window. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 66: Text Formats

    Word and the OneTouch OmniPage Storage and the OneTouch OmniPage Module is installed. Module is installed. Choose the file type that you want for the text format. Click OK or Apply on the OneTouch Properties window. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 67: Configure Before Scan

    The item is scanned. When finished, click the Done button and the image will be sent to the Destination Application specified in the OneTouch Properties window. Canceling a Configure Before Scan Click Cancel in the scanning progress window. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 68 Instead of having to re-scan the entire batch, you can stop the current scan, change the picture type from Black & White to Color, then restart the scanning without losing the pages already scanned. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 69: Open Scanned Document(S)

    Windows documentation for instructions on associating file types. • When scanning to multiple destinations, the scanned file is still sent to the other selected destination application(s) in OneTouch. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 70: Transfer To Storage

    If you modify the storage options in an individual configuration, changing the options in this Link Properties window will no longer update to the configurations you modified. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 71: Setting The Folder From Windows

    When OneTouch was installed, a storage option was added to the right-click menu of your Windows folders. This menu option allows you to set the Transfer to Storage folder location without opening OneTouch first. Right-click on the folder you want set as the scan destination. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 72: Scanning To Multiple Folders

    Setting Up Multiple Folders for Transfer to Storage Using Microsoft Windows, create the folders that you want to use for storing scanned items. Open the OneTouch Properties window. Select Transfer to Storage as the Destination Application. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 73 To help you remember which folder it is, give the new configuration a name that indicates the folder name, such as “Business Receipts.” Click the Scan Settings, Page Settings, and Advanced Settings tabs, and select the settings you want. Click the Storage Options tab. Click the Browse button. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 74 11. Click OK. The new configuration is now listed as a Transfer to Storage configuration. 12. Repeat the process to create additional new configurations, such as one named “Personal Receipts.” Note: Make sure to designate separate folders as the Storage Locations for each new configuration. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 75 When scanning is complete, insert the next set of documents in the scanner, then press the second button you set to scan documents and transfer them to storage. When scanning is finished, the documents are stored in the two separate folders. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 76: Burn To Cd-Rom

    The scanner will start scanning. When finished the file will be saved to the Windows temporary location for CD files. An information bubble will appear in the Windows notification area telling you that there are files waiting to be burned to CD. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 77 Click the Burn to CD button. The CD burner begins and your scanned documents are written to the CD. If other files are also waiting in this location, they will get written with the OneTouch files on the CD. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 78: Printer Or Fax

    Select a printer or fax device, in the Select destination list, then open a Scan Configuration to modify the settings for the device you selected. Click on the Device Settings tab and use the options on this tab to select settings for the device. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 79 For example, if the device is your printer, the dialog box is your printer’s setup settings. Note: When scanning to multiple printers and/or faxes, select the specific device, you want to configure the Advanced features for, from the list before clicking on the Advanced... button. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 80: Paperport

    When you create new configurations, the default settings will also match what you have selected here. If you modify the options in an individual configuration, changing the options in this Link Properties window will no longer update to the configurations you modified. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 81 The list of folders in this window are from the PaperPort Folder Manager. Use the PaperPort Folder Manager to add or delete folders, add other drives and network locations to this list. You cannot add new folders from the OneTouch PaperPort configuration windows. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 82 The selected folder in this list is where the scanned file will be saved when PaperPort is open and the OneTouch option Scan to the current PaperPort folder is selected. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 83: Sharepoint

    Select an existing configuration in which you have already specified your SharePoint site information, and then click on the Copy button to create a new configuration using the settings of the current configuration. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 84 72. Click on the Help button, in this configuration tab, to launch the SharePoint help file. The help file contains detailed information about the settings in this window and technical implementation notes. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 85: Sharepoint Link Log Viewer

    Click on the Properties button to open the Log Viewer from the SharePoint OneTouch Link Properties window. There are no global configuration properties for the SharePoint destination application, all configuration is done using the Scan Configuration Properties window as described in the previous section. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 86: Ftp Transfer

    Select an existing configuration in which you have already specified your FTP server information, and then click on the Copy button to create a new configuration using the settings of the current configuration. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 87: Ftp Link Log Viewer

    After you address the failure indicated in this log file, you can click the Retry button to resend the document to the server. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 88 Click on the Properties button to open the Log Viewer from the FTP OneTouch Link Properties window. There are no global configuration properties for the FTP destination application, all configuration is done using the Scan Configuration Properties window as described in the previous section. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 89: Smtp

    Select an existing configuration in which you have already specified your SMTP server information, and then click on the Copy button to create a new configuration using the settings of the current configuration. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 90 72. Click on the Help button, in this configuration tab, to launch the SMTP help file. The help file contains detailed information about the settings in this window and technical implementation notes. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 91: Smtp Link Log Viewer

    Click on the Properties button to open the Log Viewer from the SMTP OneTouch Link Properties window. There are no global configuration properties for the SMTP destination application, all configuration is done using the Scan Configuration Properties window as described in the previous section. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 92: Email Applications

    The email application in the OneTouch destination list is the default email program selected in the Internet Options of Internet Explorer. Click on the email application that is in the list, then click on the Properties button to launch the Email OneTouch Link Properties window to change the email application. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 93: Email Properties

    If you changed the email application Internet Explorer, and it does not immediately appear in the Select destination list, click the Refresh button to update the destination list in OneTouch. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 94: Text Editors

    OneTouch should do when text is not detected or recognition fails, and add other applications to OneTouch. Note that if you recently installed an application, click the Refresh button to see if OneTouch will automatically configure the link before you try adding it manually. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 95: Text Documents Properties

    This could occur if you scanned a photograph with a scanner button set for text applications. • Show message if text recognition failed—a message will open on the screen if the OCR reader does not detect text in the image. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 96: Adding Text Editor Applications To Onetouch

    When you are done making changes in this window, click the Add button to accept the changes and close the window. Click OK on the Link Properties window. Click Refresh on the OneTouch Properties window and the new application should now be available. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 97: Creating An Html Web Page From Your Scanned Documents

    Microsoft Internet Explorer, or other web browser you scanned to, then opens showing your converted page. The application’s URL field shows the location where OneTouch saved the HTML files for you to locate and post to your website. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 98: Still Image Client

    A dialog box opens for you to select the application to use for scanning. Select the application you want in the box and click OK. Now the application you selected opens and you can continue scanning using that application’s interface. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 99 Click on OK when you are done making changes to this window. Now when you scan with Event Forwarding you will either be prompted to choose an application, or the default application you selected will open. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 100: Image Editors

    From this window you can add an application and set additional document handling options. Note that if you recently installed an application, click the Refresh button to see if OneTouch will automatically configure the link before you try adding it manually. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 101: Image Documents Properties

    • Convert Bitmaps to JPEG—JPEG files can be compressed to produce smaller file sizes and, therefore, shorter transmission times. Use this option to provide that compression capability to image files. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 102: Adding Image Editor Applications To Onetouch

    When you are done making changes in this window, click the Add button to accept the changes and close the window. Click OK on the Link Properties window. Click Refresh on the OneTouch Properties window and the new application should now be available. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 103: Pdf Applications

    Please note that any PDF application you add manually to OneTouch will be classified as a “Text Based Link.” These applications will only show in the destination list when Text editing applications are enabled. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 104 The options you select at Step 4 determine the page format icons in the OneTouch Properties window for that group of applications. Refer to the documentation you received with the application to see which text formats the application accepts. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 105 When you are done making changes in this window, click the Add button to accept the changes and close the window. 10. Click OK on the Link Properties window. 11. Click Refresh on the OneTouch Properties window and the new application should now be available. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 106: Send To Application

    Application tab and use this window to set a configuration to scan to a different application than the one selected in the Link Properties window. Changing the options in this window only affects the configuration you are creating or modifying. All other configurations will retain their settings for this destination. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 107 The scanner starts scanning and, when finished, sends the scanned file to the application you selected. Technical note • After configuring this link, you may need to click Refresh in the OneTouch Properties window to show the correct application icon in the Select destination list. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 108 This unique file is created at scan time and contains a list of every image in the scan job. Only select this option if you are sure that the application you are scanning to can use the job file to accept image transfer. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 109: Scanning To Multiple Destinations

    Click each destination where you want to send the scanned image in the Selected destinations (#) list. Click again to deselect a destination. As you click on each destination, the Selected destinations number will count so you know how many applications are selected to receive the image. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 110 For example, if you scan to a printer and to email, only the BMP file format will be available as printers can only receive an uncompressed image format. All other image formats and all text formats will be disabled until you deselect the printer. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 111 The scanner starts scanning and when finished, the image is sent to each destination you selected in the OneTouch Properties window. Technical Note • The Still Image Client destination cannot be used with multiple destination scanning. This destination will be disabled when the Enable scanning to multiple destinations is selected. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 112: Scanning With Job Separation

    Click on the down arrow next to the Select Button list to select the button you want to modify. Note that the options in this window are specific to each OneTouch button. Click on the option Use job separator when scanning multiple pages. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 113 If you want a single file created with the blank page discarded, deselect the job separation feature on the Options tab or remove the blank page from your scanning batch. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 114 For example, if you scan 12 pages and 3 are blank, the total number of images counted for the job separation will be 9 not 12. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 115: Scanning With Optical Character Recognition (Ocr)

    You can then work with the text and numbers to edit, spell check, change font or type size, sort, calculate, and so forth. Note: Xerox recommends that all OCR processing use the original factory settings for OCR scanning that came with your scanner. When scanning with other settings, use at least 300 dpi for the resolution. If the original documents are of poor quality or have a small type font, 400 dpi can be used as the maximum resolution.

  • Page 116: Text Formats

    The specific file format is the file name extension on the text format icon. The specific text format; this example is for Rich Text Format (.rtf). To select a file type for the text format: Select the Destination Application. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 117 Comma Delimited—the .csv file format; used for database or spreadsheet data with fields, when the document is converted into editable text the fields are maintained. Excel Spreadsheet—the .xls file format used by Microsoft Excel. HTML Document—the .htm file format used to create web pages. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 118 Select Use MRC for documents with harder-to-read text or lower-quality graphics to get the best possible scan output image. The Use MRC option is available for sPDF and PDF. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 119: Selecting Onetouch Omnipage Ocr Options

    Select a Destination Application that has one of the text format file types as the page format, such as Microsoft Word or WordPad. Right-click on the page format icon to see the menu. Choose OCR Options from the menu. The OCR Properties window opens with the OCR tab selected. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 120: The Ocr Tab

    The OCR engine does not automatically correct misspelled words that were present in the original document. When dictionaries are selected, the terms in those dictionaries are used to check the spelling. If this is option is not selected, User Dictionaries and Professional Dictionaries cannot be selected. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 121: Creating Your Own Dictionaries

    Type each word you want in your new dictionary, followed by a carriage return. Make sure to spell the words correctly as they will be used for spellchecking. Here is an example of what the text file might look like: • Xerox • OneTouch • OmniPage • wysiwyg ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 122 Click the drop-down arrow for Files of type and choose Text Files (.txt). 10. Select the file you just created for your user dictionary and click Open. In the example above, the file is named USERDIC1. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 123: Editing User Dictionaries

    To delete a word from the list, select it and click Delete. If a word in the list is misspelled, delete it, then re-type the word correctly in the User Word box and click Add. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 124 The Export User Dictionary window opens. Select the dictionary file to export and click Save. The file is exported as a formatted dictionary with the .ud filename extension so it can be opened by other programs. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 125: The Format Tab

    If the document is being scanned as an Excel spreadsheet, each detected table or spreadsheet becomes a separate worksheet, while other content is placed on the last worksheet. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 126 The worksheets can then be opened in a spreadsheet application. The Spreadsheet output option is only available for documents scanned with the XLS format. These options will now apply to the OCR processing when you select any text format as the page format. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 127: Onetouch With Visioneer Acuity Technology

    OneTouch with Visioneer Acuity Technology The OneTouch software you received with your Xerox scanner now includes the Visioneer Acuity technology. This application has a set of features for improving and enhancing the quality of scanned documents, especially documents that would usually produce poorer quality images. Scan configurations with Acuity options work with OneTouch scan settings to produce the best quality images.

  • Page 128: The Acuity Settings

    Default settings—automatically selects the options your scanner can use with any scan mode (Black&White, Grayscale, and Color). Select the options for scanning. • AutoCrop to original—Select this option to let the software automatically determine the size of the item being scanned. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 129 Dithering the image creates a black and white image that is recognizable. Dynamic threshold attempts to evaluate the scanned page and automatically adjust the brightness and contrast levels to produce the best quality image when scanning in black and white. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 130 The Acuity icon on the top of the OneTouch Panel and on the scan configuration remind you that the scan will use the Acuity settings. The summary of the scan settings also indicates Acuity settings. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 131: Hardware Properties

    Hardware Properties Right-click on the OneTouch icon and choose Show Hardware from the pop-up menu. The Hardware Properties dialog box opens and shows information about your Xerox scanner. Click the Properties button. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 132: Device Settings

    Device Settings Please refer to Device Settings on page 175 Driver Settings Please refer to Driver Settings on page 176 ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 133: Scanning From Twain And Wia

    147 • Presets on page 148 • Document Settings on page 152 • Image Enhancements on page 161 • Driver Configuration on page 173 • Hardware Properties and Interface Behavior on page 175 ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 134: Accessing The Scanner Interface

    175 for more information. Please refer to your Windows documentation for WIA scanning instructions if you do not see the interface described below, or if you have any questions regarding Windows scanning applications. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 135: Scanning

    Presets list, and then click the Scan button to start scanning. You can also click on the Preview button to open the preview dialogue for you to scan a preview image and set custom scan regions. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 136 Driver Settings section of this guide. If you are unable to change this setting the option may have been set by your system administrator. Please contact your system administrator for more information. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 137: Using The Preview Window

    Zoom level box to zoom in or out on the preview image in 5% steps. Click the zoom to fit button to fit the entire preview area within the preview window. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 138 Save in the main interface to save the settings to the current preset, or save them to a new preset using the Save as dialogue. If you select a different preset from the Presets list before scanning, the changes you made will be discarded. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 139: Scan Regions

    Resize the region by clicking on one edge of the region outline and dragging the mouse. Move the region by clicking in the region then dragging the mouse. Please refer to Move, Resize, or Delete Regions for detailed instructions. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 140 When you select a paper size in the Page size list, or input the dimensions in the custom page size fields, you are setting a scan region. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 141: Move, Resize, Or Delete Regions

    Note that you can only resize the scan regions to be within the scanner’s minimum and maximum supported paper sizes. Please refer to the scanner specification table, in the maintenance section of the user guide, for the supported paper sizes for your scanner. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 142: Reordering Regions

    The priority determines which region gets processed first while scanning. For example, region 1 will be processed first and appear in the scanning application as the first image. Right-click on the region and select an option from the menu. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 143: Clear All Regions

    Right-click anywhere in the preview window where there are no regions, and then click on Clear all regions to remove all of the regions in the preview area. This will leave only the region labeled as number 1. There must always be at least one region for scanning. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 144: Document Source Configuration

    • Duplex—select this option to scan both sides of the item in the scanner. Note that if you deselect the Back side options in the source configuration list, this option will automatically deselect. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 145 (for example, “Input tray (Front side) Black and White”). To set the scanner options individually for each source: Click the drop down menu and deselect Sources identical. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 146 Click the top of the menu to collapse the list. Select the options in the scanner interface that you want to use for the second side. Tip: Save the changes to a Preset when you are done selecting options for each source. Please refer to Presets more information. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 147: Summary

    Summary The Summary area displays some of the basic scan options selected in the interface. Clicking on one of the links will open the area of the interface where the setting is located. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 148: Presets

    Adjust the options in the scanner interface as needed. Click Save. To rename a preset: Select the preset you want to rename in the preset list. Click the right pointing arrow button and select Rename..® ® Xerox DocuMate 4830 User’s Guide...

  • Page 149: Exporting Presets

    Click Yes when prompted to confirm that you want to delete the currently selected preset. Exporting Presets Click on the right pointing arrow and select Export... from the list. Click on the browse button next to the Destination folder field to open a file browsing window. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 150 Skip—select this option to skip the preset with the duplicate name. Select the option Do this for all conflicts to have the action you select in this dialogue be used for all conflicts found. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 151: Importing A Preset

    Skip—select this option to skip the preset with the duplicate name. • Select the option Do this for all conflicts to have the action you select in this dialogue be used for all conflicts found. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 152: Document Settings

    Advanced panel—this panel contains advanced document handling options. If you select an option in this panel that also appears on the Main panel, when you return to the Main panel that option will be selected. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 153: Disabled Options In This Section

    Note that even when Sources identical is selected, any options that are only available for a specific source will be discarded if the scanner scans from the source that does not have those options. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 154: Main Panel Options

    Text document letters or forms with hand printed text – 150 dpi • Text document (for OCR) forms, letters, memos, or spreadsheets – 300 dpi • Business cards or other items with small print – 300 dpi ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 155: Document Size

    For instance, the option Detect double feeds will usually be disabled when Long document is selected, even if the scanner supports DFD, as the added page length will cause a false double feed. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 156: Manual Feed

    Rotate Image Select an option in this list to have the final image rotated when scanning is complete. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 157 Select one of the options in the Merge two sides list to enable this field. Note that you will also need to enable Long document if you want to have the maximum height threshold be longer than 14 or 17 inches (depending on the scanner model). ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 158: Advanced Panel Options

    Crop to length—this option tells the scanner to crop the final image to the bottom of the page being scanned. This option is only available if the scanner supports this feature. This option may occasionally be grayed out as not all scanning applications support this feature. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 159 The driver uncompresses the image and transfers the uncompressed image to the scanning application. The Compression option will often be disabled as most applications do not support receiving a compressed image file from the scanner driver. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 160 Change to the Advanced source configuration mode. In the Document settings section click on the Advanced tab. If your scanner and application supports compressed file transfers, the Compression option will now be available. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 161: Image Enhancements

    • Color processing panel—this panel contains advanced options for processing colors in the final scans. • Advanced panel—this panel contains advanced image enhancement options for improving the clarity of the scanned image. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 162: Disabled Options In This Section

    Note that even when Sources identical is selected, any options that are only available for a specific source will be discarded if the scanner scans from the source that does not have those options. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 163: Main Panel Options

    However, when decreasing the brightness, white starts to appear gray in the image. In that case, raise the contrast level to make the differences between the lightest and darkest part of the image more defined. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 164 Below are some recommended options for contrast image correction based on the original document quality. • Original documents of good quality - 50% • Pencil written letters, forms, or drawings - 55% to 65% ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 165 This way, the highlights and shadows in the image are maintained by saturating the pixels with darker levels of the same color rather than adding gray to all colors. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 166: Invert Image

    For example, you might choose this option if you are scanning pages that have been printed from newspaper microfilm. Newspaper microfilm reverses black and white so that when viewed on a monitor, the text is white and the paper is black. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 167: Mirror Image

    The Mirror image option flips the image left-to-right. Bit Depth Reduction The Bit depth reduction options are only available when scanning in black and white. Click the drop down menu and select an option from the list. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 168 When the image is scaled down, it may look like a grayscale scan. When the image is at normal size or enlarged you will be able to clearly see the dithering pattern, as shown in the close-up image. Black and White scan Bayer dither scan Color scan ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 169 The size of the margin is 24.4 mm • The position of the hole cannot be flush to the edge of the margin area and it cannot overlap the edge of the margin area ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 170: Color Processing Panel Options

    This option is only available when scanning in grayscale or black and white. The example below shows the original text with a red watermark and the resulting image with the color removed. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 171: Advanced Panel Options

    5 stray dots within a 3x3 area, they are not considered a speckle. Filter Use the Filter option to increase or decrease the sharpness in the scanned image. Click the drop down menu and select an option from the list. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 172: White Level

    You can set a value for black from 0 to 127. If you set this value to 127, you are telling the scanner that all pixels that are grey level 127 or lower (darker) should appear as black in the final image. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 173: Driver Configuration

    ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 174: Scanner Configuration

    Counters—click the reset button next to the counter you want to set back to 0. You can use this option to monitor the number of scans completed since the last time a part has been replaced. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 175: Hardware Properties And Interface Behavior

    Scanners and Cameras. Right-click on the scanner and then select Properties from the list. Device Settings Scanner Details • Firmware version—this is the scanner’s hardware processor version number. • Serial number—the scanner’s unique identification number. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 176: Driver Settings

    The options in this panel are for configuring how the scanner interface will behave in some scenarios. Only advanced users should modify any of the options in this section. Options that are not available for your scanner will be grayed out and disabled. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 177: Twain Driver

    WIA 2.0 applications. • Emulate WIA 1.0—select this option to display the TWAIN interface for WIA 1.0 compatible applications. When this option is selected, WIA 2.0 applications will use the Microsoft WIA interface. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 178 ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 179: Scanning From Isis

    The ISIS drivers were installed correctly during the installation of your scanner. The Scanner Selection dialog box will then appear. ® ® Select Xerox DocuMate 4830 from the list of scanners and click OK. Your scanner is then ready to work with the ISIS driver. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 180 ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 181: Maintenance

    Troubleshooting on page 190 • Uninstalling Your Scanner on page 194 • Xerox DocuMate 4830 Scanner Specifications on page 195 • Xerox DocuMate 4830 Parts List on page 198 This section contains information about maintenance, troubleshooting, uninstalling, scanner specifications, and spare parts.

  • Page 182: Safety Precautions

    Never use aerosol sprays or compressed air, or attempt to lubricate parts with an oil or silicon spray. • Never service the scanner in an area where there are open liquid containers. • Never pour or spill liquid on the scanner or any of its components. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 183: Clearing Paper Jams

    “click”. To reduce the number of paper jams, smooth and straighten paper before scanning, adjust the guides to the paper size, and insert the paper evenly into the ADF. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 184: Cleaning The Scanner

    Wipe the ADF pad from top to bottom. Close the ADF cover. Carefully press down on the ADF cover until it locks in place with a “click”. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 185: Cleaning The Scanner Glass

    If any residue remains after wiping the glass with a dry cloth, try adding a few drops of Isopropyl alcohol (rubbing alcohol) to the cloth and wipe off the residue. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 186: Replacing The Adf Pad Assembly

    Open the ADF cover. The ADF pad is located on the top of the duplex lamp module. Squeeze the plastic clamp that holds the pad assembly in place. Lift the pad up and out of the scanner. Remove the tension spring that is located under the ADF pad. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 187 Press down on the ADF pad until you hear a "click" when it locks in place. Close the ADF cover. Carefully press down on the ADF cover until it locks in place with a “click”. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 188: Replacing The Roller Assembly

    The roller assembly fits in a channel in the ADF cover. The roller is held in place with a lock tab that rotates to lock and unlock it. To unlock the tab, rotate it upward until the small lock flange is completely free. ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 189 Push on the lever until it clicks in place and locks the roller in the ADF door. Close the ADF cover. Carefully press down on the ADF cover until it locks in place with a “click”. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 190: Troubleshooting

    OneTouch options, and you need to remove those other drivers and re-install your Xerox DocuMate 4830 scanner. Please see the documentation that you received with the other scanner for the steps to remove its driver programs. After uninstalling the other scanner’s driver programs, uninstall OneTouch using the steps on page 194 then install OneTouch following the instructions in the Installation chapter.
  • Page 191 The pages were probably scanned in crooked, or skewed. To use AutoCrop to Original, the pages must be scanned in straight. Adjust the paper guides on the scanner so pages feed in straight. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 192: Error Light Troubleshooting Codes

    After the restart is complete, plug the power cable back in. Error Light Troubleshooting Codes The status light indicates the current state of the scanner. Descriptions of the most common patterns are listed below. Contact Xerox Technical Support if you experience a different blinking pattern. Normal Operation •...
  • Page 193 An internal part in the scanner Turn off the power to your scanner, then turn it back on. If the Codes may have malfunctioned. problem persists, re-boot your computer. If the problem still persists, contact Xerox Technical Support. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 194: Uninstalling Your Scanner

    Windows Vista and later: Open Programs and Features Uninstalling the scanner driver: ® ® In the list of installed programs click on Xerox DocuMate 4830 driver. Click the Change/Remove or Uninstall button. Click Yes when asked to confirm that you want to remove the driver.

  • Page 195: Xerox Documate 4830 Scanner Specifications

    Paper Thickness 14~28 lbs (53–105 g/m Scanning Speed Xerox DocuMate 4830 (P/N 85-0302-000 and higher) U.S. Letter landscape or A4 landscape (Black & White, Grayscale, and Color) –30 pages per minute / 60 images per minute @ 200 and 300 dpi Xerox DocuMate 4830 (P/N 85-0312-000 and higher) U.S.
  • Page 196 UK(BSI/PSB)—3P PLUG/C5 CONN., 2.5A/250V, L=1800mm, 3C*0.75mm , BLACK, LONGWELL, PG8B9XHJZ0A-018, RoHS Power consumption Xerox DocuMate 4830 (P/N 85-0302-000 and higher) ≤ 30 Watts (during operation) ≤ 12 Watts (on standby) ≤ 5 Watts (power save after 15 minutes without scanning, can be adjusted by software) ≤...
  • Page 197 Checking Your Scanner Version The scanner’s part number is located on the data plate, starting with an 85 in the format P/N: 85-####-#00; the image below is shown for example only: ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 198: Xerox Documate 4830 Parts List

    Xerox DocuMate 4830 Parts List Please use the following part names and numbers when ordering replacements for your Xerox DocuMate 4830 scanner. Part Name Part Number Roller 57-0151-000 ADF Pad 57-0150-000 Tension spring USB Cable 35-0118-000 35-0103-000 (US) AC Power Cord...

  • Page 199: Regulatory Information

    Regulatory Information This chapter includes: • Basic Regulations on page 200 • Copy Regulations on page 202 ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 200: Basic Regulations

    In order to allow this equipment to operate in close proximity to Industrial, Scientific and Medical (ISM) equipment, the external radiation from ISM equipment may have to be limited or special mitigation measures taken. Changes and modifications to this equipment not specifically approved by Xerox may void the user’s authority to operate this equipment.

  • Page 201: Other Regulations

    AL7 1HE England, Telephone +44 (0) 1707 353434 Other Regulations Turkey (RoHS Regulation) In compliance with Article 7 (d) We hereby certify “It is in compliance with the EEE Regulation”. (“EEE yönetmeliğine uygundur“) ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 202: Copy Regulations

    Copyright Office, Library of Congress, Washington, D.C. 20559. Ask for Circular R21. Certificates of Citizenship or Naturalization. (Foreign Naturalization Certificates may be photographed.) Passports. (Foreign Passports may be photographed.) Immigration Papers. Draft Registration Cards. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 203: Canada

    Copying certain documents may be illegal in your country. Penalties of fine or imprisonment may be imposed on those found guilty of making such reproductions. • Currency notes • Bank notes and cheques • Bank and government bonds and securities • Passports and identification cards ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 204 Copyright material or trademarks without the consent of the owner • Postage stamps and other negotiable instruments Note: this list is not inclusive and no liability is assumed for either its completeness or accuracy. In case of doubt, contact your legal counsel. ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 205: Compliance Information

    Compliance Information This chapter includes: • Product Recycling & Disposal on page 206 • Energy Star for the USA on page 207 ® ® Xerox DocuMate 4830 User’s Guide...

  • Page 206: Product Recycling & Disposal

    Special handling may apply, please see: http://www.dtsc.ca.gov/hazardouswaste/perchlorate/. If you are managing the disposal of your Xerox product, please note that the product may contain lead, mercury, Perchlorate, and other materials whose disposal may be regulated due to environmental considerations. The presence of these materials is fully consistent with global regulations applicable at the time that the product was placed on the market.

  • Page 207: Energy Star For The Usa

    Energy Star for the USA Energy Program Compliance ® ® The Xerox DocuMate 4830 is E qualified under the E Program Requirements for Imaging NERGY NERGY Equipment. The E and E are registered United States trademarks. The E Imaging NERGY...
  • Page 208 ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 209 Color, 144, 145, 155, 164, 165, 166, 168 Color dropout, 170 Edit button, 51 Color mode, 56, 67, 145 eMail, 52 Comma Delimited, 117 error codes, 192 components, 21 Error Diffusion, 168 Compress transfers, 159 Event Forward (STI), 52, 98 ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 210 Invert image, 166 ISIS Interface, 179 OCR, 116 columns, 125 tables, 125 OCR Dictionary, 121 OCR input format, 125 Image quality and file size, 64, 65 OCR Options, 119 JPG file format, 63 ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 211 Redaction tab, 60 spreadsheet, 125, 126 Reduce Moiré Patterns, 57 status light, 190 Refresh button, 51 Sti event forwarding, 52 Register, 37 Still Image Client, 98 Reject Character, 121 Storage and CD-R/W, 52 ® ® Xerox DocuMate 4830 User’s Guide...
  • Page 212 USB Port, 21 Use languages and dictionaries to improve accuracy, 120 Use MRC, 118 user dictionary edit, 123 new, 121 User Guides, 36 White Level, 172 Word Document, 117 xls file format, 117 ® ® Xerox DocuMate 4830 User’s Guide...

Table of Contents
