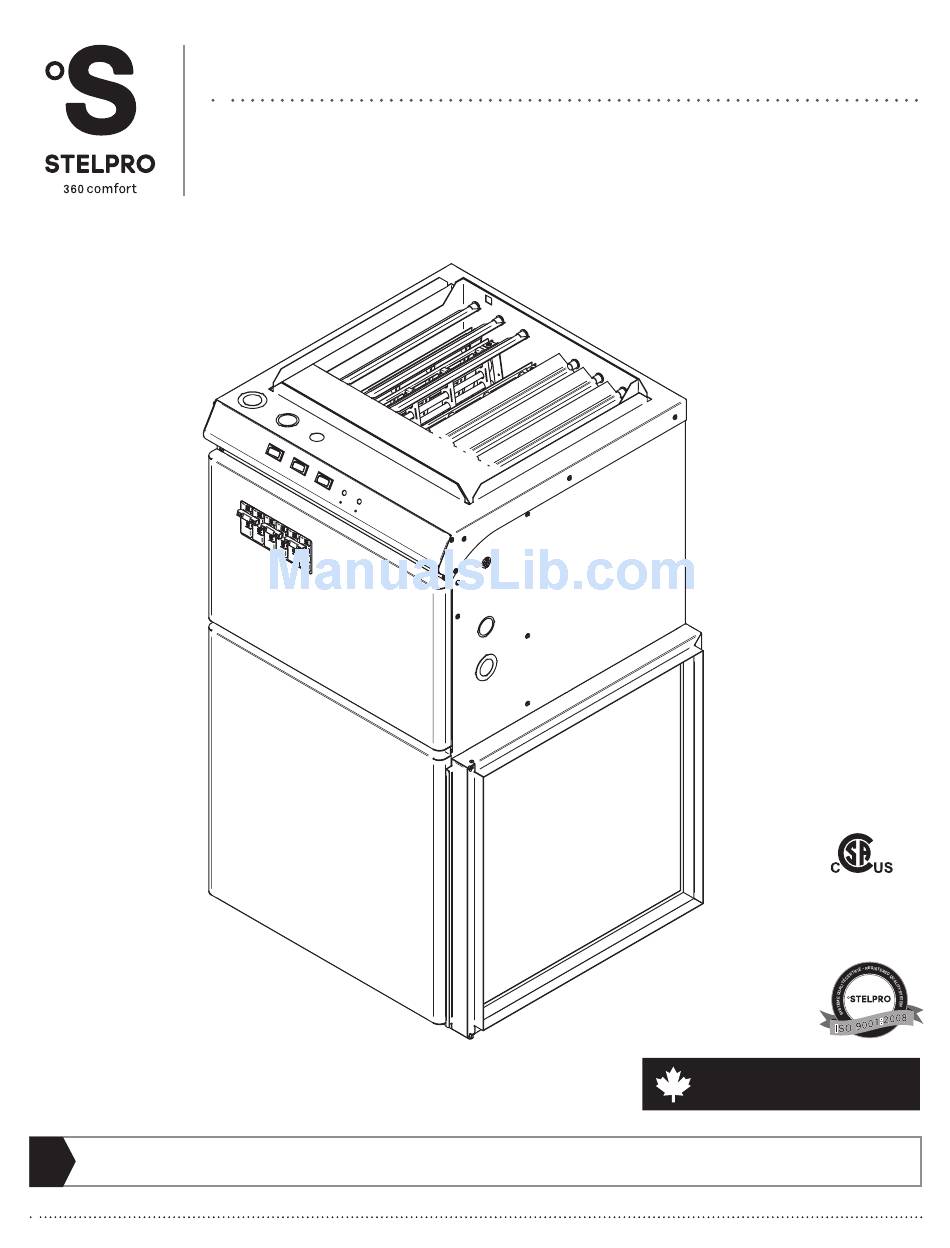

installation guide
sef series
eleCTriC furnACe
This section must be read carefully by the installer.
The installer must also read the user's guide since it contains other important information.
For further information or to consult this guide online, please visit our website at www.stelpro.com
replACemenT ComponenT liST inCluded
This unit
complies with
the cCSAus
standards
This unit is approved according
to the Canadian and American
manufacturing standards.
INSSEFI0313
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stelpro sef series
Summary of Contents for Stelpro sef series
-
Page 1: Installation Guide
This section must be read carefully by the installer. The installer must also read the user’s guide since it contains other important information. For further information or to consult this guide online, please visit our website at www.stelpro.com INSSEFI0313... -
Page 2: Technical Drawings
warning Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future reference. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this product. -
Page 3: Specifications
SpeCifiCATionS eleCTRiC fuRNaCe Type volTs leNgTh (iN.) WidTh (iN.) depTh (iN.) sef1021B 240/208 10/7.5 44/38 36 9/16 20 1/8 21 3/16 sef1521B 240/208 15/11.2 65/56 36 9/16 20 1/8 21 3/16 sef1821B 240/208 18/13.5 78/67 36 9/16 20 1/8 21 3/16 sef2021B 240/208 20/15... -
Page 4: Ducts And Filters
duCTs And fiLTers opTionAL ACCessories Ducts must be designed to deliver airflows to the specified external The furnace is equipped with all devices required for the addition of an static pressure. You should insulate the ducts crossing non-heated air-conditioner or heat pump (except the heat-cool thermostat). The areas. -
Page 5: Operating Sequence
operATing SeQuenCe heATing Mode 1. The thermostat closes the R-W1 circuit, which activates the sequencers and the elements of the first stage one by one. The blower starts-up at the first selected speed (the lowest speed) as soon as the first element is activated. 2. -
Page 6: Preventive Maintenance
mAinTenAnCe Air fiLTer N.B. in order for the warranty to be valid, the unit must be cleaned regularly. Excessive dust or dirt accumulation can block the airflow, forcing the Cut off power supply at circuit breaker/fuse before cleaning the unit to work harder to maintain the desired temperature. Therefore, it unit. - Page 7 replACemenT ComponenT liST Ref. # paRT # desCRipTioN CAP-002 CAPACIToR 20 uF FoR 1 HP AT 240 V WITH SuPPoRT CAP-010 CAPACIToR 6 uF FoR 1/3 HP AT 240 V WITH SuPPoRT MOSEF1023 REPlACEMENT KIT SEF MoToR/BloWER 10-23 KW MOSEF2730 REPlACEMENT KIT SEF MoToR/BloWER 27-30 KW DETAIL E MOSEF1023WB...
-
Page 8: Limited Warranty
Stelpro reserves the right to examine or to ask one of its representatives to examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price or repair a defective part. - Page 9 appendix 1 When you receive your furnace, the air flow dampers (patent pending) are factory pre-adjusted. Moreover, a screw prevents you from closing dampers at a lower position than that pre-adjusted. you must never remove that screw to close the dampers. However, you can open them (equally on each side) to increase the air flow.
- Page 10 1717 1993 2472 1573 1751 1905 1594 1857 2167 1616 1887 2207 1594 1887 2250 L (Low) ; ML (Medium/Low) ; M (Medium) ; MH (Medium/High) ; H (High) sTeLpro design inC. | saint-bruno-de-Montarville | Québec | J3v 6L7 INSSEFI0313...
