Interlogix TruVision NVR 10 Quick Start Manual
Hide thumbs
Also See for TruVision NVR 10:
- User manual (160 pages) ,
- Quick start manual (5 pages) ,
- User manual (153 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for Interlogix TruVision NVR 10
Summary of Contents for Interlogix TruVision NVR 10
- Page 1 TruVision NVR 10 Quick Start Guide P/N 1072767A-EN • REV 1.0 • ISS 18APR14...
- Page 2 Copyright © 2014 United Technologies Corporation. Interlogix is part of UTC Climate Controls & Security, a unit of United Technologies Corporation. All rights reserved. Trademarks and The TruVision and Interlogix names and logos are trademarks of United patents Technologies. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
- Page 3 Figure 1: Back panel connections (8-channel PoE shown) Embedded ports to connect up to eight IP Connect to an HDTV. The HDMI connection cameras (depending on model). supports both digital audio and video. Connect up to four alarm inputs and one alarm Universal Serial Bus (USB) 3.0 port.

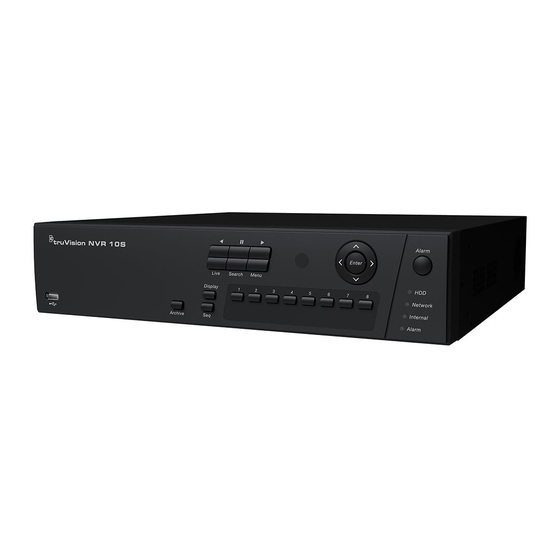

- Page 4 Figure 2: Front panel controls For detailed information on all the button functions, please refer to the user manual. Name Description Live view button Switch to live view mode. Playback buttons Reverse: In live view mode, use to play back the earliest video. In playback mode, playback a camera in the reverse direction.
-
Page 5: Package Contents
Alarm: Red indicates that there is a sensor AlarmIn or another alarm such as motion or tampering. Package contents Basic connections: The TruVision NVR 10 (model TVN 10) is Connect monitor A to the BNC, VGA or shipped with the following items: HDMI output. Connect the mouse to the •... -
Page 6: Web Browser Control
and make changes to settings in the user Operating the TVN 10 interface. There are several ways to control the unit: Connect the mouse to the NVR by plugging • Front panel the mouse USB connector into the USB port on the front panel. The mouse is •... -
Page 7: Live View Mode
Live view mode Name Description Live mode is the normal operating mode of Close Open/close the time bar. the unit where you watch live pictures from Timebar the cameras. Regularly used functions in live view can be Configuring the TVN 10 quickly accessed by clicking the right-button The NVR has an icon-driven menu structure of the mouse on the camera image. -
Page 8: Specifications
(14.25 × 13.07 × 3.11 in.) TVNc: (with front panel) 315 × 236.5 × 47.5 mm (12.4 × 9.3 × 3.11 in.) Weight ≤ 8 kg (≤ 17.6 lb.) (without HDD) Contact information For contact information, see www.interlogix.com, or www.utcfssecurityproducts.eu TVN 10 Quick Start Guide...
