Mechanical Instructions - Philips 170C7FS/00 Service Manual

14
170C7 LCD
Go to cover page

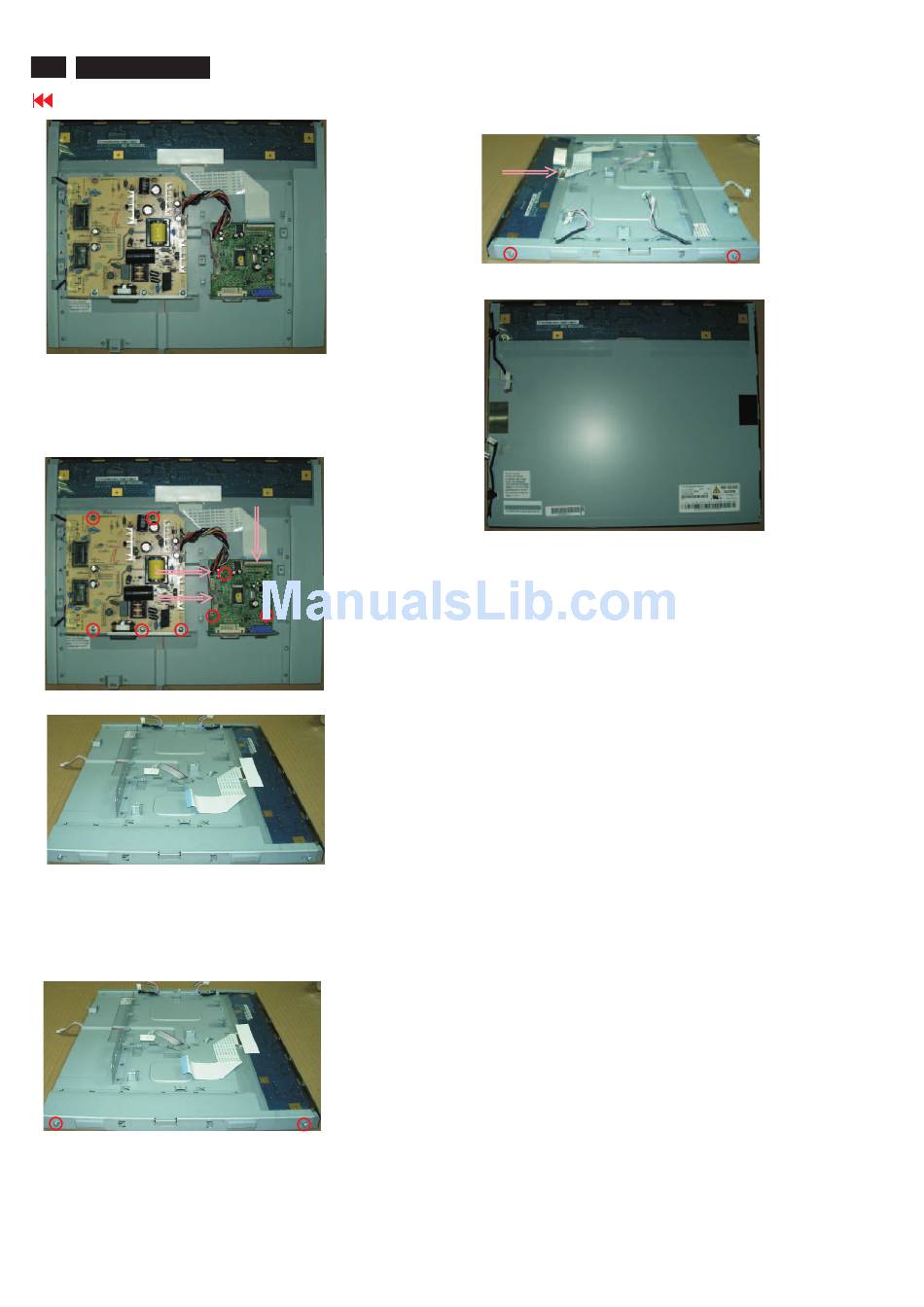

Step 5. Remove the sclar and power board.
- Remove the eight screws as shown in Fig.13
- Disconnect the three cables as shown in Fig.13
- Remove the scaler and power board as shown in Fig.14
Step6. Remove the Metal Frame.
- Remove the two screws as shown in Fig.15
- Remove the two screws as shown in Fig.16
- Disconnect the one cable as shown in Fig.16
Mechanical Instruction
Fig.12
***********************************************************************************************************************************
In warranty, it is not allowed to disassembly the LCD panel, even the
backlight unit defect.
Out of warranty, the replacement of backlight units is a correct way
when the defect is caused by backlight (CCFL, Lamp).
***********************************************************************************************************************************
Fig.13
Fig.14
Fig.15
Fig.16
Fig.17
