CN51 Series Options
What options do you get on the CN51?
1. Keyboard
CN51 Numeric Camera EA30
WEH6.5 WWAN+WLAN CN51AN1KCF1W1000
WEH6.5 WWAN+WLAN CN51AN1KCU2W1000
WEH6.5 WLAN Only CN51AN1KC00W0000
CN51 Numeric Camera EA30
Android 4.1 WWAN+WLAN CN51AN1KCF1A1000
Android 4.1 WWAN+WLAN CN51AN1KCU2A1000
Android 4.1 WLAN Only* CN51AN1KC00A1000
CN51 units include a 3920mAh battery (Part# 318-052-001)
* Android WLAN Only configurations are planned for Q2 2014.

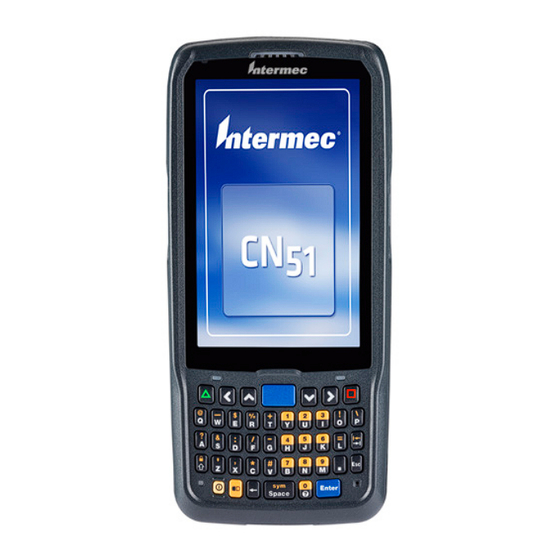

CN51 QWERTY Camera EA30
CN51AQ1KCF1W1000 (NA, LATAM, & ANZ)
CN51AQ1KCU2W1000 (Worldwide except NA, LATAM, ANZ, & China)
CN51AQ1KC00W0000 (Worldwide except China)
CN51 QWERTY Camera EA30
CN51AQ1KCF1A1000 (NA, LATAM, & ANZ)
CN51AQ1KCU2A1000 (Worldwide except NA, LATAM, ANZ, & China)
CN51AQ1KC00A1000 (Worldwide except China)
2. Scan Engine
EA31 EA30
CN51AxxSxxxxxxxx CN51AxxKxxxxxxxx
Engine Type Engine Type
Area Imager Area Imager
Aiming Pattern Aiming Pattern
Typical Scanning Typical Scanning
Distance* Distance*
Min: 6 cm (2.4 in) Min: 6 cm (2.4 in)
Max: 41 cm (xx in) Max: 33 cm (13 in)
Strengths: Strengths:
• Omni-directional 1D • Omni-directional 1D
and 2D scanning and 2D scanning
• Combines the • Combines the
flexibility of 2D flexibility of 2D
and standard range and standard range
scanning scanning
• Superior motion • Superior motion
tolerance tolerance
*Scanning EAN/UPC 1D barcode of 0.33mm (13 mils) density.
3. Pistol Grip
Part# 805-679-001 - Scan Handle, CN51
