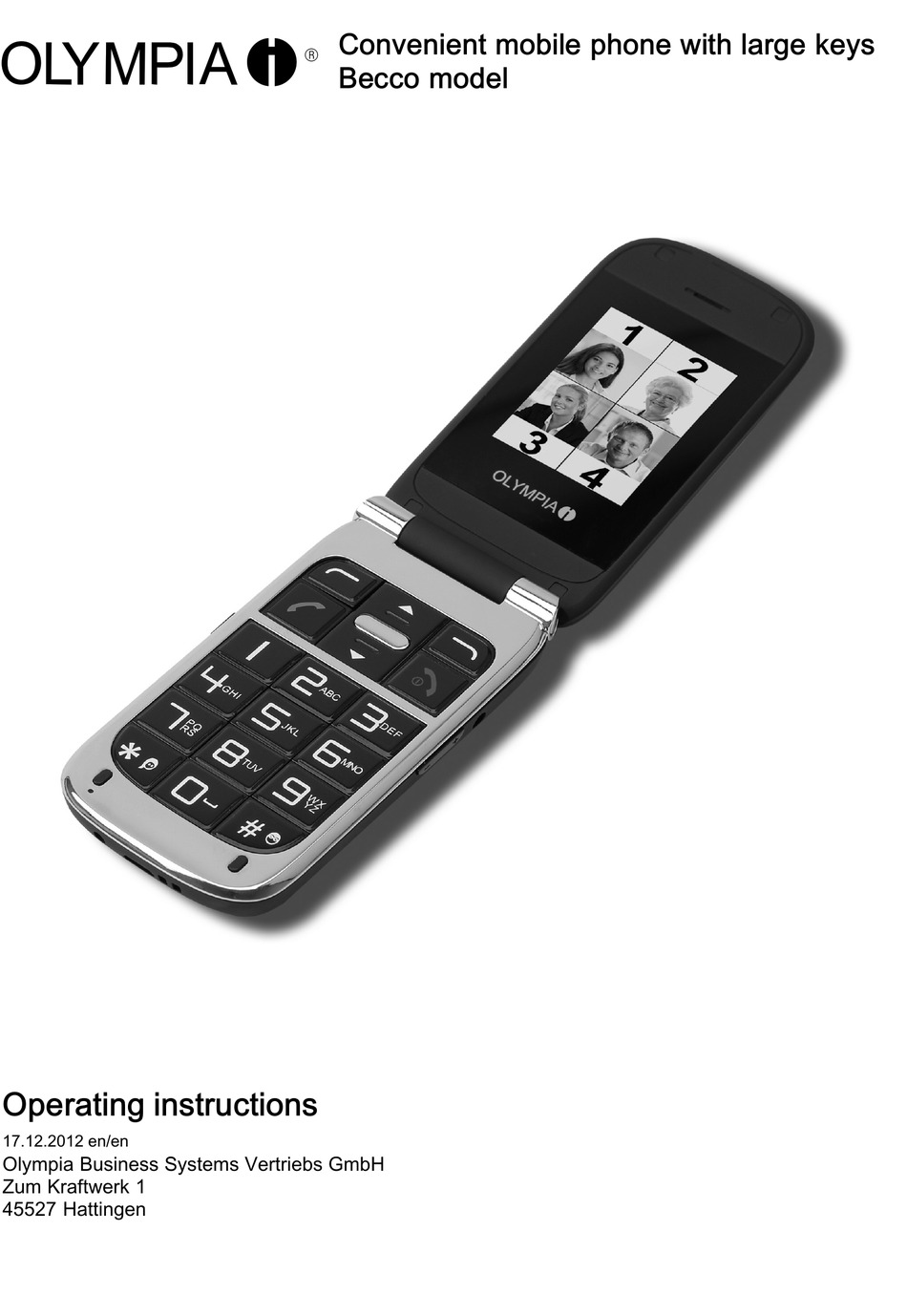

Page 1: Operating Instructions
Convenient mobile phone with large keys Becco model Operating instructions 17.12.2012 en/en Olympia Business Systems Vertriebs GmbH Zum Kraftwerk 1 45527 Hattingen... -
Page 2: Table Of Contents
Contents Setting Up ................Operating Elements . -
Page 3: Setting Up
Setting Up Setting Up Caution: Before you start, please read the safety information on Page 25! Scope of delivery The box contains: 1 phone 1 USB connection cable 1 li-ion battery 1 charging cradle 1 USB charging adapter 1 headset 1 quick reference manual Installing the SIM card Caution:... - Page 4 Setting Up Inserting the microSD memory card The phone memory can be extended by installing the microSD memory card option. This increases the quantity of data which can be stored. 1. Open the silver metal clip above the SIM card slots by sliding it gently downwards until it unlocks with a soft click.
- Page 5 Setting Up Alternatively, you can use the charging cradle supplied. Switching the phone on and off 3 sec. Switch the phone on. 3 sec. Switch the phone off. Note: Some SIM cards will require you to enter a PIN code. Follow the instructions which appear. Battery charge status indicator The current battery charge status is indicated in the display as follows: Full...
-
Page 6: Operating Elements
Operating Elements Operating Elements... - Page 7 Operating Elements Operating Elements Earpiece Display Navigation key, upwards / Camera Right softkey / Picture selection / Back End a call / Switch phone on/off 6 0 - 9 Digit keys 0-9 Hash key / Speed dial number of male contact / Navigation key, right Microphone Star key / Speed dial number of female contact / Navigation key, left 10 C...
-
Page 8: Getting Started
Getting Started Function keys Mode Press Press & Hold Standby Open main menu Menu Select submenu During call Adjust call volume Standby Open call logs Menu Confirm selection Standby Switch phone on/off Menu Move back / Cancel During call End call (on-hook) During call Handsfree function Standby... - Page 9 Getting Started Softkeys Different functions are assigned to the softkeys F and G according to the various menus. Key lock The key lock function is intended to prevent other functions being activated inadvertently. Shut the phone to activate the key lock. The SOS key remains active for use. Navigating in the menu All the functions can be accessed via the various menus.
- Page 10 Getting Started Entering text and numbers The keys on the keypad are also labelled with letters for the entry of text. The phone provides various methods by which text can be entered. These are used when creating or editing entries in the phone book, when searching for names in the phone book and when writing text messages.
-
Page 11: Making And Taking Calls
Making and Taking Calls Making and Taking Calls Taking a call í Take the call. Rejecting a call í Reject the call. Ending a call End the current call. Making a call Enter the phone number. Delete the last digit if incorrect Dial the phone number Dialling numbers from the call logs Your mobile phone stores the last numbers dialled, calls received and calls missed in corresponding... -
Page 12: Call Logs
Call Logs Talk time display The duration of a call is displayed in hours, minutes and seconds during the call. Setting the receiver volume The volume can be adjusted during a call: Adjust the volume to the level required. Exposure to the receiver earpiece at full volume for a long period could cause ear damage. Call Logs Your mobile phone stores the last numbers dialled, calls received and calls missed in corresponding call logs. - Page 13 Call Logs SIM call settings Navigate through the SIM1 call settings menu using the B/C keys and press the F key to select from the following menu options: Call waiting Activate/Deactivate the call waiting option. If enabled, an acoustic signal tells you that another call is coming in while you are making a call.
-
Page 14: Phone Book
Phone Book Phone Book The phone book in the phone can store up to 300 entries. You can store other entries on the SIM card. S Always enter phone numbers with the country and area codes. S When the memory capacity is used up, the corresponding message appears when an attempt is made to store another contact. -
Page 15: Text Messages (Sms)
Text Messages (SMS) Assigning speed dialling numbers To assign phone numbers to a speed dialling key, open the Set numbers -menu and press the following: B/C [digit key] F Select the digit key that you wish to set up as a speed dialling key. B/C [entry] F Select a phone book entry and confirm it. - Page 16 Text Messages (SMS) Inbox Texts messages received are stored in the Inbox folder. Open the Inbox and press the B/C keys to select a message, press the F key and then press the B/C keys to select from the following menu options: View View the text messages.
-
Page 17: Settings
Settings Common settings Navigate through the Common settings menu using the B/C keys and press the F key to select from the following menu options: Delivery report Request a report regarding the delivery of text messages. Reply path Define whether a reply message should be transmitted via the same SMSC. - Page 18 Settings Setting the date and time How to set the time and date in the Time and date menu: B/C Time and date G Select the menu option. B/C HH:MM C Enter the time. B/C YYYY.MM.DD C G Enter the date and confirm it. Display settings Navigate in the Display option using the B/C keys and press the F to select from the following menu options:...
-
Page 19: Bluetooth
Bluetooth Phone security Navigate through the Phone security menu using the B/C keys and press the F key to select from the following menu options: Note: If the phone lock is enabled, you will need to enter the phone lock password every time you switch on the phone. -
Page 20: Organizer
Organizer Organizer The Organizer menu provides helpful everyday utilities. To open the Organizer menu, press: D B/C Organizer Navigate through the Organizer menu using the B/C keys and press the F key to select from the following menu options: Calendar Calendar, Page 20. -
Page 21: Multimedia
Multimedia Alarm Use the Alarm menu to set the alarm clock. Navigate through the Alarm menu using the B/C keys and press the F key to select from the following menu options: Status Define whether the alarm is active or inactive. Time Set the time at which the alarm should wake you up. -
Page 22: User Profiles
User Profiles User Profiles Use the User profiles menu to change the ring tone settings To open the User profiles menu, press: D B/C User profiles F Press the B/C keys to select a profile and then press the F key select from the following options: Activate Activate the profile selected. -
Page 23: Troubleshooting
Troubleshooting Troubleshooting Problems and solutions Problems Solutions The mobile phone can - No battery inserted. not be switched on. - Battery is not charged. No signal quality is - No network connection. The mobile phone is in a location where there displayed. -
Page 24: Technical Properties
Technical Properties Technical Properties Feature Value Standard 850/1900, 900/1800 MHz quad band Dimensions (H x W x D) 104 x 52 x 17 [mm] Weight 87 g incl. battery Power supply Input: 100-240 V, 50-60 Hz, 0.15 A Output: 5 V, 500 mA Battery 3.7 V, 600 mAh Charging time: approx. -
Page 25: Safety Information
Safety Information Safety Information Please read this section carefully. Caution: Risk of suffocation! Keep packaging materials and protective foils out of reach of children. Intended use This mobile phone is designed for use when connected to a mobile phone network. Any other use is considered unintended use. - Page 26 Safety Information Power adapter plug Attention: Only use the power adapter plug supplied because other power supplies could damage the telephone. Ensure access to the power adapter plug is not obstructed by furniture or such. Rechargeable batteries Attention: Never throw batteries into a fire. Only use batteries of the same type. Bar code label in the phone The bar code label contains information on the phone, such as the serial number, for example.
-
Page 27: Maintenance / Guarantee
Maintenance / Guarantee Maintenance / Guarantee Maintenance S Clean the housing surfaces with a soft, fluff-free cloth. S Do not use any cleaning agents or solvents. Guarantee Keep in a safe place! Dear Customer, we are pleased that you have chosen this equipment. In the case of a defect, please return the device together with the receipt and original packing material to the pointofsale. -
Page 28: Declaration Of Conformity
DoC-Nr.: 2151 Rev: 00 1. gemäß der Richtlinie 1999/5/EG (R&TTE) accordance to Directive 1999/5/EC (R&TTE Directive) OLYMPIA Business Systems Vertriebs GmbH ....................... Der Hersteller / Verantwortliche Person erklärt, dass das Produkt: The manufacturer / responsible persondeclares that the product: Mobile Phone Model: Olympia CARO Geräteklasse... -
Page 29: Index
Index Advanced settings, 13 Maintenance , 27 Safety information, 25 Alarm, 21 Making a call, 11 SAR information, 24 Making and taking calls, 11 Scope of delivery, 3 Battery charge indicator, 5 Managing tasks, 20 Security settings, 18 Bluetooth, 19 Methods of entering text, 10 Selecting pictures, 22 Moving the cursor, 10... - Page 30 Please note that the copyright for this operating instruction manual lies with Olympia and, there fore, may not be copied or sold. The data and information in the operating instruction manual is only intended for personal use. All rights reserved.
