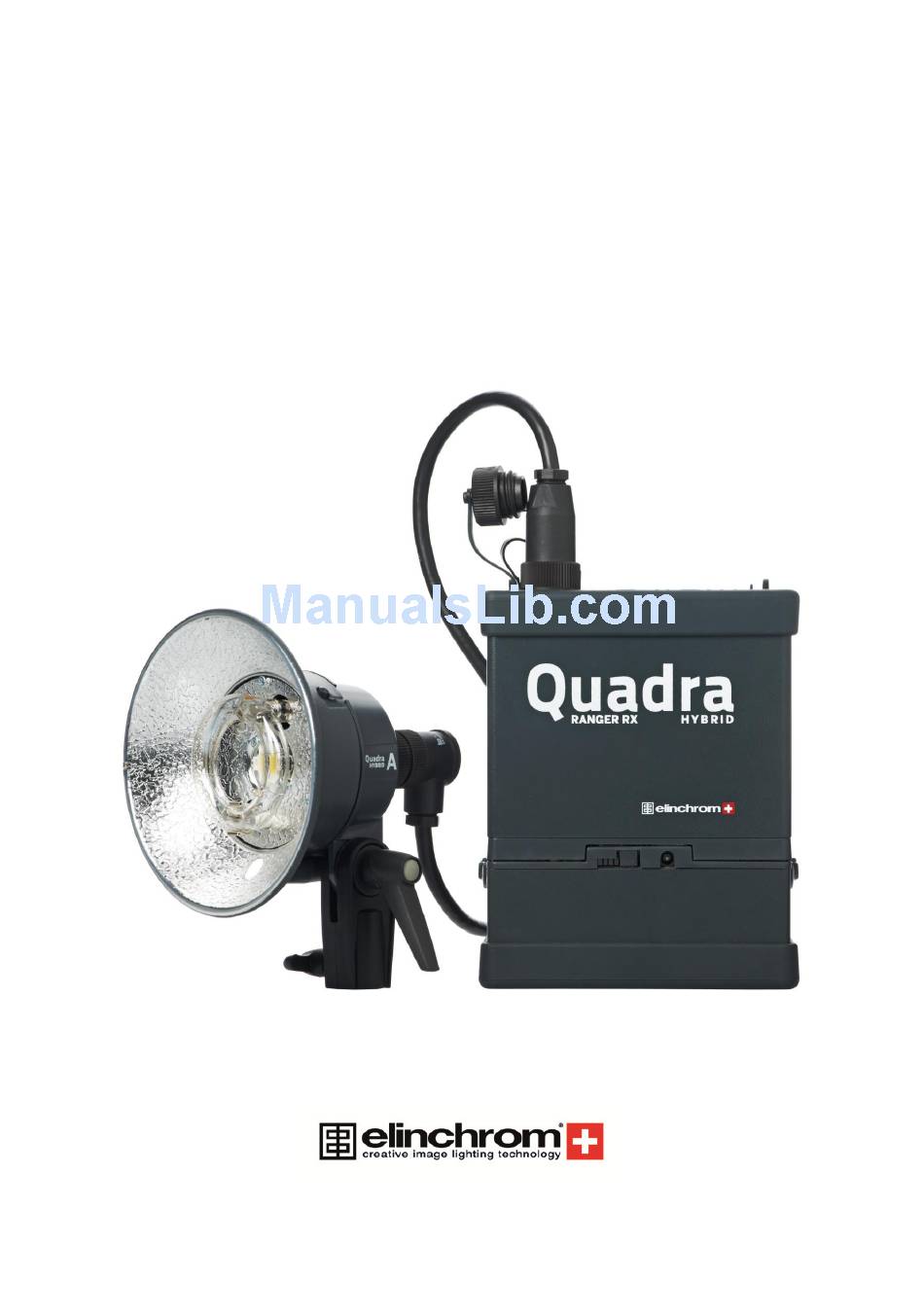

- Page 1 Ranger Quadra Service manual English Elinchrom SA (74010) r8...
-
Page 2: Table Of Contents
ABLE OF CONTENT ABLE OF CONTENT 1. S AFETY NOTICE 2. O PERATION INSTRUCTION 3. S PARE PARTS 3.1. Ranger Quadra 4. S ERVICE MENU 4.1. Software configurations 4.2. Overview 4.3. How to operate in the Service menu 5. T ROUBLE SHOOTING 6. -
Page 3: Safety Notice
1. S AFETY NOTICE The interior of the Elinchrom devices contain components carrying dangerous levels of electric charge, even though the unit has been disconnected from the mains or without Before all servicing operations or repairs, you must execute the supply battery. - Page 4 Ranger Quadra 4. Discharge HHT A and HTT B of the outlet A and B by using the RQ discharge cable Note: Always use the RQ discharge cable alone on the discharging box. 5. Remove the rubber and the housing of the unit.
-
Page 5: Operation Instruction
Figure 1: Control panel Manual flash release Power settings + Power settings - LED Pilotlight ON /OFF Auto-OFF Slow Charge Outlet A Note: Please use the Ranger Quadra User Manual for more information about how to operate the device and its special functions. -
Page 6: Spare Parts
Ranger Quadra 3. S PARE PARTS 3.1. Ranger Quadra Min. Item number Description Package POWER CONTROL BOARD RQ HYBRID 230.056.ADJ (Adjusted) PCB ISOLATION POWER BOARD+SLICE 230.086 ADHESIVE BUZZER (F/UCW06) 107.026 Buzzer on 230.056.ADJ 660.064.SAV FLASH BOARD RANGER Q PCB SYNCHRO SOCKET JACK 3.5MM 230.300... - Page 7 REFLEC INTERN A HEAD RQ HYBRID 660.167.SAV (Tested) RQ HYBRID S HEAD REFLECT ASS 660.168.SAV (Tested) CAR FUSES 20A/32V 230.160 For all Ranger Quadra battery BATTERY LI-ION COMPLETE RANGER Q 19295 Lithium-Ion battery CHARGER LI-ION MULTIVOLTAGE 19279 Only for lithium-ion battery 19295 Elinchrom SA...
- Page 8 Ranger Quadra CHARGER LI-ON CAR CIGAR RANGER Q 11037 HYBRID Only for lithium-ion battery 19295 BATTERY BOX COMPLETE RANGER Q 19294 Lead battery BATTERY 12V/3.6AH RANGER Q+CLAMPING 230.151 FOAM Only for lead battery 19294 1/2 BATTERY HOUSING RANGER Q 230.100...
- Page 9 Ranger Quadra SCREW COUNTERSUNK HEAD 6 LOBE M3x6 211.892 ZgBl 211.893 SCREW TRUSS HEAD 6 LOBE M3x10 BLACK 211.819 SCREW PAN HEAD Zgbl KA30x8 226.025 TRIGGER FORK 230.255 SIDE LABEL QUADRA A-HEAD 230.261 LABEL RANGER HYBRID QUADRA A-HEAD 230.265 SIDE LABEL QUADRA S-HEAD 230.271...
-
Page 10: Service Menu
Power range Ranger Quadra AS 2.0 – 6.0 Ranger Quadra AS RX 2.0 – 6.0 Ranger Quadra Hybrid AS RX 2.0 – 6.0 Note: Do always set the correct unit type after replacing the KBD board! 4.2. Overview Sub menu... -
Page 11: Trouble Shooting
6. K NOWN PROBLEMS AND For a complete up-to-date list with all known problems and its solutions please login on your online Elinchrom support account (http://www.elinchrom.ch). There you may also find a file for frequently asked questions. Elinchrom SA 11/11...
