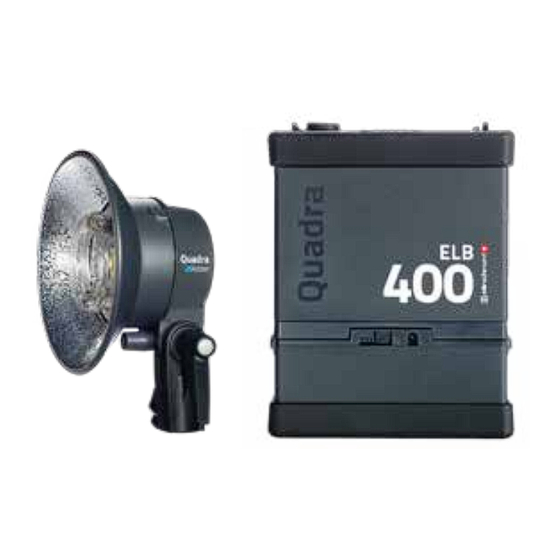

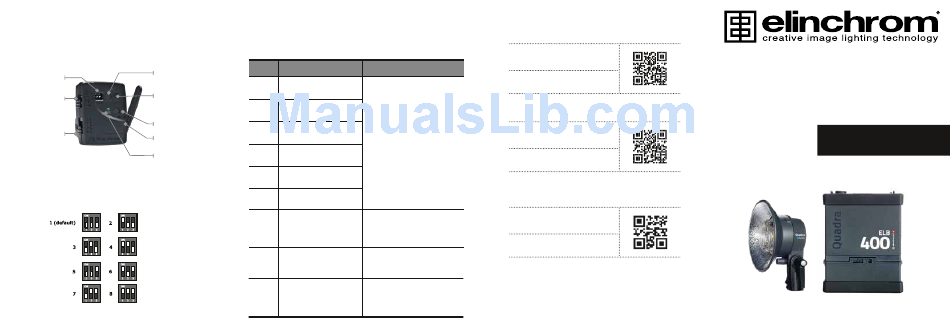

Elinchrom Quadra ELB 400 Quick Start Manual

EL-SKYPORT TRANSMITTER SPEED
RX feature button
Frequency
Power decrease
channel selector
RX feature button
power increase or
MODE switch
modelling lamp toggle
Flash test / flash mode /
configuration button
GROUP switch
Flexible swivel
antenna 360
Status LED
FREQUENCY CHANNEL
ERROR MANAGEMENT
ERROR
DESCRIPTION SOLUTION
NUMBER
1 Capacitor over voltage
3 Discharge timeout error
Switch the unit off, wait 2 minutes
4 Charge timeout error
and switch the unit on again. If the
error shows up again the unit
requires a check up at an authorized
15 Temperature sensor error
Elinchrom service centre.
60 Communication bus error
90 Safety stop system (generic error)
Wait until the unit has cooled down.
The unit will switch back to the
2 System over heat normal operation as soon as the
temperature decreases to a normal
working level.
The unit has detected a mains
supply fault. Please check the
11 Battery low
mains/battery supply. It could be
not working correctly.
Switch the unit off, wait 2 minutes
and switch the unit on again. If the
61 Battery unseal error error shows up again the battery
requires a check up at an authorized
Elinchrom service centre.
DOWNLOAD THE ELB 400 USER GUIDE
Please get the complete user guide
at this link:
http://bc.gs/32
DOWNLOAD CONFORMITY
Please find the declaration for EC
conformity and USA & Canada
conformity on the Elinchrom website.
http://bc.gs/ec
EL-ENTERPRISE APP FOR iOS ™
Please download our corporate
iOS App on App Store :
™ ™
http://bc.gs/14
Please check all security documents before use !
Elinchrom LTD - ELB 400 - Made in Switzerland
