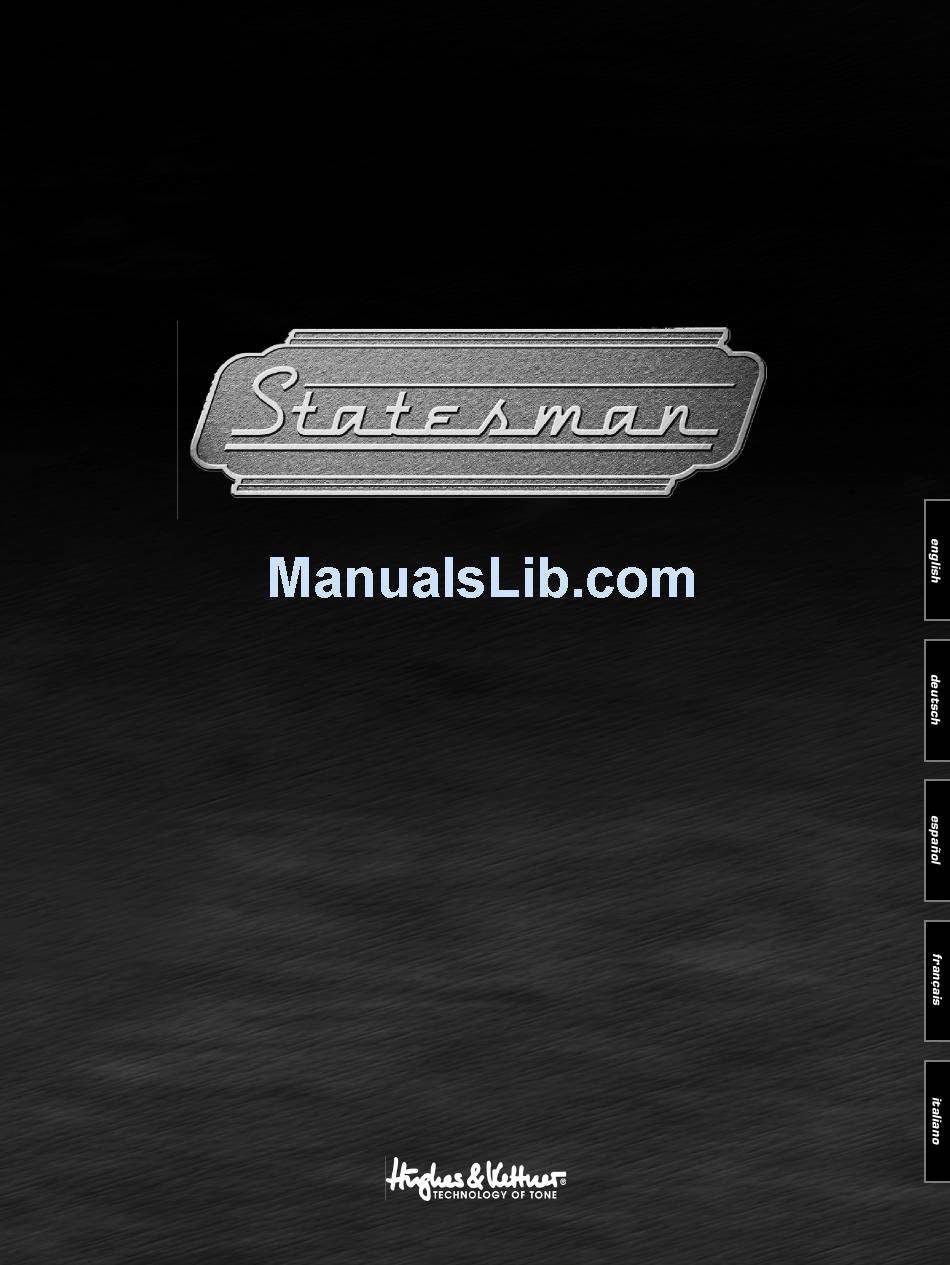

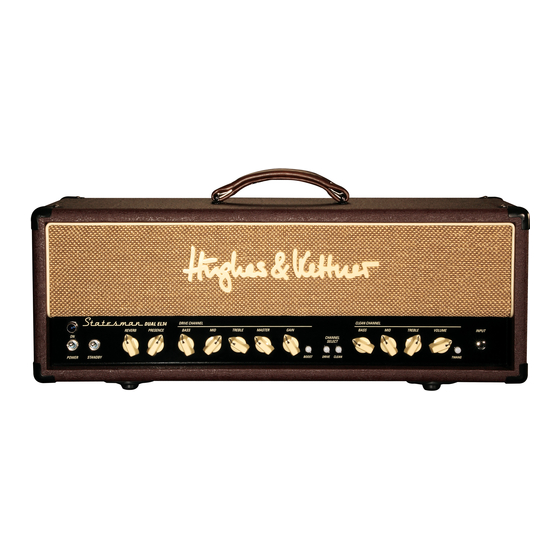

- Page 1 S t a t e s m a n Head EL34 & Combo 6L6 M an u a l 1 . 0...
- Page 2 Statesman Series Foreword The Hughes & Kettner Statesman Series brings together for the fi rst match cabinets either, say by plugging a 4-ohm cabinet into the 4-ohm time what classic rock as well as blues & country guitarists have been output and a 16-ohm cabinet into the 16-ohm output.
-
Page 3: Table Of Contents
CONTENTS 1. Connections & Operating Elements 2. Standard Set Up / Cabling 3. Tubes, Servicing & Maintenance 4. Possible Error Sources / Troubleshooting 5. Technical Data... -
Page 4: Connections & Operating Elements
Statesman Series . Connections & Operating Elements STANDBY This switch controls the high voltage power supply to the tubes. When engaged, anode voltage is applied to the tubes‘ filaments only so that Front side (from right to left) the tubes remain warm and ready to rock. When taking a short break from playing, please use STANDBY rather than ON/OFF so the tubes INPUT remain at operating temperature. -
Page 5: Standard Set Up / Cabling
SERIAL/PARALLEL . Standard Set Up / Cabling SmartLoop™ is a special effects routing circuit offering a switchable parallel/serial effects loop. In parallel mode the processed signal is added to the original signal of the preamp. In serial mode (SERIAL is activated), SmartLoop™... -
Page 6: Possible Error Sources / Troubleshooting
Statesman Series cable? If you don’t get to the bottom of the problem and remedy it, 8. Put on all jumpers. Attention: Do not forget to put the jumpers on it may crop up again even after you replace the tubes. again after successful alignment! Never operate the amp without •... - Page 7 Statesman is connected properly, but no sound is audible. • The guitar’s VOLUME knob is turned all the way down. • The amp’s VOLUME knob is turned all the way down. • The effects loop is active and set to SERIAL, but no effect device is connected.
-
Page 8: Technical Data
Statesman Series . Technical Data All level indications relate to 0 dBV (1V RMS) Inputs INSTRUMENT Input Jack spring jack Input design unbalanced 1M hm Input impedance Sensitivity -18 dBV / 1kHz (with Clean, all controllers in middle position) Maximum Input level 1,3 dBV / 1kHz FX Return Jack... - Page 9 english español IMPORTANT ADVICE ON SAFETY! PLEASE ¡INDICACIONES DE SEGURIDAD READ BEFORE USE AND KEEP FOR LATER IMPORTANTES! USE! ¡LÉANSE ANTES DE UTILIZAR EL APARATO Y GUARDENSE PARA SU USO POSTERIOR! • The unit has been built by Hughes & Kettner in accordance with IEC 60065 and left the factory in safe working order.
- Page 10 This is to certify that Für das folgend bezeichnete Erzeugnis Hughes & Kettner Hughes & Kettner Statesman EL 34 Head & 6L6 Combo Statesman EL 34 Head & 6L6 Combo complies with the provisions of the Directive of the Council wird hiermit bestätigt, dass es den wesentlichen Schutz- of the European Communities on the approximation of anforderungen entspricht, die in der Richtlinie des Rates zur...
- Page 11 Hughes & Kettner Postfach 1509 66595 St. Wendel Tel: +49 (0) 68 51 - 905 0 Fax: +49 (0) 68 51 - 905 103 International Inquiries: Fax: +49 - 68 51 - 905 200 hkinternational@hughes-and-kettner.com www.hughes-and-kettner.com Copyright 2007 by Music & Sales GmbH Subject to change without notice...
