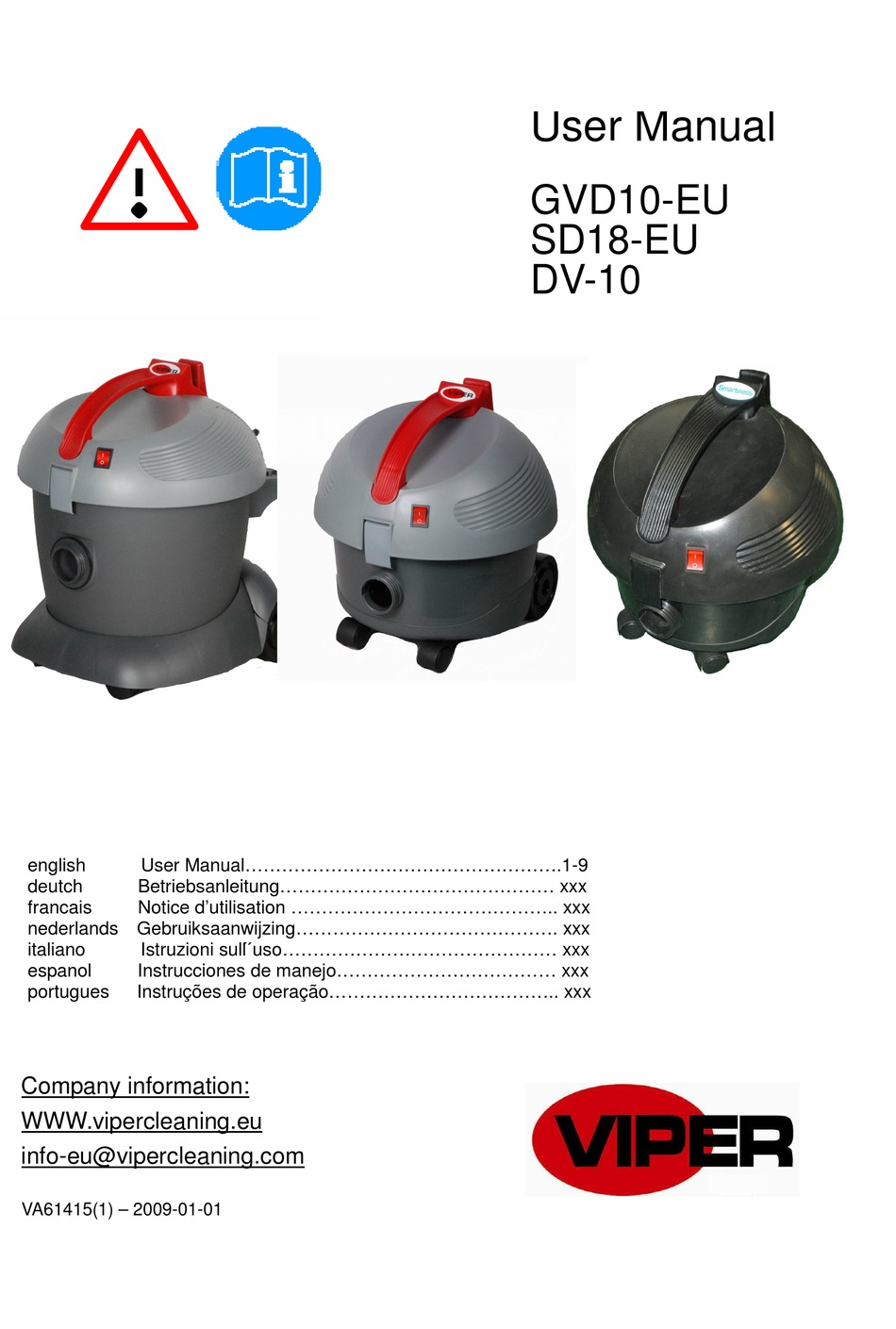

- Page 1 User Manual GVD10-EU SD18-EU DV-10 english User Manual…………………………………………….1-9 deutch Betriebsanleitung……………………………………… xxx francais Notice d’utilisation …………………………………….. xxx nederlands Gebruiksaanwijzing……………………………………. xxx italiano Istruzioni sull ´ uso……………………………………… xxx espanol Instrucciones de manejo……………………………… xxx portugues Instruções de operação……………………………….. xxx Company information: WWW.vipercleaning.eu info-eu@vipercleaning.com...
-
Page 2: Table Of Contents
TECHNICAL DATA................................... 7 WIRING DIAGRAM..................................8 OPERATION OF DRY VACUUM............................9 BASIC OPERATION................................... 9 MAINTENANCE..................................10 STOREAGE....................................10 VA61415(1)2009-01 SD18-EU GVD10-EU DV-10... -
Page 3: Introduction
TARGET This Manual is intended for operators and technicians qualified to perform the machine maintenance. The operators must not perform procedures reserved for qualified technicians. VIPER will not be answerable for damages coming from the non-observance of this prohibition. HOW TO KEEP THIS MANUAL The User Manual must be kept near the machine, inside an adequate case, away from liquids and other substances that can cause damage to it. -
Page 4: Changes And Improvements
ENGLISH CHANGES AND IMPROVEMENTS VIPER constantly improves its products and reserves the right to make changes and improvements at its discretion without being obliged to apply such benefits to the machines that were previously sold. Any change and/or addition of accessories must be approved and performed by VIPER. -
Page 5: General Instructions
– To avoid any risk, if the power supply cable is damaged, contact VIPER Service Center or a qualified technician. – Do not pull or carry the machine by the power supply cable and never use the power supply cable as a handle. Do not close a door on the power supply cable, or pull the power supply cable around sharp edges or corners. - Page 6 • is wet or has been dropped into water turn it off immediately and contact VIPER Service Center or a qualified technician. – If parts must be replaced, require ORIGINAL spare parts from an Authorised Dealer or Retailer.
-
Page 7: Machine Description
MACHINE DESCRIPTION MACHINE STRUCTURE 1. Carring handle 6. Wheel 2. On/off switch 7. Tank 3. Snap handle 8. Motor cover 4. Hose intake 9. Mains cord 5. Casters 10. Holder , Combination tool SD18-EU GVD10-EU DV-10 SD18-EU GVD10-EU DV-10 VA61415(1)2009-01... -
Page 8: Technical Data
4.5 A 4.8 A Frequency 50-60Hz 50-60Hz 50-60Hz Capacitor Vacuum 2032mmH 2032mmH 2159mmH Flow rate 3398L/Min 3398L/Min 3036L/Min Sound pressure level 59 dB(A) 61 dB(A) 65dB(A) at workstation Weight 10kg 8.6kg 8.5kg Length of Power cord VA61415(1)2009-01 SD18-EU GVD10-EU DV-10... -
Page 9: Wiring Diagram
220V~240V 50/60HZ BLUE BLUE SINGLE Motor PHASE GREEN GREEN SUPPLY H05RN-F 3X0.75 Power Supply Cord WIRING DIAGRAM FOR DV-10 SWITCH 220~240V BROWN BROWN 50/60HZ SINGLE BLUE BLUE PHASE Motor SUPPLY H05VV-F 2X0.75 Power Supply Cord SD18-EU GVD10-EU DV-10 VA61415(1)2009-01 ENGLISH... -
Page 10: Operation Of Dry Vacuum
2] Check power cord for any damage .If any damage is detected, replace the cord immediately. 3] Lubricate casters with a water resistant lubricant every month. 4] Check machine for loose or missing nuts and bolts and replace as necessary. VA61415(1)2009-01 SD18-EU GVD10-EU DV-10... -
Page 11: Storeage
2] Store in upright position in a dry area. ombination tool (1) to the holder (2) (Only for SD18) 3] Attach the c Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. SD18-EU GVD10-EU DV-10 VA61415(1)2009-01...
