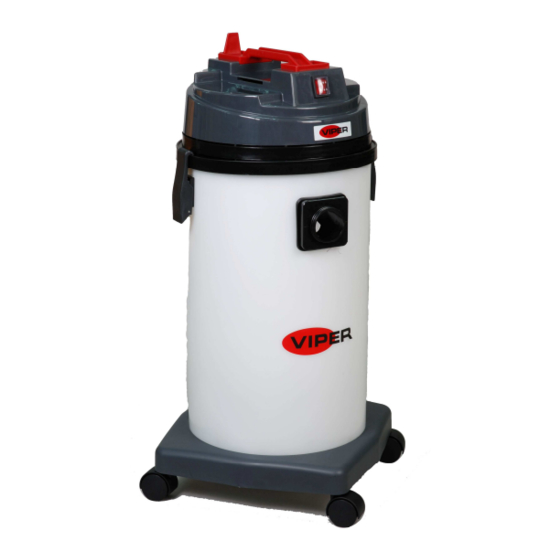

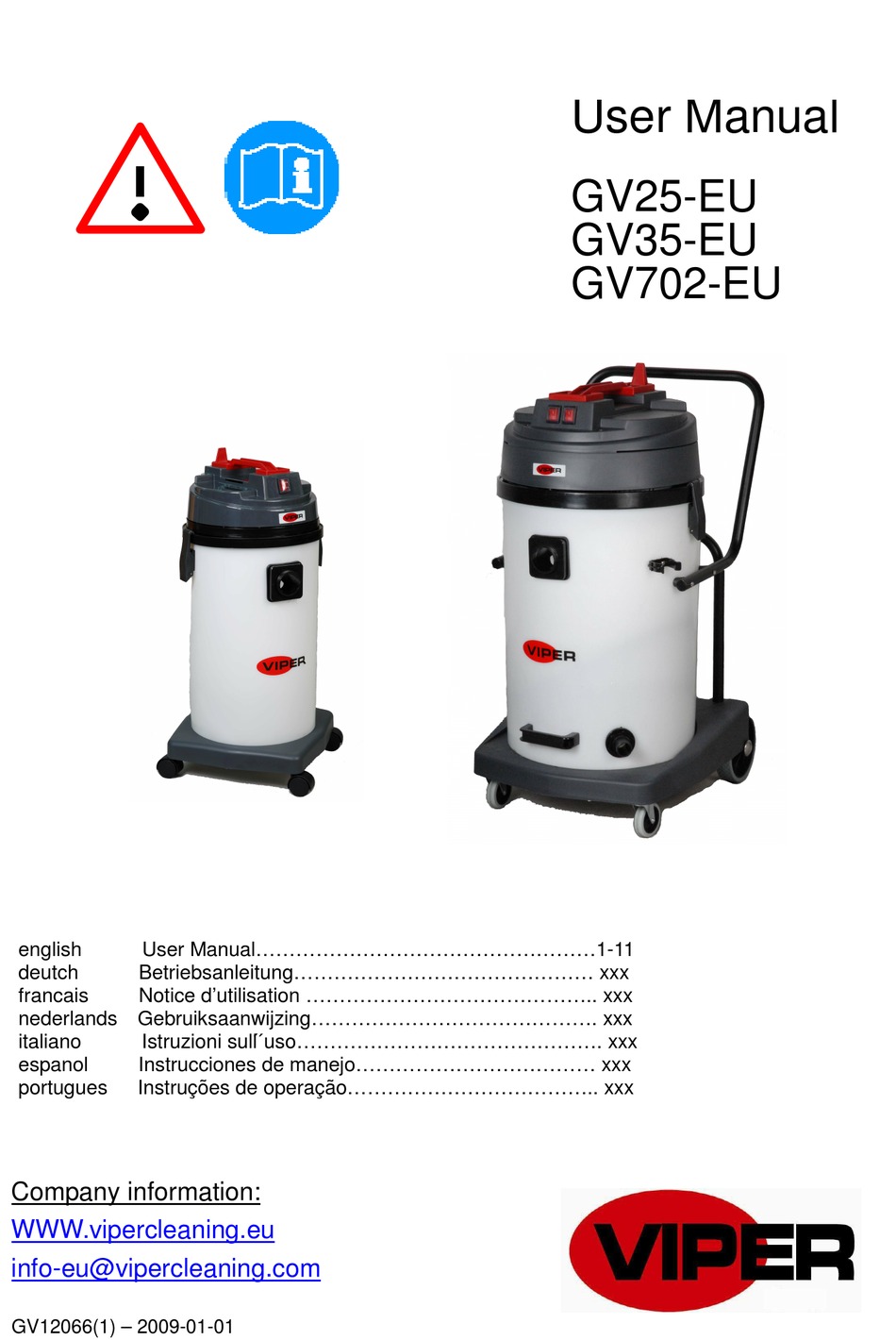

User Manual
GV25-EU
GV35-EU
GV702-EU
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Viper GV35-EU
Summary of Contents for Viper GV35-EU
- Page 1 Betriebsanleitung……………………………………… xxx francais Notice d’utilisation …………………………………….. xxx nederlands Gebruiksaanwijzing……………………………………. xxx italiano Istruzioni sull ´ uso………………………………………. xxx espanol Instrucciones de manejo……………………………… xxx portugues Instruções de operação……………………………….. xxx Company information: WWW.vipercleaning.eu info-eu@vipercleaning.com GV12066(1) – 2009-01-01 User Manual GV25-EU GV35-EU GV702-EU...
-
Page 2: Table Of Contents
OPERATION OF WET&DRY VACUUM... 9 BASIC OPERATION....9 MAINTENANCE....10 STOREAGE......11 GV12066(1)2009-01 USER MANUAL TABLE OF CONTENTS GV25-EU GV35-EU GV702-EU ENGLISH... -
Page 3: Introduction
TARGET This Manual is intended for operators and technicians qualified to perform the machine maintenance. The operators must not perform procedures reserved for qualified technicians. VIPER will not be answerable for damages coming from the non-observance of this prohibition. HOW TO KEEP THIS MANUAL The User Manual must be kept near the machine, inside an adequate case, away from liquids and other substances that can cause damage to it. -
Page 4: Changes And Improvements
CHANGES AND IMPROVEMENTS VIPER constantly improves its products and reserves the right to make changes and improvements at its discretion without being obliged to apply such benefits to the machines that were previously sold. Any change and/or addition of accessories must be approved and performed by VIPER. -
Page 5: General Instructions
– To avoid any risk, if the power supply cable is damaged, contact VIPER Service Center or a qualified technician. – Do not pull or carry the machine by the power supply cable and never use the power supply cable as a handle. Do not close a door on the power supply cable, or pull the power supply cable around sharp edges or corners. - Page 6 • is wet or has been dropped into water turn it off immediately and contact VIPER Service Center or a qualified technician. – If parts must be replaced, require ORIGINAL spare parts from an Authorised Dealer or Retailer.
-
Page 7: Machine Description
ENGLISH USER MANUAL MACHINE DESCRIPTION MACHINE STRUCTURE（ （ （ （ GV25-EU GV35-EU） ） ） ） 1. Handle 2. Cover 3. Mains cord 4. Catch 5. Tank MACHINE STRUCTURE（ （ （ （ GV702-EU） ） ） ） 1. Carring handle 2. On/off switch 3. -
Page 8: Technical Data
STANDARD ACCESSORY SET (GV25-EU GV35-EU) 1. Wet pick-up tool (300mm) 2. Crevice tool 3. Combination tool 4. Tube STANDARD ACCESSORY SET (GV702-EU) 1. Combination tool 2. Upholstery tool 3. Dusting tool 4. Crevice tool 5. Tube TECHNICAL DATA Model Voltage... -
Page 9: Wiring Diagram
SUPPLY H05RN-F 3X0.75 Power Supply Cord WIRING DIAGRAM FOR 220V 50/60HZ SINGLE PHASE SUPPLY H05RN-F 3X1 Power Supply Cord GV25-EU GV35-EU GV702-EU GV25-EU GV35-EU SWITCH BROWN BROWN BLUE BLUE GV702-EU SWITCH NO1 BROWN BLUE SWITCH NO2 BROWN BLUE Motor BROWN... -
Page 10: Operation Of Wet&Dry Vacuum
You are now ready to start again. Emptying GV25-EU GV35-EU 1. Release the latches (1) by pulling the lower parts outwards so that the motor top (2) is released, Remove the motor top (2). -
Page 11: Maintenance
6] The motor is built for maintenance-free operation and does not need any particular service. The carbon brushes may need to be replaced due to normal wear and tear caused by using the vacuum cleaner over time, and they can be replaced only by an authorized VIPER distributor. ATTENTION 1. -
Page 12: Storeage
STORAGE 1] Unplug machine from power source. 2] Store in upright position in a dry area. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. GV12066(1)2009-01 USER MANUAL GV25-EU GV35-EU GV702-EU ENGLISH...
