Summary of Contents for Viper GV25

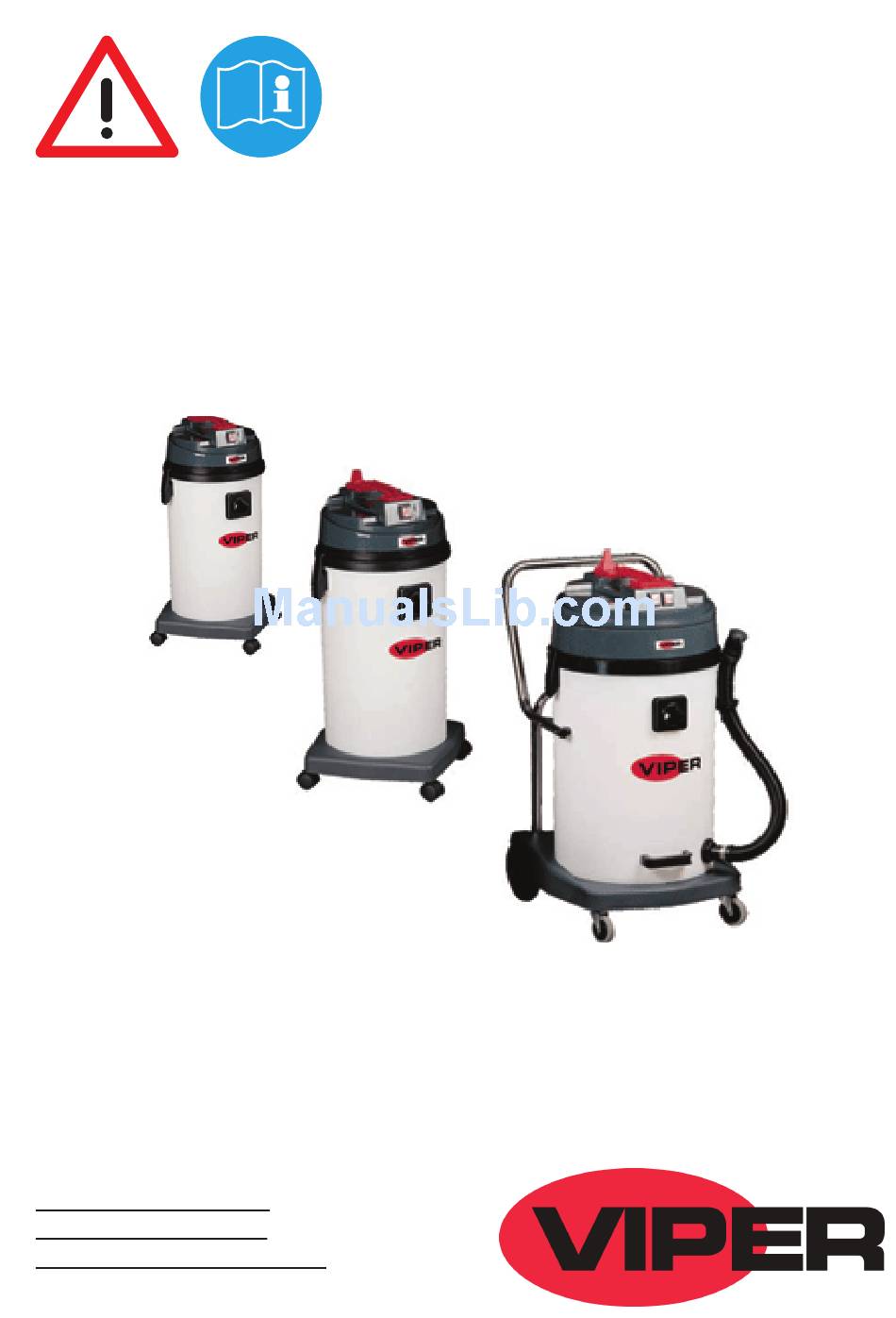

- Page 1 User Manual Original instructions GV25 GV35 GV702 Company information: www.vipercleaning.eu info-eu@vipercleaning.com GV12066 (1) – 2012-04-10...
-
Page 3: Table Of Contents
MACHINE dESCrIpTION ............................... 8 MaCHine struCture GV 25 / GV 35 ............................8 MaCHine struCture GV 702 ..............................8 teCHniCal data ................................... 9 wirinG diaGraM for GV25-eu GV35-eu ..........................10 wirinG diaGraM for GV702-eu ............................. 10 OpErATION .................................. 10 BASIC OpErATION ..............................10 MAINTENANCE ................................ -
Page 4: Introduction
All necessary operating, maintenance and repair procedures must be performed out by qualified personnel or by Viper Service Centers. only original spare parts and accessories must be used. Contact Viper for service or to order spare parts and accessories, specifying the machine model and serial number. -
Page 5: Conventions
USER MANUAL ENGLISH CONVENTIONS forward, backward, front, rear, left or right and up are intended with reference to the operator’s position, that is to say in working position with the handle. UNpACkING/dELIVEry to unpack the machine, carefully follow the instructions on the packing. when the machine is delivered, check that the packing and the machine were not damaged during transportation. - Page 6 (e.g. by driving over it, pulling or crushing it). regularly check whether the power cord is damaged or shows signs of ageing. Have the faulty mains connecting lead replaced by your Viper service representative or a qualified electrician prior to using the appliance again.
- Page 7 Viper. Only use the accessories and detergents supplied with the appliance or those specified in the operating instructions.
-
Page 8: Machine Description
ENGLISH USER MANUAL MACHINE dESCrIpTION MACHINE STrUCTUrE GV 25 / GV 35 (1) Handle (6) Caster (2) Cover (7) Mounting base (3) Mains cord intake (4) Catch (9) on/off switch (5) dirt tank MACHINE STrUCTUrE GV 702 (1) Carring handle (9) Castor (2) on/off switch (10) wheel... -
Page 9: Technical Data
USER MANUAL ENGLISH STANdArd ACCESSOry SET (GV25-EU GV35-EU) (1) wet pick-up tool (300mm) (5) Hose (2) Crevice tool (6) upholstery tool (3) Combination tool (7) dusting tool (4) tube STANdArd ACCESSOry SET (GV702-EU) (1) Combination tool (6) paper bag (2) upholstery tool (7) Filter basket with cloth filter... -
Page 10: Wiring Diagram For Gv25-Eu Gv35-Eu
ENGLISH USER MANUAL wIrING dIAGrAM FOr GV25-EU GV35-EU wIrING dIAGrAM FOr GV702-EU OpErATION BASIC OpErATION Check that the vacuum cleaner is switched off. Check that there is a cloth filter inserted in the dirt tank. Connect the suction hose: push the hose (2) into the suction inlet (1) until it is sliding in place. to release the hose from machine just twist and pull out the hose. - Page 11 EMpTyING GV25-EU GV35-EU release the latches (1) by pulling them outwards and remove the upper section of the vacuum cleaner (2). disconnect the hose (3) from the inlet (4) by screwing the hose outwards.
-
Page 12: Maintenance
Viper service Center. CAUTION! to avoid the risk of electrical shock, always insure the the four insulation bushes (1) are installed. - Page 16 Company information: www.vipercleaning.eu info-eu@vipercleaning.com...
