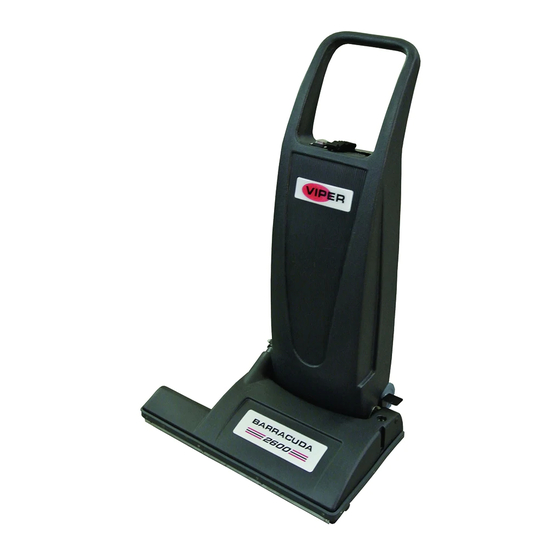

Page 1: Owners Manual
DUAL MOTOR VACUUM www.usviper.com OWNERS MANUAL IMPORTANT: READ OWNERS MANUAL CAREFULLY Please fill out & return your warranty card! CUDA26 MODEL# SERIAL# VIPER NORTH AMERICA VIPER ...exceptional P.O. BOX 104 value HAMILTON, MI 49419 (866) 418-4737 REV.02(08-07) (866) 41 - VIPER VA51063... -
Page 2: Table Of Contents
CONGRATULATIONS on your purchase of a Viper product, and welcome to the V.I.P. family. We appreciate your business and will do everything in our power to keep you happy with your purchase for many years to come. As part of the V.I.P. family, you are entitled to the best protection by one of the most comprehensive warranties in the industry. -
Page 3: Safety Precautions
1) Do not operate machine: - Unless trained and authorized SAFETY PRECAUTIONS - Unless you have read and understand operators manual GROUNDING INSTRUCTIONS - In flammable or explosive areas. General – This carpet vacuum shall be - With damaged or modified cord or grounded while in use to protect the plug. -
Page 4: Machine Components
MACHINE COMPONENTS 1) Handle 2) Power cord 3) Door latch 4) Power switch 5) Attachment tool intake & cord wrap 6) Vacuum hose 7) Brush housing 8) Brush height adjustment 9) Rear wheels 10) Exhaust vent 11) Handle height adjustment 12) Brush circuit breaker (bottom side) 13) Brush assembly (bottom side) 14) Rear door... -
Page 5: Machine Operation
3) Occasionally check the bag for MACHINE OPERATION fullness & replace as necessary. 4) If brush stops spinning, there may be PRIOR TO VACUUMING CARPETS an obstruction in the brush. Unplug 1) Inspect power cable and extension the power cable, raise the brush off cable for damage. -
Page 6: Machine Maintenance & Storage
5) Check paper bag / filter for fullness. VACUUM BAG INSTALLATION & If it is full, replace with a new one. REMOVAL 6) Check vacuum motor filter and 1) Unlock rear door latch, and allow exhaust filter for debris and clean as door to hinge open. -
Page 7: Troubleshooting
Power cord is faulty Replace with approved power cord Building circuit breaker tripped Reset circuit breaker Faulty wiring Contact Viper Distributor Faulty on / off switch Contact Viper Distributor Check brush and belt for obstructions and Brush does not work... -
Page 8: Parts Breakdown
PARTS LIST... - Page 9 PARTS LIST PART DESCRIPTION NUMBER REQ'D VA51009 HANDLE HOUSING VA51025 PAPER BAG, DUST, 10.5qt. VA51067 CLOTH BAG, DUST(OPTIONAL) VA51007 REAR COVER AND BAG HOLDER GT13022 NUT, M5, NYLON INSERT VA51034 GASKET, ADAPTER VA51008 ELBOW ADAPTER, HOSE VA51022 PLUG AND CORD HOOK VV20501 SCREW, M5x14 VA13489...
- Page 10 SCREW, SELF-TAPPING, ST4.8x25 VA51032 RETAINER RING, VACUUM MOTOR VA51033 GASKET, VACUUM MOTOR ZD52000A VACUUM MOTOR, 115V VA51049 FILTER, VACUUM MOTOR VF82082 LOGO, "VIPER" VA65001 POWER CORD, 14/3C, SJTW, 50FT VA51044 STRAIN RELIEF, CORD VF83109 CATCH VV13650 SCREW, M4x10 VA51026 PLATE, SWITCH...
-
Page 11: Accessories
ACCESSORIES ACCESSORIES PARTS LIST(OPTIONAL) PART DESCRIPTION NUMBER REQ'D VA51061 KIT TOOLS (OPTIONAL) VA51060 HOSE ASSY VA20803 DUSTING TOOL VA20806 CREVICE TOOL VA20807 UPHOLSTERY TOOL VA20209 WAND VA20248 TUBE... -
Page 12: Wiring Diagram
Wiring Diagram CUDA26...
