Keating Of Chicago Instant Recovery 004341 Mounting Instructions

S E R V I C E I N S T R U C T I O N S
www.keatingofchicago.com

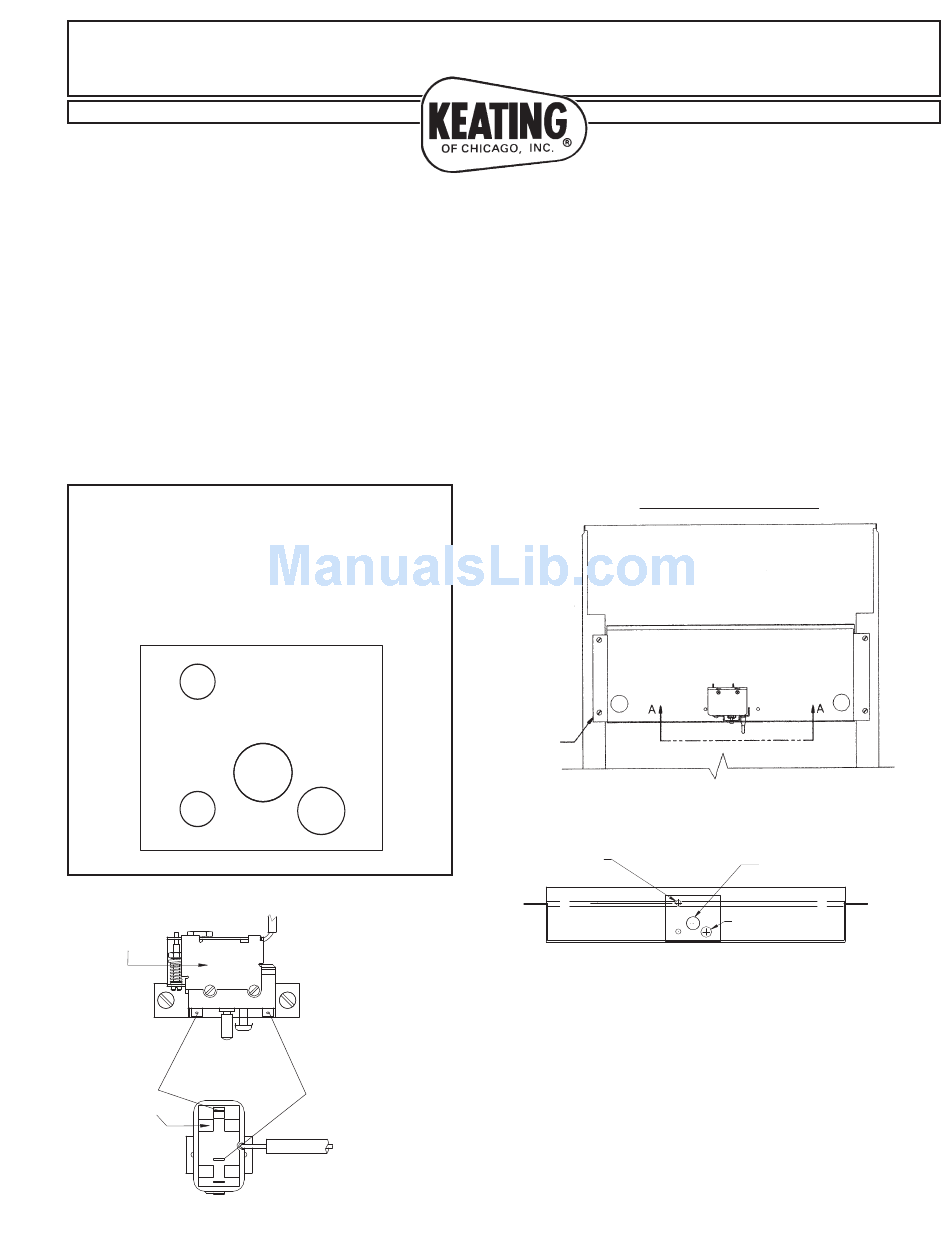

MOUNTING INSTRUCTIONS FOR REPLACING
HI-LIMIT CONTROL #004341 (BACK MOUNT)
1. Line up template with reset button clearance hole in bottom of control panel back. Hold in
place & mark hole centers.
2. Drill (2) Ø0.201 (#7) holes.
3. Drill (1) 0.413 hole.
4. Install new hi-limit control using (2) #8-32 x

TEMPLATE

Align the center hole of the template below with
the existing reset button hole in the control panel
back. Drill the 3 needed holes. See View A-A.
WHEN REPLACING 004341
WITH 034357
PART
#004341
PART
#034357
PART #031112
WITH #034357 (BOTTOM MOUNT)
FOR IFM & GAS FRYERS & PASTA COOKERS
Remove wires as shown
and replace on 034357
as shown

HI-LIMIT RESET BUTTON

If the Hi-limit has been activated, press the red button
to reset after the oil cools.
The red button is located under the control panel.
REV 2 DATE: 12/13/06
1 / " screws (part #017744).
4
FRONT VIEW OF FRYER OR PASTA COOKER
WITH CONTROL PANEL REMOVED
CONTROL PANEL
BACK REF.
LINE UP TEMPLATE ON EXISTING HOLE AS SHOWN.
DRILL (2) .201 #7 HOLES AND (1) .413 "Z"
0.201
DRILL (2) #7
1-800-KEATING
LINE UP WITH
EXISTING HOLE
0.413 "Z" SIZE
VIEW A-A
(BOTTOM VIEW)
5/98
HiLmtCntrl
