S E R V I C E I N S T R U C T I O N S
www.keatingofchicago.com

FLAME SWITCH REPLACEMENT KIT

SEE NOTE #1

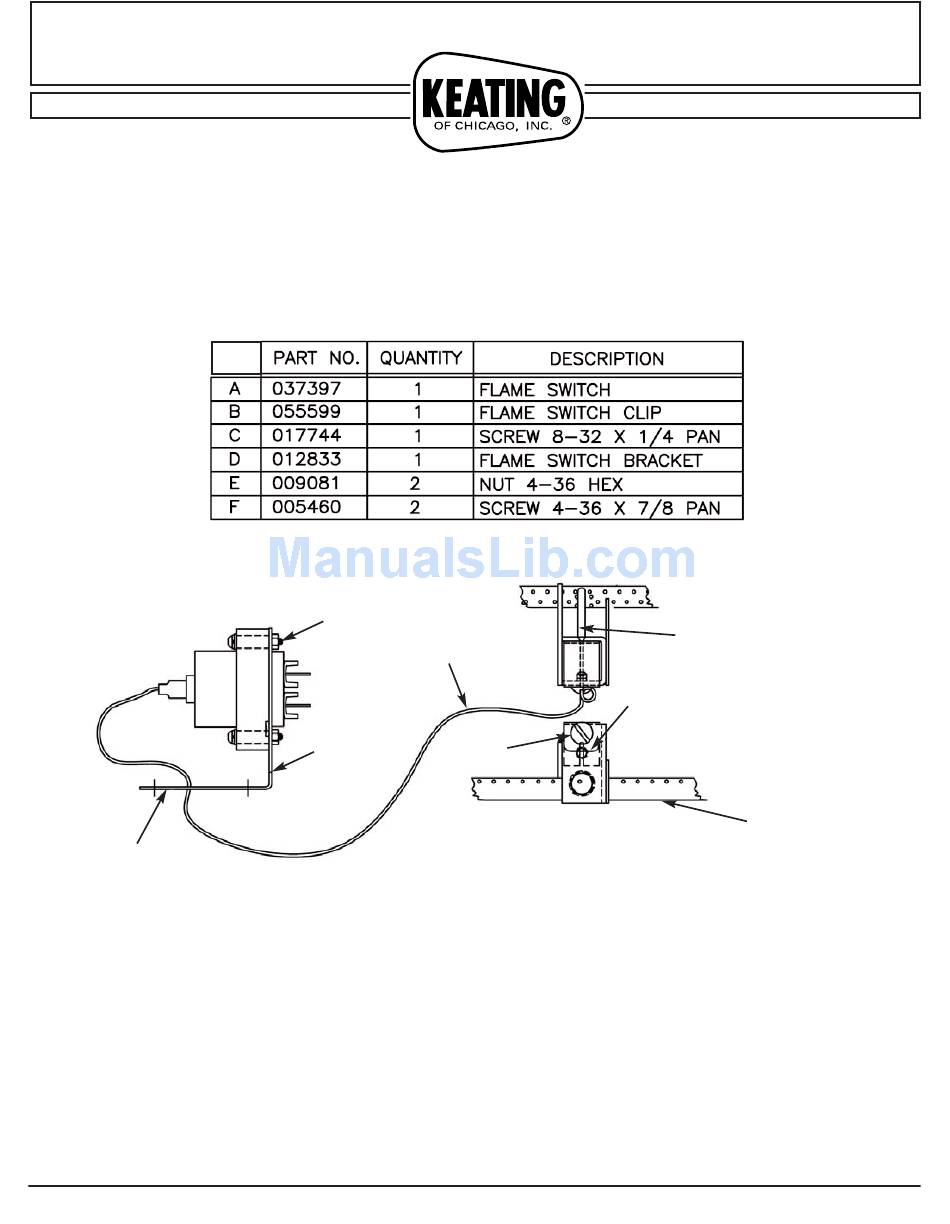

1.) Remove old flame switch and bracket located inside control panel. (Retain hardware). Assemble
flame switch item A to bracket item D with items E and F. Slide bulb end of flame switch through
center hold in item D flame switch bracket and through hole located in control panel. If needed, use
a letter "n" drill to open hole. Reassemble to control panel with retained hardware.
2.) Remove old flame switch and clip (bulb end) and replace with new flame switch item A (as
shown in view "A".)
3.) Insert flame switch clip item B as shown in view "A." Secure with screw item C.
Part # 037406

Your kit includes:

ITEM
NO.

ITEMS

E, F
ITEM
D
ITEM
A
ITEM
C
VIEW "A"
SEE NOTES 2 AND 3
Part No. 037407
1-800-KEATING
CORRECT POSITION FOR
FLAME SWITCH BULB
ITEM
B
PILOT RUNNER TUBE
FlameSwitchRplcKit
8/08
