Keating Of Chicago 48" Griddle Service Instructions

S E R V I C E I N S T R U C T I O N S
www.keatingofchicago.com
1/4" LOCKWASHER #017046 (2X)
1/4-20 X 1/2 HEX HEAD
SCREW #010776 (2X)
(SEE STEP #3)
CUTTING BOARD
LOWER CENTER
SUPPORT BRACKET
#022281
1. Hold center support upper bracket
at angle and hook on to 135° bottom front
edge of griddle perimeter.
2. Align center of support bracket with center
of griddle perimeter.
3. Fasten lower bracket to upper bracket
using (2) hex head screws and
lockwashers.
4. Tighten assembly in place using hex head
screw #010776. DO NOT OVERTIGHTEN.

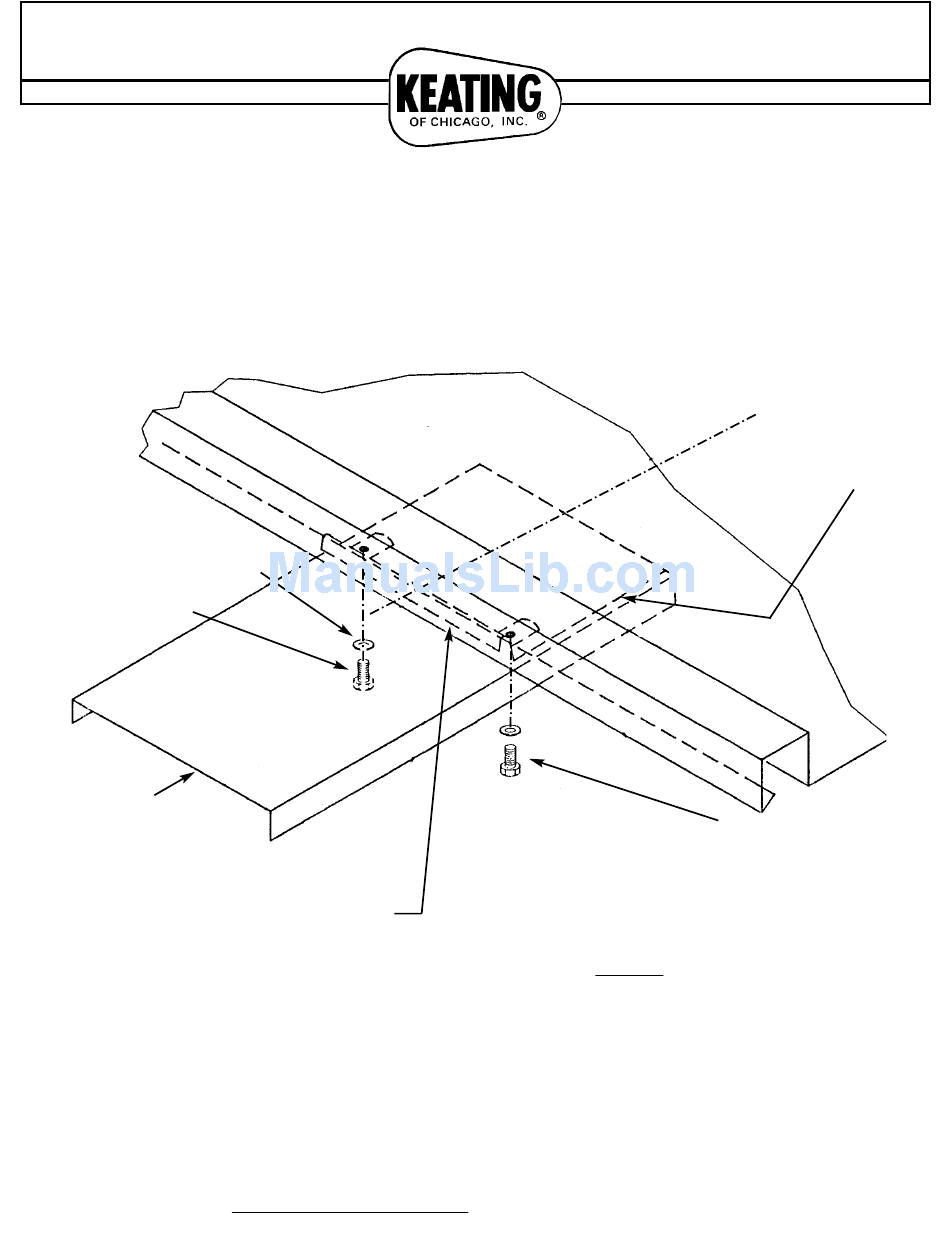

INSTALLATION INSTRUCTIONS FOR
CUTTING BOARD CENTER SUPPORT
48" GRIDDLE & UP WITH 135° BEND
1 - 8 0 0 - K E AT I N G
CENTER LINE OF GRIDDLE
FRONT PERIMETER
CUTTING BOARD UPPPER
CENTER SUPPORT BRACKET
#022280
1/4-20 X 1/2 HEX HEAD
SCREW #010776 (SEE
STEP #4)
NOTE: CENTER SUPPORT
BRACKET MUST BE INSTALLED
BEFORE CUTTING BOARD IS
INSTALLED.
cutboard
4-96
