INSTALLATION INSTRUCTIONS FOR SPARK
For IFMs With Spark Iginition Module Mounted in the Blower Box
1. Remove blower box front cover from the cabinet. Remove blower box cover from the base plate exposing the obso-
lete dual electrode spark iginition module (Part # 019724) and the relight circuit box.

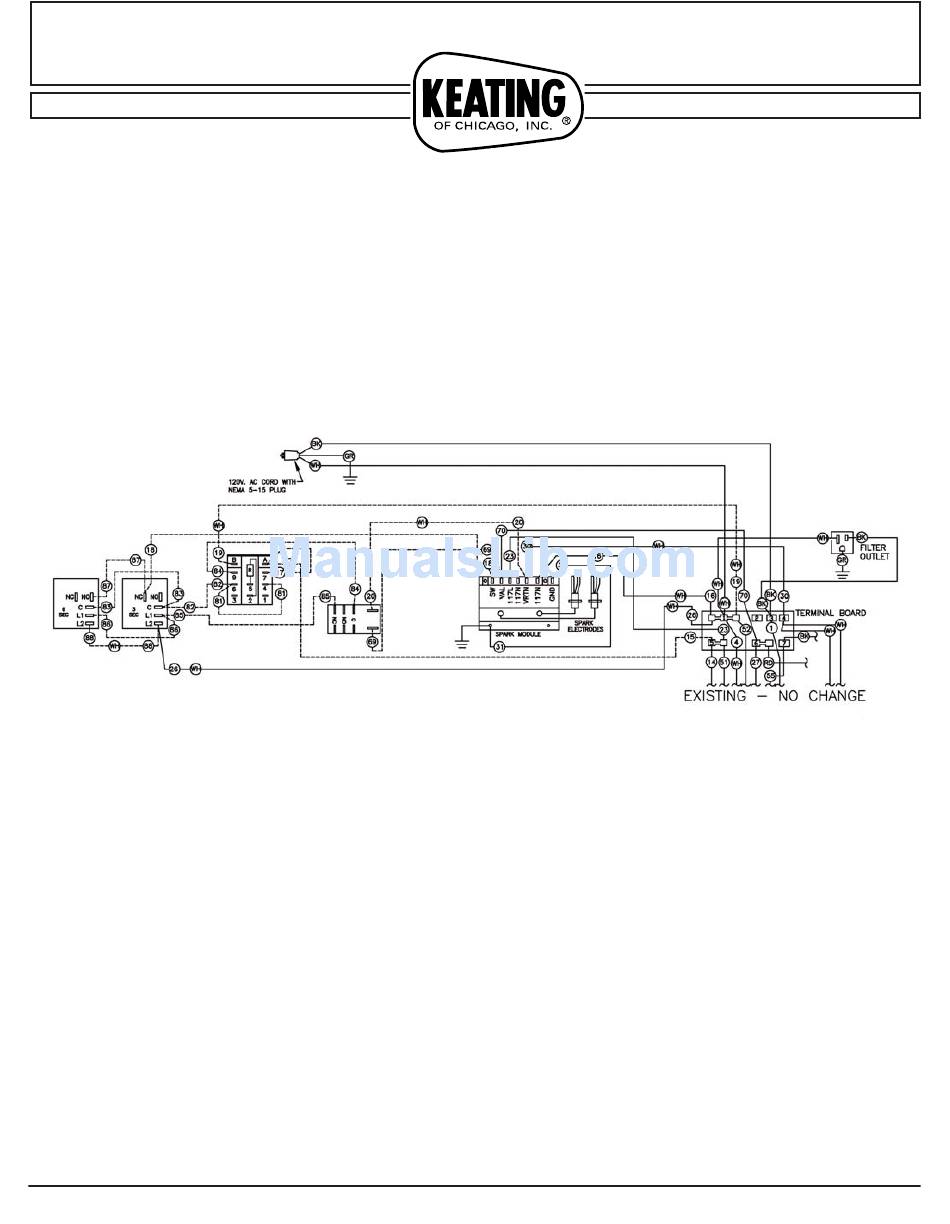

FIG 1. WIRING DIAGRAM FOR IFMs WITH DUAL−ELECTRODE SPARK IGNITION
MODULE (PART # 019724) AND RELIGHT CIRCUIT
2. Locate wire # 16, 20, 18 and 69 between the old spark module and relight circuit. Disconnect and discard the wires.
Discard the wire # 15 and 17 connected between the terminal board and relight circuit.
3. Disconnect wire # 16, 20, 23, 31, and 69 from the old spark module.
4. Locate the two spark iginition electrode leads connected between the dual-spark iginition module and the two burner
electrode assemblies that are mounted behind the IFM's control panel back.
5. For gaining access to the two burner electrode assemblies, unscrew and remove the control panel followed by the
control panel back. Unplug both ends of each of the spark iginition electrode leads, one end from the obsolete spark
module and the other end from the corresponding burner electrode assembly. Discard the two unplugged spark iginition
electrode leads.
6. The dual-electrode obsolete spark iginition module is totally disconnected from the IFM circuit. Unscrew and discard
the module. Also disconnect the wire # 19 from the relight circuit. Unscrew the relight circuit box and discard it.
