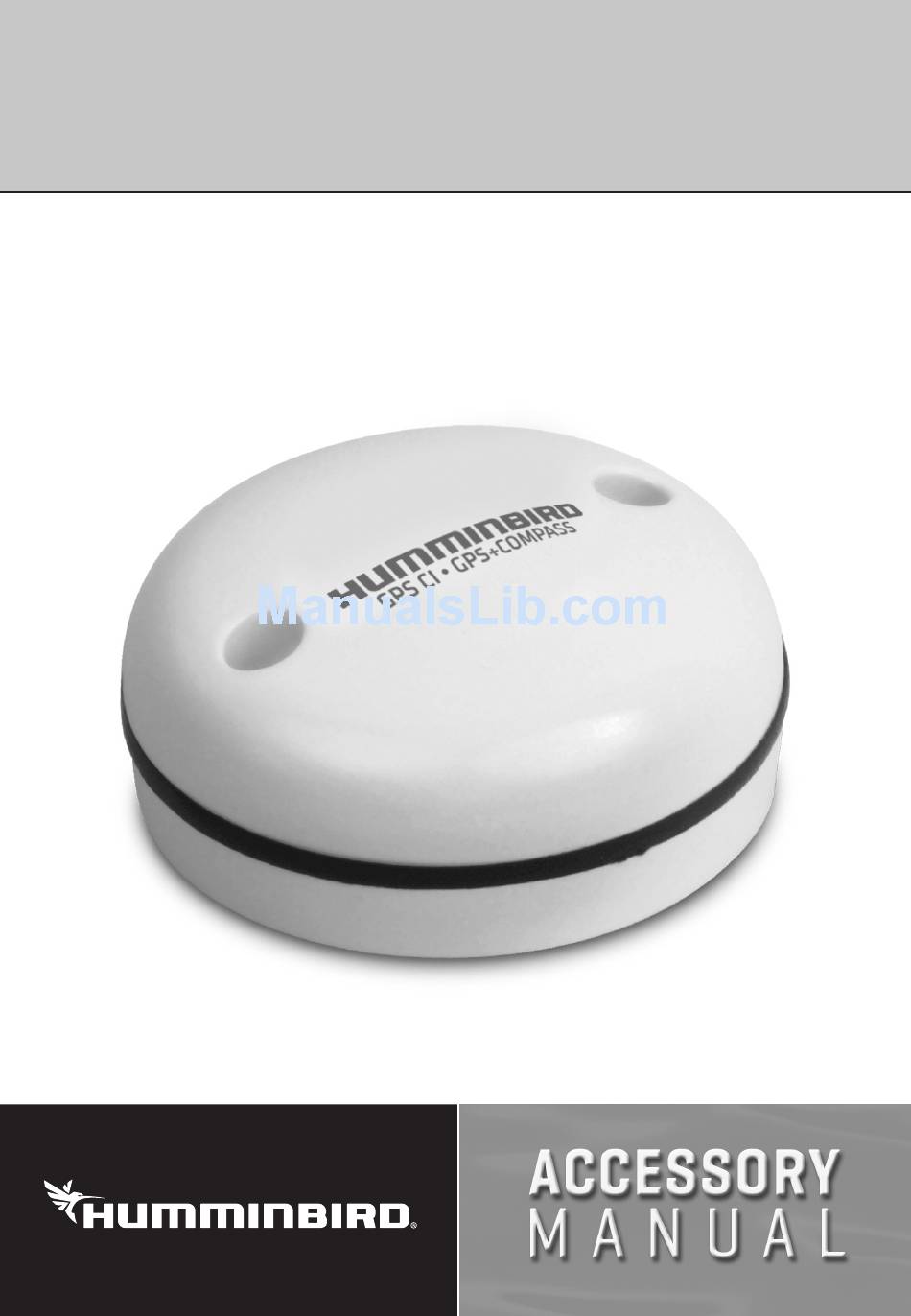

- Page 1 GPS + COMPASS SENSOR GPS + COMPASS SENSOR INSTALLATION GUIDE INSTALLATION GUIDE 532162-1_B...
- Page 2 We encourage you to read this operations manual carefully in order to get full benefit from all the features and applications of your Humminbird product. Contact Customer Service at 1-800-633-1468 or visit our Web site at humminbird.com.
- Page 3 WARNING! Humminbird is not responsible for the loss of data files (waypoints, routes, tracks, groups, recordings, etc.) that may occur due to direct or indirect damage to the unit’s hardware or software. It is important to back up your control head’s data files periodically.
- Page 4 ENVIRONMENTAL COMPLIANCE STATEMENT: It is the intention of Johnson Outdoors Marine Electronics, Inc. to be a responsible corporate citizen, operating in compliance with known and applicable environmental regulations, and a good neighbor in the communities where we make or sell our products. WEEE DIRECTIVE: EU Directive 2002/96/EC “Waste of Electrical and Electronic Equipment Directive (WEEE)”...
- Page 5 To obtain a list of authorized international distributors, please visit our Web site at humminbird.com or contact Customer Service at (334) 687-6613. Humminbird® is a registered trademark of Johnson Outdoors Marine Electronics, Inc. © 2013 Johnson Outdoors Marine Electronics, Inc. All rights reserved.
-
Page 7: Table Of Contents
Signal Strength ..........21 NMEA 0183 Output Sentences Contact Humminbird... -
Page 8: Overview
VERVIEW The Humminbird Sensor Accessory Kit includes the following items: • Sensor with internal GPS receiver and compass. Cable length is 16 ft (5 m). • Hardware kit for stem or deck mounting • Accessory manual NOTE: The stem mount is not included. To purchase extension cables and other accessories, see our Web site at humminbird.com or call Customer Service at... -
Page 9: How Gps Works
+/– 2.5 to 10 meters, depending on your conditions and your Humminbird model. This means that 95% of the time, the GPS receiver will read a location within +/– 2.5 to 10 meters of your actual position. -
Page 10: How The Heading Sensor Works
If you have trailered the boat to a new location, the compass’ operation may also be affected by a different magnetic zone. The Humminbird control head compensates for magnetic declination and also allows you to make additional adjustments from the menu system. -
Page 11: Installation Overview
See Section 1, Determine the Mounting Location for more information. NOTE: To purchase extension cables and other accessories, see our Web site at humminbird.com or call Customer Service at 1-800-633-1468. Installation Overview... -
Page 12: Determine The Mounting Location
Connect the Cable. NOTE: 10 ft (3 m) extension cables may be purchased from Humminbird if your planned cable route exceeds 20 ft (6 m). Maximum cable length, including extension cables, should not exceed 50 ft (16 m). To purchase extension cables, or other related accessories, visit our Web site at humminbird.com or call Customer Service... -
Page 13: Install The Sensor
Install the Sensor There are three different options to mount the Sensor. Proceed to the section that matches the type of mounting location you will be using, as follows: Stem Mount with 1" - 14 Thread The Sensor will be mounted on a stem or antenna pole. -
Page 14: Stem Mount With 1"-14 Thread
Stem Mount with 1"-14 Thread Use the following instructions to stem mount the Sensor: WARNING! Do NOT mount the Sensor to a stem mount or antenna pole that contains ferrous metals. NOTE: It is important to review the mounting considerations and test run the cable route as indicated in Section 1 before proceeding with the installation. - Page 15 3. Route the Sensor cable through the Positioning the Arrow stem and through the planned cable on the Compass route. To use extension cables, see the details in Section 1, Determine the Mounting Location. 4. Position the Sensor so the arrow on the cover is pointed straight toward the front of the boat in the direction of travel.
-
Page 16: Deck Mount With Access Under Mounting Location
Deck Mount with Access Under Mounting Location Use the following instructions to deck mount the Sensor and route the cable down through the mounting surface: NOTE: It is important to review the mounting considerations and test run the cable route as indicated in Section 1 before proceeding with the installation. - Page 17 7. Align the Sensor’s screw holes over the pilot screw holes and attach with the #8 - 1 1/4" (32 mm) screws. Hand tighten only. NOTE: If the mounting surface is thin or made of a light- weight material, you may need to add reinforcing material below the mounting surface in order to support the sensor.
-
Page 18: Deck Mount With No Access Under Mounting Location
Deck Mount with No Access Under Mounting Location Use the following instructions to deck mount the Sensor and route the cable to the side if there is not space for a cable underneath the mounting location. NOTE: It is important to review the mounting considerations and test run the cable route as indicated in Section 1 before proceeding with the installation. - Page 19 4. Move the Sensor to the side and drill the two 5/32" (4 mm) pilot holes. NOTE: Apply marine-grade silicone caulk or sealant to both screw and drilled holes as needed to protect your boat from water damage. 5. Align the Sensor’s screw holes over the Attaching the Sensor to the Mounting Surface pilot screw holes and attach with the...
-
Page 20: Connect The Cable
Connect the Cable Use the following instructions to connect the Sensor cable to the control head: 1. Secure the cable along its path Connecting to the GPS Port (magnified view) to the control head as needed, using cable ties (separate screw nut purchase required). -
Page 21: Confirm Sensor Operation
ONFIRM ENSOR PERATION It is important to confirm that the Sensor is installed and operating correctly by reviewing the GPS and heading data on the control head. NOTE: The Sensor may experience a cold start upon first power up. It may take several minutes for the Sensor to locate satellites and lock a GPS position. -
Page 22: Confirm Gps Reception
Selecting a GPS Source Select GPS (1) Turn off Auto-Configure Select External GPS CI Confirm GPS Reception Use the following instructions to confirm GPS reception: 1. From the Home screen, select the GPS tool 2. Under GPS 1, select Satellites. 3. - Page 23 Confirming GPS Reception GPS Source GPS Fix Type Data Boxes Position of Boat (Latitude and Longitude) NOTE: See the section GPS Status Tool for details. Confirm Operation...
-
Page 24: Confirm Heading Sensor Operation
Confirm Heading Sensor Operation It is important to confirm that the heading sensor is installed correctly by reviewing the heading digital readout. NOTE: This procedure should be performed at slow speeds, in calm, open water, in a large area that is far from shallow water, boats, or other obstacles. - Page 25 Confirming Heading Sensor Operation Heading (Hdg) Data Box with digital readout displayed. Course Over Ground (COG) Data Box with digital readout displayed. Pitch and Roll Data Boxes with digital readouts displayed. Confirm Operation...
-
Page 26: Gps Status Tool
GPS S TATUS The GPS Status Tool allows you to select a primary and GPS Status Tool Menu secondary GPS Source, displayed as GPS 1 and GPS 2, and provides the GPS and heading data from each selected source. The GPS Status Tool Menu is divided into the following menu options: •... - Page 27 information from WAAS, EGNOS, or MSAS. A 3D or Enhanced Fix is required for navigation. • HDOP (the Horizontal Dilution of Precision): A GPS system parameter which depends on the current satellite configuration. HDOP is used to calculate the Estimated Position Error. GPS Status Tool: Satellites Current GPS Source GPS Fix Type...
-
Page 28: Signal Strength
Signal Strength A bar graph indicating the satellite signal strengths with the respecting CNO (Carrier-to-Noise) value (0-60) is displayed for each satellite being monitored. • Yellow bar graphs indicate that the satellite is being used. • Purple bar graphs indicate that the satellite is being monitored but not used. - Page 29 Signal Strengths CNO Value Range (0-60) Satellite Number Satellites being used (yellow) Satellites being monitored (purple) Average CNO value of all satellites being used Average CNO value of the top four satellites being used GPS Status Tool...
-
Page 30: Nmea 0183 Output Sentences
NMEA 0183 O UTPUT ENTENCES The Sensor is compatible with the NMEA 0183 sentences shown below. NMEA 0183 Description Sentence Global Positioning System Fix Data, Standard GNSS DOP and Active Satellites, Standard GNSS Satellites in View, Standard Heading, Deviation & Variation, Standard Recommended Minimum Specification GNSS Data, Standard Estimated Position Error, Custom... -
Page 31: Contact Humminbird
ONTACT UMMINBIRD Contact Humminbird Customer Service in any of the following ways: Web site: humminbird.com E-mail: service@humminbird.com Telephone: 1-800-633-1468 Direct Shipping: Humminbird Service Department 678 Humminbird Lane Eufaula, AL 36027 USA Hours of Operation: Monday - Friday 8:00 a.m. to 4:30 p.m. (Central Standard Time)
