Solas TWENTY6 SL-26N Installation And Operaing Instructions

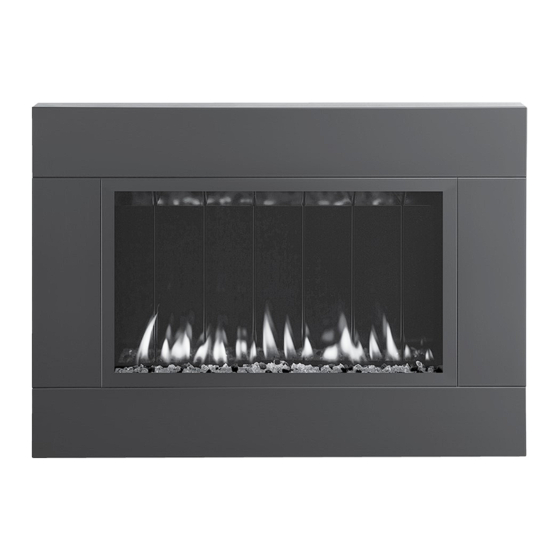

Wall mount direct vent gas fireplace
Hide thumbs Also See for TWENTY6 SL-26N:
Table of Contents

Advertisement

Quick Links

INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future eference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWENTY6 SL-26N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Solas TWENTY6 SL-26N

Summary of Contents for Solas TWENTY6 SL-26N

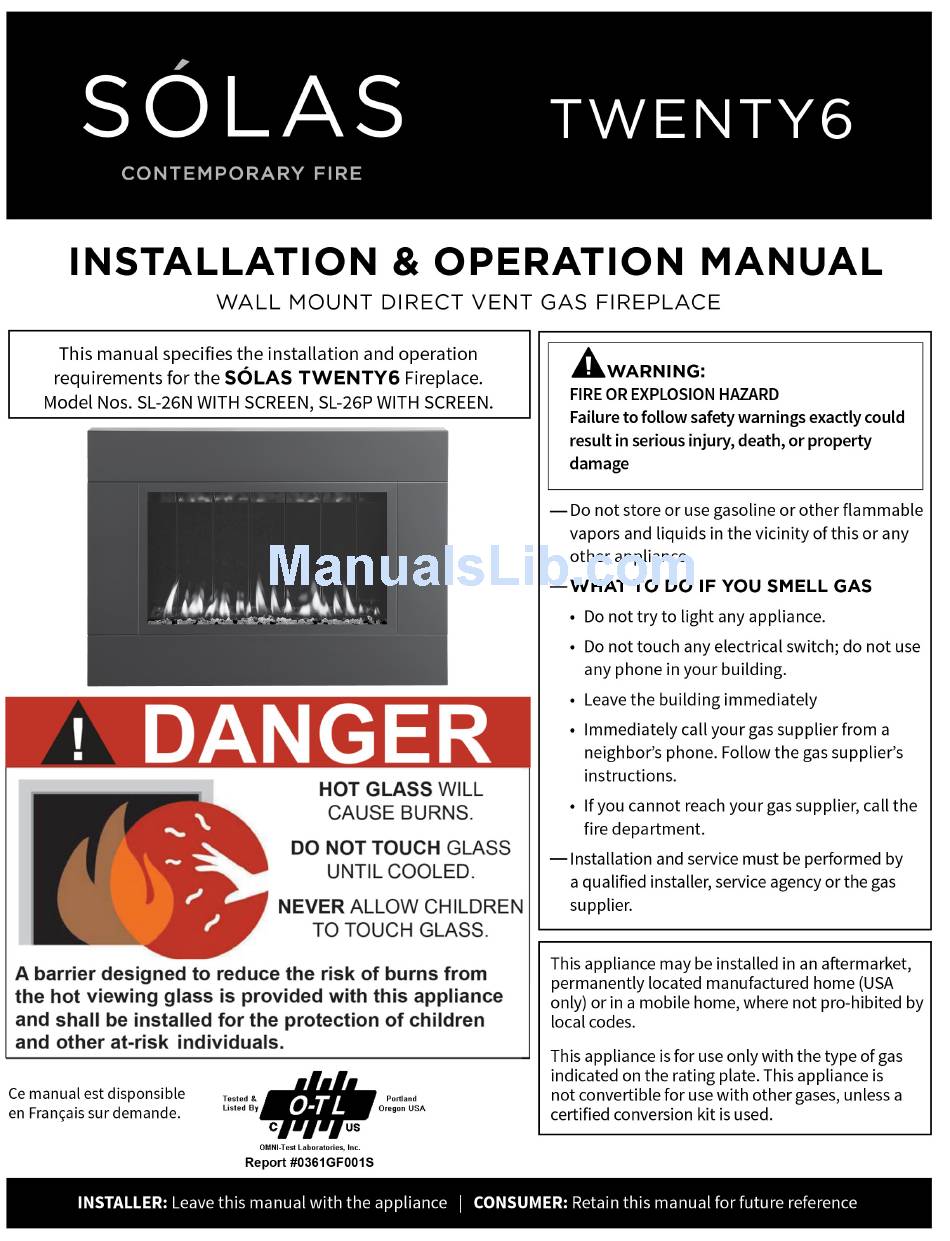

  • Page 1 INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future eference.
  • Page 2 : Assurez-vous de bien suivre AVERTISSEMENT les instructions données dans cette notice pour réduire au minimum le risque d’incindie ou d’explosion ou pour éviter tout dommage matériel, toute blessure ou la mort. Ne pas entreposer ni utilizer d’essence ni d’autres vapeurs ou liquides inflammables dans le voisinage de cet appareil ou de tout autre appareil.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INFORMATION SPECIFICATIONS INSTALLATION REQUIREMENTS MASSACHUSETTS REQUIREMENTS VENTING ASSEMBLY & INSTALLATION GAS CONNECTION 20 & 26 LIGHTING AND OPERATION MAXITROL CONTROL SYSTEM MAINTENANCE MAINTENANCE LOG FORMS REPLACEMENT PARTS LIST CONTROL SCHEMATIC INSTALLATION RECORD FORM WARRANTY INFORMATION WE STRONGLY SUGGEST THAT YOU READ THIS MANUAL THOROUGHLY BEFORE BEGININNG THE INSTALLATION OF THE DIRECT VENT GAS FIREPLACE.

  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1. A manufactured home (USA only) or mobile home OEM installation must conform with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 or when such a standard is not applica- ble, the Standard for Manufactured Home Installations, A NSI/BCSBCS A 225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4.

  • Page 5: Specifications

    SPECIFICATIONS INPUT Natural Gas Propane (LP) Input Rating-Btu/hr 19,000 19,000 Min. Input-Btu/hr 11,000 11,000 Orifice-DMS 5/64” GAS SUPPLY Manifold Pressure 4.8”w.c. / 1.2kPa 10.0”w.c. / 2.5kPa Min. Supply Pressure 5.5”w.c. / 1.4kPa 11.0”w.c. / 2.8kPa Max. Supply Pressure 10.0”w.c. / 2.5kPa 13.0”w.c.

  • Page 6: Installation Requirements

    INSTALLATION REQUIREMENTS Several issues must be addressed when selecting a suitable location for your fireplace. The mini- mum clearances to combustible construction are listed below. In addition, access to the gas supply must be considered. The location of the fireplace will also affect the venting requirements and you must be certain the location will allow compliance with the venting requirements shown on page You must also insure that your installation provides adequate accessibility clearance for servicing and proper operation.

  • Page 7: Requirements For The Commonwealth Of Massachusetts

    INSTALLATION REQUIREMENTS The gas fireplace is shipped with a 3/8” tube OD (male) connection. The gas supply piping should have a separate gas shutoff valve and a 1/8” NPT plugged tapping upstream of the valve. The stove and its main control valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa).

  • Page 8: Venting

    VENTING Direct Vent Gas Fireplace has been tested and listed for installation with 4” X 6 5/8” Simp- ® ® son DuraVent GS/Pro Selkirk Direct-Temp , Security Secure Vent™, AmeriVent Direct™ Metal Fab Direct t venting components. Although you may use the pipe components (straight pipe, Vent and ICC EXCELDirec elbows, etc.) from any of the listed manufacturers, you may only use the vent terminations (caps) listed in the chart on page 9.
  • Page 9 USING THE VENTING CHARTS The location of the vent termination must meet the requirements of the current edition of ANSI Z223.1/  NFPA 54, National Fuel Gas Code or CAN B419.1, Natural Gas and Propane Installation Code and the requirements shown on page 15 of this manual. Just as with any other vented device, vertical vent rise creates draft (negative pressure) in the firebox as the exhaust gases heat up.
  • Page 10 NATURAL GAS VENTING CHART AIR RESTRICTOR EXHAUST RESTRICTOR 1— 6 TABS OPEN A or B NU = NOT USED NU = NOT USED VERTICAL TERMINA- TIONS NOT ALLOWED VERTICAL RISE IN FEET...
  • Page 11 LP GAS VENTING CHART AIR RESTRICTOR EXHAUST RESTRICTOR 1— 6 TABS OPEN A or B NU = NOT USED NU = NOT USED VERTICAL TERMINA- TIONS NOT ALLOWED VERTICAL RISE (FEET)
  • Page 12 VENTING CHART WORKSHEET A. FUEL TYPE: NATURAL GAS LP GAS (PROPANE) B. TOTAL VERTICAL VENT RISE (MEASURED FROM HORIZONTAL CENTERLINE OF VENT OPENING ON THE BACK OF THE FIREPLACE TO THE HORIZONTAL CENTERLINE OF THE VENT CAP (FOR HORIZONTAL VENT CAPS) OR TO THE FLANGE ON THE CAP (FOR VERTI- CAL CAPS)): _____________ FEET C.

  • Page 13: Use Natural Gas Chart Settings For

    VENTING CHART WORKSHEET EXAMPLES A. Fuel: Natural Gas A. Fuel: LP Gas B. Total Vertical Vent Rise: 0 feet B. Total Vertical Vent Rise: 1 feet C. Total Horiz. Vent Run (Actual): 0 feet C. Total Horizontal Vent Run (Actual): 3 feet D.
  • Page 14 VENTING The illustration below shows some of the many ways the fireplace may be installed in the home. This includes interior and exterior wall installations, corner installations and horizontal and vertical vent terminations. HORIZONTAL TERMINATION VERTICAL TERMINATION...
  • Page 15 VENT TERMINAL CLEARANCES Venting terminals shall not be recessed into a wall or siding.

  • Page 16: Assembly & Installation

    ASSEMBLY & INSTALLATION UNPACKING AND INSTALLING THE WALL MOUNT FIREPLACE The fireplace components are shipped in three cartons. By now, you will have opened the top of the first carton and re- moved the glass protector and this manual. The second carton TUBE 2 TUBE 1 contains the vent starter pipe, vent heat shields and air and ex-...
  • Page 17 ASSEMBLY & INSTALLATION Before you begin the fireplace mounting process there are several important installation requirements that must be met. Careful planning will make the installation easier to accomplish and will reduce the chances of encountering problems after you start. 1.
  • Page 18 ASSEMBLY & INSTALLATION Once you are certain that the location you have chosen meets all the necessary mounting and safety require- ments, you can begin the installation. 1. Tape or pin the installation template to the wall in the position where the fireplace is to be LEVEL mounted.
  • Page 19 ASSEMBLY & INSTALLATION Vent Pass-Through (Parallel Wall Installation on an Interior Partition Wall) 1. An unobstructed wall pass-through is required to allow for a safe installation of the fireplace vent com- ponents. This will necessitate removal of a portion of the interior wall covering (e.g., sheetrock or plaster and lath), on both sides of the partition wall and any adjacent internal wall materials (like insu- lation).
  • Page 20 ASSEMBLY & INSTALLATION Gas Supply Line 1. Once the vent pass-through (or pass-through’s) are finished, the gas supply line should be installed. The supply line should exit the wall that the fireplace will be installed on at the location specified on the in- stallation template We suggest the installation of a shut-off valve in the supply line between the wall and the connection to the fireplace.
  • Page 21 ASSEMBLY & INSTALLATION Note: It may be helpful to put a light coating of dish or hand soap on the lag bolts to reduce re- sistance when tightening. 8. At this point, check to be sure that there is a 5/16” air gap between the entire flat back surface of the mounting plate and the wall surface.
  • Page 22 ASSEMBLY & INSTALLATION 18. If your installation does require an air restrictor or exhaust restrictor or both, these must be installed before you install the vent starter pipe. Again, refer to the venting information starting on page 8 to determine the specific restrictor requirements for your specific installation. 19.
  • Page 23 ASSEMBLY & INSTALLATION 23. You are now ready to install the fireplace on the mounting plate. This will require a helper as the fireplace is quite heavy. Lift the fireplace up and guide the vent pipe into the vent pipe opening in the mounting plate.
  • Page 24 ASSEMBLY & INSTALLATION Installing the Outer Vent Heat Shields and Vent Termination (Parallel Installation on Outside Wall) 1. Before you install the horizontal vent termination, you must first install the second halves of the two telescoping vent pipe heat shields. Each shield OUTER TELE- half simply slips over the half you previously at- SCOPING SHIELD...
  • Page 25 ASSEMBLY & INSTALLATION Installing the Outer Vent Heat Shields (Partition Wall BACK OF PARTITION WALL Installation) 1. Before you install the additional vent pipe and el- bow(s) that will complete the venting installation, OUTER TELE- you must first install the second sections of the SCOPING SHIELD vent pipe heat shields to protect the combustible materials around the vent pipe pass-through in the...

  • Page 26: Gas Connection

    ASSEMBLY & INSTALLATION Gas Connection. 1. Verify that the gas type is correct for the fireplace by looking at the rating plate that is attached to the right side of the fire- CONNECT GAS SUP- PLY LINE TO 3/8” place, adjacent to the control battery pack. Note: The fire- TUBE OD (MALE) place is shipped from the factory equipped to burn the fuel listed on the rating plate.
  • Page 27 ASSEMBLY & INSTALLATION Installing or Replacing the Batteries 1. The valve control module is powered by four “AA” batteries. The batteries are mounted within the Valve Receiver Module located on the right side of the fire- place attached to a drop-down mounting bracket for easy accessibility.
  • Page 28 ASSEMBLY & INSTALLATION 4. Starting at one end, pour the glass media onto the burner tray, keeping the pouring spout on the poly- bag toward the center of the burner to avoid spillage of glass pieces over the sides of the burner. See the adjacent illustrations.
  • Page 29 ASSEMBLY & INSTALLATION RELIEF DOOR FRONT TAB ENGAGED ON RETAINER RELIEF DOOR SHOWN IN PROP- ER OPERATING POSITION Installing the Front Glass Panel and Frame After burner media and relief doors been installed, the next step is to replace the front glass panel and frame. 1.
  • Page 30 ASSEMBLY & INSTALLATION Installing the Outer Panels 1. The four outer decorative panels are secured to the fire- place with philips head screws. The top and bottom pan- els are secured to the fireplace mounting plate with sheet metal screws. All other screws are philips head machine screws.
  • Page 31 ASSEMBLY Installing the Fireplace Surround with Integrated Screen The decorative surround with integrated screen for the fireplace is held in place by four brackets. Two are located on the top of the fireplace and two on the bottom. There are mating brackets and catch plates on the surround itself.

  • Page 32: Lighting And Operation

    LIGHTING AND OPERATION WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. When lighting this appliance, follow these instructions exactly. A. This appliance is equipped with an ignition device that automatically lights the pilot. Do not try to light the pilot by hand. B.

  • Page 34: Fireplace Control Devices

    LIGHTING AND OPERATION OPERATING YOUR FIREPLACE FOR THE FIRST TIME When operating your new fireplace for the first time, some vapors may be released due to the burning of curing compounds used in the manufacture of the appliance. They may cause a slight odor and could cause the flames to be the full height of the firebox, or even slightly higher, for the first few hours of op- eration.

  • Page 35: Maxitrol Control System

    MAXITROL GV60 CONTROL SYSTEM HOW TO TURN YOUR FIREPLACE OFF (including pilot) Familiarize yourself with each of these methods before operating your fireplace. Handset and Wall Switch: Press and hold the OFF button for a second (either on the handset or the wall switch).

  • Page 36: Flame Height Adjustment

    MAXITROL GV60 CONTROL SYSTEM Current Handset temperature sensor (F or C) Period start or end Battery status (Temp, Timer Current time (12 or 24 hour clock) Current programmed Modes (Manual, period (Timer) MANTEMPTIMER Temperature, Timer) Display Overview Note: In the TEMP or TIMER modes, the remote handset senses the room temperature and adjusts the (returns to set flame accordingly.
  • Page 37 MAXITROL GV60 CONTROL SYSTEM MAXITROL GV60 CONTROL SYSTEM MODES OF OPERATION  Press and hold (small  Briefly pressing the SET button flame) button to decrease changes the mode of operation in flame height or to set the ap- the following order: pliance at pilot flame.
  • Page 38 MAXITROL GV60 CONTROL SYSTEM SETTING THE ON / OFF TEMPERATURES SETTING THE “NIGHTTIME SETBACK” SETTING THE “DAYTIME” TEMPERATURE TEMPERATURE Default Settings: (sun), 23°C / 74°F Default Settings: (moon), “- -” (OFF) TEMP TEMP  Briefly press SET button to  Briefly press SET button to scroll to TEMP scroll to TEMP TEMP...
  • Page 39 MAXITROL GV60 CONTROL SYSTEM SETTING PROGRAM TIMERS SETTING P1 OFF TIME  Briefly press SET button o scroll  You can program two periods of time between to TIMER P1 (moon) while 12:00 am and 11:50 pm in each 24-hour cycle. the time flashes.
  • Page 40 MAXITROL GV60 CONTROL SYSTEM Timer Programming Example (default temper atur es shown) ☼ ☼ ☼ 6:00 a.m.—P1 8:00 a.m.—P1 4:00 p.m.—P2 10:00 p.m.—P2 6:00 a.m.—P1 Start time End time Start time End time Start time ☼ ☼ Set Temp 74°F Set Temp 40°F Set Temp...

  • Page 41: Maintenance

    MAINTENANCE A qualified service agency should conduct an annual inspection and maintenance of your includ- ing the overall installation and venting to keep it running safely. The following procedures should be per- formed only by a qualified service person. The gas supply should be turned off and the stove should be completely cool whenever a maintenance procedure is performed.
  • Page 42 MAINTENANCE Inspecting the Venting An inspection of both the inner and outer vent pipes and the vent terminal should be made as part of the an- nual service appointment. The venting must have no blockage and be in good repair. The vent manufactur- er’s instructions may provide specific details on vent inspection.

  • Page 43: Maintenance Log Forms

    MAINTENANCE LOG We strongly recommend that you keep a log of the regular maintenance that is performed on your fireplace. We have provided the forms below to make it easy. Simply ask your qualified service per- son to fill out one of the maintenance record forms below, each time the fireplace is serviced. This will help insure that all of the required maintenance procedures have been completed, at least annu- ally.

  • Page 44: Replacement Parts List

    REPLACEMENT PARTS LIST PART NAME PART NAME Pilot Head NG/LP 26-501 Burner Orifice (NG) 26N-509 Pilot Thermocouple* M26-502* Burner Orifice (LP) 26P-509 Pilot Injector (NG) 26N-503 Burner Glass Media – Clear 26-511 Pilot Injector (LP) 26P-503 Burner Module (NG) 26N-901 Receiver Module (Maxitrol) M46-504 Burner Module (LP)

  • Page 45: Control Schematic

    CONTROL SCHEMATIC Caution: Label all wir es pr ior to disconnection when ser vicing the contr ols. Wir ing er r or s can cause improper and dangerous operation. Verify proper operation after servicing.
  • Page 46 INSTALLATION RECORD The installer should complete the form below that describes the details of the installation. Having this writ- ten record of installation information available will greatly expedite trouble-shooting should any problem arise with your stove. The installer should keep a duplicate of this form for their records.
  • Page 48 Model #: ________________________________ Serial #: _________________________________ Date Purchased: __________________________ Date Installed: ____________________________ Manufactured by: Progressive Manufacturing Inc. 4 Technology Drive, Suite 5 West Lebanon, NH 03784 V13 / 8-15-14...

This manual is also suitable for:

Twenty6 sl-26p

Table of Contents
