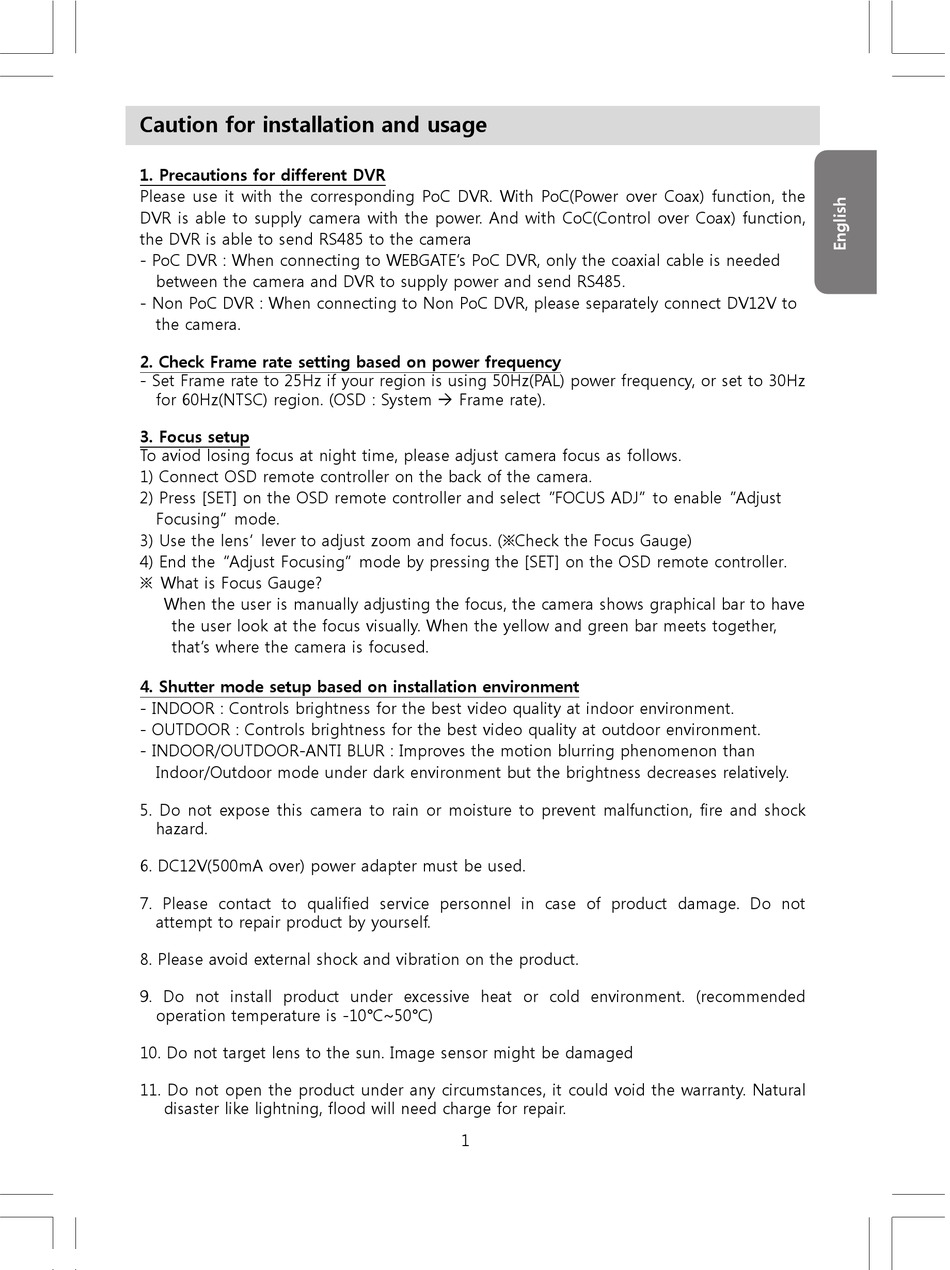

Caution for installation and usage
1. Precautions for different DVR
Please use it with the corresponding PoC DVR. With PoC(Power over Coax) function, the
DVR is able to supply camera with the power. And with CoC(Control over Coax) function,
the DVR is able to send RS485 to the camera
- PoC DVR : When connecting to WEBGATE's PoC DVR, only the coaxial cable is needed
between the camera and DVR to supply power and send RS485.
- Non PoC DVR : When connecting to Non PoC DVR, please separately connect DV12V to
the camera.
2. Check Frame rate setting based on power frequency
- Set Frame rate to 25Hz if your region is using 50Hz(PAL) power frequency, or set to 30Hz
for 60Hz(NTSC) region. (OSD : System  Frame rate).
3. Focus setup
To aviod losing focus at night time, please adjust camera focus as follows.
1) Connect OSD remote controller on the back of the camera.
2) Press [SET] on the OSD remote controller and select "FOCUS ADJ" to enable "Adjust
Focusing" mode.
3) Use the lens' lever to adjust zoom and focus. (※Check the Focus Gauge)
4) End the "Adjust Focusing" mode by pressing the [SET] on the OSD remote controller.
※ What is Focus Gauge?
When the user is manually adjusting the focus, the camera shows graphical bar to have
the user look at the focus visually. When the yellow and green bar meets together,
that's where the camera is focused.
4. Shutter mode setup based on installation environment
- INDOOR : Controls brightness for the best video quality at indoor environment.
- OUTDOOR : Controls brightness for the best video quality at outdoor environment.
- INDOOR/OUTDOOR-ANTI BLUR : Improves the motion blurring phenomenon than
Indoor/Outdoor mode under dark environment but the brightness decreases relatively.
5. Do not expose this camera to rain or moisture to prevent malfunction, fire and shock
hazard.
6. DC12V(500mA over) power adapter must be used.
7. Please contact to qualified service personnel in case of product damage. Do not
attempt to repair product by yourself.
8. Please avoid external shock and vibration on the product.
9. Do not install product under excessive heat or cold environment. (recommended
operation temperature is -10°C~50°C)
10. Do not target lens to the sun. Image sensor might be damaged
11. Do not open the product under any circumstances, it could void the warranty. Natural
disaster like lightning, flood will need charge for repair.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C1080PBM and is the answer not in the manual?

Questions and answers

Summary of Contents for WebGate C1080PBM

  • Page 1 DVR is able to supply camera with the power. And with CoC(Control over Coax) function, the DVR is able to send RS485 to the camera - PoC DVR : When connecting to WEBGATE’s PoC DVR, only the coaxial cable is needed between the camera and DVR to supply power and send RS485.
  • Page 2 Feature PoC / CoC PoC(Power over Coax) : WEBGATE PoC DVR supplies camera with power through connected coaxial cable. CoC(Control over Coax) : WEBGATE PoC DVR supplies camera with RS485 without additional communication line. Allowing OSD control, zoom, focus, f/w upgrade and more.
  • Page 3: Supplied Accessories

    Supplied accessories Please check if all the supplied accessories are included. C1080PBM Install and User’s Manual C Mount Adapter Camera Remote Controller Product description Name RS-232/RS-485/Digital Output port Power input port RS485 Termination Video Out(PoC,CoC) Menu, CVBS Output Power lamp...
  • Page 4 Drive + Drive - How to Set up Install C1080PBM 1. How to connect it with the WEBGATE PoC DVR - Does not need any additional power adapter. Just connect coaxial cable higher than 4C-HFBT to the DVR. 2. How to connect it with the conventional DVR - Connect the PoC repeater, RP101P, between the camera and DVR.
  • Page 5 When the user uses different power, the camera can seriously be damaged. How to upgrade F/W by using CoC(RS485) 1. Connect WEBGATE DVR with camera. 2. Run [HD-SDI Camera Network Upgrader] and select [CoC] on [Serial Port]. - PC and DVR must be connected through network.
  • Page 6: How To Use Osd Menu

    <Note> 1) When upgrading F/W, the setting will be reset. How to use OSD menu OSD menu function Press [SET] on the OSD remote controller to show OSD configuration menu. - If OSD menu is not closed, it will be closed automatically in 1 minute. (Changed configuration value will not be saved) - Bold font with underline means factory default.
  • Page 7 - OUTDOOR-ANTI BLUR : It shows better anti-blur performance at dark outdoor environment, but the brightness level decrease a little. - MANUAL : It fixes shutter speed within 1/30 ~ 1/60000. ANTI-FLICKER Removes Flicker problem due to the discordance of light frequency.
  • Page 8 paper in front of the camera, and do SHADING DET. If not, abnormal video might be output. SHADING It compensates the difference of light caused by lens. To use this function, you should run Shading DET function first at System menu. DEFOG Images can be corrected on Fog, Dust environment.
  • Page 9: Digital Out

    Without saving configuration, exit menu. If there is no further action in menu, after 1 minute, OSD menu will exit without saving changes. Product Specification Model C1080PBM Video Sensor Type 1/3”, 2.1Megapixel CMOS Total Pixels 1920(H) x 1080(V) = 2.1M pixels...
  • Page 10: Anti-Flicker

    Camera Control Remocon CVBS(NTSC/PAL-Auto change) Electricity Power Consumption DC 12V ± 10%, 2W or PoC(DC 24V ± 10%), 3W Mechanical Dimension C1080PBM 68(W) x 81(D) x 56(H) mm Weight C1080PBM 320g (Lens not include) Environments Operation Temp. / Humidity -10 ºC ~ 50 ºC / 0%RH ~ 80%RH...
  • Page 11: Warranty

    How to request service? Please inform details of malfunctions correctly. Free or non free repair will be decided based on details of warranty card. WebGate Division Daemyung Enterprise Co., Ltd. 6F Hanlim Venture Town B/D 689-6, Geumjeong Dong, Gunposi, Gyeonggido,Korea Main...
  • Page 12 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits designed provide reasonable protection against harmful interference when equipment operated commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual,...
