RIOTEC iLS6300VBU Programming Quick Manual

P r o g r a m m i n g Q u ic k G u id e
iLS6300VBU/iLS6300VB

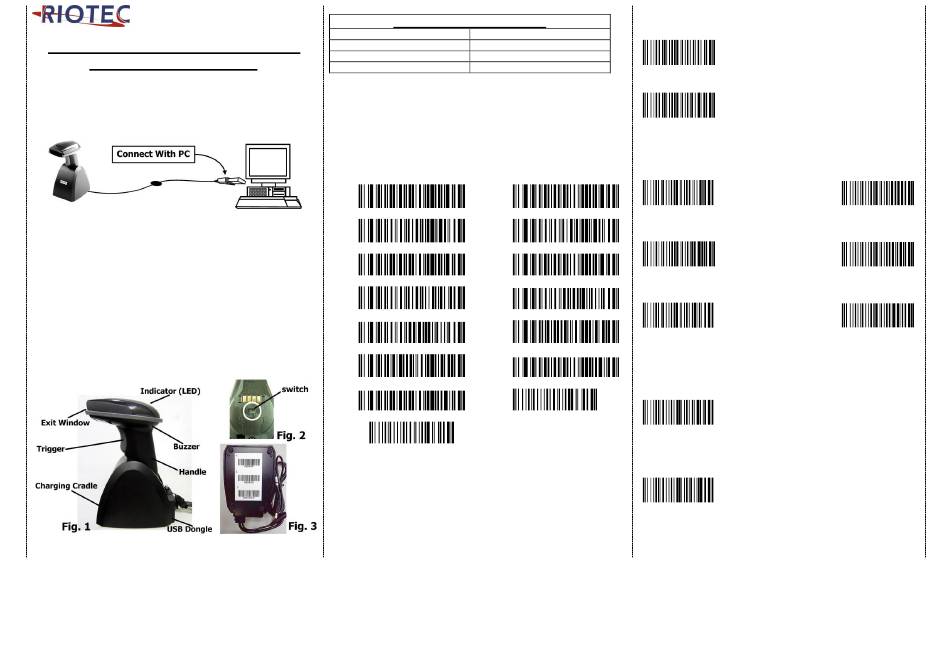

Connecting the Scanner

Be sure that PC is turned OFF, before Connect scanner cable to the
PC USB port on the PC as below described, Ensure that all connections
are ready, and turn on your PC.
1. Please switch ON and charge scanner for 4~5 hours at first time before
use. Scanner switch shown on Fig. 2.
2. After switch ON, the Orange LED will flash following with 3
beep-sounds. The RED LED will be OFF while it links to cradle within
2.4GHz radio range.
3. If RED LED is continual ON, please re-plug USB cable, then, scan the 3
barcodes on the bottom of cradle sequentially. (Shown on Fig. 3 from
1 to 3). If you are unable to complete this setting within 1 minute,
please re-plug USB cable & re-start the scanner, and try again.
4. Charging issue: Cradle works as charger when putting scanner on it.
Even if the scanner's battery is full, the cradle will continue to supply
power to the scanner. We suggest you to remove scanner from cradle
when scanner is charged fully
* Note: Please install PL-2303 driver for iLS6300VB
LED Indicator Information
Orange LED ON Full charged
Orange LED Flashing Charging / Low battery
Red LED ON Offline / out of service
Green LED ON Good read
Remark:
* When the battery power is too low, the Orange LED will flash and beep once.
Scanner should be charged immediately.
* If scanner shuts down it is recommended to charge it fully before turning it back
on.
* Under power-saving mode, there will not be LED indication when charging.
Reset Configuration to Defaults
(scan from A1 to A8 for iLS6300FBU or B1 to B7 for iLS6300FB)
iLS6300VBU
Demo
A1 B1
A2 B2
WFFD980
A3 B3
A4 B4
A5 B5
A6 B6
A7
B7
A8
Note: Please install PL-2303 driver for iLS6300VB
*
1
Trigger Mode

Transmission Speed

Transmission speed is dependent on your device. In order not to lose
data, please choose the correct speed. Middle-speed is the Default.
iLS6300VB
Demo
High-speed
Transmission
WFFD980
Middle-speed
Transmission
Demo
(Default)
Slow-speed
%B%T%L
Transmission
Demo
Bluetooth Auto-connection
%A%L%E
Trigger always
(Trigger available at any time)
Trigger standard (Default)
(Trigger available, after data sent to the device)
.
Demo
Ultra Slow-speed
1 transmission
.
Ultra Slow-speed
2 transmission
Demo
Ultra Slow-speed
3 transmission
Bluetooth Auto-connection ON:
When out of range, it will keep trying to
connect to device, scanner will not enter
power-saving mode.
Bluetooth Auto-connection OFF:
When you are out of BT signal range, scanner
will stop sending auto-connection signal to
device after 2 minutes. During this time, it will
not enter power-saving mode. Once you are
back within range, press trigger to connect to the
device. (Default)
