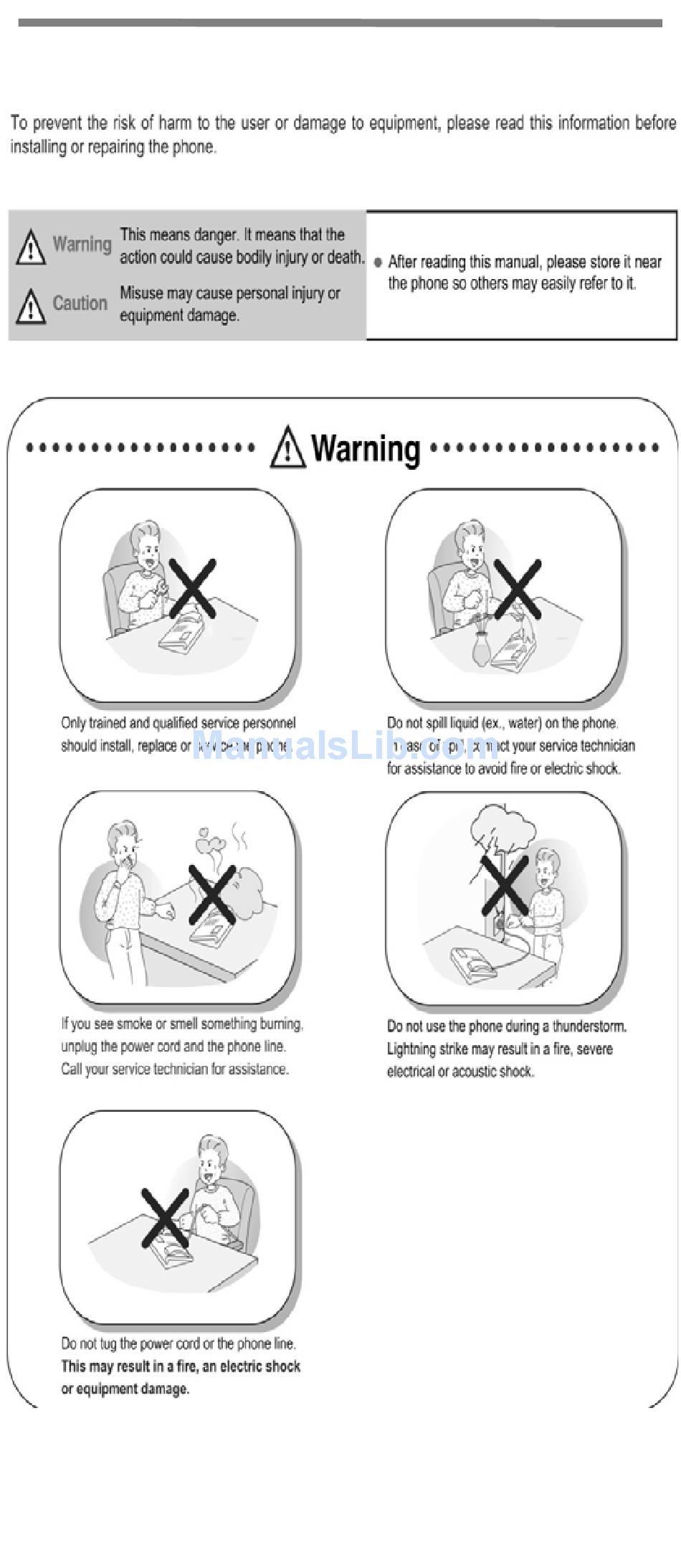

  • Page 1 Important Safety Information...
  • Page 2 Important Safety Information...
  • Page 3 Important Safety Information...

  • Page 4: Ldp-7208D Model

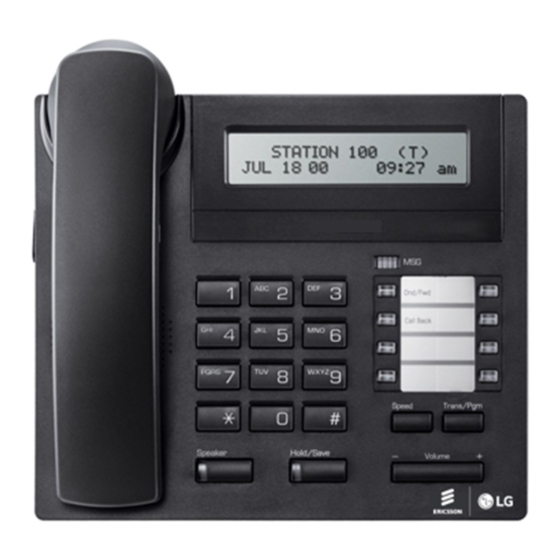

    LDP-7208D Model LDP-7208D is an advanced, user-friendly digital keyset, offering the convenience of flexible and pre-programmed buttons for quick access to commonly used functions. • Features - Trendy and stylish LDP Family product design - LCD interface - Easy to use features...

  • Page 5: Input/Output Devices And Button Description

    Input/Output Devices and Button Description LDP-7208D Item Description 1 LCD Display Shows incoming caller info., status, and menus. 2 Handset Transmits outgoing and incoming sound. 3 Headphone Install an optional earphone Socket for hands-free conversation. (Ear/Mic) 4 Speaker Outputs tones and voice.
  • Page 6 Input/Output Devices and Button Description Item Description 6 Hold/Save Places a call on hold or saves programming information. Button 7 Volume Adjusts audio to desired level. 8 Loop Receive calls where no CO Line appearance is available. 9 MSG LED Illuminates if MSG is waiting.

  • Page 7: Cable Connection

    Cable Connection The diagram (shown) depicts cable connections for the LDP-7208D; connection points are described below. Connect the telephone cord (spiral cord) to the handset and the other end to the handset jack at the bottom of the telephone. Connect the line cable to the port at the bottom of telephone and the other end to the wall socket.

  • Page 8: Basic Function

    Basic Function Placing an Outside Call Lift handset or press the Speaker button (also may dial ● without pressing Speaker or lifting handset). Dial 9 on keypad. ● Dial the desired number. ● Placing an Intercom Call Lift handset or press the Speaker button (also may dial without ●...

  • Page 9: Last Number Redial

    Basic Function Last Number Redial Lift handset, or press the Speaker button (also may dial without ● pressing Speaker or lifting handset). Dial 5 5 2 or press the speed button + dial ‘＊’ + Hold/Save ● button. Storing Station Speed Dial Numbers Press the [TRANS/PGM] and [SPEED] Buttons.

  • Page 10: Code For Flexible Button Programming

    Code for Flexible Button Programming Registering Flexible Buttons Trans/Pgm Press the [Trans/Pgm] button. Press the desired [Flexible] button. Trans/Pgm Press the [Trans/Pgm] button. Enter code number (refer to list next page). Hold/Save Press the [Hold/Save] button.

  • Page 11: Button Assignment For Ldp- 7208D

    Code for Flexible Button Programming Button Assignment for LDP- 7208D Code Function Differential Ring Intercom Answer Mode (1HF, 2TONE, 3PV) SMS Message Display Enblock Mode SMS/Notice Display Scroll Speed Ear/Mic Headset ICM Bell CO Bell PTT Group Station COS Down Station COS Restore Walking COS COS Change...
  • Page 12 Button Assignment for LDP- 7208D (cont.) Code Function E-Mail Notification Record User Name Erase User Name LCD Display Mode (English/Domestic Language) MPB Version Display Background Music Station User Name Registration Headset/Speakerphone Mode Headset Ring Mode Serial No/SW Packages PC – Phone Lock Key Hot Desk Logout Hot Desk Login Relocation Out...

  • Page 13: Entering Characters

    Entering characters...
