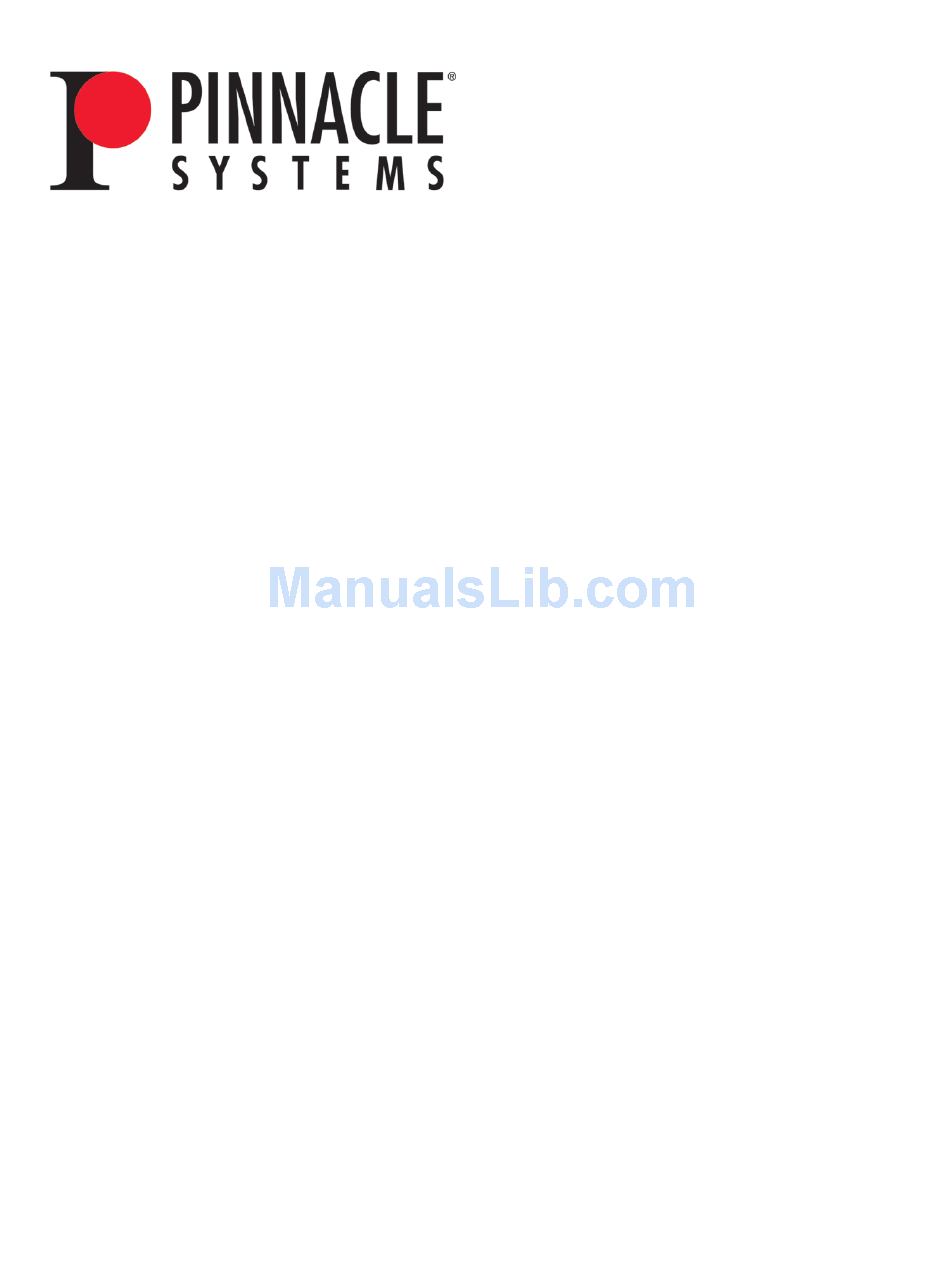

DEKO1000 & DEKO550
Technical Reference And Service Guide
®
Pinnacle
Systems, Inc.
280 N. Bernardo Avenue
Mountain View, CA 94043
July 2004
©
®
Copyright
2004 Pinnacle
Systems, Inc.
P/N 372100105
Rev. A
