Summary of Contents for Savaria ES-125

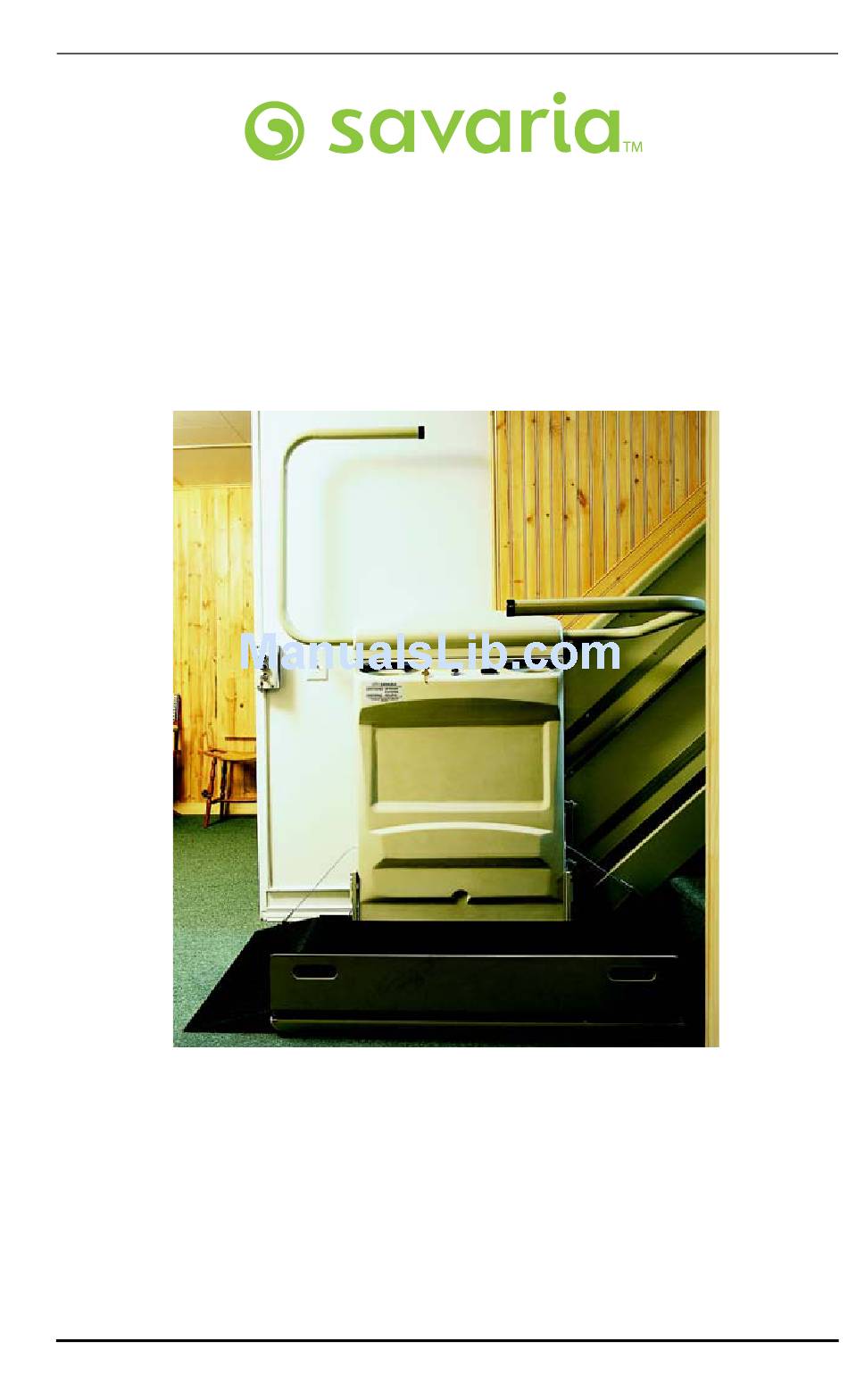

- Page 1 ES-125 Inclined Platform Lift OWNER’S MANUAL (To Be Retained by Owner After Installation by Authorized Savaria Dealer) Part No. 000703 04-m07-2011...
- Page 2 IMPORTANT Ensure that only an authorized Savaria Dealer installs and services the Savaria™ ES-125 Inclined Platform Lift. Under no circumstances is anyone other than a dealer with Savaria training and authorization to install, adjust, service or modify any mechanical or electrical device on this equipment. Failure to follow this warning can result in safety system compromises or defeat;...
-
Page 3: Table Of Contents
Operator Troubleshooting ........14 Part No. 000703, 04-m07-2011 ES-125 Owner’s Manual... -
Page 4: To Ensure Safe Operation
TO ENSURE SAFE OPERATION To ensure safe operation of this equipment, pay careful attention to the important notes below. • Read this manual carefully before using the ES-125 Inclined Platform Lift. • To prevent accidents, adhere strictly to the instructions and keep clear of moving parts at all times. -
Page 5: Description
1. DESCRIPTION Figure 1 shows the exterior components of the ES-125. Figure 1 Part No. 000703, 04-m07-2011 ES-125 Owner’s Manual... -
Page 6: General Specifications
No machine room is required. ETL certified to CSA and ASME standards Controller 24 VAC or 12 VDC operating controls Continuous-pressure directional buttons with a key Platform operating controls switch for increased safety ES-125 Owner’s Manual Part No. 000703, 04-m07-2011... - Page 7 Zero clearance at top landing to avoid landing door (n/a on Plus model) Fire service function Hand-held pendant control on platform Pre-drilled guide rail for masonry walls Formica colors available on back sides of rail Custom color Part No. 000703, 04-m07-2011 ES-125 Owner’s Manual...
-
Page 8: Operation
3. OPERATION Operating from the COP Controls Figure 2 shows the ES-125 car operating panel (COP). Note that the controls on your unit may differ from those shown here. Figure 2 To operate the ES-125 from the COP controls: 1 Insert the key into the key switch and turn it to the ON position to activate the operating buttons. -
Page 9: Operating From The Landing Station Controls
Figure 3 To operate the ES-125 from the landing (call/send) station controls: 1 Insert the key into the key switch and turn it to the ON position to activate the operating buttons. -
Page 10: Safety Features
Pressing a red Emergency Stop button during travel will stop the lift immediately and activate the alarm. The Emergency Stop overrides the landing (call/send) stations. Pull the Emergency Stop out to return the lift to normal operation. ES-125 Owner’s Manual Part No. 000703, 04-m07-2011... -
Page 11: Manual Lowering Device
In case of an emergency, you can lower the platform manually using the manual lowering device. NOTE The manual lowering mechanism is for emergency use only. ES-125 (unit pulled by a steel cable, residential model) The residential ES-125 does not come Figure 4 standard with the manual lowering device; the crank must be ordered separately if you want this feature. -
Page 12: Maintenance
Every 6 months • Rollers (lubricate if noisy) • Up and down relays (make sure the relays are not stuck in the activated position by reading continuity through a normally open (N.O.) contact) ES-125 Owner’s Manual Part No. 000703, 04-m07-2011... -
Page 13: Maintenance Record
Maintenance Record Date Time Reason for Call Comments Dealer Part No. 000703, 04-m07-2011 ES-125 Owner’s Manual... -
Page 14: Operator Troubleshooting
Platform does not fold or unfold landings. (power-fold option only) Check that the seat is folded up. Check to see if the bus lines (if equipped) are Platform moves intermittently dirty. If necessary, clean with grit #400 sandpaper. ES-125 Owner’s Manual Part No. 000703, 04-m07-2011... - Page 16 ES-125 Inclined Platform Lift OWNER’S MANUAL Part No. 000703 Copyright © 2011 Savaria Corporation Elevators and Lifts www.savaria.com Sales 107 Alfred Kuehne Blvd. Brampton, Ontario, L6T 4K3, Canada Tel: (905) 791-5555 Fax: (905) 791-2222 Toll Free: 1-800-661-5112...
