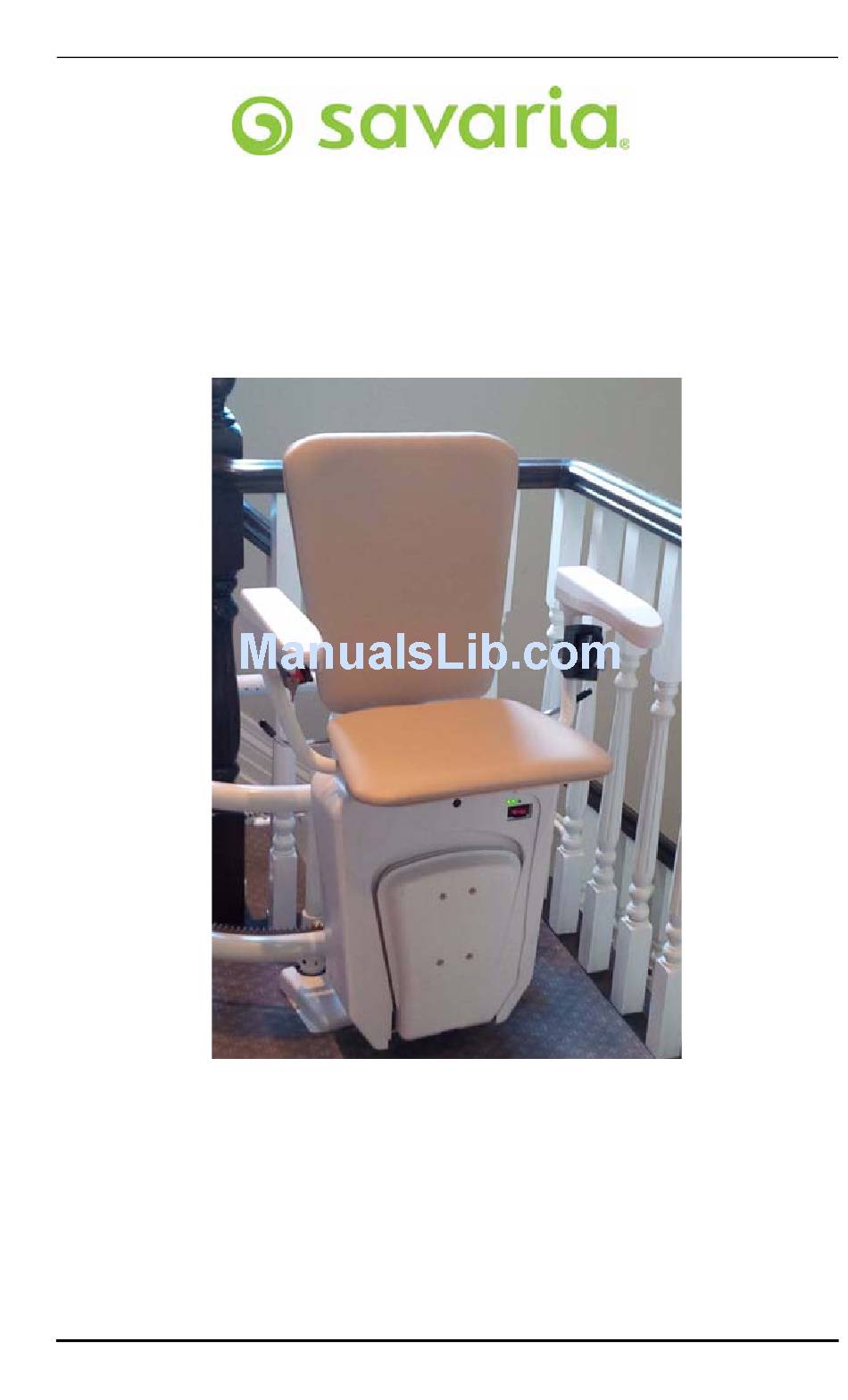

Stairfriend
Stairlift
Owner's Manual
(To Be Retained by Owner After Installation
by Authorized Savaria Dealer)
Part No. 000914
08-m06-2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stairfriend and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Savaria Stairfriend

Summary of Contents for Savaria Stairfriend

  • Page 1 Stairfriend Stairlift Owner’s Manual (To Be Retained by Owner After Installation by Authorized Savaria Dealer) Part No. 000914 08-m06-2015...
  • Page 2 IMPORTANT Ensure that only an authorized Savaria Dealer installs and services the Savaria Stairfriend Stairlift. Under no circumstances is anyone other than a dealer with Savaria training and authorization to install, adjust, or service any mechanical or electrical device on this equipment. Failure to follow this warning can result in safety system compromises or defeat;...

  • Page 3: Table Of Contents

    Prior to operation, make sure that all areas in and around the lift are clear of any obstructions. • We recommend that you test your keys and emergency stop button (if equipped) every month. Part No. 000914, 08-m06-2015 Stairfriend Owner’s Manual...

  • Page 4: Description

    1. DESCRIPTION Figure 1 shows the exterior components of the Stairfriend with V-seat. Figure 1 Folding armrest Backrest Toggle switch Seat belt Folding Seat swivel armrest handle Folding seat Seat belt Key switch (underneath seat) Diagnostic Hole for manual LEDS...
  • Page 5 Figure 2 shows the exterior components of the Stairfriend with L-seat. Figure 2 Folding Backrest armrest Toggle switch Seat belt Folding Seat swivel armrest handle Seat belt Folding seat Seat swivel handle Key switch (underneath seat) Diagnostic LEDs Manual lowering...

  • Page 6: Specifications

    2. SPECIFICATIONS Stairfriend Specifications Residential, indoor, curved stairs Applications Commercial - varies by region; contact your authorized Savaria dealer for details Load capacity 350 lb (160 kg) Maximum travel 32 ft (9.75 m) Travel speed 20 ft/min (0.1 m/s); 12 ft/min (0.06 m/s) at bends Range of incline 0°...

  • Page 7: Features

    There is an optional emergency stop button that may be located on the arm. Pressing this button will stop the unit immediately. Overspeed Brake (Optional) There is an optional overspeed brake that will engage and stop the lift if the normal downward travel speed is exceeded. Part No. 000914, 08-m06-2015 Stairfriend Owner’s Manual...

  • Page 8: Key Switch And Power Switch

    Once the key switch is turned on, flip the red ON/OFF power switch located on the front top left of the carriage to the ON position. Figure 3 Key switch (under seat) Stairfriend Owner’s Manual Part No. 000914, 08-m06-2015...

  • Page 9: Operation

    In the event of an emergency, you can press the optional red Emergency Stop button located on the arm of the chair. The stairlift will stop immediately. Once the emergency is dealt with, release the button to restore normal operation. Part No. 000914, 08-m06-2015 Stairfriend Owner’s Manual...

  • Page 10: Emergency Manual Operation

    4 Rotate the tool clockwise for the unit to travel up the stairs and counter-clockwise for the unit to travel down the stairs. 5 When complete, remove the tool and insert the rubber plug back into the hole. Figure 4 Manual lowering tool Stairfriend Owner’s Manual Part No. 000914, 08-m06-2015...

  • Page 11: Adjustments

    2 Using an Allen key, tighten the set-screw in each lock-nut as shown below. 3 After tightening the set-screws, move the seat to ensure it will remain in the folded position. 4 Tighten the two lock-nuts. Figure 5 Lock-nuts Set-screw in lock-nut Part No. 000914, 08-m06-2015 Stairfriend Owner’s Manual...

  • Page 12: Troubleshooting And Maintenance

    Make sure the stairlift is either all the way up or all the way down at the charging contact. It will beep continuously if it is not at a charging contact. If the beeping continues, contact your authorized Savaria dealer. Stairlift stops and won’t restart If the stairlift runs to either end of the stairway and then stops and won’t restart,...

  • Page 13: Diagnostic Leds

    Middle and left LEDs on Right-hand obstruction (or ready to run left) Middle LED on Obstruction, both right-hand and left-hand All LEDS off Safety circuit fault All LEDs on Ready to run left or right Part No. 000914, 08-m06-2015 Stairfriend Owner’s Manual...

  • Page 14: Maintenance

    Maintenance NOTE The owner can perform the 3-month checks; 6-month checks must be performed by a qualified technician. Contact your Savaria dealer Units installed in adverse environments will require additional maintenance on a monthly basis. Maintenance Schedule Verification by owner Frequency Check that the swivel seat switch is working.

  • Page 15: Maintenance Record

    Maintenance Record Date Time Reason for Call Comments Dealer Part No. 000914, 08-m06-2015 Stairfriend Owner’s Manual...
  • Page 16 Authorized Savaria Dealer Savaria™ Stairfriend Stairlift OWNER’S MANUAL Part No. 000914 Copyright 2015 Savaria Corporation Elevators and Lifts www.savaria.com Sales 2 Walker Drive Brampton, Ontario, L6T 5E1, Canada Tel: (905) 791-5555 Fax: (905) 791-2222 Toll Free: 1-800-661-5112...
