FREECURVE 3
ELEGANCE
ALLIANCE
CLASSIC
Regolazione dell'angolo della guida ribaltabile
Réglage de l'angle du rail escamotable
Winkelverstellung der Klappschiene
Hoekverstelling van de klaprail
Ajuste del ángulo del riel plegable
Hinge angle adjustment
FREECURVE 4
ELEGANCE
SMART
ALLIANCE
OUTDOOR
CLASSIC
HANDICARE
1000
4000
SIMPLICITY
STYLE
SMART
1100
STYLE
I N S T R U C T I O N
INSTRUCCIÓN
INSTRUCTIE
ANLEITUNG
INSTRUCTION
ISTRUZIONE
I T
FR
DE
Savaria
by
ES
NL
EN
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Savaria handicare SMART 1000
Summary of Contents for Savaria handicare SMART 1000

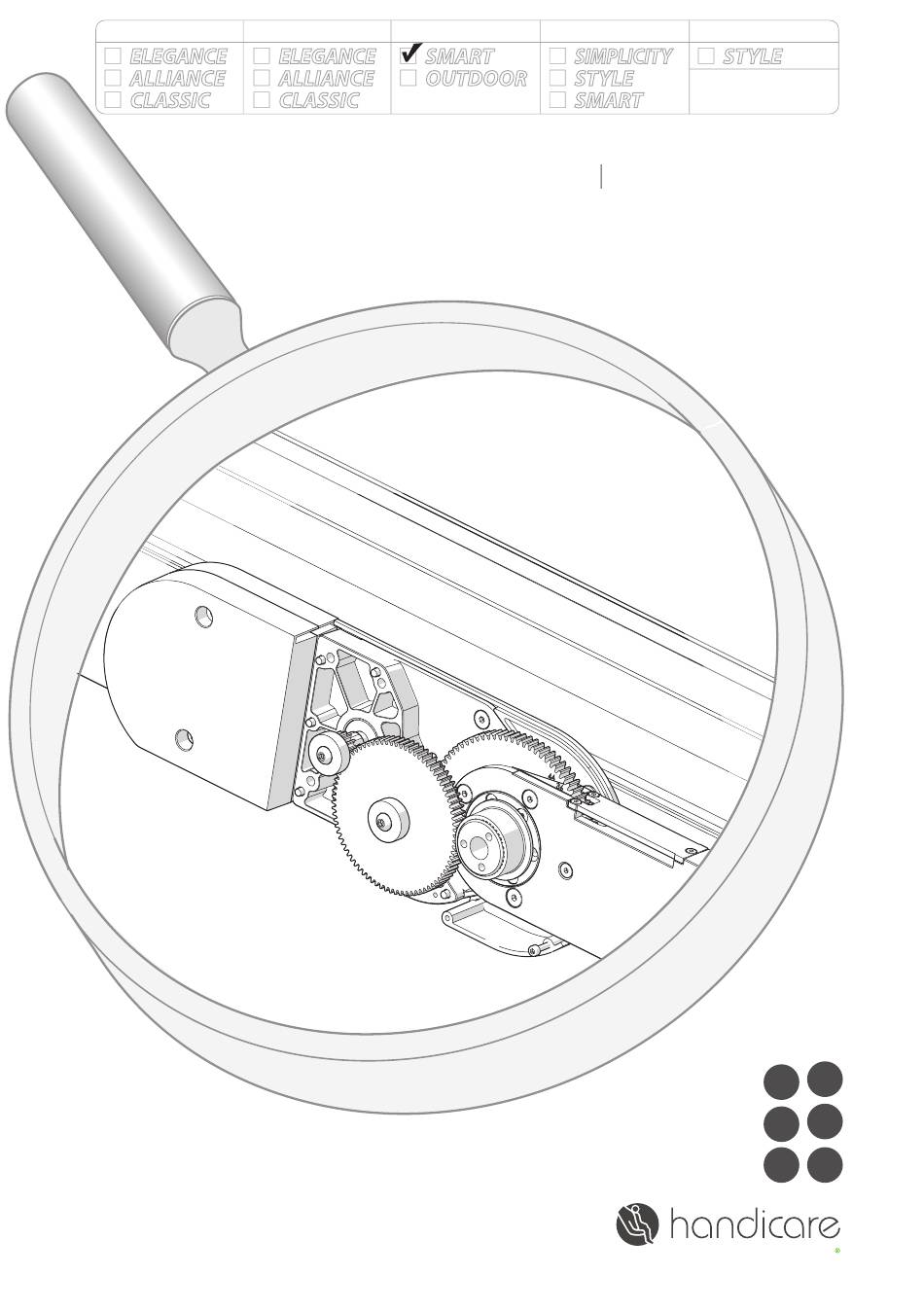

- Page 1 I N S T R U C T I O N INSTRUCCIÓN INSTRUCTIE ANLEITUNG INSTRUCTION ISTRUZIONE Regolazione dell’angolo della guida ribaltabile Réglage de l’angle du rail escamotable Winkelverstellung der Klappschiene Hoekverstelling van de klaprail Ajuste del ángulo del riel plegable Hinge angle adjustment Savaria...
- Page 2 HINGE ANGLE ADJUSTMENT REMOVE COVER TOOLS REQUIRED ADJUSTMENT RECOMMENDED ONLY POWERED HINGE 3 mm 1 HINGE ANGLE ADJUSTMENT INSTRUCTION...
- Page 3 EXPLANATION Only a technician certified for this lift should service this lift (for more detailled information about the required competence see the installation manual). The latest instructions for the lift and instructions for options are available for download at www.handicarepartners.com. Hinges will be adjusted to suit a standard range of staircase angle from the factory, however onsite adjustment is also possible should an edge case arise.Adjustment can be made before or during installation.
- Page 4 HINGE ANGLE ADJUSTMENT LOOSEN SCREWS 10 mm 3 mm 2 TURNS 2,5 mm 3 mm 2 TURNS 3 HINGE ANGLE ADJUSTMENT INSTRUCTION...
- Page 5 EXPLANATION [3]Remove the transportbolt. Be carefull: the hinged rail will move with significant force until it is in the up position. [4]Loosen the first gear clamp screw. [5]Loosen the other 3 gear clamp screws. [6]Remove the adjustment screw. [3]Verwijder de transportbout. Wees voorzichtig: de klaprail zal met aanzienlijke kracht bewegen totdat deze in de omhoog positie staat.
-
Page 6: Adjust Angle
HINGE ANGLE ADJUSTMENT ADJUST ANGLE 2,5 mm 3 Nm 27 Lb-In 3 mm ONLY POWERED HINGE 5 Nm 44 Lb-In 5 HINGE ANGLE ADJUSTMENT INSTRUCTION... - Page 7 EXPLANATION [7]Line up stair angle etching on gear to the closest degree. [8]Refit and fasten the adjustment screw (3Nm | 27 Lb-In). [9]Retorque clamping bolts (5Nm | 44 Lb-In). [10]Only powered hinged rail: reconnect the hinge motor. [7]Lijn de traphoek op het tandwiel uit tot de dichtstbijzijnde graad. [8]Plaats de afstelschroef terug en draai deze vast (3 Nm).
- Page 8 HINGE ANGLE ADJUSTMENT CHECK HINGE AND LIFT 3 mm 7 HINGE ANGLE ADJUSTMENT INSTRUCTION...
- Page 9 EXPLANATION [11]Reinstall the gear wheel cover. [12]Check the (powered) hinge track function. [13]Check the lift is moving smoothly over the hinged rail. [11]Monteer de tandwielkap weer. [12]Check de werking (automatische) klaprail. [13]Controleer of de lift soepel over de klaprail rijdt. [11]Vuelva a montar la cubierta de la rueda dentada.
- Page 12 West Midlands DY6 7FJ, United States of America England T +44 (0)1384 408700 T 1.800.791.7999 enquiries@handicare.co.uk sales.us@handicare.com Handicare Monte-escaliers Savaria Canada 4 Rue des Piverts 2 Walker Drive Brampton, ZAC de l’ Aunaie ON L6T 5E1 Canada 91610 Ballancourt-sur-Essonne T 1.905.791.5555 France T 1.855.728.2742...
