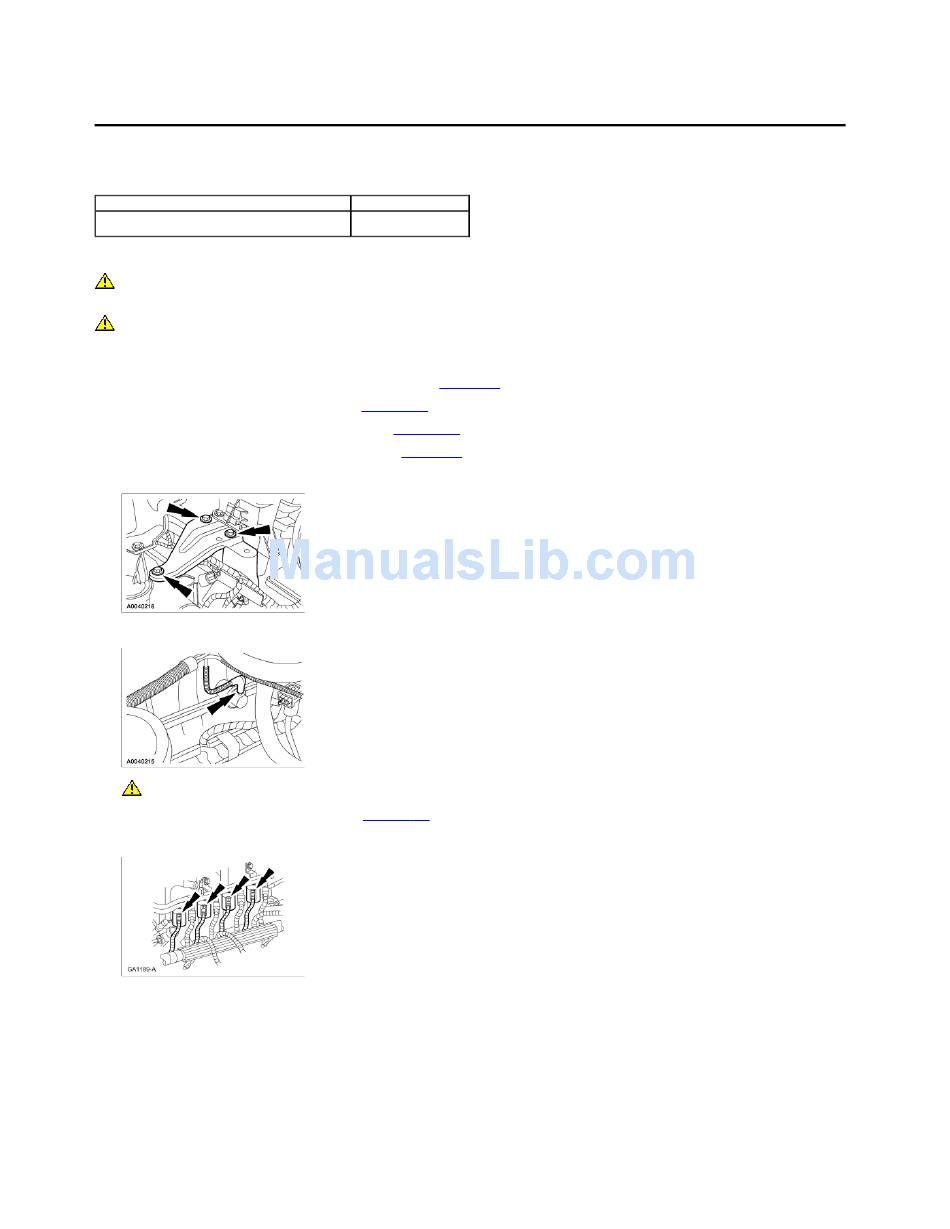

2002 F-150 Workshop Manual
SECTION 303-04B: Fuel Charging and Controls — 4.6L (2V) and 5.4L (2V)
REMOVAL AND INSTALLATION
Fuel Injection Supply Manifold
Material
Item
Super Premium SAE 5W-20 Motor Oil
XO-5W20-QSP or DSP or equivalent
Removal
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are
always present and may be ignited. Failure to follow these instructions may result in personal injury.
WARNING: Fuel in the fuel system remains under high pressure even when the engine is not running. Before working on or disconnecting any of the fuel lines or fuel
system components, the fuel system pressure must be relieved. Failure to follow these instructions may result in personal injury.
All engines
1. Disconnect the battery ground cable (14301). For additional information, refer
2. Relieve the fuel pressure. For additional information, refer
3. Partially drain the cooling system. For additional information, refer
4. Remove the air cleaner outlet pipe. For additional information, refer to
5. Remove the power steering reservoir upper bracket.
6. Disconnect the fuel pressure regulator valve vacuum hose.
7.
CAUTION: After disconnecting, plug the fuel tubes to prevent leakage.
Disconnect the fuel tubes. For additional information, refer
8. Disconnect the eight ignition coil electrical connectors.
9. Disconnect the eight fuel injector electrical connectors.
http://www.fordtechservice.dealerconnection.com/pubs/content/~WS21/~MUS~LEN/19/S2...
Specification
WSS-M2C153-H
toSection
414-01.
toSection
310-00A.
toSection
303-03A.
Section
303-12.
toSection
310-00A.
Page 1 of 7
2002 F-150 Workshop Manual
Procedure revision date: 06/20/2001
