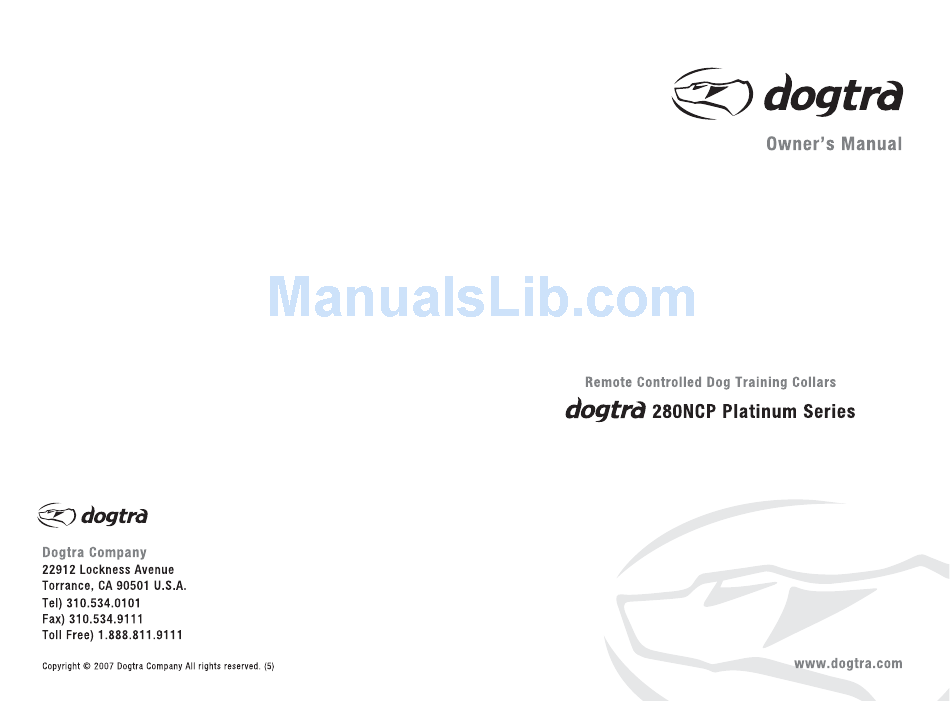

Dogtra 280NCP Tlatinum Series Owner's Manual

Dogtra 280NCP Tlatinum Series Owner's Manual

Remote controlled dog training collars
Hide thumbs Also See for 280NCP Tlatinum Series:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 280NCP Tlatinum Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dogtra 280NCP Tlatinum Series

Summary of Contents for Dogtra 280NCP Tlatinum Series

  • Page 2: Table Of Contents

    CONTENTS MAIN FEATURES PRODUCT SAFETY AND HEALTH STATEMENTS PACKAGE CONTENTS DESCRIPTION OF TRANSMITTER PARTS BUTTON FUNCTIONS DESCRIPTION OF COLLAR/RECEIVER PARTS BATTERY CHARGER TESTING YOUR COLLAR FITTING THE COLLAR ON THE DOG CHARGING THE BATTERIES RECEPTION METAL BELT CLIP ACCESSORY BASIC MAINTENANCE TROUBLE SHOOTING GUIDE WARRANTY AND REPAIR INFORMATION...

  • Page 3: Main Features

    PRODUCT SAFETY AND HEALTH STATEMENTS Easy-to-use, ergonomic transmitter. Proper e-collar use Rheostat dial allows for gradual increases in Dogtra e-collars are intended for the sole purpose stimulation intensity with no jumps between of behavior modification of dogs. They are not levels (0-127).

  • Page 4: Package Contents

    DESCRIPTION OF TRANSMITTER PARTS COLLAR DESCRIPTION OF PACKAGE CONTENTS TRANSMITTER PARTS transmitter (1-dog) Transmitter Receiver (two collar receivers for Dogtra two-dog models) Antenna Battery charger and splitter cable Metal belt clip accessory Rheostat Intensity Dial Owner’s manual Indicator Light (LED Window)
  • Page 5 DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS transmitter (2-dog) Antenna Transmitter Antenna Nick/Constant Rheostat Toggle Switch Intensity Dial A short 2 antenna is supplied with the transmitter. Indicator Light ON/OFF (LED Window) Switch The antenna must be fastened to the transmitter before using the unit.
  • Page 6 DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS Rheostat Intensity Dial LCD Screen The Rheostat Intensity Dial is located on the The LCD screen indicates the stimulation top of the transmitter: (0) being the lowest level level (0-127) on the screen. and (127) being the highest.
  • Page 7 DESCRIPTION OF TRANSMITTER PARTS DESCRIPTION OF TRANSMITTER PARTS Care for LCD Transmitters in Cold Temperature In cold temperatures (10 degrees F or below), the Liquid Crystal Display (LCD) on your transmitter may be dim or slow to respond. Wait until the display becomes visible before selecting any training level.

  • Page 8: Button Functions

    DESCRIPTION OF TRANSMITTER PARTS BUTTON FUNCTIONS BUTTON FUNCTIONS (1-dog) Pager Nick ON/OFF Transmitter Battery Charging Receptacle & Switch Constant Rubber Plug Located on the backside of the transmitter, the charging receptacle is covered by a rubber The transmitter for the plug.
  • Page 9 BUTTON FUNCTIONS BUTTON FUNCTIONS “Constant” Button (2-dog) The “Constant” button is located on the bottom left. Pressing the “Constant” button gives Nick/Constant continuous stimulation as long as the button is Toggle Switch -dog pushed, for up to 12 seconds. If the button is not Nick &...

  • Page 10: Description Of Collar/Receiver Parts

    BUTTON FUNCTIONS DESCRIPTION OF COLLAR / RECEIVER PARTS DESCRIPTION OF When either the orange or gray stimulation button is pressed and the toggle is set on “Nick” COLLAR / RECEIVER PARTS the receiver emits a single pulse of electrical stimulation. When you press either the orange or gray stimulation button, and the toggle is set on Battery Charging...
  • Page 11 DESCRIPTION OF COLLAR / RECEIVER PARTS DESCRIPTION OF COLLAR / RECEIVER PARTS Receiver Indicator Light (LED window) Receiver ON/OFF Magnetic Red Dot Located on the front of the receiver/collar, To activate the receiver/collar, place the red the indicator light comes on and blinks once dot on the back of the transmitter to the red dot every 2 seconds after the collar has been turned on the collar/receiver.

  • Page 12: Battery Charger

    120-volt wall outlet. (European 230-volt AC chargers and 12-volt car chargers Internal Antenna are also available.) All Dogtra E-collars have non-exposed To use the battery charger for the two-dog antennas that are located inside the unit, combine both sets of battery charging collar/receiver.

  • Page 13: Testing Your

    TESTING TESTING TESTING YOUR 2. The indicator light(LED) on the collar receiver COLLARS will light briefly when the nick button is pressed. Pressing the Constant button will light the indicator for as long as you hold the button down, up to twelve seconds. 3.

  • Page 14: Fitting The Collar On The Dog

    If the collar is too loose, electrical contact will be inconsistent and your corrections will be inconsistent also. Dogtra uses surgical stainless steel contact points and Anti-microbial plastic to protect the dog’s skin. ATTENTION!

  • Page 15: Charging The Batteries

    FITTING THE COLLAR ON THE DOG CHARGING THE BATTERIES CHARGING THE BATTERIES INTENSITY SELECTION has a Rheostat Intensity Dial on the top of the transmitter. (0 is the lowest and 127 is the highest). Remember that you will need to adjust the setting (upward or downward) depending on your dog’s temperament and threshold for stimulation.
  • Page 16 CHARGING THE BATTERIES CHARGING THE BATTERIES Recharge the unit if : 3. After charging, cover the battery charging The LED indicator light on the collar receptacles with the rubber plugs on the receiver is emitting a red color. transmitter and receiver. If the 3 bar indicator on the transmitter LCD shows just 1 bar.

  • Page 17: Reception

    RECEPTION METAL BELT CLIP ACCESSORY RECEPTION METAL BELT CLIP ACCESSORY To attach the metal belt clip to your transmitter, collar has a range of 1/2-mile. Depending on the follow the steps below. way you use your transmitter, the range may vary.

  • Page 18: Basic Maintenance

    Troubleshooting If you suspect your unit is malfunctioning please refer to the “Troubleshooting Guide” before you send your unit in for service. If you have any questions or concerns, you may direct your inquiries to info@dogtra.com or call (888) 811-9111.

  • Page 19: Troubleshooting Guide

    - The contact points may be too short for the serviced. Please contact Customer Service dog. To place an order for longer contacts at info@dogtra.com or (888) 811-9111. appropriate for your dog, please call (888) 811-9111. 3. The transmitter has no range, or stimulation If you are already using the longest contact is less when the dog is farther away.

  • Page 20: Warranty And Repair Information

    Labor and charging port with clean water. fees and shipping fees incurred are the - For Dogtra units over two years old from the customers’ responsibility. Labor fees will be purchase date, the batteries may be replaced. You variable depending on the extent of work can replace them yourself by contacting Dogtra.
  • Page 21 Any water damage on the Water Resistant Transmitters of the 175NCP, 180NCP, 200NCP, Dogtra will estimate the age of the unit by the serial number. Serial number estimates can be 202NCP, 1400NCP, 1402NCP, 1500NCP and different than the actual purchase time.
  • Page 22 The warranty is void if the unit has been Or, you can visit our website at www.dogtra.com. altered or an unauthorized person has attempted Click on the Service Request Form, print it out repair work.

  • Page 23: Ec Declaration Of Conformity

    EC DECLARATION OF CONFORMITY EC DECLARATION OF CONFORMITY We, Dogtra Company declare under our sole responsibility that the product Model Name : 282NCP Platinum (Multi lising : 622NCP & 280NCP Platinum & 620NCP) to which this declaration relates is in conformity with R&TTE Directive 1999/5/EC...
