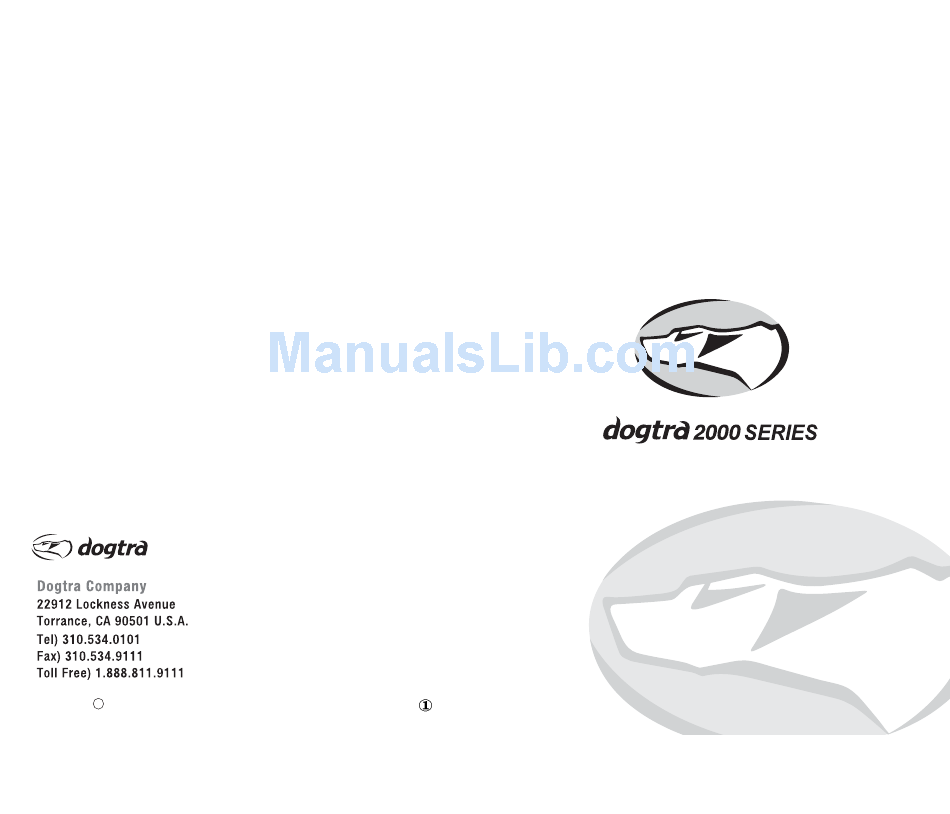

REMOTE CONTROLLED
DOG TRAINING COLLARS
OWNER'S MANUAL
Copyright c 2000 Dogtra Company
2005-
www.dogtra.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2000 series and is the answer not in the manual?

Questions and answers

Dave Grooms
January 26, 2025

I need to buy batteries for my controller dogtra 2000 nap serial #20198 it has 8 AAA BATTERIES are the still available

1 comments:
Mr. Anderson
May 14, 2025

The Dogtra 2000 series uses user-replaceable and rechargeable Ni-MH batteries. It does not mention using 8 AAA batteries, so batteries for a controller using 8 AAA batteries are not applicable or specified.

This answer is automatically generated

Summary of Contents for Dogtra 2000 series

  • Page 1 REMOTE CONTROLLED DOG TRAINING COLLARS OWNER’S MANUAL Copyright c 2000 Dogtra Company 2005- www.dogtra.com...
  • Page 2: Table Of Contents

    CONTENTS OVERVIEW MAIN FEATURES PRODUCT SAFETY AND HEALTH STATEMENTS COLLAR PACKAGE CONTENTS DESCRIPTION OF TRANSMITTER PARTS BUTTON FUNCTION DESCRIPTION OF COLLAR PARTS BATTERY CHARGER CHARGING THE BATTERIES TESTING YOUR COLLARS OPERATING INSTRUCTIONS ACCESSORIES WARRANTY AND REPAIR INFORMATION...
  • Page 3: Overview

    OVERVIEW OVERVIEW OVERVIEW Pressing the Constant” button causes the collar to emit electrical stimulation that stays training collars give you the on for up to twelve seconds as long as the ability to communicate with your dog in a button is held down. Constant” stimulation is timely manner even when the dog is far away used as a reserve high to stop unsafe behaviors from you.
  • Page 4: Main Features

    MAIN FEATURES PRODUCT SAFETY AND HEALTH STATEMENTS MAIN FEATURES PRODUCT SAFETY AND HEALTH STATEMENTS Easy to use transmitter. collars use state-of-the-art micro- technology. All intensity level adjustments are made from a digital dial on the transmitter. The dial works like If the constant button is held down for more a rheostat, gradually increasing the intensity with than 12 seconds, an automatic power-down...
  • Page 5: Collar Package Contents

    PACKAGE INCLUDES TRANSMITTER COLLAR DESCRIPTION OF PACKAGE CONTENTS TRANSMITTER PARTS transmitter Transmitter Receiver (two collar receivers for two dog models) Antenna Battery charger and splitter cable Intensity Selection Dial Test light Indicator Light Owner s manual Toggle Switch Pager Button Nick Button Carrying case Constant...
  • Page 6 TRANSMITTER TRANSMITTER TWO-DOG MODELS Collar 6.5 Antenna selection switch Transmitter Antenna A heavy-duty 6.5 antenna is supplied for Selection Switch on the Two-Dog use on the transmitters. Models The antenna should be screwed into the top The two-dog models have a toggle switch of the transmitter to ensure that the signals are on the face of the transmitter located above the sent properly to the collar receiver and that...
  • Page 7 TRANSMITTER TRANSMITTER Transmitter Charging Receptacle Transmitter Battery Charging Receptacle Located on the backside of the transmitter, the receptacle is covered by a rubber plug. Insert one end of the battery charging cable into the receptacle to charge the battery. Intensity Selection Dial (See Battery Charging Procedure.) The intensity selection dial is located on After charging is completed, close the...
  • Page 8: Button Function

    TRANSMITTER BUTTON FUNCTION BUTTON FUNCTION Nick Constant Transmitter Indicator Light (LED) The transmitter indicator light is located by the intensity selection dial. The transmitter for has two When a button on the transmitter is buttons. pushed, the red light comes on to indicate that the transmitter is being activated.
  • Page 9 BUTTON FUNCTION BUTTON FUNCTION Nick Button When the Nick button is pushed, the receiver emits an extremely short pulse of electrical stimulation that automatically shuts off no matter how long you leave your finger Nick on the button. The Nick is mild but motivating! Pager Constant...
  • Page 10: Description Of Collar Parts

    BUTTON FUNCTION COLLAR DESCRIPTION OF Nick Button COLLAR PARTS When the Nick button is pushed, the receiver emits an extremely short pulse of electrical Collar stimulation that automatically shuts off no matter how long you leave your finger on the button. The Nick is mild but motivating! Collar strap Constant Button...
  • Page 11 COLLAR COLLAR Receiver Indicator Light (LED) ON/OFF Button Located on the front of the collar, the To turn the collar on, press the button on indicator light comes on and blinks once every the end of the receiver for one full second until 2 seconds after the collar is turned on.
  • Page 12 COLLAR COLLAR Receiver Charging Receptacle Receiver Battery Charging Receptacle Contact Points On the inside of the collar, next to the The collar should be fitted so that the collar strap, is a battery charging receptacle stainless steel contact points press firmly against with a rubber cover plug.
  • Page 13: Battery Charger

    BATTERY CHARGER CHARGING THE BATTERIES BATTERY CHARGER CHARGING THE BATTERIES Charging Cable 110 volt Charger Two-dog unit only The battery charger and charging cables allow uses Ni-MH (Nickel-Metal- you to charge both the transmitter and receiver at Hydride) batteries that do not set a memory and the same time.
  • Page 14 CHARGING THE BATTERIES CHARGING THE BATTERIES Battery charging procedure 3. Fully charge the batteries for 14 hours if the collar is to be stored without use for a period of 1. Attach the charging cables to both the a month or more. transmitter and receiver(s), as shown on page 25.
  • Page 15: Testing Your Collars

    TESTING TESTING TESTING YOUR 2. Place the test light on the receiver contact points and hold it there. COLLARS 3. Set the transmitter intensity dial to level one hundred and push the Constant button. 4. Watch the test light as you push the Constant button on the transmitter.
  • Page 16: Operating Instructions

    OPERATING INSTRUCTIONS Testing the Pager Feature: Fitting the collar If you have a dogtra collar with the pager feature, push the “Pager” button while holding The collar strap should be adjusted so that the the receiver in your hand. You should feel the contact points are held firmly against the dog’s...
  • Page 17 OPERATING OPERATING Intensity selection Maintenance To select the intensity level, start on number Always clean and rinse the collar thoroughly one. Gradually increase the level until you get a with tap water after use in salt water. response from the dog that would be equivalent to a quick pull of “POP”...
  • Page 18: Accessories

    MAINTENANCE ACCESSORIES Reception ACCESSORIES collar has a range of one The following items may be purchased mile. Depending on the way you use your separately transmitter, the transmitting range may vary. You will have extended if you hold the transmitter away from your body when you push Dummy Collar the button.
  • Page 19: Warranty And Repair Information

    2000 series on parts and labor from the date of A copy of the sales receipt showing purchase date the original purchase. Batteries or the labor to is required before warranty work is begun.
  • Page 20 Write a note briefly explaining the problem. Include your name, address, city/state/zip code, daytime phone number and evening phone number. Send repair units to : Dogtra Company / Repairs 22912 Lockness Avenue Torrance, CA 90501 U.S.A.
