iii. Brake Adjustment
Do not loosen any bolts,
other than the two above
iv. Leg rest adj u stment
The leg rest height and footplate angle can be adjusted.
To alter the leg rest height, remove the Allen head bolt and
nyloc nut. Reposition as required, and then resecure
fasteners.
To alter the footplate angle, loosen the allen head bolt on
the plastic footplate. Reposition as required then retighten
bolt.
Enigma Standard Aluminium Wheelchair
Page 5 of 12

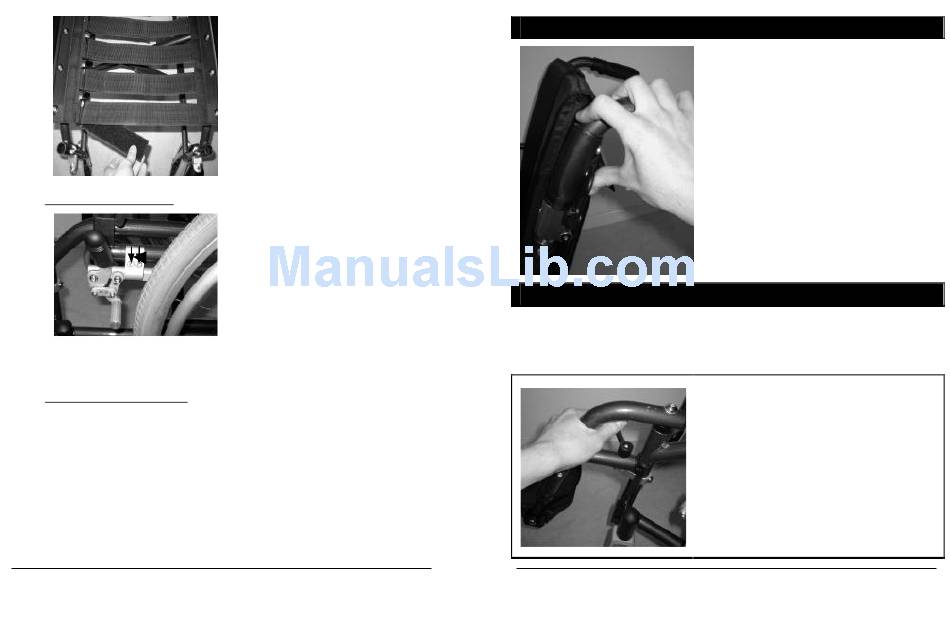

This wheelchair features a
tension adjustable back and
seat canvas. To adjust the
tension, first remove the
cushion and then adjust the
Velcro straps. Ensure the
straps are not too taut as this
can damage the wheelchair.
Adjustment is made to the
brake by loosening the Allen
key bolt heads (arrows) and
by sliding the brake unit along
the frame. The brakes will
have to be readjusted if the
rear wheel position has been
altered.
Owners Handbook
Part Code: Z17999
5 . H A L F F O L D B A C K M E C H A N I S M
6 . D I S A S S E M B L Y A N D F O L D I N G
This wheelchair has a number of quick release components and
the wheelchair frame is easily foldable to facilitate a light carry
weight and minimize storage space.
Enigma Standard Aluminium Wheelchair
Page 6 of 12
The wheelchair has a half fold
back mechanism which has
been designed so that the
wheelchair will fit in to small
spaces by reducing
wheelchair height.
To fold the back, push in the
black lever whilst pulling the
push handle down. Then repeat
for the other side.
Leg Rests. To attach the leg rest,
slide the leg rest on to the frame as
shown in the photograph. Release
the button, swing the leg rest until it
locks in position.
To swing the leg rest, press the
button and swing the leg rest in or
out. When the leg rest is in the
position shown it may be removed.
Owners Handbook
Part Code: Z17999
