ENIGMA LIGHTWEIGHT
ALUMINIUM XS
WHEELCHAIR
Introduction

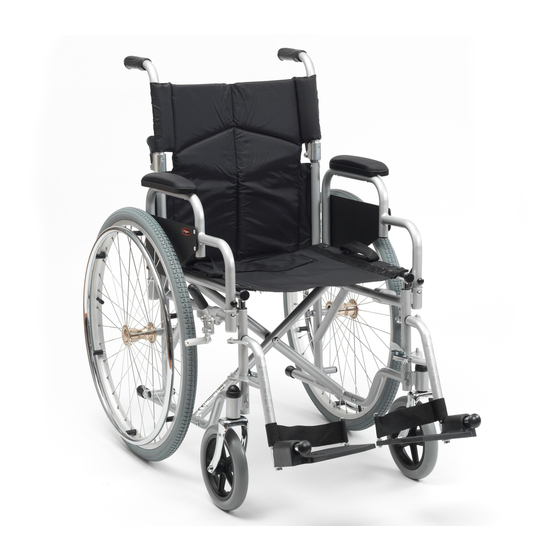

The Enigma lightweight aluminium wheelchair is designed for
everyday use and can be used indoors and outdoors. The
wheelchair is designed for a single occupant of up to 115kg (18
stones). The frame can accommodate either 24" self propel
wheels or 12½ transit wheels.
The wheelchair can be moved in forward and reverse and is
propelled either by the wheelchair occupant or a carer, dependant
on the model of wheelchair.
All Enigma wheelchairs are manufactured to the highest quality
and are CE compliant. Medicare Technology is an ISO 9001 and
ISO 13845 accredited medical device manufacturer.
Parts Description
Half-Folding
back
mechanism
24" Self-
propelling
wheels
(XSSP16 and
XSSP18 only
12½" wheels
supplied on
XSTS16 and
XSTS18)
Stepper tube
Quick release
mechanism
Push handles
Armrest
Front Castor
1. Contents
2. Wheelchair Adjustment Features
3. Rear Wheel Adjustments
4. Castor Adjustments
5. Quick Release Wheel Mechanism
6. Folding Back Mechanism
7. Brake Adjustments
8. Seat Canvas Adjustment
9. Legrest Adjustment
10. Folding the Wheelchair
11. Using The Stepper Tube
12. Using the Wheelchair in a Vehicle
13. Tyre pressure and inflation
In order to make sure that our products are suitable
for as many peoples' individual needs as possible,
we have built in a number of key adjustments on
areas of our products which may need altering
slightly to suit;
a. The users physical dimensions
b. The users medical conditions
c. The users preferred product application
With these key points being a prime consideration
of the product when it was developed, you will
find a set of adjustments that enable the product to
be tailored to suit a variety of specific needs.
1. Half folding backrest
2. Rear wheel adjustment
3. Front caster angle/height adjustment
4. Legrest adjustment
5. Back canvas adjustment (deluxe only)
6. Brake adjustment
Legrests
1
Contents
2
Wheelchair Adjustment Features
(deluxe only)
Photograph (below) shows the screws
to adjust for repositioning the brake
Adjustment
screws
- horizontal
- vertical
