Wheeltech EASIBRAKE Installation Instructions

EASIBRAKE INSTALLATION INSTRUCTIONS

Each Easibrake kit should contain:

1# Easibrake unit (with left and right brake units,
cable and brake handle)
1# small bracket
1# large braket
1# bracket screw
1# spring washer
1# bracket nut
3# cable ties
2# allen keys

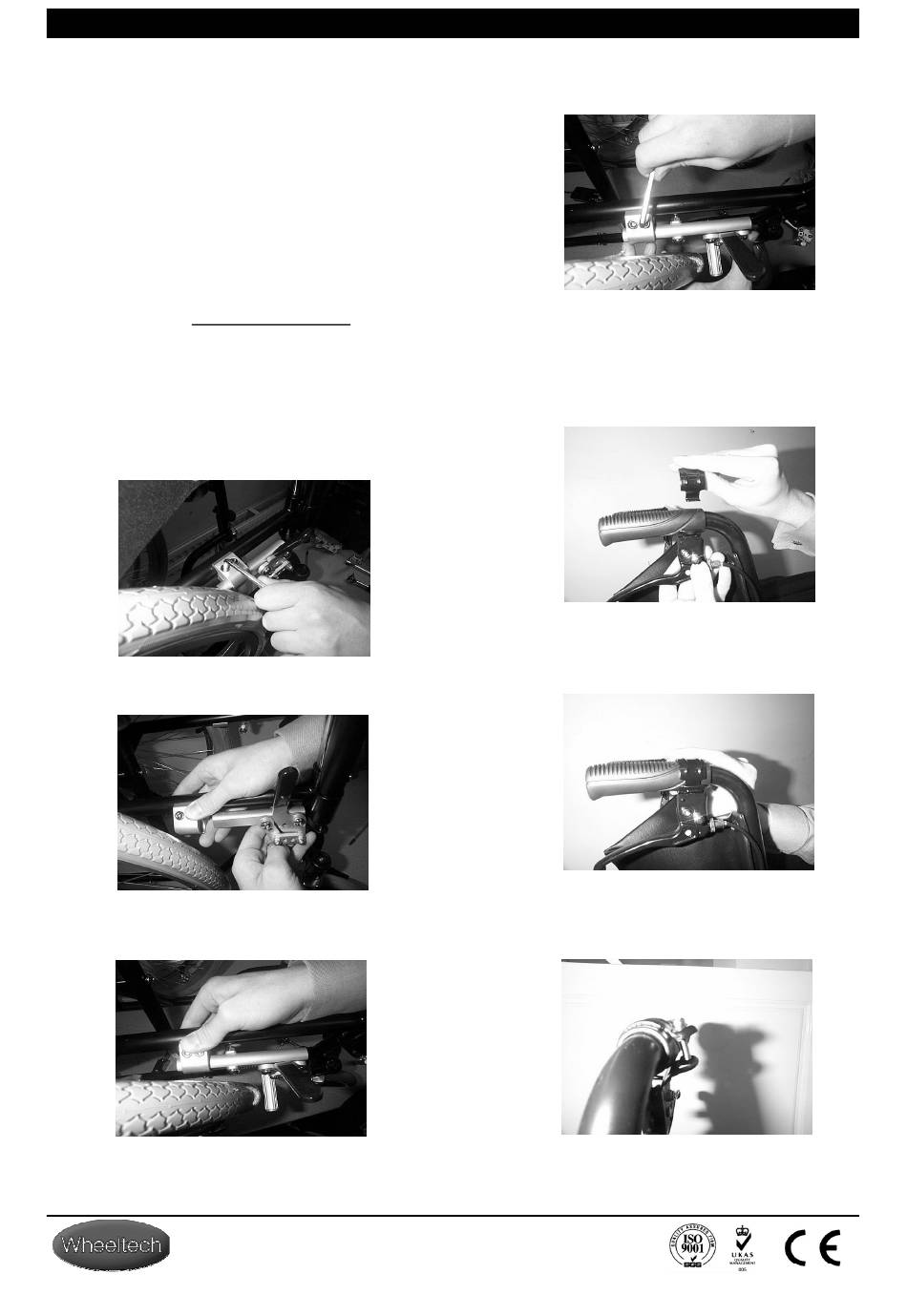

Installation instructions:
1 Get the right hand brake unit
2 Loosen the screws on the existing brake clamp using
the allen key supplied, as shownin the photograph
below:
3 Remove the existing brake unit as shown below:
4 Replace with the Easibrake brake unit and position
the brake unit in the desired place as shown below:
Part code: Z15926
MEDICARE TECHNOLOGY LTD,
DALE HOUSE, ARMYTAGE ROAD, BRIGHOUSE, HD6 1PT.
TEL: +44 1484 401519 FAX: +44 1484 401498
5 Retighten the brake clamp screws using the supplied
allen key to secure the brake unit in position
6 Repeat the previous steps for the left hand brake unit.
7 The brake handle can be installed either on the
handgrip or wheelchair tubing. Position the brake
handle similar to as shown below:
8 Select either the small or large bracket to secure the
brake handle. Position and interlock the bracket with
the handle, as shown in the photograph below:
9 Using the screw, washer and nut; clamp together the
brake handle and bracket using the supplied allen
key to secure.
10 Adjust the brake cable and reposition the brake units
if necessary to ensure effective braking. Then use the
the cable ties to secure the cables to the chair frame
