Summary of Contents for ELICA Mezzano

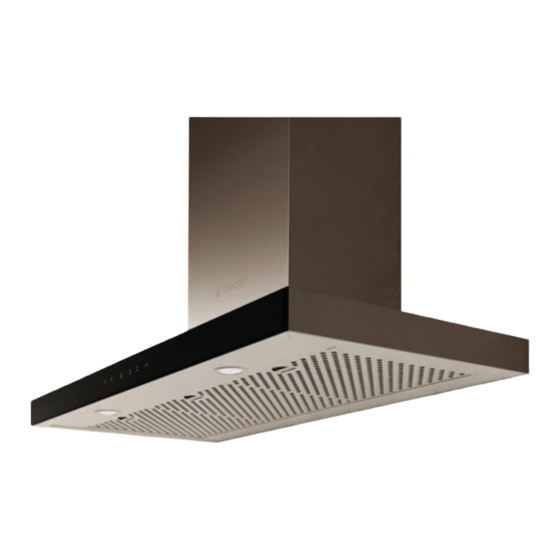

- Page 1 Use, Care, and Installation Guide READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
Contents page English Contents Important safety Notice..............................3 Electrical & Installation requirements ........................4 Electrical requirements ......................................4 Before installing the hood ....................................4 List of Materials................................5 Parts supplied ........................................5 Parts not supplied ........................................ 5 Ducting Options and Examples..........................7 Venting methods ........................................7 Preparation .......................................... -
Page 3: Important Safety Notice
READ AND SAVE THESE INSTRUCTIONS Important safety Notice WARNING CAUTION TO REDUCE THE RISK OF INJURY TO PERSONS, IN FOR GENERAL VENTILATING USE ONLY. DO NOT USE THE EVENT OF A RANGE TOP GREASE FIRE, EXHAUST HAZARDOUS EXPLOSIVE OBSERVE THE FOLLOWING: MATERIALS OR VAPORS. -
Page 4: Electrical & Installation Requirements
Electrical & Installation requirements Electrical requirements Before installing the hood 1. For the most efficient air flow exhaust, use a straight run IMPORTANT or as few elbows as possible. Observe all governing codes and ordinances. CAUTION: Vent unit to outside of building, only. It is the customer’s responsibility: 2. -
Page 5: List Of Materials
List of Materials Parts supplied Parts not supplied Removing the packaging Optional Accessories CAUTION! • Ductless Recirculating Kit Remove carton carefully, Wear gloves to protect against To be used only in the Ductless (Recirculating) sharp edges. version includes: charcoal filter, charcoal filter support and WARNING! fixing bracket, deflector Remove the protective film covering the product before... -
Page 7: Ducting Options And Examples
Ducting Options and Examples Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. Venting methods The hood is equipped with a transition B for discharge of fumes to the outside (Ducting version). Should it not be possible to discharge cooking fumes and vapour to the outside, the hood can be used in the Ductless (Recirculating) version. -
Page 8: Installation
Installation Installation - Ducting version • If possible, disconnect and move freestanding or slide-in range from cabinet opening to provide easier access to Wall ducting rear wall. Otherwise put a thick, protective covering over If ductwork will vent to rear: countertop, cooktop or range to protect from damage Note: for minimum duct cover extension we suggest to use and debris. - Page 9 Install framing for hood support • Mark “lower” wood screw holes locations in the wall using a pencil. • If drywall is present, mark the screw hole locations. Remove the template. • Cut away enough drywall to expose 2 vertical studs at the holes location indicated by the template.
- Page 10 120 VAC, 15 or 20 Amp circuit required. Mounting the duct cover • Position the duct cover over the mounted hood. ELECTRICAL GROUNDING INSTRUCTIONS • Slide the bottom of the duct into the canopy area. THIS APPLIANCE IS FITTED WITH AN ELECTRICAL •...
- Page 11 If range hood does not operate: • Check that the circuit breaker is not tripped or the house fuse blown. • Disconnect power supply. Check that wiring is correct. • Check that the internal General ON/OFF Push button Switch is switched ON. To get the most efficient use from your new range hood, read the “Use and Care Information”...
-
Page 12: Installation - Ductless (Recirculating) Version
Installation - Ductless (Recirculating) version Install framing for hood support CAUTION To install the hood in this version, first purchase the • If drywall is present, mark the screw hole locations. Ductless Recirculating Kit. Remove the template. includes: charcoal filter and deflector •... - Page 13 Mounting the hood • Remove the hood. WARNING: 2 people are required to lift and position the • Drive “lower” wood screws, by hand. Remove screws. hood onto the mounting screws. • Mount the hood onto the “upper” screws. • Place the template on the wall along the horizontal line, •...
- Page 14 screws. • Slip the duct onto the bottom of the deflector. • Place the assembled deflector and duct over the exhaust outlet from the hood. • Assemble the air deflector to the duct cover bracket with 4 assembly screws provided as shown. Electrical connection WARNING Electrical Shock Hazard...
- Page 15 • Secure the bottom of the duct with 2 assembly screws provided. Install the charcoal filter on the back side of the grease filter, install both on the range hood and turn power on at service panel. Check operation of the hood. If range hood does not operate: •...
-
Page 16: Description Of The Hood & Controls
Description of the hood & Controls 1. Blower and light controls 2. Lamp housings 3. Grease filter Handle 4. Grease filter 5. Canopy 6. Duct covers 7. Louver holes (Only for Recirculating version) -
Page 17: Controls
• This button is used to increase the fan speed, or turn Controls ON the fan. • The fan will turn ON if the “+” button is pressed and Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is the hood was OFF. - Page 18 • The Inclusion or exclusion of charcoal filter must be selected while the lamps and the motor are OFF. • When the charcoal filter has been excluded, the charcoal filter alarm is disabled. Heat sensor • The control is equipped with a heat sensor that will turn on the blower at second speed if excessive heat occurs (over 158°...
-
Page 19: Maintenance
Maintenance ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. Cleaning The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. -
Page 20: Charcoal Filter
Charcoal Filter If the model is not vented to the outside, the air will be recirculated through disposable charcoal filters that help remove smoke and odors. The charcoal filters cannot be cleaned. They must be replaced. The charcoal filters are clipped inside of each metal grease filter.
