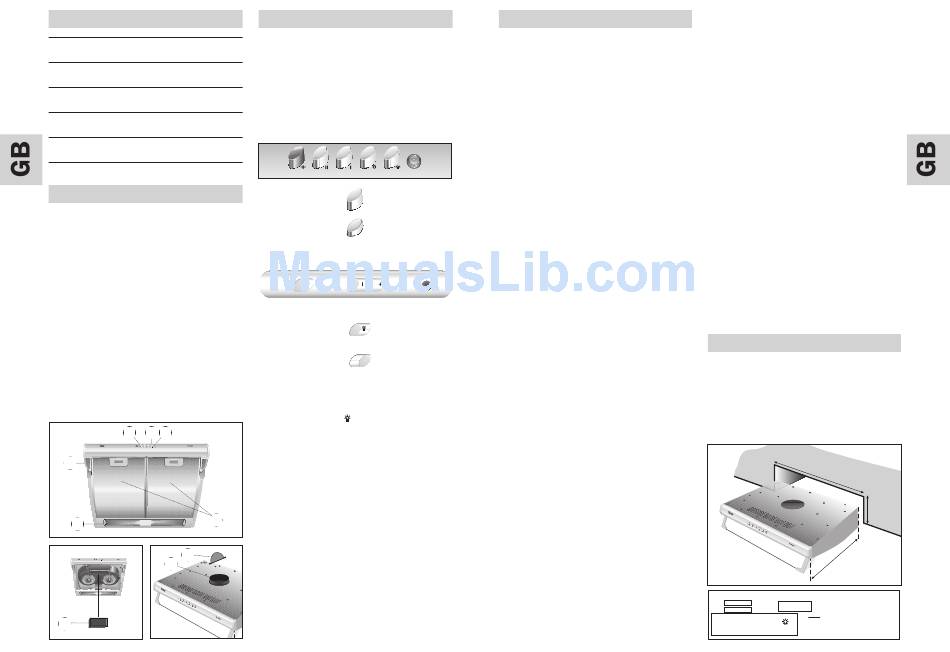

Teka C 610 Instruction Manual page 3

Index
Description of the appliance Page 16
Instructions for use 16
Cleaning and maintenance 17
Technical Information 17
Installation 18
If something does not work 18
Description of the appliance
A Motor controls that allow three speeds
to be selected
B Light switch independent of the motors
C Lighting by means of lamps
D Filters located over cooking area, easi-
ly withdrawn for cleaning
E Pull-out group that allows a greater
gas capture area
F Possibility of incorporating activated
charcoal filter
G Motor functioning indicator light
H-I Anti return tabs to be located in the
outlet mouth, locating their ends in the
holes provided.
A B G
E
D
C
H
I
F
Instructions for use
The hood may have two types of switches
according to the model: push-button or
sliding switches.
By pressing the button shown in the fig-
ure, you will be able to control the func-
tions of the extractor.
Switch on
Switch off
Switch on
Switch off
Speed Light
o Stop Switch on/off
I Low
II High
+ Intensive
To achieve better extraction, we recom-
mend switching on the extractor a few
minutes before starting to cook (3 - 5
minutes) so that the air flow is continu-
ous and stable when extracting the
fumes.
Likewise, keep the extractor switched on
for a few minutes when cooking is com-
plete to allow all fumes and odours to be
expelled.
Cleaning and maintenance
Before carrying out any cleaning or main-
tenance activities, ensure that the extrac-
tor is disconnected from the mains.
To carry out cleaning and maintenance,
follow the safety instructions indicated
on Page 15.
Filter cleaning
To withdraw the filters from their loca-
tions release the anchoring points. Clean
the filter, either by putting it in the dish-
washer (see notes) or leaving it standing
in hot water to simplify the removal of
grease or, if wished, by means of special
sprays (protecting the non metallic
parts). Once clean, leave it to dry.
Notes: cleaning in the dishwasher with
aggressive detergents may blacken the
surface of metallic parts, without this
affecting its gas retaining properties.
N.B. The filter must be cleaned at least
once a month depending on how often
the extractor is used. It must be remem-
bered that grease is deposited in the
extractor when cooking, whether it is
switched on or not.
Cleaning of the extractor body
The use of warm (40ºC approx.) soapy
water is recommended. A cloth moistened
in this water is used for cleaning the extrac-
tor, paying special attention to the grids.
Afterwards, dry using a lint-free cloth.
Note: Never use metallic scouring pads
or abrasive products that could damage
the surface.
Do not use scrapers with metallic sur-
faces such as knives, scissors etc.
Activated charcoal filter
To install the charcoal filter, disassemble
the lid, locate the filter in the position
provided and reassemble the lid.
The carbon filter lasts from three to six
months depending on the particular con-
ditions of use.
The activated carbon filter can neither be
washed nor regenerated. Once it is
exhausted, it must be changed.
To replace exhausted filters with new
ones, withdraw the old one in the reverse
order to that of installation.
Changing Bulbs
Remove the filter support to acces the bulbs.
Take care to disconnect the hood from
the mains beforehand and that the bulbs
to be replaced are not hot.
The maximum bulb power is 40 W.
Technical information
Dimensions Width = 600 mm
Depth = 500 mm
Height = 150 mm
Electrical characteristics
REFER TO RATING PLATE
600
150
500
Made in European Community - C.I.F.: A-39004932
N.º de fábric.
Mod. XXX – ZZ
AA-000000
Fabrik.-Nr.
Z-000000
Typ. Serial No.
POTENCIA NOM. LAMPARAS ELECT.
NENNLEISTUNG GLÜHLAMPEN
0 0 0 ... 0 0 0 V. ~
LAMPS RATE
0 0 H z
PUISSANCE LAMPES 2 x 4 0 W
0 0 0 W.
POTENCIA NOM. DAS LAMPADAS
