An additional hose weight (PN 43260) may be necessary to balance the Baracuda
the Baracuda G3 is not balanced correctly in the deep end of the pool, (as shown below) turn off the
pump, add a second hose weight (approximately 4 to 7 feet) away from the first weight. Place the
Baracuda G3 in the deep end, turn on the pump and determine whether the correct balance has been
achieved. If not, re-position the second hose weight accordingly. Additional hose weights may be
purchased from your Baracuda G3 dealer if required.

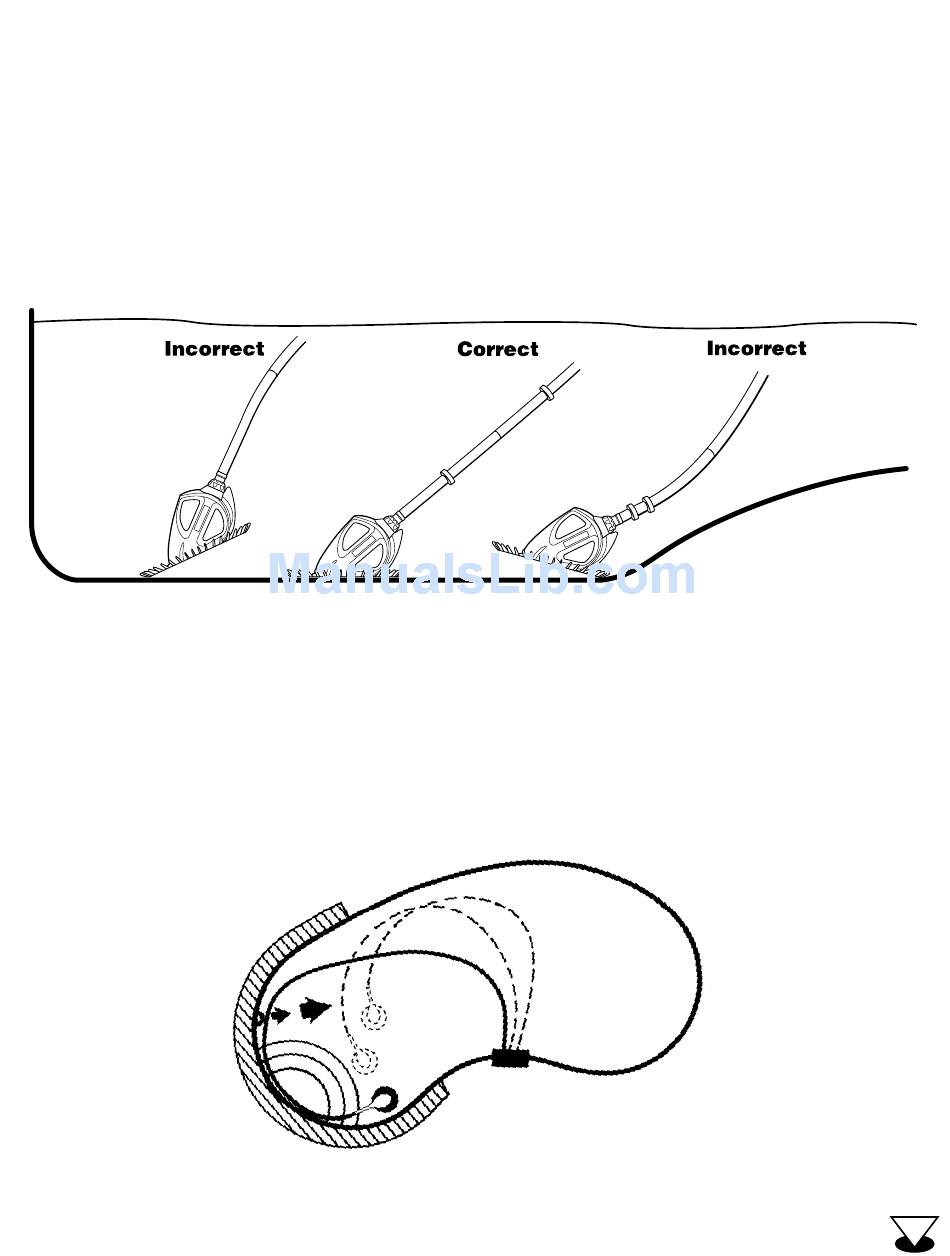

Normally it is undesirable for the return line water flow to affect the natural movement of the Baracuda
G3 hose. However, the following illustration shows how return line pressure can be used to balance
cleaning coverage or to guide the cleaner away from step areas with "V" shaped corners.
A return line located anywhere
along the shaded area can
be utilized to gently
push the hose allowing
the Baracuda G3 to
free itself from in-
pool obstacles.

ADJUSTMENTS

Balance - Pools that are 8 1/2 Feet or Deeper
Coverage
® G3 ™ cleaner head. If
Technique
Position the return
line directional so
that you can only
detect water move-
ment on the surface
8 feet out from the
wall, and aim it at
the center of the
opposite wall.
