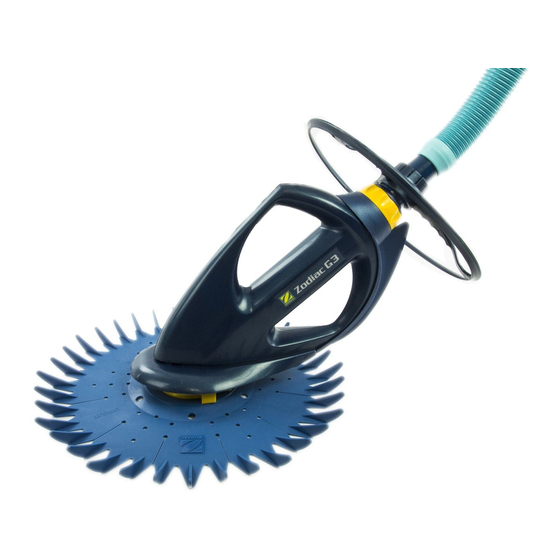

Zodiac G3 Owner's Manual

Baracuda pool cleaner
Hide thumbs Also See for G3:

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Installation Manual
Owner's Manual
Guide du propriétaire

Advertisement

loading
Need help?

Need help?

Do you have a question about the G3 and is the answer not in the manual?

Questions and answers

Terry Dunn
April 22, 2025

What setting should I set the flow keeper valve?

0

Subscribe to Our Youtube Channel

Related Manuals for Zodiac G3

Summary of Contents for Zodiac G3

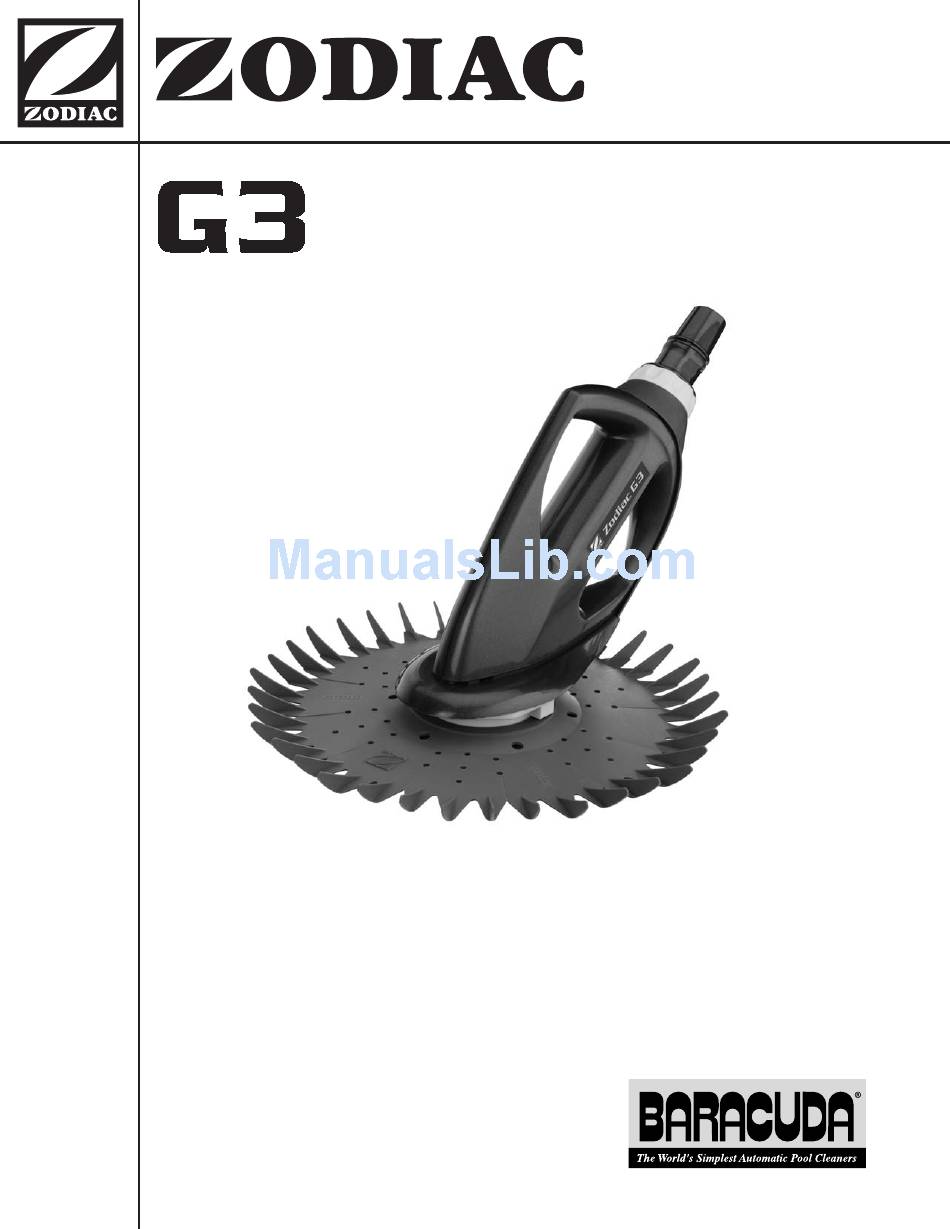

  • Page 1 Owner’s Manual Guide du propriétaire...
  • Page 2 Zodiac authorized warranty center nationwide. G3 is a trademark of Zodiac Pool Care, Inc. For sale and use in the United States, Canada and Mexico only. This pool cleaner is not warranted or guaranteed outside of the United States, Canada or Mexico.
  • Page 3 Zodiac. Powered by Baracuda technology, the G3 is designed and manufactured for easy installation, and years of carefree operation. The Zodiac G3 connects to a dedicated cleaner (suction) line or a pool skimmer. As water flows through the cleaner, dirt and debris is pulled directly into the pool filtration system.

  • Page 4: Installation

    • Redirect the eyeball downward • Retighten the lock If the return fitting cannot be adjusted, the fitting MUST be replaced with Zodiac return line diverter (part #W90153 for 1-1/2", #W90155 for 2" or #W24100 for pools without return fittings).
  • Page 5 Connect the Hose Submerge the hose completely, removing all air. Tip: Turn on the pump, place the hose in front of the return line until it is flooded. Turn off the pump. To connect to a dedicated suction line: 1. Insert the male end of the hose into the large end of the 45°...
  • Page 6 Test and Adjust for Proper Flow Keeping the hose submerged, attach the Flow Gauge to the hose and turn on the pump. Verify that the red indicator in the gauge (viewed from the side) is at the Number 3 setting. 6 5 4 3 2 1 0 If necessary, use the valves in the pool equipment area to adjust the flow.

  • Page 7: Operation And Maintenance

    The G3 cycles on/off with the pool filtration pump vacuuming and cleaning all surfaces randomly through- out the pool. The coverage of the G3 is dependent on the pool’s shape and available water flow. In some applications, adjustments may be necessary to optimize cleaning coverage.
  • Page 8 Storage and Winterizing Never coil the hose. Always store G3 out of direct sunlight. When storing for the winter, drain all water from the cleaner. Remove all connectors and adapters from the dedicated suction line or skimmer. Store...

  • Page 9: Troubleshooting

    Troubleshooting If you experience a problem with your G3, please follow the troubleshooting steps below to restore performance. If further assistance is required, contact Zodiac Customer Service. Please have your serial number and date of purchase available when you call.
  • Page 10 Retaining Collar W69526 Bumper Fin - G3 W70326 Cassette Outer Extension Pipe w/ Handnut W74000 Compression Ring W70345 Assy, G3 Cass Chamber w/Comp Ring W56525 Inner Extension Pipe W81600 Retaining Ring W69698 Long-Life Diaphragm (US/Mexico) W69994 Cassette Assembly Complete (US/Mex)
  • Page 11 This misuse will void all warranty on the unit. 6. In no event shall Zodiac be liable in contract or in tort, or under any other legal theory, for lost profits or revenues, loss of use or similar economic loss, or for indirect, special, incidental, consequential or similar damages, even if it has been advised of the possibility of such claim.
  • Page 12 2620 Commerce Way, Vista, CA 92081 USA • Tel: 1-800-822-7933 Zodiac Pool Care Canada, Ltd. 2115 South Service Road West, Unit 3 ©2008 Zodiac Pool Care, Inc. All rights reserved. TL-2050 2/08 Oakville, ON Canada L6L 5W2 • Tel: 1-888-647-4004...
