    C O N T E N T S PARTS LIST ________________________________ page 20 RECOMMENDATIONS ______________________ page 22 INSTALLATION ____________________________ page 23 ____________________________________ page 24 Connection • Connecting to the skimmer or one of the skimmers __ page 24 • Connecting to the vacuum point __________________ page 25 (overall view of installation) ______________________ page 26 TESTING THE FLOW RATE ________________ page 27...

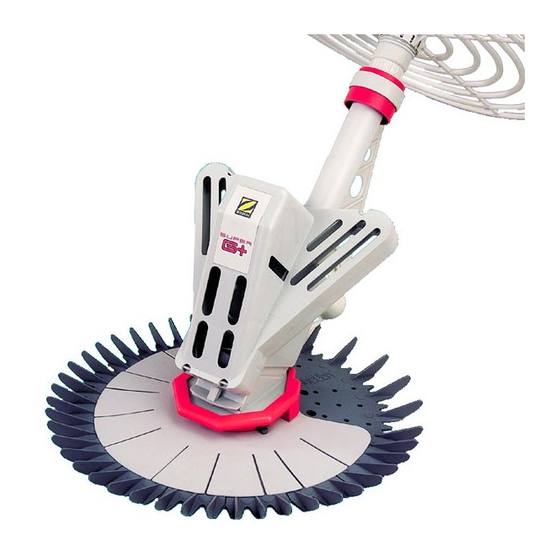

  • Page 2: Parts List

    Zodiac, mastering the elements. Renowned worldwide for the quality and reliability of its products in the aeronautical and marine sectors, Zodiac has now brought its expertise to swimming pools, to bring you a full range of pools, automatic pool cleaners and water treatment systems.
  • Page 3 - one hose protective mesh, (Female side) (Male side)* - 12 sections of dual- color long-life hoses, *(Male side = smallest diameter) each of 1m, Female side - 1 hose connector, Male side (smallest diameter) - leaf trap,...

  • Page 4: Recommendations

    ADVICE Weir adapter During the season, you are advised to leave your SUPER G+ in the pool. If you wish to remove it while bathing, remove the hose, but do not Male side roll it up. Never expose the hose to direct sunlight. ASSEMBLY This cleaner is delivered fully assembled.

  • Page 5: Installation

    c A hose weight is provided to reduce the buoyant effect of the hose. The buoyancy of the hose tends to lift the SUPER G+ especially in deeper water. Ensure the disc sets flat on the pool surface by adjusting the hose weight about 2m from the automatic pool cleaner.

  • Page 6: Connection

    CONNECTION c Check that the skimmer, filter and pre-filter of your pool pump are clean. c Direct the inlet jets for your pool downwards. c Close the main drain of your pool and all the other suction routes not being used (skimmers or vacuum point). c Start up your pool pump.

  • Page 7: Connecting To The Vacuum Point

    CONNECTING TO THE VACUUM POINT: WARNING: The last sections must be connected together under water so that there is absolutely no risk of air entering the system and draining the pump. c Use the weir adapter to fit the automatic flow control valve onto the vacuum point.

  • Page 8: (Overall View Of Installation)

    SUPER G+ INSTALLATION SHOWING HOW TO CONNECT TO A VACUUM POINT Example with the connection to the vaccuum point ” ”...

  • Page 9: Testing The Flow Rate

    FLOW TEST You can always check the flow rate, particularly if you have doubts about the suction power of your pump. N.B. : all these operations must be carried out under water so that the pump does not take in air. Remove the SUPER G+ from the hose and replace 6 5 4 3 2 1 0 0 with the pool pulse...

  • Page 10: Maintenance

    Without taking off the hose sections, hold the ZODIAC leaf trap lid in one hand. c Using your other hand, hold the handle of the ZODIAC leaf trap and turn the container until you hear a click. Pull the transparent...

  • Page 11: Replacing A Worn Diaphragm

    The efficiency of your SUPER G+ largely relies on one part fitted inside the appliance, called the “diaphragm”. This diaphragm, a system exclusive to ZODIAC, is likely to wear out after three to five years intensive use of the appliance.

  • Page 12: Problem Solving

    PROBLEM SOLVING The SUPER G+ will not work : c use the pool pulse to check the flow (see page 27). If the flow rate is too low: c make sure the main sump valve is properly closed ; c make sure the filter and skimmer baskets are quite clean ; c make sure the hose and automatic control valve are correctly connected.
  • Page 13 The SUPER G+ will not stay on the bottom of the pool : c make sure the hose weight is correctly installed on the hose 2 metres from the automatic pool cleaner (see page 23) ; c if your pool is more than 2 metres deep, fit a second hose weight 2 metres from the appliance c test and increase flow rate if necessary (see page 27).

  • Page 14: Guarantee

    All our technical experience and concern for quality have been used faulty will be mended or exchanged by the manufacturer with a new in the manufacture of ZODIAC automatic pool cleaners. All our part or in correct operating condition. This guarantee covers all faults cleaners are subject to quality control tests and are guaranteed relating to conformity existing at the time the article is delivered.
