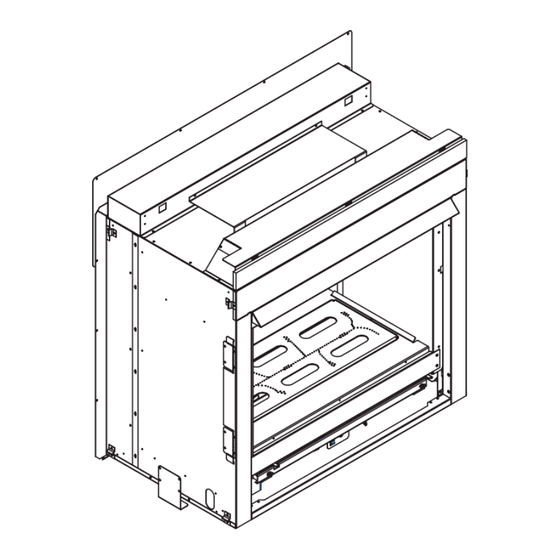

Gas fireplace
Hide thumbs Also See for TWILIGHT-II-MOD:
Table of Contents

Advertisement

Model:
TWILIGHT-II-MOD
• Important operating
a n d m a i n t e n a n c e
instructions included.
WARNING: If the information in these
instructions is not followed exactly, a fi re
or explosion may result causing property
damage, personal injury, or death.
• DO NOT store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Immediately call your gas supplier from a
neighbor's phone. Follow the gas suppli-
er's instructions.
- If you cannot reach your gas supplier, call
the fi re department.
• Installation and service must be performed
by a qualifi ed installer, service agency, or the
gas supplier.
This appliance may be installed as an OEM installation in
manufactured home (USA only) or mobile home and must be
installed in accordance with the manufacturer's instructions
and the manufactured home construction and safety standard,
Title 24 CFR, Part 3280 or Standard for Installation in Mobile
Homes, CAN/CSA Z240MH, in Canada.
This appliance is only for use with the type(s) of gas indicated
on the rating plate.
Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
NOTICE
DO NOT DISCARD THIS MANUAL
• Read, understand and follow
these instructions for safe
installation and operation.
Owner's Manual
Installation and Operation
• Leave this manual with
party responsible for use
and operation.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fi replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other fl ammable
materials.
• Keep clothing, furniture, draperies and other fl ammable
materials away.
This appliance has been supplied with an integral barrier
to prevent direct contact with the fi xed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fi tter.
See Table of Contents for location of additional Commonwealth
of Massachusetts requirements.
Installation and service of this appliance should be
performed by qualifi ed personnel. Hearth & Home
Technologies suggests NFI certifi ed or factory trained
professionals, or technicians supervised by an NFI
certifi ed professional.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWILIGHT-II-MOD and is the answer not in the manual?

Questions and answers

Summary of Contents for Outdoor Lifestyles TWILIGHT-II-MOD

  • Page 1 This appliance is only for use with the type(s) of gas indicated professionals, or technicians supervised by an NFI on the rating plate. certifi ed professional. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 2: Congratulations

    MIN. MIN. INPUT INPUT BTUH: BTUH: 00,000 00,000 00,000 00,000 Serial Serial ORIFICE ORIFICE SIZE: SIZE: #XXXXX #XXXXX #XXXXX #XXXXX XXXXXXXX XXXXXXXX (Serie): (Serie): Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 3: Table Of Contents

    C. Contact Information ......41  = Contains updated information. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 4: Limited Lifetime Warranty

    Minor expansion, contraction, or movement of certain parts causing noise. These conditions are normal and complaints related to this noise are not covered by this warranty. Outdoor Lifestyles Warranty - 2108-975A - 10/05/09 - page 1 Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 5 The duration of any implied warranty is limited to the duration of the warranty period specified herein. Outdoor Lifestyles Warranty - 2108-975A - 10/05/09 - page 2 Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 6: Listing And Code Approvals

    This appliance is equipped with 5 mm ceramic glass. Re- place glass only with 5 mm ceramic glass. Please contact your dealer for replacement glass. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 7: High Altitude Installations

    Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 8: Requirements For The Commonwealth Of Massachusetts

    VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OB- of the installation. STRUCTIONS”. See Gas Connection section for additional Common- wealth of Massachusetts requirements. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 9: User Guide

    SECTION 11.F. MANTEL SECTION 5.C. FAN KIT SECTION 2.C. CLEAR SPACE SECTION 2.D. HEARTH EXTENSION (not required) Interior or Exterior Figure 2.1 Generic Operating Parts Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 10: Fan Kit (Optional)

    For more information refer to the instructions supplied with your decorative door or front. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 11: Lighting Instructions (Ipi)

    For additional information on operating your Hearth & Home Technologies fi replace, please refer to www.fi replaces.com. Final inspection by Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 12: After Fireplace Is Lit

    Is it normal to see the pilot fl ame burn turned off. Some optional control systems available with IPI models may allow pilot fl ame to continually? remain lit. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 13: Maintenance And Service

    • Carefully set fi xed glass assembly in place on fi replace. Hold glass in place with one hand and secure glass latches with the other hand. • Reinstall mesh and/or decorative front. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 14: Maintenance Tasks-Qualifi Ed Service Technician

    Figure 3.1 IPI Pilot Flame Pattern Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 15: Installer Guide

    Call a qualifi ed service technician to inspect the appliance and to replace any part of the control system and/or gas control which has been under water. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 16: Framing And Clearances

    Minimum Minimum Minimum Maximum Minimum Inches Millimeters 1092 1092 * = C dimension may be any length from 0 to 24 inches. Figure 5.1 Appliance Locations Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 17: Clearances

    (Height) (Height) material Non-Vinyl Vinyl Inches 47-5/8 41-1/4 46-1/8 35-3/4 35-5/16 64-5/16 3-3/8 9-1/2 1210 1048 1118 1172 1634 Figure 5.3 Clearances to Combustibles Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 18: Mantel And Wall Projections

    7-5/8 HOOD MEASUREMENTS FROM TOP EDGE OF THE OPENING Note: Measurements are in inches. Figure 5.4 Clearances to a Combustible and/or Non-combustible Indoor Mantel Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 19: Termination Locations

    1 foot below the termination. This appliance is approved for installation onto screened porches with the following guidelines: Figure 6.1 Minimum Clearances for Appliance Opening Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 20: Appliance Preparation

    • Place the metal strip onto the structure where the outer edge of the appliance will sit (see Figure 7.1). It should overlap building paper to prevent water infi ltration. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 21 Do NOT notch into the framing around the appliance spacers. Placing Flashing and Sheathing Apply high temperature silicone sealant to corner edges of fi replace fl ange (see Figure 7.3). Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 22 • See Sections 5 and 10 for proper clearances. HOOD • See Section 1 for combustible /non-combus- tible defi nitions. Figure 7.6 Outside View Showing Non-Combustible Sheathing Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 23: Installing Non-Combustible Facing Material (Outdoor Side)

    fi nishing materials per manu- facturer’s instructions. Apply fasteners from fastener packet in these areas. Figure 7.8 Attaching Non-combustible Facing Material (Outdoor Side Only) Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 24: Gas Information

    fl exible gas connector are connected to the 1/2 in. (13 mm) control valve inlet. • If substituting for these components, please consult local codes for compliance. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 25: Electrical Information

    NOTICE: Waterproof insulated wire should be used when excess wire length. wiring the junction box. • Low voltage and 110 VAC voltage cannot be shared within the same wall box. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 26: Intellifi Re Ignition System Wiring

    NOTE: 1. Ignition module, valve, pilot, and wall switch operate on 3 volts. Uninterrupted 120 VAC is required at junction box unless equipped with battery back-up. Figure 9.1 Intellifi re Pilot Ignition (IPI) Wiring Diagram Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 27: Optional Accessories

    NOTE: If any of the original wire as supplied ASSEMBLY with the appliance must be replaced, it must be replaced with the type 105 C rated wire. Figure 9.3 Fan Wiring Diagram Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 28: Junction Box Installation

    Figure 9.5 Junction Box Wired to Wall Switch or BC10 (1/4 in. male) as shown. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 29: Finishing

    Indoor Mantel or Mantel Leg MINIMUM CLEARANCES Vinyl Non-vinyl 36 in. 12 in. 64-5/16 in. 35-5/16 in. Figure 10.4 Exterior View - Finishing Material Clearances Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 30 FACING MATERIAL AND MAX. APPLIANCE FRONT 6 in. MAXMUM PROJECTION FROM FACE OF FIREPLACE HOOD HOUSE NON-COMBUSTIBLE WRAP SHEATHING (SUPPLIED) 2-3/4 IN. Figure 10.5 Exterior View Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 31 FIREPLACE (INCLUDES NON-COMBUSTIBLE MANTEL PROJECTION) NON-COMBUSTIBLE BRICK LEDGE MUST BE TIGHT TO APPLIANCE FACE OR NON-COMBUSTIBLE SHEATHING Figure 10.7 Exterior View with Non-combustible Facing Material Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 32: Appliance Setup

    See Figure 11.2. NO MEDIA IN SHADED AREA (BOTH LEFT AND RIGHT SIDE) Figure 11.1. Install Refractory Figure 11.2 No Glass Rock Media in Gap Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 33: Fixed Glass Assembly

    Figure 11.4. CORRECT Media Placement 11.6 Glass Assembly - Interior Side INCORRECT INCORRECT MEDIA IN PILOT AREA NOT ALLOWED Figure 11.5. INCORRECT Media Placement Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 34: Install Trim And/Or Surround

    • Slide top of glass assembly into position under glass retainer. Position bottom of glass assembly and secure glass clips. • Replace vanity panel. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 35: Troubleshooting

    D. Module voltage output / Valve/Pilot Verify battery voltage is at least 2.7 volts. Replace batteries if volt- solenoid ohms readings. age is below 2.7. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 36 ON position. If there is no spark at “I” terminal module must be replaced. If there is a spark at “I” terminal, module is fi ne. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 37: Reference Materials

    4-1/2 4-3/4 32-5/8 36-1/4 1092 41-7/8 1064 21-1/2 46-7/8 1191 38-5/8 40-3/4 1035 42-1/8 1070 3-3/8 21-1/2 2-1/2 35-5/8  Figure 13.1 Appliance Dimensions Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 38: Service Parts

    Qty 2 req Indoor Glass Assembly GLA-6TROC Base Pan Assembly 2290-015 Junction Box 4021-013 Junction Box Shield 2087-149 Additional service part numbers appear on following page. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 39 10.14 3-Hole Grommet 2118-420 Burner Orifi ce (NG) (#32C) 582-832 Burner Orifi ce (LP) (#50C) 582-850 Additional service part numbers appear on following page. Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 40 Conversion Kit NG NGK-TWI-MOD Conversion Kit LP LPK-TWI-MOD Pilot Orifi ce NG 593-528 Pilot Orifi ce LP 593-527 Regulator NG NGK-DXF Regulator LP LPK-DXF Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
  • Page 41: Contact Information

    5647340, 5890485, 5941237, 5947112, 5996575, 6006743, 6019099, 6053165, 6145502, 6170481, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7098269, 7258116, 7470729 or other U.S. and foreign patents pending. 2000-945 Printed in U.S.A. - Copyright 2012 Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12...
