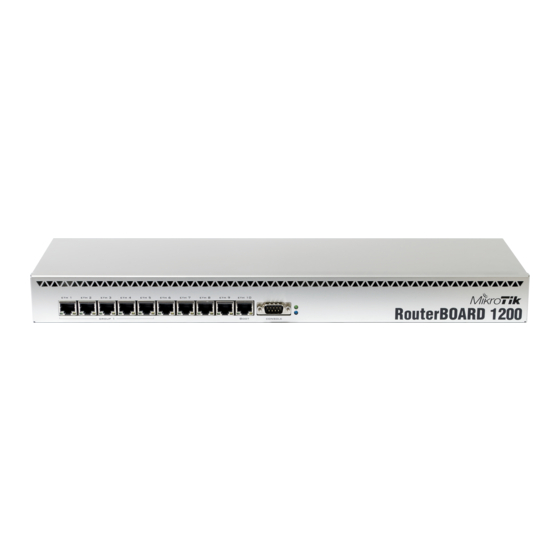

MikroTik RouterBOARD 1200 User Manual
Hide thumbs Also See for RouterBOARD 1200:

Advertisement

RouterBOARD 1200

User's Manual

Copyright and Warranty Information

Copyright and Trademarks. Copyright MikroTikls SIA. This manual contains information protected by copyright
law. No part of it may be reproduced or transmitted in any form without prior written permission from the
copyright holder. RouterBOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All
trademarks and registered trademarks appearing in this manual are the property of their respective holders.
Hardware. MikroTik warrants all RouterBOARD series equipment for the term of fifteen (15) months from the
shipping date to be free of defects in materials and workmanship under normal use and service, except in case
of damage caused by mechanical, electrical or other accidental or intended damages caused by improper use
or due to wind, rain, fire or other acts of nature.
To return failed units to MikroTik, you must perform the following RMA (Return Merchandise Authorization)
procedure. Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA
process.
1. If you have purchased your product from a MikroTik Reseller, please contact the Reseller company
regarding all warranty and repair issues, the following instructions apply ONLY if you purchased your
equipment directly from MikroTik in Latvia.
2. We do not offer repairs for products that are not covered by warranty. Exceptions can be made for
RB1000, RB1100, RB1200.
3. Out-of-warranty devices and devices not covered by warranty sent to Mikrotikls will be returned to
the sender at sender's cost.
RMA Instructions are located on our webpage here: http://rma.mikrotik.com
Manual. This manual is provided "as is" without a warranty of any kind, expressed or implied, including, but
not limited to, the implied warranty of merchantability and fitness for a particular purpose. The manufacturer
has made every effort to ensure the accuracy of the contents of this manual; however, it is possible that it may
contain technical inaccuracies, typographical or other errors. No liability is assumed for any inaccuracy found
in this publication, nor for direct or indirect, incidental, consequential or other damages that may result from
such an inaccuracy, including, but not limited to, loss of data or profits. Please report any inaccuracies found to
support@mikrotik.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RouterBOARD 1200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MikroTik RouterBOARD 1200

  • Page 1: User's Manual

    Hardware. MikroTik warrants all RouterBOARD series equipment for the term of fifteen (15) months from the shipping date to be free of defects in materials and workmanship under normal use and service, except in case of damage caused by mechanical, electrical or other accidental or intended damages caused by improper use or due to wind, rain, fire or other acts of nature.
  • Page 2: Table Of Contents

    USER'S MANUAL ................................1 COPYRIGHT AND WARRANTY INFORMATION ........................1 SYSTEM BOARD VIEW AND LAYOUT ..........................3 SPECIFICATIONS ................................4 HARDWARE GUIDE ................................4 ..............................4 EMORY AND TORAGE EVICES Memory .................................... 4 Storage Device ................................. 4 ................................4 NPUT UTPUT ORTS Ethernet ports ..................................
  • Page 3: System Board View And Layout

    RouterBOARD 1200 Series User's Manual System Board View and Layout You can download the board dimensions and case design files (PDF and DXF) from www.routerboard.com...
  • Page 4: Specifications

    Specifications RouterBOARD 1200 PPC460GT network processor Memory SODIMM slot, no onboard module, populated by 512MB SODIMM DDR RAM module Boot loader RouterBOOT Data storage 64MB onboard NAND memory chip Ethernet Ten 10/100/1000 Mbit/s Ethernet ports supporting Auto-MDI/X MiniPCI slot Expansion...
  • Page 5: Db9 Serial Port

    RouterBOARD 1200 Series User's Manual DB9 Serial Port The RS232C standard male DB9 asynchronous serial port may be used for initial configuration, or for attaching a modem or any other RS232 serial device. TxD (pin 3) of this port has -5V DC power when idle. Some signals are not connected, so this implementation may not be considered to support full hardware flow-control, so software flow-control (XON/XOFF) or none at all should be used.
  • Page 6: Booting From Network

    (i.e., there must not be any routers between them). Operating System Support MikroTik RouterOS starting from version v5 is fully compatible with RouterBOARD 1200 series devices. If your device is preinstalled with an earlier RouterOS release, please upgrade RouterOS to v5.6 or newer.
  • Page 7 RouterBOARD 1200 Series User's Manual RouterBOOT booter 2.33 RouterBoard 1200 CPU frequency: 666 MHz Memory size: 1024 MB Press any key within 2 seconds to enter setup RouterBOOT-2.33 What do you want to configure? d - boot delay k - boot key...
  • Page 8: Boot Loader Upgrading

    The boot loader upgrading is possible from MikroTik RouterOS, from within the “/system routerboard” menu. Updates are included with each RouterOS update. The procedure is described in the MikroTik RouterOS manual: http://wiki.mikrotik.com/wiki/Manual:Bootloader_upgrade...
  • Page 9: Routeros Functions

    RouterBOARD 1200 Series User's Manual RouterOS functions The default OS of RouterBOARD devices is RouterOS, when the routerboard.npk package is installed, RouterOS can configure some RouterBOARD hardware settings without the need to enter RouterBOOT menu through the serial console. Health monitor This menu shows the current voltage and temperature status.
  • Page 10: Appendix

    Appendix Connector Index J401 RS232C male DB9 serial port 2 RxD (Receive Data) 3 TxD (Transmit Data) 5 GND 7 RTS (Request to Send) 8 CTS (Clear to Send) J402 Alternate serial port (see 11 for pinout) Ether1-5 RJ45 Gigabit Ethernet 1000Base-T ports (Group one) Ether5-10 Power Jack (12/24V DC)
  • Page 11: Idc10 Serial Port

    RouterBOARD 1200 Series User's Manual IDC10 serial port J402 is a IDC10 type serial port connector. Pins 1,4,6 are connected together. Pin 9 and pin 10 are not connected...
