MikroTik RouterBOARD 11E Installation Manual

RouterBOARD 11E
Installation Guide and Warranty Information

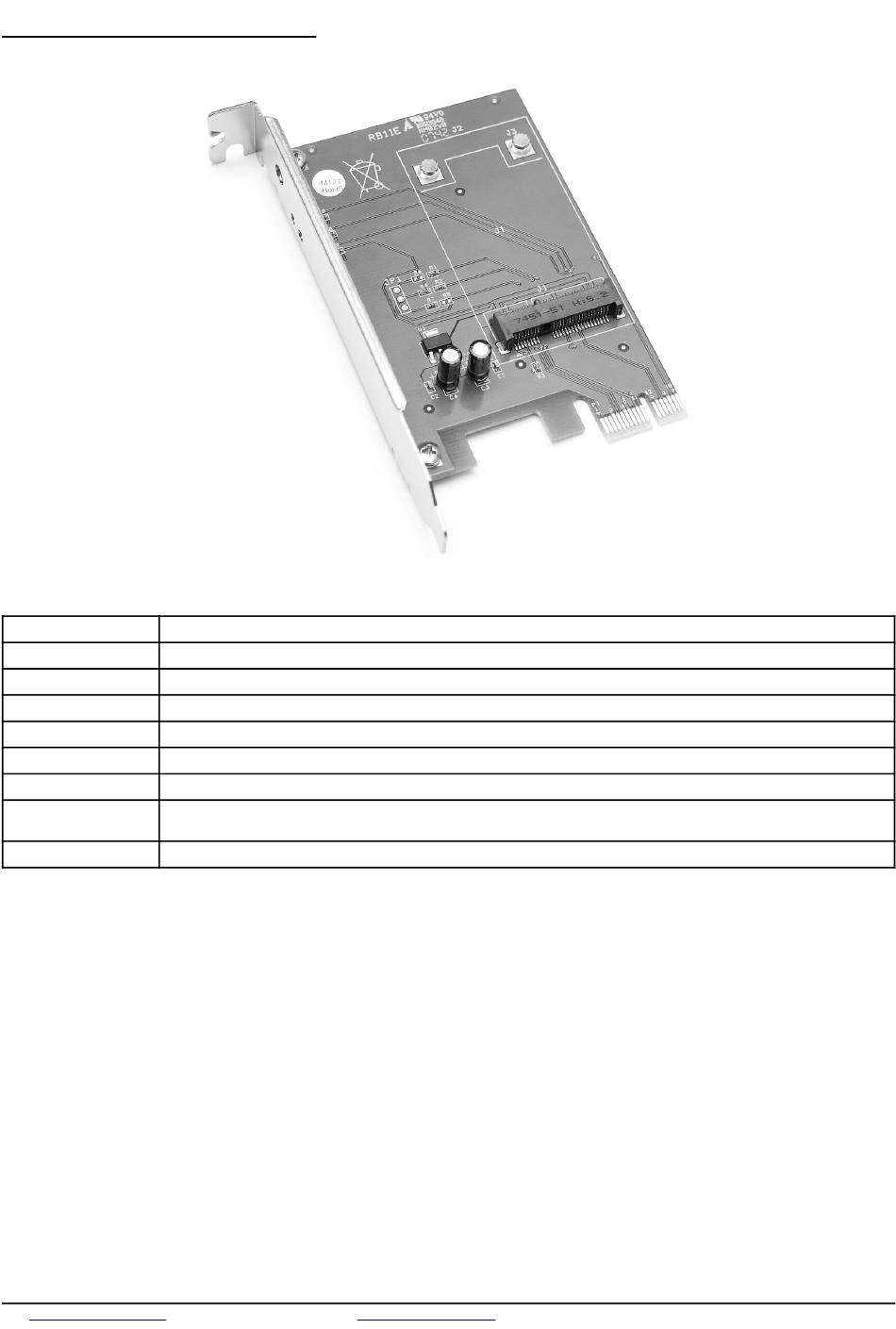

Specifications
RouterBOARD 11E
Slots One PCI Express Mini Card Slot for a 52 pin card
Standards PCI Express x1 (PCIe), doesn't support USB connectivity
Operation voltage PCIe 3.3V
Input power Up to 10W supplied to PCI Express Mini card
LEDs Three LEDs connected to each MiniPCI card (according to standards)
Dimensions 65mm x 100mm
Operational: 0°C to +70°C (32°F to 158°F)
Temperature
Storage: -20°C to +80°C (-4°F to 176°F)
Requirements Available PCIe slot
Hardware Compatibility Notes
Note that only wireless 802.11a/b/g/n cards are supported in this adapter. It will not work with 3G mini cards due to USB
connectivity incompatibility.
Installation
Please check if the system board you want to install the adapter on, and the PCI Express mini cards you will be using with
the adapter, are compatible with the adapter. If it is, then follow these steps to install it into the computer:
1. Remove the screw caps (J3) from the adapter and Insert PCIe Mini card in the adapter,
securely screwing the card to the base
2. Turn off the computer (remove power cord from ATX power supply and then discharge the power capacitors by pressing
power-on button) and remove its cover
3. Firmly insert the adapter into a free PCIe slot
4. Secure this adapter to the chassis, and put the computer cover back
Driver installation may be required only for the PCIe Mini cards you will be using.
See www.routerboard.com for more information. Contact support@mikrotik.com for support questions. rev. A (31-Jan-2008)
