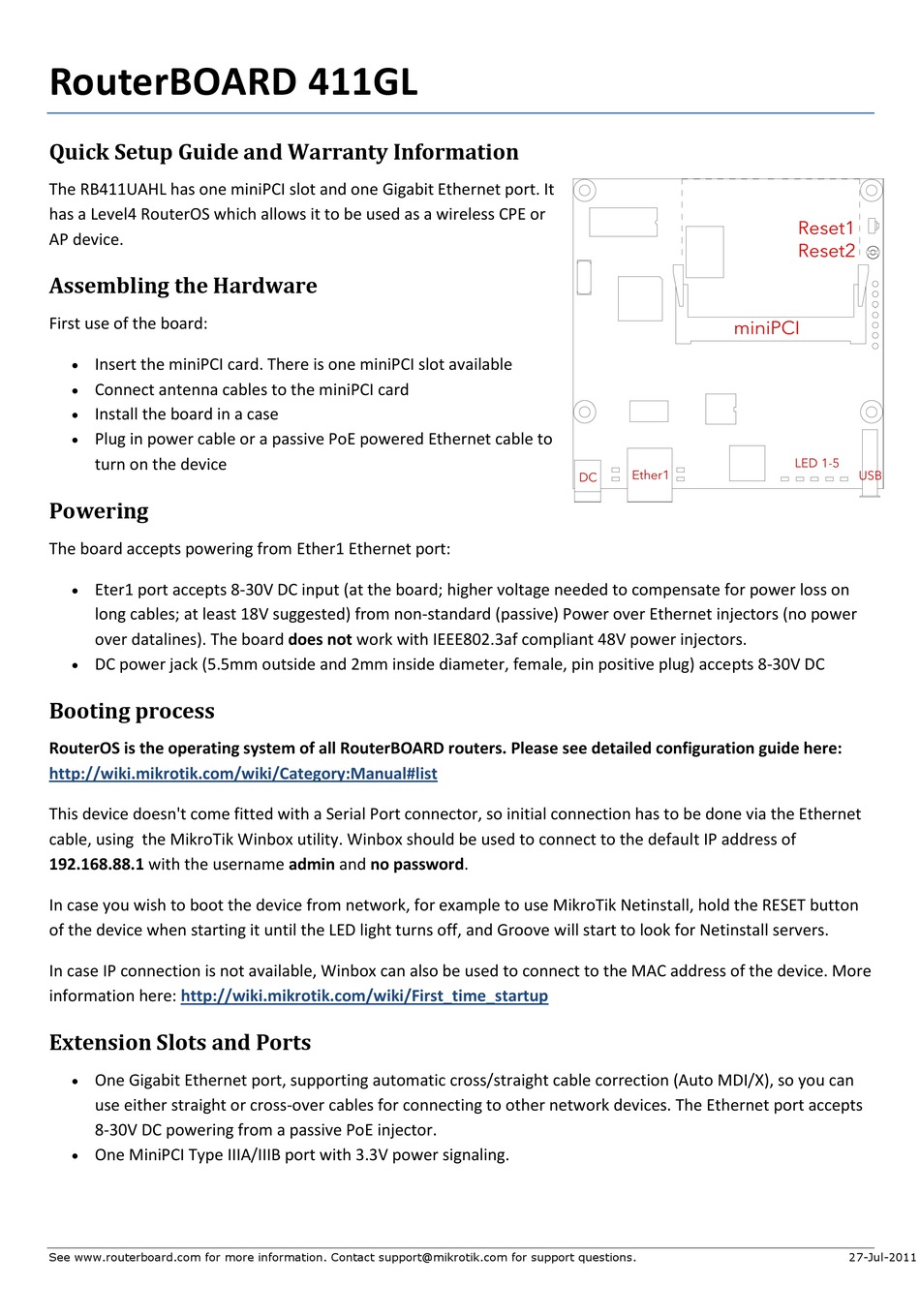

RouterBOARD 411GL
Quick Setup Guide and Warranty Information
The RB411UAHL has one miniPCI slot and one Gigabit Ethernet port. It
has a Level4 RouterOS which allows it to be used as a wireless CPE or
AP device.

Assembling the Hardware

First use of the board:

Insert the miniPCI card. There is one miniPCI slot available

Connect antenna cables to the miniPCI card

Install the board in a case

Plug in power cable or a passive PoE powered Ethernet cable to
turn on the device

Powering

The board accepts powering from Ether1 Ethernet port:

Eter1 port accepts 8-30V DC input (at the board; higher voltage needed to compensate for power loss on
long cables; at least 18V suggested) from non-standard (passive) Power over Ethernet injectors (no power
over datalines). The board does not work with IEEE802.3af compliant 48V power injectors.

DC power jack (5.5mm outside and 2mm inside diameter, female, pin positive plug) accepts 8-30V DC

Booting process

RouterOS is the operating system of all RouterBOARD routers. Please see detailed configuration guide here:
http://wiki.mikrotik.com/wiki/Category:Manual#list
This device doesn't come fitted with a Serial Port connector, so initial connection has to be done via the Ethernet
cable, using the MikroTik Winbox utility. Winbox should be used to connect to the default IP address of
192.168.88.1 with the username admin and no password.
In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button
of the device when starting it until the LED light turns off, and Groove will start to look for Netinstall servers.
In case IP connection is not available, Winbox can also be used to connect to the MAC address of the device. More
information here: http://wiki.mikrotik.com/wiki/First_time_startup

Extension Slots and Ports


One Gigabit Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X), so you can
use either straight or cross-over cables for connecting to other network devices. The Ethernet port accepts
8-30V DC powering from a passive PoE injector.

One MiniPCI Type IIIA/IIIB port with 3.3V power signaling.
See www.routerboard.com for more information. Contact support@mikrotik.com for support questions. 27-Jul-2011
