MikroTik RouterBOARD 411L Quick Setup Manual

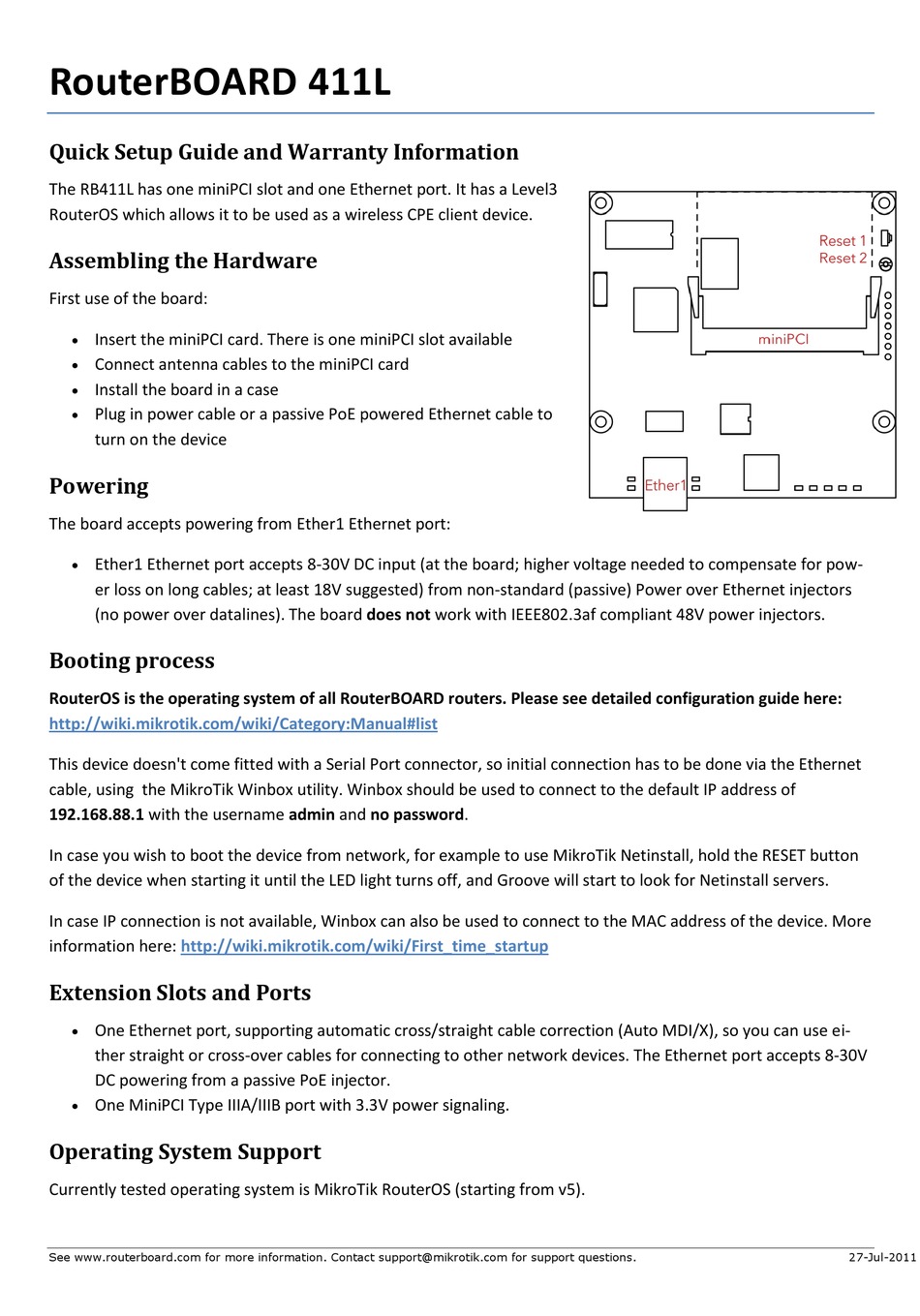

RouterBOARD 411L
Quick Setup Guide and Warranty Information
The RB411L has one miniPCI slot and one Ethernet port. It has a Level3
RouterOS which allows it to be used as a wireless CPE client device.

Assembling the Hardware

First use of the board:

Insert the miniPCI card. There is one miniPCI slot available

Connect antenna cables to the miniPCI card

Install the board in a case

Plug in power cable or a passive PoE powered Ethernet cable to
turn on the device

Powering

The board accepts powering from Ether1 Ethernet port:

Ether1 Ethernet port accepts 8-30V DC input (at the board; higher voltage needed to compensate for pow-
er loss on long cables; at least 18V suggested) from non-standard (passive) Power over Ethernet injectors
(no power over datalines). The board does not work with IEEE802.3af compliant 48V power injectors.

Booting process

RouterOS is the operating system of all RouterBOARD routers. Please see detailed configuration guide here:
http://wiki.mikrotik.com/wiki/Category:Manual#list
This device doesn't come fitted with a Serial Port connector, so initial connection has to be done via the Ethernet
cable, using the MikroTik Winbox utility. Winbox should be used to connect to the default IP address of
192.168.88.1 with the username admin and no password.
In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button
of the device when starting it until the LED light turns off, and Groove will start to look for Netinstall servers.
In case IP connection is not available, Winbox can also be used to connect to the MAC address of the device. More
information here: http://wiki.mikrotik.com/wiki/First_time_startup

Extension Slots and Ports


One Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X), so you can use ei-
ther straight or cross-over cables for connecting to other network devices. The Ethernet port accepts 8-30V
DC powering from a passive PoE injector.

One MiniPCI Type IIIA/IIIB port with 3.3V power signaling.

Operating System Support

Currently tested operating system is MikroTik RouterOS (starting from v5).
See www.routerboard.com for more information. Contact support@mikrotik.com for support questions. 27-Jul-2011
