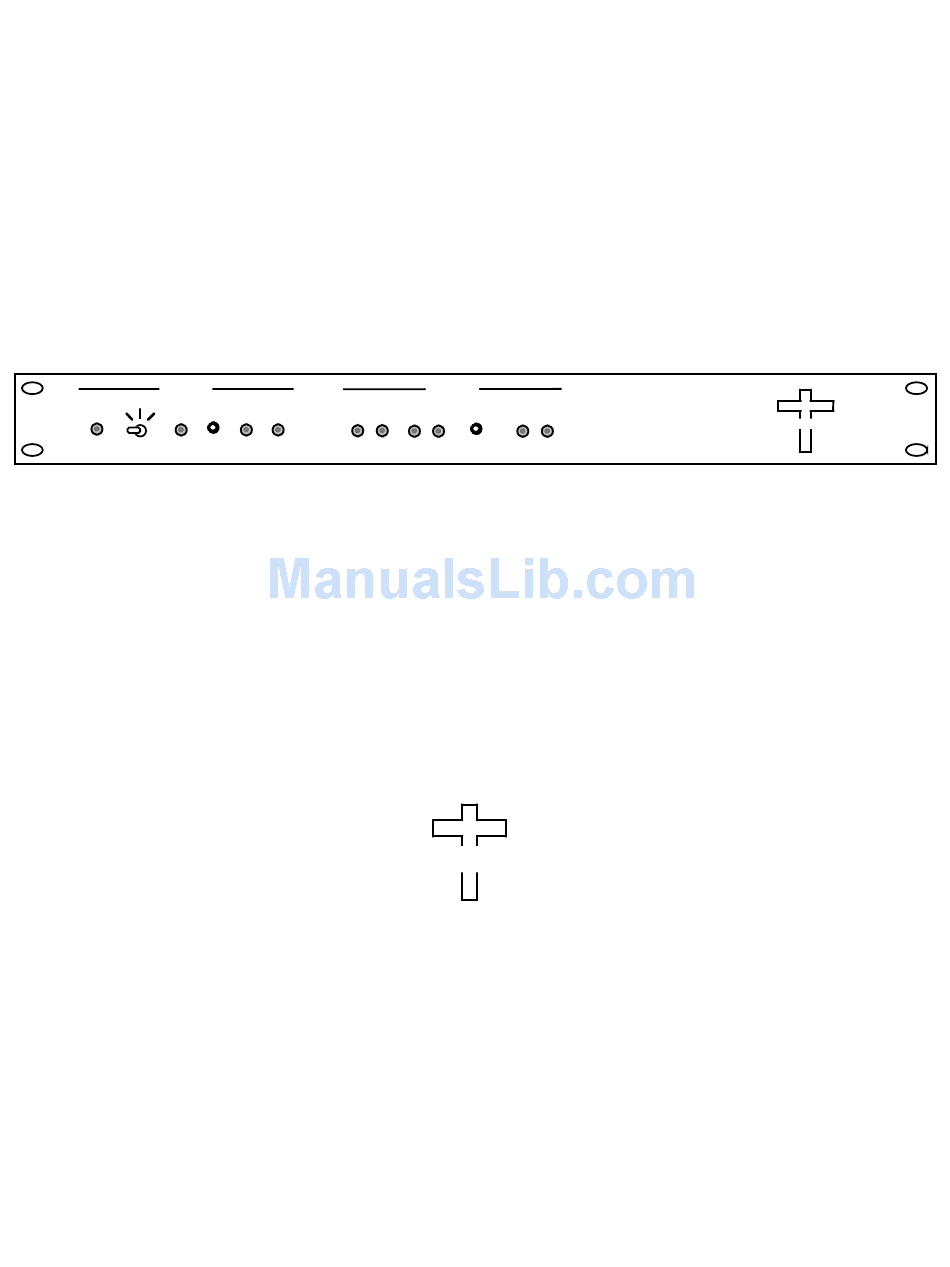

Instruction Manual

SWITCH
AUTO
CH1
CH2
CH1
CH2
SWITCH
MANUAL REMOTE
MANUAL
ONLINE
ONLINE
RESET
SELECT
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment. Printed in USA.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
STATUS
1
2
1
2
ALARM
ALARM
HISTORY
HISTORY
RESET
C
T
ROSS
ECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB: www.crosstechnologies.com
E-MAIL: info@crosstechnologies.com
Model 1582-650
MODEL 1582
SWITCH
1
2
POWER
RF Switch
January 2011 Rev C
C
T
ROSS
ECHNOLOGIES INC.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1582-650 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cross Technologies 1582-650

Summary of Contents for Cross Technologies 1582-650

  • Page 1: Instruction Manual

    RESET Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating the equipment. Printed in USA. When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number, equipment serial number, and a description of the part.

  • Page 2: Table Of Contents

    All Cross Technologies, Inc. products are warranted against defective materials and workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be liable for any special, indirect, or consequential damages.

  • Page 3: General

    1.0 General 1.1 Equipment Description The 1582-650 RF Switch provides Auto, Manual or Remote relay switching between CH1 and CH2 RF signals. Alarm conditions on CH1 and CH2 are either a contact closure to ground or an open (selectable). The logic controls one single pole, double throw RF switch.
  • Page 4 1.2 Technical Characteristics TABLE 1.1 1582-650 RF Switch Specifications* Switch Characteristics Impedance Return Loss > 18 dB, DC to 4 GHz > 15 dB, to 6.5 GHz Type Relay Isolation > 70 dB, DC to 4 GHz > 60 dB, to 6.5 GHz...

  • Page 5: Installation

    2.1 Mechanical The 1582-650 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 12 inch deep chassis. Redundant switching power supplies provide power for the assembly. The 1582-650 can be secured to a rack using the 4 holes on the front panel.
  • Page 6 Terminal Strip. See Table 2.1. SWITCH COMMON RF output. 100-240 ±10% VAC, 47-60 Hz. Type N (female), 50 . FIGURE 2.2 1582-650 RF Switch Rear Panel Inputs/Outputs Table 2.1 Table 2.1 J7 Pinouts (Monitors an n d J7 Pinouts (Monitors and Controls)
  • Page 7 RESET pin on J7, and then it switches to channel 1. (If channel 1 alarms are cleared ). If in the ICS mode and originally set to CH2 the 1582-650 will not switch if CH2 alarms. Only the RESET functions (front panel pushbutton or J7 closure to ground) will return the switch to CH1.

  • Page 8: Operation

    2.4 Operation 1. Set the on board controls as desired (Tables 2.2, 2.3, Figure 2.3). 2. Install the 1582-650 in the equipment rack. 3. Connect RF to the Type N connectors (J1,J2,J3). 4. Connect to signals on the MONITORS AND CONTROLS connector, J7, as desired, (see Figure 2.2, Table 2.1).

  • Page 9: Switch Mode Setup

    Auto switching occurs only if current channel alarms and the other channel is clear. Non-dot - JP4; Dot - JP1, JP2, JP3; S4 - ALL TO ON. Factory set mode is generally 1) CH1 Prime Mode. 1582-650 Manual, Rev. C Page 9 01/26/10...
  • Page 10 G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed. If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS emission problems. 1582-650 Manual, Rev. C Page 10 01/26/10...
  • Page 11 ROSS ECHNOLOGIES, INC. 6170 Shiloh Road Alpharetta, Georgia 30005 (770) 886-8005 FAX (770) 886-7964 Toll Free 888-900-5588 WEB: www.crosstechnologies.com E-MAIL: info@crosstechnologies.com Printed in USA, 2011 1582-650 Manual, Rev. C Page 11 01/26/10...
