Cross Technologies 1582-14 Instruction Manual

Data switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

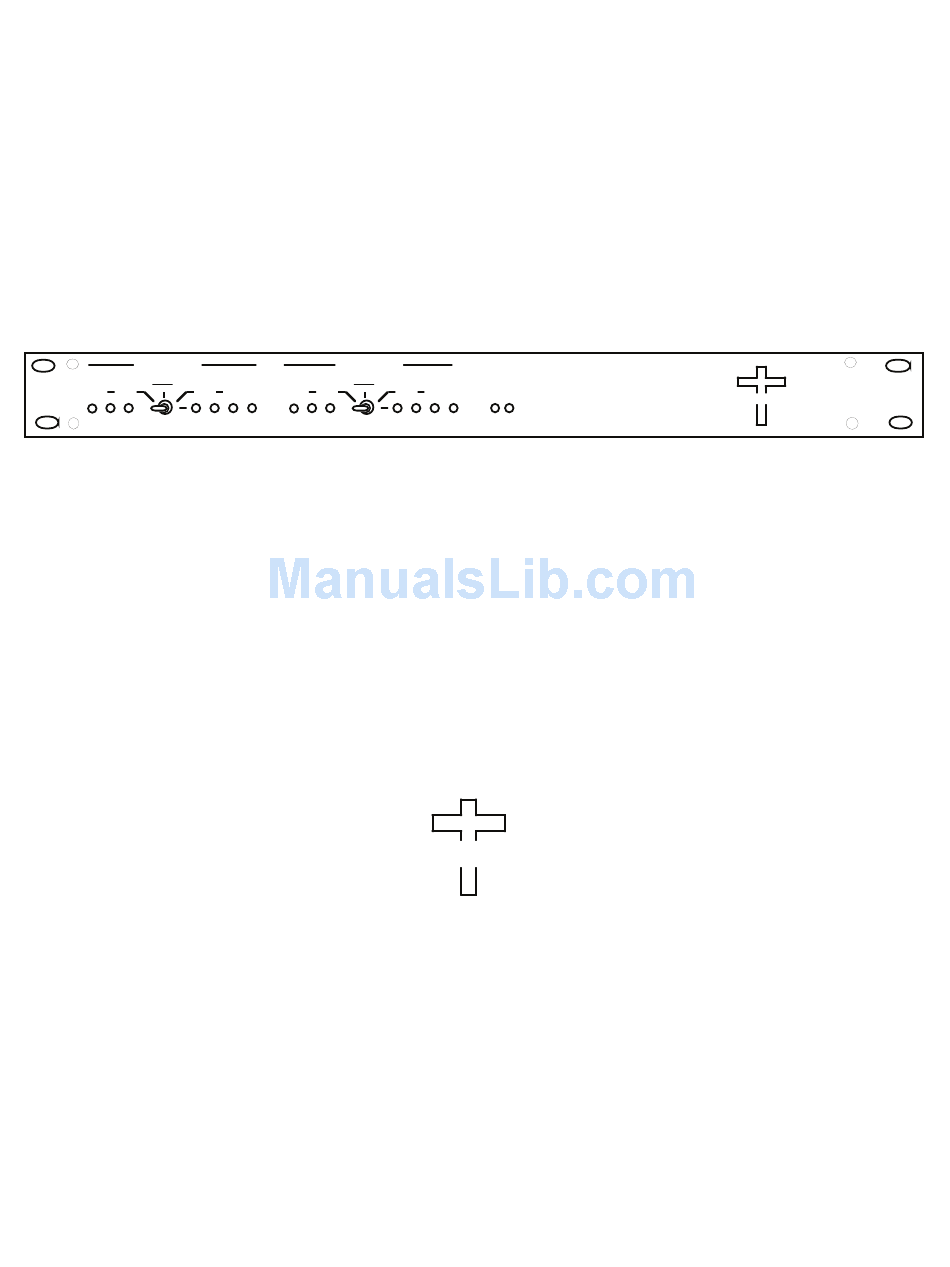

Instruction Manual

SWITCH A
AUTO
CH 2
CH 1
MAN
ALM
ON-
MANUAL
ON-
ALM
REM
RESET
LINE
SELECT
LINE
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
SWITCH B
AUTO
CH 2
CH 1
MAN
ALM
ON-
MANUAL
ON-
ALM
REM
RESET
LINE
SELECT
LINE
C
T
ROSS
ECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB: www.crosstechnologies.com
E-MAIL: info@crosstechnologies.com
Model 1582-14
MODEL 1582
1
2
POWER
Data Switch
June 2009 Rev. A
CROSS TECHNOLOGIES, INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1582-14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cross Technologies 1582-14

Summary of Contents for Cross Technologies 1582-14

  • Page 1: Instruction Manual

    LINE Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating the equipment. When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number, equipment serial number, and a description of the part.

  • Page 2: Table Of Contents

    All Cross Technologies, Inc. products are warranted against defective materials and workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be liable for any special, indirect, or consequential damages.

  • Page 3: General

    MODEL 1582-14 Data Switch 1.0 General 1.1 Equipment Description - The 1582-14 Data Switch has two independent switches (A and B) in a single 1 3/4” chassis. Each switch provides Auto, Manual, or Remote relay switching between CH1 and CH2 RS422 clock or data signals on pins 3 and 8 with pin 5 ground and the other pins not connected.

  • Page 4: Technical Specifications

    1.2 Technical Specifications TABLE 1.0 1582-14 Data Switch Specifications* Data Characteristics Input/Output RS422 Data rate 128 kbps, max Connectors, data DB9, female Pins Switched 3, 8 Ground pin Switch Characteristics Type Relay, non-latching Isolation >40 dB Switch after alarm 0.1 to 0.9 seconds (selectable in 0.1 second increments)

  • Page 5: Installation

    2.0 Installation 2.1 Mechanical - The 1582-14 is rack mounted by attaching the front panel to a rack through the four holes at the edges of the panel. 2.2 Rear Panel Inputs and Outputs - Figure 2.0 shows the input and output connectors on the rear panel.

  • Page 6: Front Panel Controls And Indicators

    MANUAL LINE LINE LINE LINE SELECT SELECT FIGURE 2.2 1582-14 Front Panel Controls and Indicators TABLE 2.1 Front Panel Controls and Indicators For SWITCH A and SWITCH H For SWITCH A and SWITCH B Item Description CH1 ON-LINE LED Turns green when Channel 1 is selected...

  • Page 7: Pc Board Settings

    RESET pin on J8, and then it switches to channel 1. (If channel 1 alarms are cleared ). If in the ICS mode and originally set to CH2 the 1582-14 will not switch if CH2 alarms. Only the RESET functions (front panel pushbutton or J8 closure to ground) will return the switch to CH1.
  • Page 8 S3, S103 positions 1,2,3,4 to OFF - ICS is disabled (Minimum Auto switching, Return to Last State Mode) The 1582-14 goes to the last state (CH1 or CH2) it was in when in Auto after Manually or Remotely switching and returning to Auto. Auto switching occurs only if current channel alarms and the other channel is clear.

  • Page 9: Time Out Alarm Settings

    JP16 JP17 JP18 POWER SUPPLY JP103 JP104 JP101 JP102 S3 - ROCKER SWITCH DETAIL SHOWN IN THE ICS MODE SHOWN WITH ALL SWITCH POSITIONS IN THE ON SIDE FIGURE 2.3 1582-14 PCB Settings Parts Locations 1582-14 Manual_A Page 9 06/22/09...

  • Page 10: Switch Mode Setup

    2.7 Operation a. Set the on board controls as desired (Section 2.4, 2.6, Figure 2.3). b. Install the 1582-14 in the equipment rack. c. Connect data to the DB-9 DATA connectors (J6, J7, J3 (CH1); J106, J107, J103 (CH2)). d. Connect to signals on the MONITORS AND CONTROLS connector, J8, as desired (see Figure 2.0, Table 2.0).

  • Page 11: Environmental Use Information

    G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed. If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS emission problems. 1582-14 Manual_A Page 11 06/22/09...

  • Page 12: Shiloh Road Alpharetta, Georgia

    ROSS ECHNOLOGIES, INC. 6170 Shiloh Road Alpharetta, Georgia 30005 (770) 886-8005 FAX (770) 886-7964 Toll Free 888-900-5588 WEB: www.crosstechnologies.com E-MAIL: info@crosstechnologies.com 1582-14 Manual_A Page 12 06/22/09...
