Cross Technologies 1582-421L Instruction Manual

Quad 1:1
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

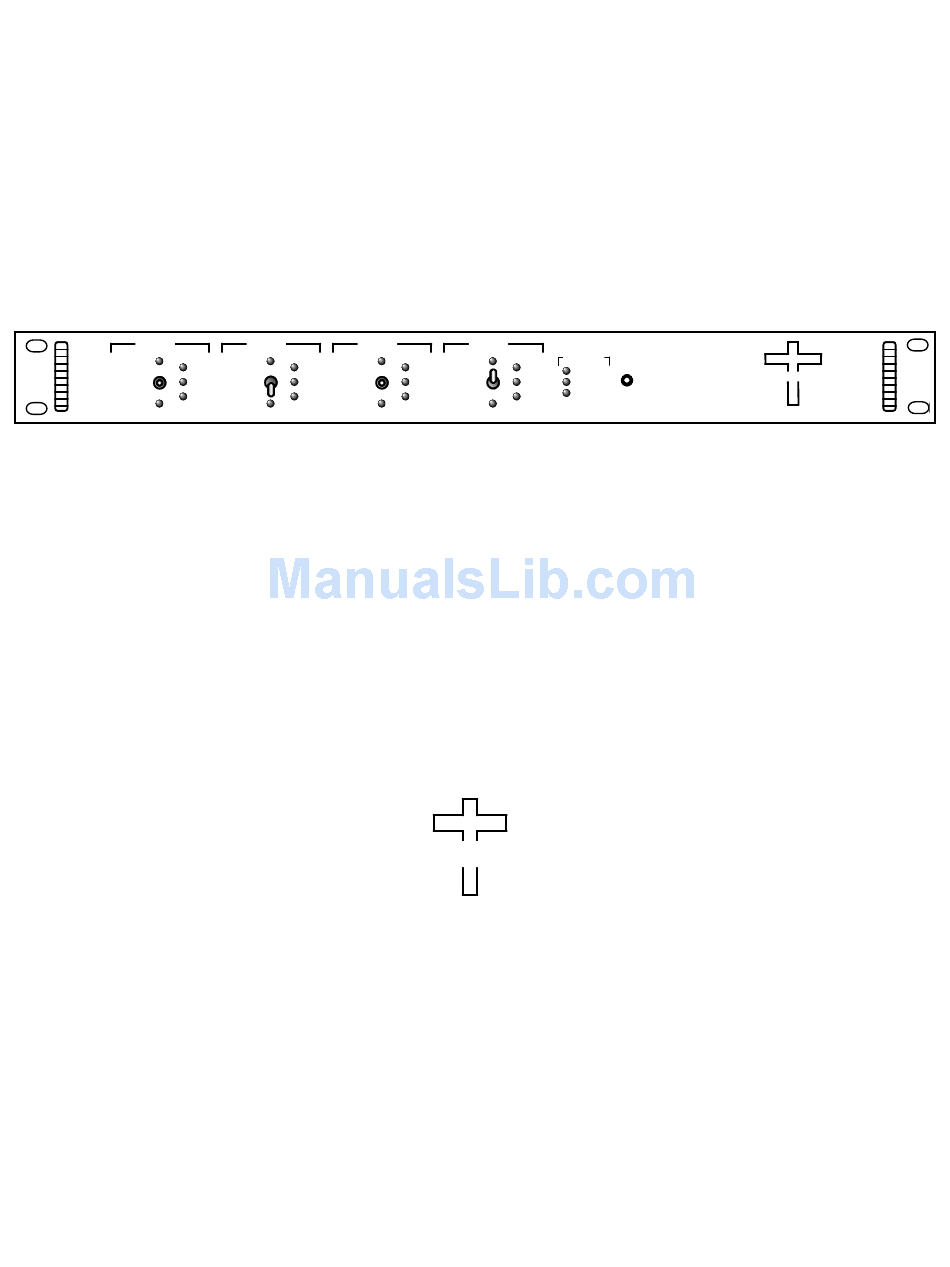

Instruction Manual

SW 1
SW 2
PRIMARY -
PRIMARY
MAN.
-
REM.
AUTO -
AUTO -
AUTO
BACKUP -
BACKUP -
SELECT
SELECT
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be
reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating
the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
SW 3
SW 4
PRIMARY -
PRIMARY -
MAN.
MAN.
REM.
REM.
AUTO -
AUTO -
AUTO
AUTO
BACKUP -
BACKUP -
SELECT
SELECT
C
T
ROSS
ECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB: www.crosstechnologies.com
E-MAIL: info@crosstechnologies.com
Model 1582-421L
Quad 1:1 Switch
MODEL 1582
SWITCH
SWITCH
MAN.
ALARM
REM.
PS1
PS2
SWITCH
AUTO
RESET
June 2018, Rev. A
C
T
ROSS
ECHNOLOGIES INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1582-421L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cross Technologies 1582-421L

Summary of Contents for Cross Technologies 1582-421L

  • Page 1: Instruction Manual

    SELECT SELECT SELECT Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating the equipment. When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number, equipment serial number, and a description of the part.

  • Page 2: Table Of Contents

    All Cross Technologies, Inc. products are warranted against defective materials and workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be liable for any special, indirect, or consequential damages.

  • Page 3: General

    When power is lost, the current latched state remains selected. Front panel LEDs indicate PRIMARY and BACK-UP alarms and switch position, Auto, Remote or Manual mode, and indicates redundant power supplies are on and if the 1582-421L has an alarm condition. Rear panel DIP switches set alarm polarity (NO or NC for alarm inputs), M&C interface, and Auto modes (PRIMARY PRIME, LATCHBACK-UP, or MIN SW).

  • Page 4: Technical Characteristics

    1.2 Technical Characteristics TABLE 1.0 1582-421L 1:1 Switch, Specifications* IF/L-Band Switch Characteristics Impedance / Connectors 75Ω / BNC 12 dB minimum, ≥ 14 dB typical; DC to 1.5 GHz Return Loss 10 dB minimum, ≥ 12 dB typical; 1.5 to 2.5 GHz ≤...
  • Page 5 Ethernet M&C Remote Interface. Provides All three (3) - Web Browser, SNMP Ethernet and W-828 Direct TCP/IP and/or Telnet® addressability Ethernet interfaces. Connectors/Impedance 50Ω BNC 50Ω SMA * 10˚C to 40˚C; Specifications subject to change without notice © Cross Technologies, Inc. 1582-421L Manual, Rev. A Page 5 06/18/18...

  • Page 6: Monitor And Control Interface

    A) Remote Serial Interface Protocol: RS232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit. (RS232C, RS-422, or RS-485) M&C Cable Diagram - Cross Technologies Frequency Converters Female DB-9 PC Com Port Connector: Rear panel, DB-9 Female:...
  • Page 7 (J16A = PRIMARY, 16B = BACKUP) J16 Pinouts (W103) J16 Pinouts (W103) Function DO NOT USE UNIT #1 RS232 TX UNIT #1 RS232 RX DO NOT USE GROUND GROUND GROUND DO NOT USE Alarm Input 1582-421L Manual, Rev. A Page 7 06/18/18...

  • Page 8: M&C Commands

    1.4 M&C Commands The following tables summarize the M&C Commands applicable to the 1582-421L Switch. PLEASE NOTE: The two character {aa} prefix, shown in the table below, is present ONLY when RS485 is selected. Commands specific to a switch must be preceeded by *i where i is the switch number.
  • Page 9 (M&C Commands continued from page 8)... Table 2.0: Model 1582-421L 1:1 Switch, M&C Commands continued... Command Function Syntax Command Description where i = 1, 2, 3, or 4 designating the switch number Clear Alarm History {aa*iCH} aa = unit address, range = 00 to 31, only used if interface is RS485, otherwise omit.
  • Page 10 1.5 Status Requests/Inquiries The following tables summarize the status requests/queries applicable to the 1582-421L Switch. PLEASE NOTE: The two character {aa} prefix, shown in the table below, is present ONLY when RS485 is selected. Status Requests specific to a switch must be preceeded by *i where i is the switch number.
  • Page 11 (M&C Status Requests/Inquiries continued from page 10)... Table 2.1: Model 1582-421L 1:1 Switch M&C Status Request/Inquires (continued)... Command Function Syntax Command Description Get Power Supply Status {aaSY} returns: {aaSYxy} where: aa = unit address, range = 00 to 31, only used if interface is RS485, otherwise omit.

  • Page 12: Installation

    PCB housed in a 1 RU (1 3⁄4 inch high) by 12 inch deep chassis. Redundant switching power supplies provide power for the assembly. The 1582-421L can be secured to a rack using the 4 holes on the front panel. SW Reset FIGURE 2.1...

  • Page 13: Input And Output Signals

    Top Row: (J21, J22, J23, J24, J25, J26 M&C. DB9 (female) connector. See table 2.1 IN/OUT is the input to or the output from the converter. BNC (female) 75Ω. FIGURE 2.2 1582-421L Switch Rear Panel Inputs/Outputs 1582-421L Manual, Rev. A Page 13 06/18/18...

  • Page 14: Controls And Indicators

    (Blue) FIGURE 2.3 1582-421L Switch, Front Panel Controls and Indicators * NOTE: Restore Ethernet Settings to factory default: Press and hold the Switch Reset for approximately ten 10) seconds to initiate the Ethernet reset process.

  • Page 15: Operation

    2.4 Operation 1. Set the on board controls as desired (Tables 2.0, 2.1, Figure 2.3). 2. Install the 1582-421L in the equipment rack. 3. Connect RF to the BNC connectors as required for your application (J1- J12 and J21-J32). 4. Connect to signals on the MONITORS AND CONTROLS (DB9 connectors), J16A & J16B, as desired (see Figure 2.2, Table 2.1).
  • Page 16 Local and remote control of RF sources is also provided. Latching relays allow the switch to remain in its "current" state independent of power loss. The 1582-421L detects an external alarm condition on Primary and Backup units by either a contact closure to ground or an open (selectable). Switching...
  • Page 17 Table 3.0 Model 1582-421L Switch - Configuration DIP Switch Table 3.0 Model 1582-421L Configuration DIP Switch Select Serial M&C Interface (SW1, SW2) RS232 RS422 RS485 Ethernet (Optional) (W102 - Ethernet always enabled.) Select Auto Switching Mode (Switch A if Dual) (SW3, SW4)

  • Page 18: Environmental Use Information

    G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed. If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS emission problems. 1582-421L Manual, Rev. A Page 18 06/18/18...
  • Page 19 APPENDIX A 1582-421L 1:1 SWITCH CONFIGURATIONS 1582-421L Manual, Rev. A Page 19 06/18/18...
  • Page 20 1582-421L Switch STANDARD… Quad-Channel Unit CHASSIS Switching. 1582-421L Quad 1:1 Switch provides four (4), 2PDT switch pairs (SWITCH 1, 2, 3, and 4). Each switch pair independently provides Auto, Manual or Remote (M&C) latched relay switching between PRIMARY and BACK-UP units . In the STANDARD configuration, the...
  • Page 21 (SWITCH 1, 2, 3, and 4). Each switch pair independently provides Auto, Manual or Remote (M&C) latched relay switching between PRIMARY and BACK-UP units . When configured with Option W102 the 1582-421L is designed to support four (4) separate and independent chassis “pairs” of Primary/Backup Frequency Converters or Translators that are in independent, separate chassis.
  • Page 22 CONFIGURATION DIAGRAMS for Model 1582-421L, 1:1 REDUNDANT SWITCH with MODEL 2415-402 Quad-Channel UpConverter 1582-42IL 06-18-2018...
  • Page 23 1582-42IL 06-18-2018...
  • Page 24 1582-421L - 1:1 Redundant Switch Configuration, 2415-402 Quad-Channel UPconverters. PRIMARY 1582-421L BACK-UP DESCRIPTION 2415-402 Quad-UP SWITCH 2415-402 Quad-UP CHANNEL 1 IF INPUT CHANNEL 1 RF OUTPUT PRIMARY 1582-421L BACK-UP DESCRIPTION 2415-402 Quad-UP SWITCH 2415-402 Quad-UP CHANNEL 2 IF INPUT CHANNEL 2 RF OUTPUT...
  • Page 25 CONFIGURATION DIAGRAMS for Model 1582-421L, 1:1 REDUNDANT SWITCH with MODEL 2416-402 Quad-Channel DownConverter 1582-42IL 06-18-2018...
  • Page 26 1582-42IL 06-18-2018...
  • Page 27 1582-421L - 1:1 Redundant Switch Configuration, 2416-402 Quad-Channel DOWNconverters. PRIMARY 1582-421L BACK-UP DESCRIPTION 2416-402 Quad-DOWN SWITCH 2416-402 Quad-DOWN CHANNEL 1 RF INPUT CHANNEL 1 IF OUTPUT PRIMARY 1582-421L BACK-UP DESCRIPTION 2416-402 Quad-DOWN SWITCH 2416-402 Quad-DOWN CHANNEL 2 RF INPUT CHANNEL 2 IF OUTPUT...
  • Page 28 CONFIGURATION DIAGRAMS for Model 1582-421L, 1:1 REDUNDANT SWITCH with SEPARATE/INDEPENDENT FREQUENCY CONVERTERS SEPARATE/INDEPENDENT FREQUENCY TRANSLATORS 1582-42IL 06-18-2018...
  • Page 29 1582-42IL 06-18-2018...
  • Page 30 1582-421L - 1:1 Redundant Switch Configuration, for separate/independent pairs of 2083 RF to RF Translator units. PRIMARY 1582-421L BACK-UP DESCRIPTION 2083 Translator SWITCH 2083 Translator CHANNEL 1 RF INPUT CHANNEL 1 RF OUTPUT PRIMARY 1582-421L BACK-UP DESCRIPTION 2083 Translator SWITCH...

  • Page 31: Shiloh Road Alpharetta, Georgia

    ROSS ECHNOLOGIES, INC. 6170 Shiloh Road Alpharetta, Georgia 30005 (770) 886-8005 FAX (770) 886-7964 Toll Free 888-900-5588 WEB www.crosstechnologies.com E-MAIL info@crosstechnologies.com 1582-42IL 06-18-2018...
