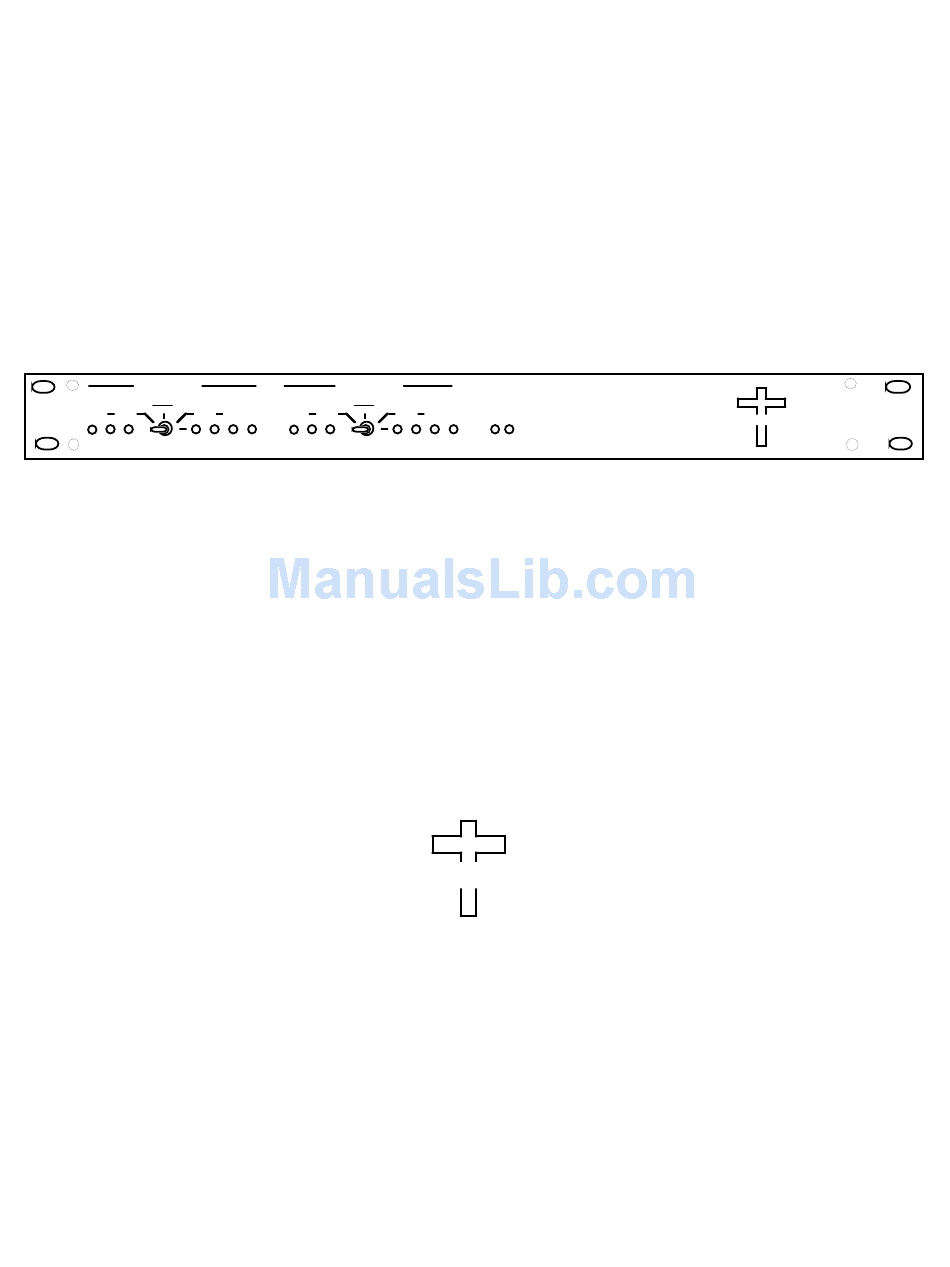

Instruction Manual

SWITCH A
AUTO
CH 2
CH 1
MAN
ALM
ON-
MANUAL
ON-
ALM
REM
RESET
LINE
SELECT
LINE
Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,
but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.
for purposes of operating the equipment.
When ordering parts from Cross Technologies, Inc., be sure to include the equipment
model number, equipment serial number, and a description of the part.
SWITCH B
AUTO
CH 2
CH 1
MAN
ALM
ON-
MANUAL
ON-
ALM
REM
RESET
LINE
SELECT
LINE
C
T
ROSS
ECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
(770) 886-8005
FAX (770) 886-7964
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL info@crosstechnologies.com
Model 1582-03
MODEL 1582
1
2
POWER
Data Switch
April 2009 Rev C
CROSS TECHNOLOGIES, INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1582-03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cross Technologies 1582-03

Summary of Contents for Cross Technologies 1582-03

  • Page 1: Instruction Manual

    LINE Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating the equipment. When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number, equipment serial number, and a description of the part.

  • Page 2: Table Of Contents

    All Cross Technologies, Inc. products are warranted against defective materials and workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be liable for any special, indirect, or consequential damages.

  • Page 3: General

    1.1 Equipment Description The 1582-03 Data Switch provides Auto, Manual, or Remote relay switching between CH1 and CH2 RS232C data signals on pins 2 or 3, selectable, with pin 5 ground and the other pins of the DB9 connectors not connected.
  • Page 4 Turns amber when REMOTE control is active Other Mechanical 19 inch standard chassis 1.75”high X 12” deep Power Redundant power supplies;100-240 ±10% VAC, 47 - 60Hz, 2A max *Specifications subject to change without notice 1582-03 Manual, Rev. C Page 4 4/13/09...

  • Page 5: Installation

    DATA 2 J106 J107 J103 AC2 - POWER IN 2 J106 - DATA 1 J103 - DATA 2 J8 - CONTROLS 1.5 A FUSE FIGURE 2.0 1582-03 REAR PANEL FIGURE 2.1 DB9 PIN OUTS 1582-03 Manual, Rev. C Page 5 4/13/09...
  • Page 6 *Max voltage able to be connected to this is +20 VDC @ 30ma **Max voltage to be connected to this is +30 VDC@ 100 ma C1, AC2 - POWER IN - Provides AC inputs for dual power supplies. 1582-03 Manual, Rev. C Page 6 4/13/09...
  • Page 7 RESET POWER LINE SELECT LINE FIGURE 2.2 1582-03 CONTROLS AND INDICATORS TABLE 2.1 FRONT PANEL CONTROLS AND INDICATORS Item Description CH1 ON-LINE LED Turns green when Channel 1 is selected CH2 ON-LINE LED Turns green when Channel 2 is selected MANUAL LED Turns red when the Manual Select switch manually selects channel 1 or 2.

  • Page 8: Mechanical

    2.3 Mechanical The 1582-03 is housed in a 1RU (1-3/4”H x 19”W x 12”D) rack mountable chassis. The unit is rack mounted by attaching the front panel to a rack through the four holes at the edges of the panel.
  • Page 9 AC Fuse - 2 amp slow blow (Type T 2A GDC), 5 mm X 20 mm FUSE INPUT 100-240± 10%VAC TYPE T 2A GDC 47-63 Hz 250 VOLT 2A MAX FOR 100 - 240 V~ FIGURE 2.3 AC INPUTS AND FUSES 1582-03 Manual, Rev. C Page 9 4/13/09...

  • Page 10: Environmental Use Information

    G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed. If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS emission problems. 1582-03 Manual, Rev. C Page 10 4/13/09...
  • Page 11 ROSS ECHNOLOGIES, INC. 6170 Shiloh Road Alpharetta, Georgia 30005 (770) 886-8005 FAX (770) 886-7964 Toll Free 888-900-5588 WEB www.crosstechnologies.com E-MAIL info@crosstechnologies.com 1582-03 Manual, Rev. C Page 11 4/13/09...
