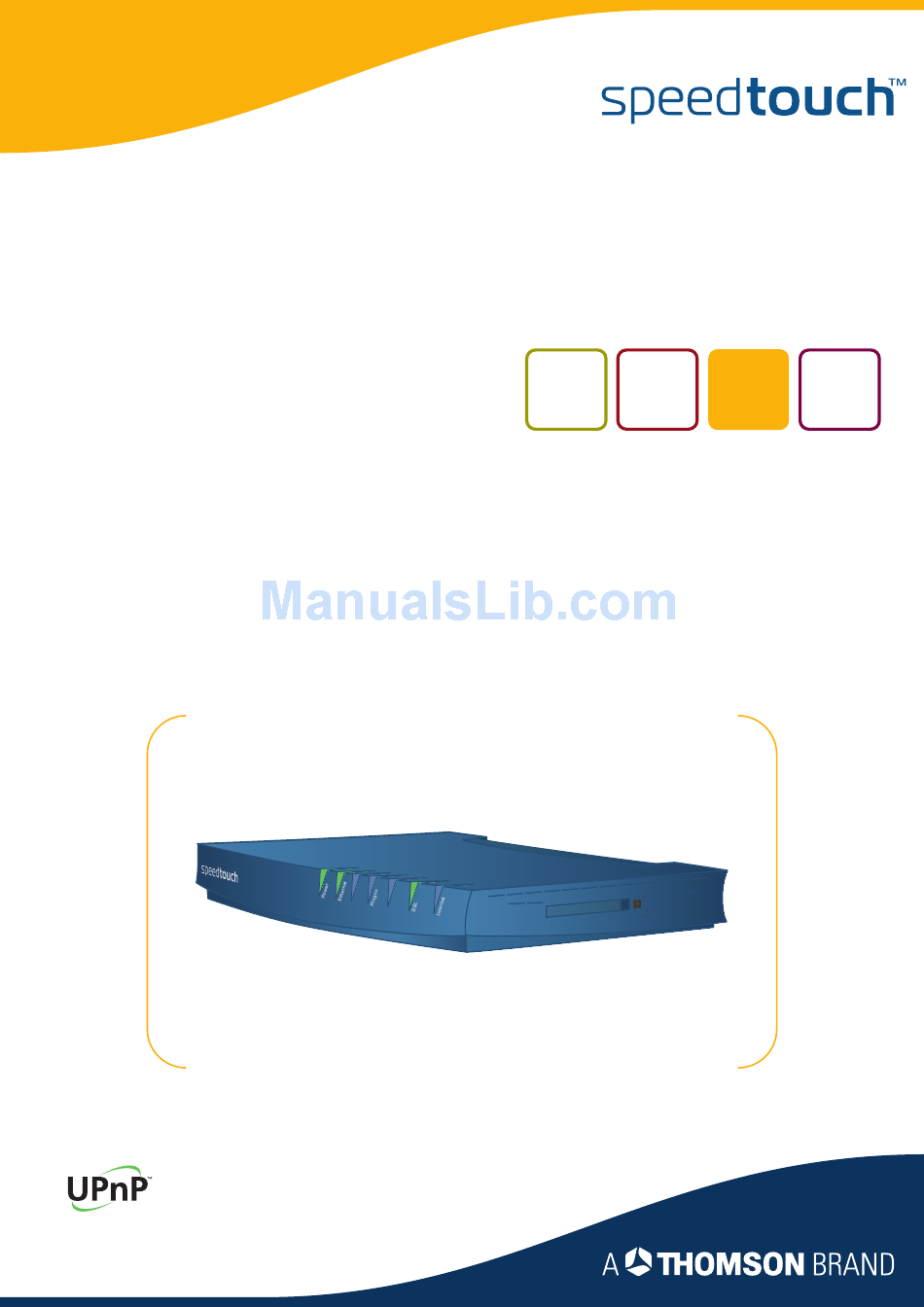

SpeedTouch™605(s)
Residential ADSL Gateway
CLI Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 605(s) and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Speedtouch 605(s)

Summary of Contents for Speedtouch 605(s)

  • Page 1 SpeedTouch™605(s) Residential ADSL Gateway CLI Reference Guide...
  • Page 3 SpeedTouch™ 605(s) CLI Reference Guide...
  • Page 4 Trademarks The following trademarks are used in this document: SpeedTouch™ is a trademark of THOMSON. Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. Ethernet™ is a trademark of Xerox Corporation. Wi-Fi® and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. "Wi-Fi CERTIFIED", "Wi-Fi ZONE", "Wi-Fi Alli- ance", their respective logos and "Wi-Fi Protected Access"...
  • Page 5 Contents Contents About this Document ..................1 Root Commands .................... 3 ping................................4 traceroute..............................5 telnet................................7 ADSL Commands................... 9 adsl config..............................10 adsl info............................... 11 ATM Commands ..................13 atm flush ..............................15 atm ifadd ..............................16 atm ifattach ..............................17 atm ifconfig..............................

  • Page 6: Table Of Contents

    Contents atm oam modify ............................42 atm oam ping ............................. 44 atm oam cc list ............................45 atm oam cc modify ............................ 46 atm oam cc send ............................47 atm oam vclb add............................48 atm oam vclb del............................49 atm oam vclb list ............................50 atm phonebook add ...........................
  • Page 7 Contents connection clean ............................84 connection clear ............................85 connection config............................86 connection debug............................87 connection describe ........................... 88 connection flush ............................89 connection info............................90 connection list ............................91 connection refresh ............................. 92 connection stats ............................93 connection timerclear ..........................94 connection timerconfig..........................
  • Page 8 Contents dhcp client txoptions optionlist....................... 125 dhcp relay add ............................126 dhcp relay debug stats..........................127 dhcp relay debug traceconfig........................128 dhcp relay config............................129 dhcp relay delete ............................130 dhcp relay flush ............................131 dhcp relay ifconfig............................ 132 dhcp relay iflist ............................134 dhcp relay list ............................
  • Page 9 Contents dhcp server pool optdelete........................170 dhcp server pool rtadd..........................171 dhcp server pool rtdelete......................... 172 dhcp server pool ruleadd......................... 173 dhcp server pool ruledelete........................174 DNS Commands..................175 dns client config ............................176 dns client dnsadd ............................. 177 dns client dnsdelete ..........................178 dns client dnslist............................
  • Page 10 Contents dsd syslog list ............................208 dsd urlfilter config ............................ 209 dsd urlfilter rule add..........................210 dsd urlfilter rule delete..........................211 dsd urlfilter rule flush..........................212 dsd urlfilter rule list ..........................213 dsd urlfilter rule modify ........................... 214 DynDNS Commands.................. 215 dyndns add ...............................
  • Page 11 Contents eth bridge dynvlan config........................248 eth bridge dynvlan delete........................249 eth bridge dynvlan flush.......................... 250 eth bridge dynvlan list ..........................251 eth bridge flush ............................252 eth bridge ifadd ............................253 eth bridge ifattach ............................ 254 eth bridge ifconfig ............................ 255 eth bridge ifdelete ............................
  • Page 12 Contents Expr Commands..................289 expr add ..............................290 expr delete ..............................293 expr flush ..............................295 expr list..............................296 expr modify............................... 302 Firewall Commands................... 305 firewall config ............................306 firewall clear ............................. 308 firewall list..............................309 firewall debug clear..........................310 firewall debug stats..........................
  • Page 13 Contents grp rip nblist ............................. 347 grp rip rtfadd............................. 348 grp rip rtfdelete............................349 grp rip rtflist .............................. 350 Hostmgr Commands ................. 351 hostmgr add ............................. 352 hostmgr clear............................354 hostmgr config ............................355 hostmgr delete ............................356 hostmgr flush ............................357 hostmgr list...............................
  • Page 14 Contents igmp proxy mbslist ..........................387 igmp proxy debug clear........................... 388 igmp proxy debug stats........................... 389 igmp proxy debug traceconfig........................ 390 Interface Commands ................. 391 interface list .............................. 392 IP Commands ..................... 395 ip arpadd ..............................397 ip arpdelete ............................... 398 ip arplist ..............................
  • Page 15 Contents ip debug sendto............................431 ip debug stats ............................433 ip debug traceconfig ..........................434 IPQoS Commands..................437 ipqos config .............................. 438 ipqos list..............................440 ipqos ef config ............................441 ipqos ef list..............................442 ipqos ef stats............................. 443 ipqos meter add ............................444 ipqos meter clear............................
  • Page 16 Contents label rule debug stats..........................480 label rule debug traceconfig........................481 Language Commands................483 language config............................484 language delete ............................485 language list ............................. 486 MBUS Commands ..................487 mbus config .............................. 488 mbus client config............................ 489 mbus client exec............................490 mbus client register ..........................
  • Page 17 Contents mlp role addpriv ............................522 mlp role config ............................523 mlp role delete............................524 mlp role list ............................... 525 mlp role removepriv ..........................526 NAT Commands..................527 nat config ..............................528 nat flush ..............................529 nat ifconfig ..............................530 nat iflist..............................
  • Page 18 Contents pptp list ..............................570 pptp profadd ............................. 571 pptp profdelete ............................572 pptp proflist .............................. 573 Script Commands ..................575 script add ..............................576 script delete .............................. 577 script flush ..............................578 script list..............................579 script run ..............................580 Service Commands..................
  • Page 19 Contents shdsl config CO annex ..........................610 shdsl config CO margins ......................... 611 shdsl config CO monitoring ........................612 shdsl config CO rate..........................613 shdsl qual LOV............................614 shdsl qual LCL ............................615 SNMP Commands..................617 snmp config .............................. 618 snmp get ..............................
  • Page 20 Contents Syslog Commands..................649 syslog config............................. 650 syslog flush............................... 651 syslog list ..............................652 syslog ruleadd ............................653 syslog ruledelete ............................654 syslog msgbuf flush..........................655 syslog msgbuf show ..........................656 syslog msgbuf send ..........................657 System Commands ................... 659 system config ............................
  • Page 21 Contents upgrade debug sesslist..........................689 upgrade profile add..........................690 upgrade profile modify ..........................691 upgrade profile delete..........................692 upgrade profile list ........................... 693 UPnP Commands ..................695 upnp config............................... 696 upnp flush ..............................697 upnp list ..............................698 User Commands ..................699 user add ..............................
  • Page 22 Contents UPnP Module............................721 ................................... 721 Supported Key Names ................723 Supported IP Protocols ..........................724 Supported TCP/UDP Port Names......................725 Supported ICMP Type Names......................... 728 Supported System Logging Facilities..................... 729 Supported System Logging Severities....................730 IP Precedence ............................730 Differentiated Services Code Point (DSCP) ....................

  • Page 23: About This Document

    For the Service Provider, this Reference Guide aims to be a concise and practical document for creating a customized Service Template file, based on the SpeedTouch™ CLI command set, to be used by the end user to configure the SpeedTouch™ and computer(s).
  • Page 24 Documentation and software updates THOMSON continuously develops new solutions, but is also committed to improve its existing products. For suggestions regarding this document, please contact documentation.speedtouch@thomson.net. For more information on THOMSON's latest technological innovations, documents and software releases, visit us www.speedtouch.com...

  • Page 25: Root Commands

    Root Commands Root Commands From the root prompt, you can choose one of the following commands: Command Description help Displays the help information. menu Displays the menu. exit Exits the shell. Exits group selection. saveall Saves current configuration. ping Send ICMP ECHO_REQUEST packets. traceroute Send ICMP/UDP packets to trace the ip path.

  • Page 26: Ping

    Root Commands ping Send ICMP ECHO_REQUEST packets. SYNTAX: ping proto = <{ip|atm}> addr = <ip-address> dest = <string> [count = <number{0-1000000}>] [size = <number{28-20028}>] [interval(ms) = <number{100-1000000}>] [DF-bit = <{disabled|enabled}>] [srcaddr = <ip-address>] where: proto The interface type to be used. REQUIRED Choose between: addr...

  • Page 27: Traceroute

    Root Commands traceroute Send ICMP/UDP packets to trace the IP path. SYNTAX: traceroute addr = <ip-address> [count = <number{1-10}>] [size = <number{1-20000}>] [interval = <number{1000-60000}>] [maxhops = <number{1-255}>] [dstport = <number{1-65535}>] [maxfail = <number{0-255}>] [type = <{icmp | udp}>] [utime = <{disabled | enabled}>] where: addr The destination IP address.
  • Page 28 Root Commands EXAMPLE: =>traceroute addr = 192.193.195.250 count=3 size=1 interval=1000 maxhops=30 dstport=33433 maxfail=5 type=icmp utime=yes :traceroute addr=192.193.195.250 ttl=1 192.193.195.250 676 us 1351 us 648 us => E-DOC-CTC-20060414-0007 v1.0...

  • Page 29: Telnet

    Root Commands telnet Open a telnet connection to a server. SYNTAX: telnet addr = <ip-address> port = <supported port or number> where: addr The IP address of the server. REQUIRED port The port to connect to. REQUIRED EXAMPLE: =>telnet addr = 192.168.1.254 port = 1 : telnet addr=192.168.1.254 port=1 =>...
  • Page 30 Root Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 31: Adsl Commands

    ADSL Commands ADSL Commands Introduction This chapter describes the commands of the adsl command group. The adsl command group is only applicable for the SpeedTouch™ ADSL/POTS and ADSL/ISDN variants. Contents This chapter covers the following commands: adsl config Show/set the Asymmetric Digital Subscriber Line (ADSL) configuration.

  • Page 32: Adsl Config

    The default is multi_adsl2plus. trace Enable or disable ADSL tracing. OPTIONAL The default is enabled. EXAMPLE: The example below shows the default configuration for a SpeedTouch™ ADSL/POTS variant: =>adsl config ADSL configuration: opermode = multi_adsl2plus trace = on modemoption = 00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00 =>...

  • Page 33: Adsl Info

    ADSL Commands adsl info Display the ADSL statistics and information about the DSL line status. Although the same command is used for both SpeedTouch™ ADSL/POTS and SpeedTouch™ ADSL/ISDN variants, the command features specific output parameters and counters per variant. SYNTAX: adsl info EXAMPLE (for a SpeedTouch™...
  • Page 34 ADSL Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 35: Atm Commands

    ATM Commands ATM Commands Introduction This chapter describes the commands of the atm command group. Contents This chapter covers the following commands: atm flush Flush all Asynchronous Transfer Mode (ATM) interfaces. atm ifadd Create a new ATM interface. atm ifattach Attach a ATM interface.
  • Page 36 ATM Commands atm oam vclb add Create a loopback connection for VC. atm oam vclb del Delete a loopback connection for VC. atm oam vclb list List all VC loopback connections. atm phonebook add Add a new phonebook entry. atm phonebook autolist Show the auto PVCs.

  • Page 37: Atm Flush

    ATM Commands atm flush Flush all Asynchronous Transfer Mode (ATM) interfaces. SYNTAX: atm flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 38: Atm Ifadd

    ATM Commands atm ifadd Create a new ATM interface. SYNTAX: atm ifadd intf = <string> where: intf The name for the new ATM interface. REQUIRED Note If not specified, the destination parameter must be specified. In this case the name of the destination will double as interface name. EXAMPLE: =>atm iflist atm_0_35...

  • Page 39: Atm Ifattach

    ATM Commands atm ifattach Attach a ATM interface. SYNTAX: atm ifattach intf = <string> where: intf The name of the ATM interface to be attached. REQUIRED EXAMPLE: =>atm iflist atm_0_35 : dest : atm_pvc_0_35 Retry : 10 QoS : default Encaps : vcmux Fcs : off Ulp : mac Connection State : connected RtPPPoA_atm: dest : RtPPPoA...

  • Page 40: Atm Ifconfig

    This parameter is normally left disabled. retry A number between 0 and 65535. OPTIONAL Represents the number of times the SpeedTouch™ retries to set up a WAN connection before giving up. The default is 10. Select the Upper Layer Protocol (ULP) for this interface.
  • Page 41 ATM Commands EXAMPLE: =>atm iflist atm_0_35 : dest : atm_pvc_0_35 Retry : 10 QoS : default Encaps : llc Fcs : disabled Ulp : mac Connection State : connected atm_8_35 : dest : atm_pvc_8_35 Retry : 10 QoS : default Encaps : llc Fcs : disabled Ulp : mac Connection State : not-connected =>...

  • Page 42: Atm Ifdelete

    ATM Commands atm ifdelete Delete an ATM interface. SYNTAX: atm ifdelete intf = <string> where: intf The name of the ATM interface to be deleted. REQUIRED EXAMPLE: =>atm iflist atm_0_35 : dest : atm_pvc_0_35 Retry : 10 QoS : default Encaps : vcmux Fcs : off Ulp : mac Connection State : connected RtPPPoA_atm: dest : RtPPPoA...

  • Page 43: Atm Ifdetach

    ATM Commands atm ifdetach Detach an ATM interface. SYNTAX: atm ifdetach intf = <string> where: intf The name of the ATM interface to be detached. REQUIRED EXAMPLE: =>atm iflist atm_0_35 : dest : atm_pvc_0_35 Retry : 10 QoS : default Encaps : vcmux Fcs : off Ulp : mac Connection State : connected RtPPPoA_atm: dest : RtPPPoA...

  • Page 44: Atm Iflist

    ATM Commands atm iflist Display the ATM interfaces. SYNTAX: atm iflist [intf = <string>] where: intf The name of the ATM interface to be shown. OPTIONAL Note If not specified, all the ATM interfaces are shown. EXAMPLE: =>atm iflist atm_0_35 : dest : atm_pvc_0_35 Retry : 10 QoS : default...

  • Page 45: Atm Bundle Add

    ATM Commands atm bundle add Add a new bundle of interfaces. SYNTAX: atm bundle add name = <string> where: name The name of the new bundle. REQUIRED EXAMPLE: =>atm bundle add name=myBundle =>atm bundle list myBundle: Connection state : not-connected Retry: 10 Policy: priority Propagate: disabled...

  • Page 46: Atm Bundle Attach

    ATM Commands atm bundle attach Attach a bundle of interfaces. SYNTAX: atm bundle attach name = <string> where: name The name of the bundle to be attached. REQUIRED EXAMPLE: =>atm bundle attach name=myBundle =>atm bundle list myBundle: Connection state : connected Retry: 10 Policy: priority Propagate: disabled...

  • Page 47: Atm Bundle Config

    ATM Commands atm bundle config Modify a bundle of interfaces. The bundle of interfaces to be configured must not be connected at the time of configuration. If this should be the case, use the command :atm bundle detach before using the command :atm bundle config.

  • Page 48: Atm Bundle Clear

    ATM Commands atm bundle clear Clear the bundle statistics. SYNTAX: atm bundle clear [name = <string>] where: name The name of the bundle for which the statistics must be cleared. OPTIONAL Note If not specified, the statistics for all the bundles will be cleared. E-DOC-CTC-20060414-0007 v1.0...

  • Page 49: Atm Bundle Delete

    ATM Commands atm bundle delete Delete a bundle of interfaces. SYNTAX: atm bundle delete name = <string> where: name The name of the bundle to be deleted. REQUIRED RELATED COMMANDS: atm bundle add Add a new bundle of interfaces. atm bundle list Display the current bundles.

  • Page 50: Atm Bundle Detach

    ATM Commands atm bundle detach Detach a bundle of interfaces. SYNTAX: atm bundle detach intf = <string> where: intf The name of the bundle to be detached. REQUIRED RELATED COMMANDS: atm bundle attach Attach a bundle of interfaces. E-DOC-CTC-20060414-0007 v1.0...

  • Page 51: Atm Bundle Flush

    ATM Commands atm bundle flush Flush all bundles. SYNTAX: atm bundle flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 52: Atm Bundle Ifadd

    ATM Commands atm bundle ifadd Add an interface on a bundle. Up to 8 interfaces or (sub-)bundles can be added to one bundle. SYNTAX: atm bundle ifadd name = <string> intf = <string> [index = <number{0-6}>] where: name The name of the bundle to which an ATM interface must be added. REQUIRED intf The name of the ATM interface to be added.

  • Page 53: Atm Bundle Ifconfig

    ATM Commands atm bundle ifconfig Configure an interface from a bundle. The interface to be configured must not be connected at the time of configuration. If this should be the case, use the command :atm bundle ifdetach before using the command :atm bundle ifconfig. SYNTAX: atm bundle ifconfig name = <string>...

  • Page 54: Atm Bundle Ifdelete

    ATM Commands atm bundle ifdelete Remove an interface from a bundle. SYNTAX: atm bundle ifdelete name = <string> intf = <string> where: name The name of the bundle from which an ATM interface must be removed. REQUIRED intf The name of the ATM interface to be removed. REQUIRED EXAMPLE: =>atm bundle iflist...

  • Page 55: Atm Bundle List

    ATM Commands atm bundle list Display the current bundles. SYNTAX: atm bundle list EXAMPLE: =>atm bundle list Test : Connection state : not-connected Retry: 10 Policy: priority TX requested bytes: 0 requested frames: 0 TX bytes: 0 frames: 0 RX bytes: 0 frames: 0 Interface: Test State: enabled...

  • Page 56: Atm Cac Config

    ATM Commands atm cac config Configure the ATM connection admission control. SYNTAX: atm cac config config port = <{dsl0|dsl1|atm2|atm3|aal5|atm5} or number> state = <{disabled|enabled}> where: config port The port for which CAC is configured. REQUIRED state Enable/disable CAC for an ATM port. REQUIRED EXAMPLE: {Administrator}=>atm cac config...

  • Page 57: Atm Cac List

    ATM Commands atm cac list Display all the CAC parameters. SYNTAX: atm cac list EXAMPLE: {Administrator}[atm cac]=>list CAC: port: dsl0 state: enabled CAC: port: dsl1 state: enabled CAC: port: atm2 state: enabled CAC: port: aal5 state: disabled CAC: port: atm5 state: disabled Overbooking: realtime: 0% non-realtime: 0%.

  • Page 58: Atm Cac Overbooking

    ATM Commands atm cac overbooking Configure ATM overbooking parameters. SYNTAX: atm cac overbooking rt = <number{0-1000}> nrt = <number{0-1000}> where: A number between 0 and 1000. REQUIRED The realtime overbooking percentage. A number between 0 and 1000. REQUIRED The non-realtime overbooking percentage. EXAMPLE: {Administrator}[atm cac]=>overbooking rt 20 nrt 500 {Administrator}[atm cac]=>list...

  • Page 59: Atm Debug Aal5Stats

    ATM Commands atm debug aal5stats Display ATM Adaptation Layer 5 (AAL5) port specific ATM statistics. SYNTAX: atm debug aal5stats port = <{dsl0|dsl1|atm2|atm3|aal5|atm5} or number> vpi = <number{0-15}> [vci = <number{0-511}>] [clear = <{disabled | enabled}>] where: port The port number for which statistics will be retrieved. REQUIRED Choose between: DSL0...

  • Page 60: Atm Debug Gstats

    ATM Commands atm debug gstats Display ATM global statistics. SYNTAX: atm debug gstats [clear = <{disabled | enabled}>] where: clear Enable or disable clearing of the statistics after request. OPTIONAL EXAMPLE: {admin}[atm debug]=>gstats # of received octets = 1802. # of transmitted octets = 4346. # of received cells = 34.

  • Page 61: Atm Debug Portstats

    ATM Commands atm debug portstats Display port specific ATM statistics. SYNTAX: atm debug portstats port = <{dsl0} or number> [clear = <{disabled | enabled}>] where: port The port number for which statistics will be retrieved. REQUIRED Choose between: DSL0 Or specify a port number (dsl0 has port number 0). clear Enable or disable clearing of the statistics after request.

  • Page 62: Atm Oam Config

    ATM Commands atm oam config Modify the ATM Operation and Maintenance (OAM) settings. SYNTAX: atm oam config [clp = <number{0-1}>] [loopbackid = <string>] where: A number (0 or 1). OPTIONAL Represents the Cell Loss Priority (CLP) bit value of the OAM cells. The default is 1.

  • Page 63: Atm Oam List

    ATM Commands atm oam list Display the ATM OAM settings. SYNTAX: atm oam list EXAMPLE: =>atm oam list OAM config dump ------------------- CLP bit value : 1 Loopback id : 6a 6a 6a 6a 6a 6a 6a 6a 6a 6a 6a 6a 6a 6a 6a 6a OAM data blocking mode -------------------------- Port dsl0: blocking...

  • Page 64: Atm Oam Modify

    ATM Commands atm oam modify Modify the ATM OAM data blocking mode. SYNTAX: atm oam modify port = <{dsl0} or number> blocking = <{disabled | enabled}> where: port The port for which OAM blocking is configured. REQUIRED Choose between: DSL0 Or specify a port number (dsl0 has port number 0).
  • Page 65 ATM Commands atm oam ping Send ATM loopback cells. E-DOC-CTC-20060414-0007 v1.0...

  • Page 66: Atm Oam Ping

    ATM Commands atm oam ping Send ATM loopback cells. SYNTAX: atm oam ping dest = <string> [count = <number{1-1000000}>] [interval = <number{100-1000000}>] where: dest The destination address for the request. REQUIRED This can be any ATM phonebook entry. count A number between 1 and 1000000. OPTIONAL Represents the number of pings to send.

  • Page 67: Atm Oam Cc List

    ATM Commands atm oam cc list Display Continuity Check (CC) configuration. SYNTAX: atm oam cc list EXAMPLE: =>atm oam cclist PORT = 0 VPI = 15 VCI = 16 End2End Mode = Auto Segment Mode = Auto PORT = 0 VPI = 0 VCI = 35 End2End Mode = Auto Segment Mode = Auto PORT = 0 VPI = 8 VCI = 35 End2End Mode = Auto Segment Mode = Auto...

  • Page 68: Atm Oam Cc Modify

    Select the CC span. OPTIONAL Choose between: end2end: monitoring occurs on the entire VC between two ATM end stations. segment: monitoring occurs on a VC segment between the SpeedTouch™ and a first-hop ATM switch. RELATED COMMANDS: atm oam cc list Display Continuity Check (CC) configuration.

  • Page 69: Atm Oam Cc Send

    Select the CC span. OPTIONAL Choose between: end2end: monitoring occurs on the entire VC between two ATM end stations. segment: monitoring occurs on a VC segment between the SpeedTouch™ and a first-hop ATM switch. action Activate or deactivate CC. OPTIONAL The default is deactivate.

  • Page 70: Atm Oam Vclb Add

    ATM Commands atm oam vclb add Create a loopback connection for VC. SYNTAX: atm oam vclb add port = <{dsl0} or number> vpi = <number{0-15}> [vci = <number{0-511}>] where: port The ATM port number. REQUIRED Choose between: DSL0 Or specify a port number (dsl0 has port number 0). A number between 0 and 15.

  • Page 71: Atm Oam Vclb Del

    ATM Commands atm oam vclb del Delete a loopback connection for VC. SYNTAX: atm oam vclb del port = <{dsl0} or number> vpi = <number{0-15}> [vci = <number{0-511}>] where: port The ATM port number. REQUIRED Choose between: DSL0 Or specify a port number (dsl0 has port number 0). A number between 0 and 15.

  • Page 72: Atm Oam Vclb List

    ATM Commands atm oam vclb list List all VC loopback connections. SYNTAX: atm oam vclb list EXAMPLE: =>atm oam vclb list PORT = 0 VPI = 0 VCI = PORT = 1 VPI = 0 VCI = => RELATED COMMANDS: atm oam vclb add Create a loopback connection for VC.

  • Page 73: Atm Phonebook Add

    ATM Commands atm phonebook add Add a new phonebook entry. SYNTAX: atm phonebook add name = <string> addr = <atmchannel : PVC syntax is [port.]vpi.vci port=dsl0 | ...> where: name The name of the new phonebook entry. REQUIRED This name can be freely chosen, however two limitations apply: The name of a phonebook entry intended for the Relayed PPPoA (PPPoA-to-PPTP Relaying) packet service may not start with capital P or capital T The name of a phonebook entry intended for the PPP-to-DHCP spoofing packet...

  • Page 74: Atm Phonebook Autolist

    ATM Commands atm phonebook autolist Show the auto PVCs. Auto PVCs are only shown if they are supported by the Central Office DSLAM. SYNTAX: atm phonebook autolist EXAMPLE: =>atm phonebook autolist 8.35 => RELATED COMMANDS: atm phonebook list Display the current phonebook. E-DOC-CTC-20060414-0007 v1.0...

  • Page 75: Atm Phonebook Delete

    ATM Commands atm phonebook delete Delete an existing phonebook entry. This command is only applicable for phonebook entries that are not used (in other words, not configured for any packet service). SYNTAX: atm phonebook delete name = <string> where: name The name of the phonebook entry to be deleted.

  • Page 76: Atm Phonebook Flush

    ATM Commands atm phonebook flush Flush all the phonebook entries. 1. Phonebook entries that are in use, cannot be flushed. 2. This command does not impact previously saved configurations. SYNTAX: atm phonebook flush EXAMPLE: =>atm phonebook list Name Address atm_pvc_0_35 1 0.35 RtPPPoA 8.35...

  • Page 77: Atm Phonebook List

    ATM Commands atm phonebook list Display the current phonebook. SYNTAX: atm phonebook list EXAMPLE: =>atm phonebook list Name Address atm_pvc_0_35 1 0.35 RtPPPoA 8.35 => RELATED COMMANDS: atm phonebook add Add a new phonebook entry. atm phonebook autolist Show the auto PVCs. atm phonebook delete Delete an existing phonebook entry.

  • Page 78: Atm Qosbook Add

    ATM Commands atm qosbook add Add a new QoS book entry. SYNTAX: atm qosbook add name = <string> [txctd = <string>] [rxctd = <string>] where: name The name of the new QoS entry. REQUIRED txctd The name of the Conformance Traffic Descriptor (CTD) for the transmit (upstream) OPTIONAL direction.

  • Page 79: Atm Qosbook Config

    ATM Commands atm qosbook config Modify the QoS book configuration. SYNTAX: atm qosbook config [format = <{bytes | cells}>] where: format The input/output format of the QoS book. OPTIONAL Choose between: bytes: the output is shown in Kbits or bytes. cells: the output is shown in cps or cells.

  • Page 80: Atm Qosbook Ctdadd

    ATM Commands atm qosbook ctdadd Add a Connection Traffic Descriptor (CTD). SYNTAX: atm qosbook ctdadd name = <string> conformance = <{UBR | CBR | VBR }> [peakrate = <number{0-27786}>] [sustrate = <number{0-27786} [maxburst = <number{0-12240}>] [realtime = <{enabled | disabled}>] where: name The name of the new CTD.
  • Page 81 ATM Commands IMPORTANT NOTE: The SpeedTouch™ always rounds up specified burst sizes to a multiple of 48 bytes (a multiple of ATM cells). Example: In the example below a burst size of 100 bytes is specified (maxburst=100). The SpeedTouch™ will round up the burst size to the closest matching multiple of 48 bytes, as can be seen when displaying the profile via the command :atm qosbook ctdlist (burst=144).

  • Page 82: Atm Qosbook Ctddelete

    ATM Commands atm qosbook ctddelete Delete a CTD. SYNTAX: atm qosbook ctddelete name = <string> [force = <{disabled | enabled}>] where: name The name of the CTD entry to be deleted. REQUIRED force Enable or disable to force delete the entry even when it is still in use. OPTIONAL The default is disabled.

  • Page 83: Atm Qosbook Ctdlist

    ATM Commands atm qosbook ctdlist Display all CTDs. SYNTAX: atm qosbook ctdlist EXAMPLE: =>atm qosbook ctdlist Name Ref Conf Peak Sust Burst Minrate Frame Cdvt (Kbits) (Kbits) (bytes) (Kbits) (bytes) default 2 linerate 0 disabled disabled High 27786 disabled disabled =>...

  • Page 84: Atm Qosbook Delete

    ATM Commands atm qosbook delete Delete a QoS book entry. SYNTAX: atm qosbook delete name = <string> [force = <{disabled | enabled}>] where: name The name of the QoS book entry to be deleted. REQUIRED force Enable or disable to force delete the entry even when it is still in use. OPTIONAL The default is disabled.

  • Page 85: Atm Qosbook Flush

    ATM Commands atm qosbook flush Flush all the QoS book entries. The flush command does not impact previously saved configurations. SYNTAX: atm qosbook flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 86: Atm Qosbook List

    ATM Commands atm qosbook list Display the QoS book. SYNTAX: atm qosbook list EXAMPLE: =>atm qosbook list Name Ref Type TX peak sust burst RX peak sust burst framediscard (Kbits) (Kbits) (bytes) (Kbits) (Kbits) (bytes) default 3 linerate 0 linerate 0 disabled TestVBR 0 vbr-nrt 1500...

  • Page 87: Autopvc Commands

    AutoPVC Commands AutoPVC Commands Introduction This chapter describes the commands of the autopvc command group. Contents This chapter covers the following commands: autopvc config Configure autopvc. autopvc list Show the retrieved information. E-DOC-CTC-20060414-0007 v1.0...

  • Page 88: Autopvc Config

    AutoPVC Commands autopvc config Configure autopvc. SYNTAX: autopvc config [mode = <{pseudo | passive | active}>] [type = <{bridge | pppoerelay | ipoa | ethoa | pppoa | pppoe}>] [overwrite = <{disabled | enabled}>] [peakrate = <number{0-27786}>] where: mode Select the autopvc mode: OPTIONAL pseudo: only pseudo-ILMI (VP/VC 15/16) is enabled.

  • Page 89: Autopvc List

    AutoPVC Commands autopvc list Show the retrieved information. SYNTAX: autopvc list [table = <{Port | AtmLayer | Vpc | Vcc | Address | AddressRegistrationAdmin | AtmServiceType | AtmServiceConnectionInfo | AAL1Profile | | AAL34Profile | AAL5Profile | AAL2CommonProfile | AAL2TrunkingProfile | AAL2LESProfile | AtmServiceConnInfoExtension | | AtmServiceTypeExtension | AAL5ProfileExtension}>] where:...
  • Page 90 AutoPVC Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 91: Config Commands

    Config Commands Config Commands Introduction This chapter describes the commands of the config command group. Contents This chapter covers the following commands: config delete Delete a user configuration file. config dump Show the saved configuration file. config flush Flush the loaded configuration. config list Show the current configuration set.

  • Page 92: Config Delete

    Name of the user configuration file to be deleted. OPTIONAL Note If not specified, all the user configuration files that were saved in the SpeedTouch™ permanent storage will be deleted. RELATED COMMANDS: config dump Show the saved configuration file. E-DOC-CTC-20060414-0007 v1.0...

  • Page 93: Config Dump

    Config Commands config dump Show the saved configuration file. SYNTAX: config dump RELATED COMMANDS: config delete Delete a user configuration file. E-DOC-CTC-20060414-0007 v1.0...

  • Page 94: Config Flush

    Config Commands config flush Flush the loaded configuration. 1. This flush command combines all the possible flush commands. 2. This command does not affect saved configurations. SYNTAX: config flush [flush_ip = <{enabled | disabled}>] where: flush_ip Flush IP settings (enabled) or not (disabled). OPTIONAL The default is enabled.

  • Page 95: Config List

    Config Commands config list Show the current configuration set. SYNTAX: config list [templates = <{disabled | enabled}>] where: templates List the template files (disabled) or not (enabled). OPTIONAL The default is disabled. RELATED COMMANDS: config load Load complete saved (backup) or default configuration file. config save Store the current configuration in a backup file.

  • Page 96: Config Load

    Config Commands config load Load complete saved (backup) or default configuration file. Use the command :config flush before loading a configuration file. SYNTAX: config load [load_ip = <{enabled | disabled}>] [defaults = <{enabled | disabled}>] [flush = <{enabled | disabled}>] [echo = <{disabled | enabled}>] [filename = <string>] where:...

  • Page 97: Config Save

    Store the current configuration in a backup file. All the existing configurations and modifications entered by the user are saved. The backup file is saved in the SpeedTouch™ permanent storage. This file can be downloaded via the SpeedTouch™ web pages or via an FTP session.
  • Page 98 Config Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 99: Connection Commands

    Connection Commands Connection Commands Introduction This chapter describes the commands of the connection command group. Contents This chapter covers the following commands: connection appconfig Configure the available CONN/NAT application helpers. connection appinfo Display CONN/NAT application specific info. connection applist List the available CONN/NAT application helpers. connection bind Create a new CONN/NAT application helper/port binding.

  • Page 100: Connection Appconfig

    Connection Commands connection appconfig Configure the available CONN/NAT application helpers. SYNTAX: connection appconfig application = <string> [trace = <{disabled | enabled}>] [timeout = <number{0-32000}>] [floating = <{disabled | enabled}>] [tracelevel = <number{1-4}>] [SIP_ALG = <{disabled|enabled}>] [RTP_predict_for_term_SIP_ALG = <{disabled|enabled}>] where: application The name of a CONN/NAT application helper.
  • Page 101 Connection Commands EXAMPLE: =>connection applist Application Proto DefaultPort Traces Timeout IP6TO4 6to4 enabled unavailable PPTP 1723 enabled unavailable unavailable 15' 0" disabled 15' 0" FLOATING 5060 disabled 6 0" trace level 1 LOOSE(UDP) enabled 5' 0" enabled unavailable =>connection appconfig application=SIP trace=enabled =>connection applist Application Proto DefaultPort Traces...

  • Page 102: Connection Appinfo

    Connection Commands connection appinfo Display CONN/NAT application specific info. SYNTAX: connection appinfo application = <{string}> where: application The name of a CONN/NAT application helper. REQUIRED Use the command :connection applist to obtain a list of CONN/NAT application helpers. EXAMPLE: =>connection appinfo application=SIP SIP ALG session SIPALG: pool=138, in use=0, bottom=138 =>...

  • Page 103: Connection Applist

    Connection Commands connection applist List the available CONN/NAT application helpers. SYNTAX: connection applist EXAMPLE: =>connection applist Application Proto DefaultPort Traces Timeout IP6TO4 6to4 enabled unavailable PPTP 1723 enabled unavailable unavailable 15' 0" disabled 15' 0" FLOATING 5060 disabled 6 0" trace level 1 JABBER 5222...

  • Page 104: Connection Bind

    Connection Commands connection bind Create a new CONN/NAT application helper/port binding. SYNTAX: connection bind application = <string> port = <port-range> where: application The name of a CONN/NAT application helper. REQUIRED Use the command :connection applist to obtain a list of CONN/NAT application helpers.

  • Page 105: Connection Bindlist

    Connection Commands connection bindlist List the current CONN/NAT application helper/port bindings. SYNTAX: connection bindlist EXAMPLE: =>connection bindlist Application Proto Portrange Flags LOOSE(UDP) JABBER 15222 JABBER 5222 6660-6669 H323 1720 1002 RTSP RAUDIO(PNA) 7070 CU/SeeMe 7648 5060 PPTP 1723 IP6TO4 6to4 =>...

  • Page 106: Connection Clean

    Connection Commands connection clean Clean the connection database by forcing timeouts. SYNTAX: connection clean [level = <number{0-9}>] where: level A number between 0 and 9. OPTIONAL Represents the desired scrubbing level. EXAMPLE: =>connection list proto state substate flags timeout ----- ----- -------- ----- -------...

  • Page 107: Connection Clear

    Connection Commands connection clear Kill all the connections. SYNTAX: connection clear EXAMPLE: =>connection clear Connection to host lost. E-DOC-CTC-20060414-0007 v1.0...

  • Page 108: Connection Config

    Connection Commands connection config Configure the connection handling. SYNTAX: connection config [configchangemode = <{immediate | delayed}>] [probes = <{disabled | enabled}>] [udptrackmode = <{strict | loose}>] where: configchangemode Select how configuration changes are handled. OPTIONAL Choose between: immediate delayed. The default is immediate. probes Enable or disable live probes on idle connections.

  • Page 109: Connection Debug

    Connection Commands connection debug The connection debug commands SYNTAX: connection debug [trace = <{disabled|enabled}>] where: trace Enable or disable traces. OPTIONAL The default is disabled. EXAMPLE: =>connection debug connection traces : disabled => =>connection debug trace enabled => =>connection debug connection traces : enabled =>...

  • Page 110: Connection Describe

    Connection Commands connection describe Describe the streams of a connection. SYNTAX: connection describe [id = <number{0-2048}>] where: A number between 0 and 2048. OPTIONAL Represents the ID of the connection to be described. Note If not specified, the connection with ID 0 will be described. Use the command :connection list to obtain the IDs of the different connections.

  • Page 111: Connection Flush

    Connection Commands connection flush Flush the current connection configuration. SYNTAX: connection flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 112: Connection Info

    Connection Commands connection info Show all the registered modules with some info. SYNTAX: connection info EXAMPLE: =>connection info Registered connection modules : - Module : FW, holds private data (F:10264 S:6592). - Module : IDS, holds private data (F:0 S:0). - Module : NAT, holds private data (F:0 S:0).

  • Page 113: Connection List

    Connection Commands connection list Display the currently known connections. SYNTAX: connection list [nr = <number{1-2048}>] [history = <{disabled|enabled}>] where: A number between 1 and 2048. OPTIONAL Represents the number of connections to be displayed. Note If not specified, all the connections will be displayed. history Enable or disable history display.

  • Page 114: Connection Refresh

    Connection Commands connection refresh Invalidate all the cached decisions. SYNTAX: connection refresh E-DOC-CTC-20060414-0007 v1.0...

  • Page 115: Connection Stats

    Connection Commands connection stats Display the connection and stream statistics. SYNTAX: connection stats EXAMPLE: =>connection stats Connection statistics: ------------------------------------------- Maximum number of connections : 1024 Maximum number of halfopen connections : 1024 ------------------------------------------- Number of active connections Number of halfopen connections Number of expected connections Number of closing connections Number of idle connections...

  • Page 116: Connection Timerclear

    Connection Commands connection timerclear Clear the connection timeout to default. SYNTAX: connection timerclear [timer = <{tcpidle|tcpneg|tcpkill|udpidle|udpkill| icmpkill|ipidle|ipkill}>] where: timer The name of the connection idle timer to be reset. REQUIRED Note If not specified, all the timers will be reset to their default values. EXAMPLE: =>connection timerconfig tcpidle...

  • Page 117: Connection Timerconfig

    Connection Commands connection timerconfig Configure the connection timeout handling. SYNTAX: connection timerconfig [timer = <{tcpidle|tcpneg|tcpkill|udpidle|udpkill| icmpkill|ipidle|ipkill}>] [value = <number{0-86400}>] where: timer The name of the connection idle timer to be configured. OPTIONAL Choose between: tcpidle tcpneg tcpkill udpidle udpkill icmpkill ipidle ipkill value...

  • Page 118: Connection Unbind

    Connection Commands connection unbind Delete an existing CONN/NAT application helper/port binding. SYNTAX: connection unbind application = <string> port = <port-range> where: application The name of a CONN/NAT application helper. REQUIRED Use the command :connection applist to obtain a list of CONN/NAT application helpers.

  • Page 119: Cwmp Commands

    CWMP Commands CWMP Commands Introduction This chapter describes the commands of the cwmp (CPE WAN Management Protocol) command group. Contents This chapter covers the following commands: cwmp config Configure the cwmpd as seen from the ACS. cwmp server config Configure the cwmpd towards the ACS. E-DOC-CTC-20060414-0007 v1.0...

  • Page 120: Cwmp Config

    CWMP Commands cwmp config Configure the cwmpd as seen from the ACS. SYNTAX: cwmp config [state = <{disabled|enabled}>] [mode = <{readonly|full}>] [periodicInform = <{disabled|enabled}>] [periodicInfInt = <number>] [sessionTimeout = <number>] [noIpTimeout = <number>] [maxEnvelopes = <number>] [connectionRequest = <{disabled|enabled}>] [connectionReqPath = <string>] [connectionReqUserName = <string>] [connectionReqPsswd = <string>] [connectionReqAuth = <{none|basic|digest}>]...
  • Page 121 CWMP Commands connectionRequest Set the connection request flag of the cwmp daemon. OPTIONAL Choose between: enabled disabled. The default is enabled. connectionReqPath Set the path where the cwmp daemon can be reached. OPTIONAL connectionReqUserName Set the username the ACS must use to log in. OPTIONAL connectionReqPsswd Set the password the ACS must use to log in.

  • Page 122: Cwmp Server Config

    CWMP Commands cwmp server config Configure the cwmpd towards the ACS. SYNTAX: cwmp server config [url = <string>] [username = <string>] [password = <string>] where: Set the HTTP URL used to contact the ACS server. OPTIONAL username Set the username for ACS Digest Authentication. OPTIONAL password Set the password for ACS Digest Authentication.

  • Page 123: Debug Commands

    Debug Commands Debug Commands Introduction This chapter describes the commands of the debug command group. Contents This chapter covers the following commands: debug exec Execute a 'Trace & Debug' command. E-DOC-CTC-20060414-0007 v1.0...

  • Page 124: Debug Exec

    Debug Commands debug exec Execute a 'Trace & Debug' command. This command is for qualified personnel only. SYNTAX: debug exec cmd = <quoted string> where: A quoted 'Trace & Debug' command string. REQUIRED E-DOC-CTC-20060414-0007 v1.0...

  • Page 125: Dhcp Commands

    DHCP Commands DHCP Commands Introduction This chapter describes the commands of the Dynamic Host Configuration Protocol (DHCP) command group. Contents This chapter covers the following commands: dhcp client flush Delete all the DHCP leases. dhcp client ifadd Create a DHCP client. dhcp client ifattach Activate a DHCP client.
  • Page 126 DHCP Commands dhcp relay ruledelete Delete a selection rule from a DHCP forward entry. dhcp rule add Add a rule for DHCP conditional selection. dhcp rule debug traceconfig Modify DHCP rule trace configuration. dhcp rule delete Delete a DHCP rule. dhcp rule flush Flush all DHCP rules.

  • Page 127: Dhcp Client Flush

    DHCP Commands dhcp client flush Delete all the DHCP leases. The flush command does not impact previously saved configurations. SYNTAX: dhcp client flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 128: Dhcp Client Ifadd

    DHCP Commands dhcp client ifadd Create a DHCP client. SYNTAX: dhcp client ifadd intf = <string> [defrqoptions = <{disabled|enabled}>] where: intf The name of the dynamic interface for which a DHCP lease must be created. REQUIRED defrqoptions Enable/Disable the creation of the default Parameter Request List. OPTIONAL EXAMPLE: =>dhcp client iflist...

  • Page 129: Dhcp Client Ifattach

    =>dhcp client iflist myPPP_ppp : [INIT] flags = bc dns rt IP address : 0.0.0.0 HW address [SpeedTouch] : 00 DHCP server: 255.255.255.255 metric : rt = 1, DNS = 1 Number of leases: 1 Total size of table: 36, in use: 1, free: 97 % =>dhcp client ifattach intf=myPPP_ppp...

  • Page 130: Dhcp Client Ifconfig

    DHCP Commands dhcp client ifconfig Configure a DHCP client. Use the command :dhcp client ifrelease before configuring the dhcp client. SYNTAX: dhcp client ifconfig intf = <string> [label = <label name>] [metric = <number{0-255}>] [dnsmetric = <number{0-100}>] [broadcast = <{disabled|enabled}>] where: intf The name of the dynamic interface to be configured.

  • Page 131: Dhcp Client Ifdelete

    EXAMPLE: =>dhcp client iflist myPPP_ppp : [INIT] flags = bc dns rt IP address : 10.0.0.1 HW address [SpeedTouch] : 00:90:d0:01:47:f1 DHCP server: 10.10.1.1 hostname : myHostName client identifier : [00] myClientID user class identifier : myUserID metric : rt = 1, DNS = 1...

  • Page 132: Dhcp Client Ifdetach

    DHCP Commands dhcp client ifdetach De-activate a DHCP client and releases its lease. SYNTAX: ifdetach intf = <string> where: intf The name of the dynamic interface. REQUIRED RELATED COMMANDS: dhcp client ifattach Activate a DHCP client. dhcp client ifrenew Renew the DHCP lease. dhcp client iflist List all the DHCP leases attached to dynamic interfaces.

  • Page 133: Dhcp Client Iflist

    Total size of table: 36, in use: 1, free: 97 % => EXAMPLE INPUT/OUTPUT IN A NETWORKED ENVIRONMENT: The SpeedTouch™ is configured as DHCP client disabled its Ethernet interface eth0. =>dhcp client iflist myPPP_ppp : [INIT] flags = bc dns rt IP address : 10.0.0.1...
  • Page 134 DHCP Commands dhcp client ifdelete Delete a DHCP client. E-DOC-CTC-20060414-0007 v1.0...

  • Page 135: Dhcp Client Ifrenew

    DHCP Commands dhcp client ifrenew Renew the DHCP lease. SYNTAX: dhcp client ifrenew intf = <string> where: intf The name of the dynamic interface for which the DHCP lease must be renewed. REQUIRED EXAMPLE 1: =>dhcp client iflist NewETHoA [BOUND] flags= IP address 10.0.0.10...
  • Page 136 DHCP Commands EXAMPLE 2: The SpeedTouch™ is configured as DHCP client disabled its Ethernet interface eth0. =>dhcp client stats DHCP client statistics: Corrupted packet recv OFFERs recv ACKs recv NAKs recv Pure BOOTP REPLIES Other message types DISCOVERs sent REQUESTs sent...

  • Page 137: Dhcp Client Debug Clear

    DHCP Commands dhcp client debug clear Clear the DHCP client statistics. SYNTAX: dhcp client debug clear EXAMPLE: =>dhcp client debug stats DHCP client statistics: Corrupted packet recv OFFERs recv ACKs recv NAKs recv Pure BOOTP REPLIES Other message types DISCOVERs sent REQUESTs sent DECLINEs sent RELEASEs...

  • Page 138: Dhcp Client Debug Stats

    DHCP Commands dhcp client debug stats Print the DHCP client statistics. SYNTAX: dhcp client debug stats EXAMPLE: =>dhcp client debug stats DHCP client statistics: Corrupted packet recv OFFERs recv ACKs recv NAKs recv Pure BOOTP REPLIES Other message types DISCOVERs sent REQUESTs sent DECLINEs sent RELEASEs...

  • Page 139: Dhcp Client Debug Traceconfig

    DHCP Commands dhcp client debug traceconfig Modify the DHCP client trace configuration. SYNTAX: dhcp client debug traceconfig [state = <{disabled | enabled}>] where: state Enable or disable tracing. OPTIONAL The default is disabled. EXAMPLE: =>dhcp client debug traceconfig tracing: disabled =>dhcp client debug traceconfig trace=enabled =>dhcp client debug traceconfig tracing: enabled...

  • Page 140: Dhcp Client Rqoptions Add

    DHCP Commands dhcp client rqoptions add Add a DHCP Option Code to the Parameter Request List. SYNTAX: dhcp client rqoptions add intf = <string> option = <string or number> [index = <number{0-255}>] where: intf The name of the dynamic interface. REQUIRED option The name or number of the option.

  • Page 141: Dhcp Client Rqoptions Delete

    DHCP Commands dhcp client rqoptions delete Delete a DHCP Option Code from the Parameter Request List. SYNTAX: dhcp client rqoptions delete intf = <string> option = <string or number> where: intf The name of the dynamic interface. REQUIRED option The name or number of the option. OPTIONAL RELATED COMMANDS: dhcp client rqoptions list...

  • Page 142: Dhcp Client Rqoptions List

    DHCP Commands dhcp client rqoptions list List all DHCP Option Codes in the Parameter Request List. SYNTAX: dhcp client rqoptions list [intf = <string>] where: intf The name of the dynamic interface. OPTIONAL RELATED COMMANDS: dhcp client rqoptions delete Delete a DHCP Option Code from the Parameter Request List. E-DOC-CTC-20060414-0007 v1.0...

  • Page 143: Dhcp Client Rqoptions Optionlist

    DHCP Commands dhcp client rqoptions optionlist List all DHCP Option Codes that can be used in the Parameter Request List. SYNTAX: dhcp client rqoptions optionlist RELATED COMMANDS: dhcp client rqoptions Add a DHCP Option Code to the Parameter Request List. dhcp client rqoptions List all DHCP Option Codes in the Parameter Request List.

  • Page 144: Dhcp Client Txoptions Add

    DHCP Commands dhcp client txoptions add Add an option. SYNTAX: dhcp client txoptions add intf = <string> option = <string or number> value = <Value : (type)value; type being 8-bit, 16-bit, 32-bit, addr, ascii, byte_array, clientid> [index = <number{0-255}>] where: intf The name of the dynamic interface.

  • Page 145: Dhcp Client Txoptions Delete

    DHCP Commands dhcp client txoptions delete Delete an option. SYNTAX: dhcp client txoptions delete intf = <string> option = <string or number> where: intf The name of the dynamic interface. REQUIRED option The name or number of the option. REQUIRED RELATED COMMANDS: dhcp client txoptions list List all options.

  • Page 146: Dhcp Client Txoptions List

    DHCP Commands dhcp client txoptions list List all options. SYNTAX: dhcp client txoptions list RELATED COMMANDS: dhcp client txoptions delete Delete an option. E-DOC-CTC-20060414-0007 v1.0...

  • Page 147: Dhcp Client Txoptions Optionlist

    DHCP Commands dhcp client txoptions optionlist Lists all DHCP Option Codes that can be used. SYNTAX: dhcp client txoptions optionlist RELATED COMMANDS: dhcp client txoptions add Add an option. dhcp client txoptions list List all options. E-DOC-CTC-20060414-0007 v1.0...

  • Page 148: Dhcp Relay Add

    DHCP Commands dhcp relay add Add an entry to the DHCP forward list. SYNTAX: dhcp relay add name = <string> where: name The forward entry name. REQUIRED RELATED COMMANDS: dhcp relay delete Delete an entry from the DHCP forward list. dhcp relay list List the DHCP forward list.

  • Page 149: Dhcp Relay Debug Stats

    DHCP Commands dhcp relay debug stats Show the DHCP relay statistics. SYNTAX: dhcp relay debug stats EXAMPLE: =>dhcp relay debug stats DHCP relay statistics ------------------------- Client packet relayed Server packet relayed Bogus relay agent Bogus giaddr recv Corrupt agent option Missing agent option Bad circuit id Missing circuit id...

  • Page 150: Dhcp Relay Debug Traceconfig

    DHCP Commands dhcp relay debug traceconfig Modify the DHCP relay trace configuration. SYNTAX: dhcp relay debug traceconfig [state = <{disabled | enabled}>] where: state Enable or disable tracing. OPTIONAL The default is disabled. EXAMPLE: =>dhcp relay debug traceconfig Tracing: disabled =>...

  • Page 151: Dhcp Relay Config

    DHCP Commands dhcp relay config Set the DHCP relay configuration settings. SYNTAX: dhcp relay config [agentinfo = <{disabled | enabled}>] [agentmismatch = <{disabled | enabled}>] where: agentinfo Set the relay agent info status (RFC3046) enabled or disabled. OPTIONAL The default is disabled. agentmismatch Forward/drop DHCP reply packet when a relay agent info mismatch is OPTIONAL...

  • Page 152: Dhcp Relay Delete

    DHCP Commands dhcp relay delete Delete an entry from the DHCP forward list. SYNTAX: dhcp relay delete name = <string> where: name The forward entry name. REQUIRED EXAMPLE: =>dhcp relay delete name = lan1_to_127.0.0.1 :dhcp relay delete name=lan1_to_127.0.0.1 => RELATED COMMANDS: dhcp relay add Add an entry to the DHCP forward list.

  • Page 153: Dhcp Relay Flush

    DHCP Commands dhcp relay flush Flush the DHCP relay settings. The flush command does not impact previously saved configurations. SYNTAX: dhcp relay flush EXAMPLE: =>dhcp relay list DHCP server Interface giaddr ------------------------------------------------------- 127.0.0.1 eth0 192.168.1.254 =>dhcp relay flush =>dhcp relay list No dynamic interfaces defined.

  • Page 154: Dhcp Relay Ifconfig

    DHCP Commands dhcp relay ifconfig Configure a DHCP relay interface. SYNTAX: dhcp relay ifconfig intf = <string> [relay = <{disabled | enabled}>] [maxhops = <number{0-16}>] [remoteid = <password>] [trusted = <{disabled | enabled}>] where: intf The name of the dynamic interface to be configured. REQUIRED relay Set the relay status to enabled or disabled.
  • Page 155 DHCP Commands EXAMPLE: =>dhcp relay iflist eth0 : admin state = up oper state = up max hops = 4 trusted = disabled remote id = Internet_trigger : admin state = down oper state = down max hops = 4 trusted = disabled remote id = Internet :...

  • Page 156: Dhcp Relay Iflist

    DHCP Commands dhcp relay iflist Show the configuration of the relay interfaces. SYNTAX: dhcp relay iflist [intf = <string>] where: intf The name of the dynamic interface to be listed. OPTIONAL Note If not specified, all the relay interfaces will be shown. EXAMPLE: =>dhcp relay iflist eth0 :...

  • Page 157: Dhcp Relay List

    DHCP Commands dhcp relay list List the DHCP forward list. SYNTAX: dhcp relay list [name = <string>] where: name The forward entry name. OPTIONAL EXAMPLE: =>dhcp relay list DHCP server Interface giaddr ------------------------------------------------------- 127.0.0.1 eth0 10.0.0.138 => RELATED COMMANDS: dhcp relay add Add an entry to the DHCP forward list.

  • Page 158: Dhcp Relay Modify

    DHCP Commands dhcp relay modify Modify an entry from the DHCP forward list. SYNTAX: dhcp relay modify name = <string> [addr = <ip-address>] [intf = <{None | guest1 | dmz1 | wan1 | lan1 | Internet}>] [giaddr = <ip-address>] [script = <>] where: name The forward entry name.

  • Page 159: Dhcp Relay Ruleadd

    DHCP Commands dhcp relay ruleadd Add a selection rule to a DHCP forward entry. SYNTAX: dhcp relay ruleadd name = <string> [key = <{or | and}>] rulename = <string> where: name The name of the forward entry. REQUIRED The logical key of the selection rule. OPTIONAL The default is or.

  • Page 160: Dhcp Relay Ruledelete

    DHCP Commands dhcp relay ruledelete Delete a selection rule from a DHCP forward entry. SYNTAX: dhcp relay ruledelete name = <string> rulename = <string> where: name The name of the forward entry. REQUIRED rulename The name of the DHCP selection rule. REQUIRED RELATED COMMANDS: dhcp relay ruleadd...

  • Page 161: Dhcp Rule Add

    DHCP Commands dhcp rule add Add a rule for DHCP conditional selection. SYNTAX: dhcp rule add name = <string> type = <{vci | uci | mac}> vci [!]= <quoted string> uci [!]= <quoted string> [match = <{exactly|as_substring}>] mac [!]= <hardware-address with wildcard | ex: '00:9f:aa:*:*:*'>...

  • Page 162: Dhcp Rule Debug Traceconfig

    DHCP Commands dhcp rule debug traceconfig Modify DHCP rule trace configuration. SYNTAX: dhcp rule debug traceconfig [state = {disabled | enabled}] where: state Set tracing to disabled or enabled. OPTIONAL The default is disabled. E-DOC-CTC-20060414-0007 v1.0...

  • Page 163: Dhcp Rule Delete

    DHCP Commands dhcp rule delete Delete a DHCP rule. SYNTAX: dhcp rule delete name = <string> where: name The name of the DHCP rule. REQUIRED EXAMPLE: =>dhcp rule delete name = new :dhcp rule delete name=new => RELATED COMMANDS: dhcp rule add Add a rule for DHCP conditional selection.

  • Page 164: Dhcp Rule Flush

    DHCP Commands dhcp rule flush Flush all DHCP rules. SYNTAX: dhcp rule flush EXAMPLE: =>dhcp rule list Name Value vci=test =>dhcp rule flush =>dhcp rule list Name Value => RELATED COMMANDS: dhcp rule add Add a rule for DHCP conditional selection. dhcp rule delete Delete a DHCP rule.

  • Page 165: Dhcp Rule List

    DHCP Commands dhcp rule list List all DHCP rules. SYNTAX: dhcp rule list EXAMPLE: =>dhcp rule list Name Value vci=test => RELATED COMMANDS: dhcp rule add Add a rule for DHCP conditional selection. dhcp rule delete Delete a DHCP rule. dhcp rule flush Flush all DHCP rules.

  • Page 166: Dhcp Server Config

    DHCP Commands dhcp server config Print the DHCP server configuration settings. SYNTAX: dhcp server config [state = <{disabled | enabled}>] where: E-DOC-CTC-20060414-0007 v1.0...

  • Page 167: Dhcp Server Flush

    DHCP Commands dhcp server flush Flush all DHCP server pool and lease entries. The flush command does not impact previously saved configurations. SYNTAX: dhcp server flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 168: Dhcp Server Policy

    DHCP Commands dhcp server policy Print the DHCP server policy settings. SYNTAX: dhcp server policy [verifyfirst = <disabled | enabled>] [trustclient = <disabled | enabled>] where: E-DOC-CTC-20060414-0007 v1.0...

  • Page 169: Dhcp Server Debug Clear

    DHCP Commands dhcp server debug clear Clear the DHCP server statistics. SYNTAX: dhcp server debug clear EXAMPLE: =>dhcp server debug stats DHCP server state: Running DHCP server statistics: Corrupted packet recv DISCOVER 2451 REQUEST DECLINE RELEASE INFORM Pure BOOTP REQUESTS Other message types OFFERs sent 2451...

  • Page 170: Dhcp Server Debug Stats

    DHCP Commands dhcp server debug stats Show the DHCP server statistics. SYNTAX: dhcp server debug stats EXAMPLE: =>dhcp server stats DHCP Server State: Stopped DHCP server statistics: Corrupted packet recv DISCOVER 2451 REQUEST DECLINE RELEASE INFORM Pure BOOTP REQUESTS Other message types OFFERs sent 2451 ACKs sent...
  • Page 171 DHCP Commands Second DHCP server seen: whether a concurrent DHCP server was found disabled the LAN or not. RELATED COMMANDS: dhcp server debug clear Clear the DHCP server statistics. E-DOC-CTC-20060414-0007 v1.0...

  • Page 172: Dhcp Server Debug Traceconfig

    DHCP Commands dhcp server debug traceconfig Modify the DHCP server trace configuration. SYNTAX: dhcp server debug traceconfig [state = <{disabled | enabled}>] where: state Enable or disable tracing. OPTIONAL The default is disabled. EXAMPLE: =>dhcp server debug traceconfig Tracing: disabled =>...

  • Page 173: Dhcp Server Lease Add

    DHCP Commands dhcp server lease add Add a DHCP server lease. SYNTAX: dhcp server lease add clientid = <client-id> pool = <string> [addr = <ip-address>] [offset = <number>] [leasetime = <number>] [expirytime = <number>] [gateway = <ip-address>] [macaddr = <hardware-address>] where: clientid The DHCP client identification string of the booting host.
  • Page 174 DHCP Commands RELATED COMMANDS: dhcp server lease delete Delete a DHCP server lease. dhcp server lease list List all the DHCP server leases. E-DOC-CTC-20060414-0007 v1.0...

  • Page 175: Dhcp Server Lease Delete

    DHCP Commands dhcp server lease delete Delete a DHCP server lease. SYNTAX: dhcp server lease delete [clientid = <clientid | none>] [index = <number>] where: clientid The DHCP client identification string of the DHCP lease. OPTIONAL Note If not specified, all DHCP clients are deleted. index The DHCP server lease table index.

  • Page 176: Dhcp Server Lease Flush

    DHCP Commands dhcp server lease flush Flush all the DHCP server leases. The flush command does not impact previously saved configurations. SYNTAX: dhcp server lease flush [pool = <string>] where: pool The name of the DHCP server pool to be flushed. OPTIONAL Only the leases belonging to this pool will be deleted.

  • Page 177: Dhcp Server Lease List

    DHCP Commands dhcp server lease list List all the DHCP server leases. SYNTAX: dhcp server lease list [clientid = <clientid | none>] [index = <number>] where: clientid The DHCP client identification string of the DHCP lease. OPTIONAL Note If not specified, the DSHCP server leases for all the DHCP clients are listed. index The DHCP server lease table index.

  • Page 178: Dhcp Server Option Flush

    DHCP Commands dhcp server option flush Flush all DHCP server option templates and instances. The flush command does not impact previously saved configurations. SYNTAX: dhcp server option flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 179: Dhcp Server Option Instadd

    DHCP Commands dhcp server option instadd Add a DHCP server option instance. SYNTAX: dhcp server option instadd name = <string> tmplname = <string> value = <Value : (type)value; type being 8-bit, 16-bit, 32-bit, addr, ascii, byte_array> where: name The name of the DHCP server option instance. REQUIRED tmplname The name of the DHCP server option template.

  • Page 180: Dhcp Server Option Instdelete

    DHCP Commands dhcp server option instdelete Delete a DHCP server option instance. SYNTAX: dhcp server option instdelete name = <string> where: name The name of the DHCP server option instance to be deleted. REQUIRED EXAMPLE: =>dhcp server option instlist yourInstance Tmpl name : yourTmpl Value : (ascii)&#33...

  • Page 181: Dhcp Server Option Instlist

    DHCP Commands dhcp server option instlist List all the DHCP server option instances. SYNTAX: dhcp server option instlist EXAMPLE: =>dhcp server option instlist yourInstance Tmpl name : yourTmpl Value : (ascii)&#33 myInstance Tmpl name : myTmpl Value : (32-bit)64 => RELATED COMMANDS: dhcp server option instadd Add a DHCP server option instance.

  • Page 182: Dhcp Server Option Tmpladd

    DHCP Commands dhcp server option tmpladd Add a DHCP server option template. SYNTAX: dhcp server option tmpladd name = <string> optionid = <number{1-254}> type = <{8-bit | 16-bit | 32-bit | addr | ascii | byte_array}> where: name The name of the DHCP server option template. REQUIRED optionid A number between 1 and 254.

  • Page 183: Dhcp Server Option Tmpldelete

    DHCP Commands dhcp server option tmpldelete Delete a DHCP server option template. SYNTAX: dhcp server option tmpldelete name = <string> where: name The name of the DHCP server option template to be deleted. REQUIRED EXAMPLE: =>dhcp server option tmpllist Name Option Type yourTmpl...

  • Page 184: Dhcp Server Option Tmpllist

    DHCP Commands dhcp server option tmpllist List all the DHCP server option templates. SYNTAX: dhcp server option tmpllist EXAMPLE: =>dhcp server option tmpllist Name Option Type yourTmpl ascii myTmpl 32-bit => RELATED COMMANDS: dhcp server option tmpladd Add a DHCP server option template. dhcp server option tmpldelete Delete a DHCP server option template.

  • Page 185: Dhcp Server Pool Add

    DHCP Commands dhcp server pool add Add a DHCP server pool. SYNTAX: dhcp server pool add name = <string> [index = <number>] where: name The name of the DHCP server pool. REQUIRED Note If not specified, the name is “dhcp_pool_x”, where x is a subsequent number.

  • Page 186: Dhcp Server Pool Config

    The default value of this parameter is 0 (not specified), which means that the gateway IP address will be communicated by the remote server as soon as the PPP IPCP subnetmasking connection is established or that the SpeedTouch™ acts as the LAN default gateway.
  • Page 187 DNS server will be communicated by the remote server as soon as the PPP IPCP subnetmasking connection is established or that the SpeedTouch™ acts as the LAN DNS server. secdns The IP address of the optional secondary DNS server for DHCP clients.

  • Page 188: Dhcp Server Pool Delete

    DHCP Commands dhcp server pool delete Delete a DHCP server pool. SYNTAX: dhcp server pool delete name = <string> where: name The name of the DHCP server pool to be deleted. REQUIRED Use the command :dhcp server pool list to obtain a list of all current DHCP leases.

  • Page 189: Dhcp Server Pool Flush

    DHCP Commands dhcp server pool flush Flush all DHCP server pools. The flush command does not impact previously saved configurations. SYNTAX: dhcp server pool flush EXAMPLE: =>dhcp server pool list Pool Start Intf State 0 LAN_Private 10.0.0.1 10.0.0.254 eth0 USED 1 My_Pool 192.6.11.101 192.6.11.254...

  • Page 190: Dhcp Server Pool List

    DHCP Commands dhcp server pool list List all DHCP server pools. SYNTAX: dhcp server pool list [name = <string>] where: name The name of the DHCP server pool to be shown. OPTIONAL Note If not specified, all the DHCP server pools are shown. EXAMPLE: =>dhcp server pool list Pool...

  • Page 191: Dhcp Server Pool Optadd

    DHCP Commands dhcp server pool optadd Add an option instance to the DHCP server pool. SYNTAX: dhcp server pool optadd name = <string> instname = <string> where: name The name of the DHCP server pool to which an option instance must be added. REQUIRED instname The name of the DHCP server option instance.

  • Page 192: Dhcp Server Pool Optdelete

    DHCP Commands dhcp server pool optdelete Delete an option instance from the DHCP server pool. SYNTAX: dhcp server pool optdelete name = <string> instname = <string> where: name The name of the DHCP server pool from which an option instance must be deleted. REQUIRED instname The name of the DHCP server option instance to be deleted.

  • Page 193: Dhcp Server Pool Rtadd

    DHCP Commands dhcp server pool rtadd Add a route to the DHCP server pool. SYNTAX: dhcp server pool rtadd name = <string> dst = <ip-address> [dstmsk = <ip-mask(dotted or cidr)>] [gateway = <ipaddress | 0>] where: name The name of the DHCP server pool to which a route must be added. REQUIRED The IP destination address of the route for DHCP clients.

  • Page 194: Dhcp Server Pool Rtdelete

    DHCP Commands dhcp server pool rtdelete Delete a route from the DHCP server pool. SYNTAX: dhcp server pool rtdelete name = <string> dst = <ip-address> [dstmsk = <ip-mask(dotted or cidr)>] [gateway = <ipaddress | 0>] where: name The name of the DHCP server pool from which a route must be deleted. REQUIRED The IP destination address of the route for DHCP clients.

  • Page 195: Dhcp Server Pool Ruleadd

    DHCP Commands dhcp server pool ruleadd Add a selection rule to the DHCP server pool. SYNTAX: dhcp server pool ruleadd name = <string> [key = {or | and}] rulename = <string> where: name The name of the DHCP server pool to which a selection rule must be added. REQUIRED The logical key of the selection rule.

  • Page 196: Dhcp Server Pool Ruledelete

    DHCP Commands dhcp server pool ruledelete Delete a selection rule from the DHCP server pool. SYNTAX: dhcp server pool ruleadd name = <string> rulename = <string> where: name The name of the DHCP server pool from which a selection rule must be deleted. REQUIRED rulename The name of the DHCP selection rule to be deleted.

  • Page 197: Dns Commands

    DNS Commands DNS Commands Introduction This chapter describes the commands of the dns command group. Contents This chapter covers the following commands: dns client config Modify the Domain Name System (DNS) resolver configuration. dns client dnsadd Add a DNS server. dns client dnsdelete Delete a DNS server.

  • Page 198: Dns Client Config

    DNS Commands dns client config Modify the Domain Name System (DNS) resolver configuration. SYNTAX: dns client config [timeout = <number{1-900}>] [retry = <number{0-10}>] [search = <{disabled | enabled}>] [list = <string>] [trace = <{disabled | enabled}>] where: timeout A number between 1 and 900 (seconds). OPTIONAL Represents the query timeout.

  • Page 199: Dns Client Dnsadd

    DNS Commands dns client dnsadd Add a DNS server. SYNTAX: dns client dnsadd addr = <string> [port = <number>] where: addr The IP address of the DNS server to be added. REQUIRED port The DNS server port number. OPTIONAL The default is 53. EXAMPLE: =>dns client dnsadd addr=150.150.150.150 =>dns client dnslist...

  • Page 200: Dns Client Dnsdelete

    DNS Commands dns client dnsdelete Delete a DNS server. SYNTAX: dns client dnsdelete index = <number{1-99}> where: index A number between 1 and 99. REQUIRED Represents the index number of the DNS server to be deleted. Use the command :dns client dnslist to obtain a list of DNS servers. EXAMPLE: =>dns client dnslist Entry...

  • Page 201: Dns Client Dnslist

    DNS Commands dns client dnslist List all DNS servers. SYNTAX: dns client dnslist EXAMPLE: =>dns client dnslist Entry State Family Server CONNECTED [port] 53 - [addr] 127.0.0.1 CONNECTED [port] 53 - [addr] 150.150.150.150 => RELATED COMMANDS: dns client dnsadd Add a DNS server. dns client dnsdelete Delete a DNS server.

  • Page 202: Dns Client Flush

    DNS Commands dns client flush Remove all DNS servers. SYNTAX: dns client flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 203: Dns Client Nslookup

    DNS Commands dns client nslookup DNS lookup for a domain name or an address. SYNTAX: dns client nslookup host = <string> where: host The DNS domain name string for which to query. REQUIRED E-DOC-CTC-20060414-0007 v1.0...

  • Page 204: Dns Server Config

    DNS Commands dns server config Modify the DNS resolver configuration. SYNTAX: dns server config [domain = <string>] [timeout = <number{0-2147483647}>] [suppress = <number>] [state = <{disabled | enabled}>] [trace = <{disabled | enabled}>] [WANDownSpoofing = <{disabled | enabled}>] [WDSpoofedIP = <ip-address>] where: domain The DNS server domain name.

  • Page 205: Dns Server Flush

    DNS Commands dns server flush Flush all local DNS hosts and routes. SYNTAX: dns server flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 206: Dns Server Debug Clear

    DNS Commands dns server debug clear Clear the DNS server/forwarder statistics. SYNTAX: dns server debug clear EXAMPLE: =>dns server debug stats Corrupted packets received Local questions resolved Local negative answers sent Total DNS packets forwarded External answers received Spoofed responses Forward table full, discard Spurious answers Unknown query types...

  • Page 207: Dns Server Debug Stats

    DNS Commands dns server debug stats Print the DNS server/forwarder statistics. SYNTAX: dns server debug stats EXAMPLE: =>dns server debug stats Corrupted packets received Local questions resolved Local negative answers sent Total DNS packets forwarded External answers received Spoofed responses Forward table full, discard Spurious answers Unknown query types...

  • Page 208: Dns Server Debug Spoof Clear

    DNS Commands dns server debug spoof clear Clear the intercept cache table SYNTAX: dns server debug spoof clear RELATED COMMANDS: dns server debug spoof Get the real ip for the given spoofed ip getaddress dns server debug spoof Get the error flags for the given spoofed ip getflags dns server debug spoof List the intercept cache table.

  • Page 209: Dns Server Debug Spoof Getaddress

    DNS Commands dns server debug spoof getaddress Get the real ip for the given spoofed ip SYNTAX: dns server debug addr = <ip-address> spoof getaddress where: addr The IP address of the spoofed server. REQUIRED EXAMPLE: {Administrator}=>dns server debug spoof getaddress addr=198.18.1.1 :dns server debug spoof getaddress addr=198.18.1.1 Resolved ip = 0.0.0.0.

  • Page 210: Dns Server Debug Spoof Getflags

    DNS Commands dns server debug spoof getflags Get the error flags for the given spoofed ip SYNTAX: dns server debug addr = <ip-address> spoof getflags where: addr The IP address of the spoofed server. REQUIRED EXAMPLE: {Administrator}[dns server debug spoof]=>:dns server debug spoof getflags addr = 192.168.1.254 :dns server debug spoof getflags addr=192.168.1.254 Invalid spoofed ip.

  • Page 211: Dns Server Debug Spoof List

    DNS Commands dns server debug spoof list List the intercept cache table. SYNTAX: dsn server debug spoof list EXAMPLE: {Administrator}[dns server debug spoof]=>list Spoof IP FQDN Real IP Flags 198.18.1.1 eu.thmulti.com 0.0.0.0 Not resolved 198.18.1.2 thmulti.com 0.0.0.0 Not resolved 198.18.1.3 0.0.0.0 Not resolved 198.18.1.4...

  • Page 212: Dns Server Debug Spoof Update

    DNS Commands dns server debug spoof update Update the intercept cache table. SYNTAX: dns server debug spoof update EXAMPLE: {Administrator}=>dns server debug spoof update {Administrator}=> RELATED COMMANDS: dns server debug spoof Clear the intercept cache table clear dns server debug spoof Get the real ip for the given spoofed ip getaddress dns server debug spoof...

  • Page 213: Dns Server Host Add

    =>dns server host add name=myDNS addr=150.150.150.150 ttl=3600 =>dns server host list Address Hostname TTL (s) 150.150.150.150 myDNS 3600 <local> speedtouch <local> dsldevice => RELATED COMMANDS: dns server host delete Delete a local DNS host. dns server host list List all the local DNS hosts.

  • Page 214: Dns Server Host Delete

    The name of the DNS host to be deleted. REQUIRED EXAMPLE: =>dns server host list Address Hostname TTL (s) 150.150.150.150 myDNS 3600 <local> speedtouch <local> dsldevice =>dns server host delete name=myDNS =>dns server host list Address Hostname TTL (s) <local> speedtouch <local>...

  • Page 215: Dns Server Host Flush

    Flush all the local DNS hosts. SYNTAX: dns server host flush EXAMPLE: =>dns server host list Address Hostname TTL (s) 192.168.1.64 * Unknown-00-10-a4-ad-32-cf <local> dsldevice 1200 <local> speedtouch 1200 =>dns server host flush =>dns server host list => E-DOC-CTC-20060414-0007 v1.0...

  • Page 216: Dns Server Host List

    =>dns server host list Address Hostname TTL (s) 192.168.1.64 * Unknown-00-10-a4-ad-32-cf <local> dsldevice 1200 <local> speedtouch 1200 => RELATED COMMANDS: dns server host add Add a local DNS host. dns server host delete Delete a local DNS host. E-DOC-CTC-20060414-0007 v1.0...

  • Page 217: Dns Server Route Add

    DNS Commands dns server route add Adds a DNS forwarding route. SYNTAX: dns server route add dns = <ip-address> [src = <ip-address>] [srcmask = <ip-mask(dotted or cidr)>] [domain = <string>] [metric = <number{0-100}>] [intf = <string>] where: The IP address of a DNS server. REQUIRED The source IP address(es) using this remote DNS server.

  • Page 218: Dns Server Route Delete

    DNS Commands dns server route delete Delete a DNS forwarding route. SYNTAX: dns server route delete dns = <ip-address> where: The IP address of the DNS server for which the forwarding route must be deleted. REQUIRED EXAMPLE: =>dns server route list DNS Server Source Domain...

  • Page 219: Dns Server Route Flush

    DNS Commands dns server route flush Flush all DNS forwarding routes. SYNTAX: dns server route flush EXAMPLE: =>dns server route list DNS Server Source Domain Metric Intf State 150.150.150.150 10.0.0.0/8 myDNS eth0 =>dns server route flush =>dns server route list =>...

  • Page 220: Dns Server Route List

    DNS Commands dns server route list List all the DNS forwarding routes. SYNTAX: dns server route list EXAMPLE: =>dns server route list DNS Server Source Domain Metric Intf State 150.150.150.150 10.0.0.0/8 myDNS eth0 => RELATED COMMANDS: dns server route add Adds a DNS forwarding route.

  • Page 221: Dsd Commands

    DSD Commands DSD Commands Introduction This chapter describes the commands of the dsd command group. Contents This chapter covers the following commands: dsd config Display/modify the Differentiated Service Delivery (DSD) framework configuration. dsd debug config Display/modify DSD debug settings dsd debug connection list Display the internal connection pool usage.

  • Page 222: Dsd Config

    DSD Commands dsd config Display/modify the Differentiated Service Delivery (DSD) framework configuration. SYNTAX: dsd config [state = <{disabled | enabled | automatic}>] where: state Choose between: OPTIONAL automatic (default): By default (DSD config state is automatic), the DSD framework is not active, for example no URL filtering or web site filtering is applied.

  • Page 223: Dsd Debug Config

    DSD Commands dsd debug config Display/modify DSD debug settings SYNTAX: config [turbomode = <{disabled|enabled}>] where: turbomode Enable/disable turbomode OPTIONAL E-DOC-CTC-20060414-0007 v1.0...

  • Page 224: Dsd Debug Connection List

    DSD Commands dsd debug connection list Display the internal connection pool usage. SYNTAX: dsd debug connection list [expand = <{disabled|enabled}>] where: expand Enable or disable the expanded listing. optional The default is disabled. E-DOC-CTC-20060414-0007 v1.0...

  • Page 225: Dsd Debug Proxy

    DSD Commands dsd debug proxy Display/modify the HyperText Transfer Protocol (HTTP) Intercept fixed proxy configuration. SYNTAX: dsd debug proxy [state = <{disabled | enabled}>] [dest = <ip-address>] [port = <{supported TCP/UDP port} or number>] where: state Enable or disable fixed proxy redirecting. OPTIONAL The default is disabled.

  • Page 226: Dsd Debug Recycling

    DSD Commands dsd debug recycling Display/modify HTTPI recycling settings SYNTAX: dsd debug recycling state = <disabled>|<enabled> interval = <number> httpidle = <number> otheridle = <number> where: state Enable/disable stream recycling OPTIONAL interval Time between successive activity checks OPTIONAL httpidle Minimal idle count for recycling (filtered) http streams OPTIONAL otheridle Minimal idle count for recycling other streams...

  • Page 227: Dsd Debug Stats

    DSD Commands dsd debug stats Display/clear DSD framework and module statistics SYNTAX: dsd debug stats name = <{intercept|urlfilter|recycling|syslog|all} clear = <{no|yes}> where: name Specify the name of a module REQUIRED clear Clear the specified statistics REQUIRED E-DOC-CTC-20060414-0007 v1.0...

  • Page 228: Dsd Intercept Config

    DSD Commands dsd intercept config Display/modify the HTTP Intercept configuration. SYNTAX: dsd intercept config [WDSpoofedIP = <ip-address>] [servertimeout = <number>] [servererrorurl = <string>] [categoryerrorurl = <string>] [monitorintercepturl = <string>] [urlblockedurl = <string>] [imageredirect = <{disabled | enabled}>] [imageredirecturl = <string>] [alwaysuseip = <{disabled | enabled}>] where: WDSpoofedIP...

  • Page 229: Dsd Syslog Config

    DSD Commands dsd syslog config Display/modify the HTTP Intercept logging configuration. SYNTAX: dsd syslog config [syslog = <{none | unauthorized | errors | intercepted | all}>] where: syslog Define the type of events to log. OPTIONAL Choose between: none: nothing is logged to syslog. unauthorized: only the HTTP requests that are blocked because of a LocalRule, BlockCategory, BlockIPAddress or BlockObscure event, are logged.

  • Page 230: Dsd Syslog List

    DSD Commands dsd syslog list Display the HTTP Intercept log file. SYNTAX: dsd syslog list EXAMPLE: =>dsd syslog list <86> SysUpTime: 00:22:37 [HTTPI] src=10.0.0.1 src_port=1965 dst=141.11.196.35 dst_port=80 event=Se rverConnect dst_name=aWebsite.com/icons/Button_Document.gif <86> SysUpTime: 00:22:59 [HTTPI] src=10.0.0.1 src_port=1968 dst=141.11.234.60 dst_port=80 event=Se rverConnect dst_name=anotherWebsite.com/rawgen.asp =>...

  • Page 231: Dsd Urlfilter Config

    DSD Commands dsd urlfilter config Display/modify the URL filtering configuration. SYNTAX: dsd urlfilter config [state = <{disabled | enabled}>] [blockproxy = <{disabled | enabled}>] [blockipaddress = <{disabled | enabled}>] [blockobscuredip = <{disabled | enabled}>] [defaultaction = <{block | accept}>] where: state Enable or disable URL filtering.

  • Page 232: Dsd Urlfilter Rule Add

    Choose between: block accept redirect. redirect The redirection URL. REQUIRED Note This parameter is only required when the action is redirect. EXAMPLE: =>dsd urlfilter rule add url=www.speedtouch.com action=redirect redirect=www.speedtouch.be =>dsd urlfilter rule list Index Action Redirect ----- ------ -------- redirect www.speedtouch.com www.speedtouch.be...

  • Page 233: Dsd Urlfilter Rule Delete

    OPTIONAL EXAMPLE: =>dsd urlfilter rule list Index Action Redirect ----- ------ -------- redirect www.speedtouch.com www.speedtouch.be accept www.baen.com Rule list statistics : 2 present, 128 total (0.0% used) =>dsd urlfilter rule delete index=1 =>dsd urlfilter rule list Index Action Redirect -----...

  • Page 234: Dsd Urlfilter Rule Flush

    EXAMPLE: =>dsd urlfilter rule list Index Action Redirect ----- ------ -------- redirect www.speedtouch.com www.speedtouch.be accept www.baen.com Rule list statistics : 2 present, 128 total (0.0% used) =>dsd urlfilter rule flush =>dsd urlfilter rule list Index Action Redirect...

  • Page 235: Dsd Urlfilter Rule List

    EXAMPLE: =>dsd urlfilter rule list Index Action Redirect ----- ------ -------- redirect www.speedtouch.com www.speedtouch.be accept www.baen.com Rule list statistics : 2 present, 128 total (0.0% used) => RELATED COMMANDS: dsd urlfilter rule add Add a rule. dsd urlfilter rule delete Delete a rule.

  • Page 236: Dsd Urlfilter Rule Modify

    Redirect ----- ------ -------- redirect www.speedtouch.com www.speedtouch.be accept www.baen.com Rule list statistics : 2 present, 128 total (0.0% used) =>dsd urlfilter rule modify index=0 newurl=www.speed*.* action=redirect redirect=www.speedtouch.be =>dsd urlfilter rule list Index Action Redirect ----- ------ -------- redirect www.speed*.* www.speedtouch.be accept www.baen.com...

  • Page 237: Dyndns Commands

    DynDNS Commands DynDNS Commands Introduction Dynamic DNS is a service that allows to bind a host name to an IP address. In contrast to classical DNS, this service allows regular updates of the IP address related to a host name. In this way, hosts of which the IP address regularly changes (for example due to a limited DHCP lease time) can be identified by a static host name that is unique throughout the Internet.

  • Page 238: Dyndns Add

    DynDNS Commands dyndns add Add a dynamic DNS client. SYNTAX: dyndns add name = <string> where: name The name of the new dynamic DNS client. REQUIRED Note A maximum of 5 clients can be configured. EXAMPLE: =>dyndns add name=WAN =>dyndns list [INIT] user = password =...

  • Page 239: Dyndns Delete

    DynDNS Commands dyndns delete Delete a dynamic DNS client. SYNTAX: dyndns delete name = <string> where: name The name of the dynamic DNS client to be deleted. REQUIRED EXAMPLE: =>dyndns list [INIT] user = password = addr = 0.0.0.0 =>dyndns delete name=WAN =>dyndns list =>...

  • Page 240: Dyndns Flush

    DynDNS Commands dyndns flush Delete all the dynamic DNS clients. SYNTAX: dyndns flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 241: Dyndns List

    DynDNS Commands dyndns list List all the dynamic DNS clients. SYNTAX: dyndns list EXAMPLE: =>dyndns list [INIT] user = password = addr = 0.0.0.0 => RELATED COMMANDS: dyndns add Add a dynamic DNS client. dyndns delete Delete a dynamic DNS client. E-DOC-CTC-20060414-0007 v1.0...

  • Page 242: Dyndns Modify

    DynDNS Commands dyndns modify Modify a dynamic DNS client. SYNTAX: dyndns modify name = <string> [intf = <string>] [user = <string>] [password = <password>] [group = <string>] [mx = <string>] [backmx = <{disabled | enabled}>] [wildcard = <{disabled | enabled}>] [offline = <{disabled | enabled}>] [service = <{dyndns | statdns | custom | No-IP | DtDNS | gnudip}>]...
  • Page 243 DynDNS Commands EXAMPLE: =>dyndns list [INIT] user = password = addr = 0.0.0.0 =>dyndns modify name=WAN intf=RtPPPoE user=DNSuser password=_DEV_BA8C0C963BD84130 service=gnudip =>dyndns list : RtPPPoE_ppp [INIT] options = gnudip user = my_DNS_user password = ******** addr = 0.0.0.0 => E-DOC-CTC-20060414-0007 v1.0...

  • Page 244: Dyndns Host Add

    DynDNS Commands dyndns host add Add a fully qualified host name. SYNTAX: dyndns host add group = <string> name = <string> where: group The dynamic DNS host group. REQUIRED Note A maximum of 4 different groups can be created. name The name of an IP host to add.

  • Page 245: Dyndns Host Delete

    DynDNS Commands dyndns host delete Delete a host name. SYNTAX: dyndns host delete name = <string> where: name The name of the IP host to be deleted. REQUIRED EXAMPLE: =>dyndns host list local : [ ] localhost.com public : [ ] publichost.com legend : not initialised update in progress...

  • Page 246: Dyndns Host Flush

    DynDNS Commands dyndns host flush Delete all hosts. The hosts cannot be flushed, if there is still a group referenced to the hosts. SYNTAX: dyndns host flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 247: Dyndns Host List

    DynDNS Commands dyndns host list List all host names. SYNTAX: dyndns host list EXAMPLE: =>dyndns host list local : [ ] localhost.com public : [ ] publichost.com legend : not initialised update in progress update successful error => RELATED COMMANDS: dyndns host add Add a fully qualified host name.

  • Page 248: Dyndns Service List

    DynDNS Commands dyndns service list List all dynamic DNS services. SYNTAX: dyndns service list EXAMPLE: =>dyndns service list dyndns server = members.dyndns.org port = 80 request = /nic/update update interval = 2097120 retry interval = 30 max retry statdns server = members.dyndns.org port = 80...

  • Page 249: Dyndns Service Modify

    DynDNS Commands dyndns service modify Modify specific dynamic DNS service settings. SYNTAX: dyndns service modify name = <string> [server = <string>] [port = <{supported TCP/UDP port name} or number>] [request = <string>] [updateinterval = <number{0-2097120}>] [retryinterval = <number{0-600}] [max_retry = <number{1-5}>] where: name The name of the dynamic DNS service.
  • Page 250 DynDNS Commands EXAMPLE: =>dyndns service modify name=custom server=mydyndns.org port=www-http request=hereiam updateinterval=2000000 retryinterval=15 max_retry=5 =>dyndns service list dyndns server = members.dyndns.org port = 80 request = /nic/update update interval = 2097120 retry interval = 30 max retry statdns server = members.dyndns.org port = 80 request...

  • Page 251: Env Commands

    Env Commands Env Commands Introduction This chapter describes the commands of the env command group. Contents This chapter covers the following commands: env flush Flush all the non-system environment variables. env get Get the current value of an environment variable. env list Show all the currently available environment variables.

  • Page 252: Env Flush

    Env Commands env flush Flush all the non-system environment variables. SYNTAX: env flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 253: Env Get

    = <string> where: The name of the environment variable. REQUIRED Use the command :env list to obtain a list of all environment variables. EXAMPLE: =>env get var=_PROD_FRIENDLY_NAME SpeedTouch v1.0 => RELATED COMMANDS: env list List all current environment variables. E-DOC-CTC-20060414-0007 v1.0...

  • Page 254: Env List

    Env Commands env list Show all the currently available environment variables. SYNTAX: env list RELATED COMMANDS: env get Get the current value of an environment variable. E-DOC-CTC-20060414-0007 v1.0...

  • Page 255: Env Set

    Env Commands env set Set an environment variable. SYNTAX: env set var = <string> value = <translated string> where: The name of the environment variable. REQUIRED When creating an environment variable, any name is allowed. However spaces are NOT allowed and the name may NOT start with: “CONF”...

  • Page 256: Env Unset

    The name of the environment variable to be deleted. REQUIRED Note System variables (built-in variables with names starting with an underscore “_”, “CONF” or “HOST”) cannot be unset, changed or deleted. EXAMPLE: =>env list _COMPANY_NAME=THOMSON multimedia _COMPANY_URL=http://www.speedtouch.com _PROD_NAME=SpeedTouch ..CONF_DATE=March 2004 CONF_REGION=World HOST_SETUP=user =>env unset var=CONF_REGION =>env list _COMPANY_NAME=THOMSON multimedia _COMPANY_URL=http://www.speedtouch.com...

  • Page 257: Eth Commands

    Eth Commands Eth Commands Introduction This chapter describes the commands of the eth command group. Contents This chapter covers the following commands: eth ifadd Create a new ETH interface. eth ifattach Attach an ETH interface. eth ifconfig Modify an ETH interface. eth ifdelete Delete an ETH interface.
  • Page 258 Eth Commands eth bridge vlan ifdelete Delete a bridge interface from a VLAN. eth bridge vlan iflist Display all VLANs. eth device ifconfig Configure an Ethernet interface. eth device iflist Show status of Ethernet interfaces. eth switch group flush Set all the ports to the default settings. eth switch group list List all the configured switch groups.

  • Page 259: Eth Ifadd

    Eth Commands eth ifadd Create a new ETH interface. SYNTAX: eth ifadd intf = <string> where: intf The name of the new ETH interface. REQUIRED RELATED COMMANDS: eth ifdelete Delete an ETH interface. eth iflist Display the ETH interfaces. E-DOC-CTC-20060414-0007 v1.0...

  • Page 260: Eth Ifattach

    Eth Commands eth ifattach Attach an ETH interface. SYNTAX: eth ifattach intf = <string> where: intf The name of the ETH interface to be attached. REQUIRED RELATED COMMANDS: eth ifdetach Detach an ETH interface. E-DOC-CTC-20060414-0007 v1.0...

  • Page 261: Eth Ifconfig

    Eth Commands eth ifconfig Modify an ETH interface. SYNTAX: eth ifconfig intf = <string> [dest = <string>] [retry = <number{0-65535}>] [vlan = <string>] where: intf The name of the ETH interface to be configured. REQUIRED dest The destination interface for this ETH interface. OPTIONAL retry A number between 0 and 65535.

  • Page 262: Eth Ifdelete

    Eth Commands eth ifdelete Delete an ETH interface. SYNTAX: eth ifdelete intf = <string> where: intf The name of the ETH interface name to be deleted. REQUIRED RELATED COMMANDS: eth ifadd Create a new ETH interface. eth iflist Display the ETH interfaces. E-DOC-CTC-20060414-0007 v1.0...

  • Page 263: Eth Ifdetach

    Eth Commands eth ifdetach Detach an ETH interface. SYNTAX: eth ifdetach intf = <string> where: intf The name of the ETH interface to be detached. REQUIRED RELATED COMMANDS: eth ifattach Attach an ETH interface. E-DOC-CTC-20060414-0007 v1.0...

  • Page 264: Eth Iflist

    Eth Commands eth iflist Display the ETH interfaces. SYNTAX: eth iflist [intf = <string>] where: intf The name of the ETH interface to be displayed. OPTIONAL Note If not specified, all the ETH interfaces will be displayed. RELATED COMMANDS: eth ifadd Create a new ETH interface.

  • Page 265: Eth Flush

    Eth Commands eth flush Flush all the ETH interfaces. The flush command does not impact previously saved configurations. SYNTAX: eth flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 266: Eth Bridge Clear

    Eth Commands eth bridge clear Clear the bridge statistics. SYNTAX: eth bridge clear E-DOC-CTC-20060414-0007 v1.0...

  • Page 267: Eth Bridge Config

    The bridge filter to be applied for all Wide Area Network (WAN) bridge ports. OPTIONAL Choose between: no_WAN_broadcast: broadcasts from the SpeedTouch™ itself to the WAN are filtered out, broadcasts from the LAN to the WAN are still passed through none: no broadcasts are filtered out.

  • Page 268: Eth Bridge Dynvlan Actlist

    Eth Commands eth bridge dynvlan actlist Display the active MAC entries for the dynamic VLAN membership. SYNTAX: eth bridge dynvlan actlist RELATED COMMANDS: eth bridge dynvlan add Add a dynamic VLAN membership entry. eth bridge dynvlan Modify the dynamic VLAN membership configuration. config eth bridge dynvlan Delete a dynamic VLAN membership entry.

  • Page 269: Eth Bridge Dynvlan Add

    Eth Commands eth bridge dynvlan add Add a dynamic VLAN membership entry. SYNTAX: eth bridge dynvlan add [id = <number{0-100000}>] hwaddr = <masked-hardware-address> vlan = <string> [remvlan = <{default}>] where: A number between 0 and 100000. OPTIONAL Represents the id of the dynamic VLAN membership entry. hwaddr The (masked) ethernet MAC address of the dynamic VLAN REQUIRED...

  • Page 270: Eth Bridge Dynvlan Config

    Eth Commands eth bridge dynvlan config Modify the dynamic VLAN membership configuration. SYNTAX: eth bridge dynvlan config [timeout = <number{0-100000}>] where: timeout A number between 0 and 100000 (seconds). OPTIONAL Represents timeout for the dynamic entries. RELATED COMMANDS: eth bridge dynvlan Display the active MAC entries for the dynamic VLAN membership.

  • Page 271: Eth Bridge Dynvlan Delete

    Eth Commands eth bridge dynvlan delete Delete a dynamic VLAN membership entry. SYNTAX: eth bridge dynvlan delete id = <number{0-100000}> where: A number between 0 and 100000. REQUIRED Represents the id of a dynamic VLAN membership. RELATED COMMANDS: eth bridge dynvlan Display the active MAC entries for the dynamic VLAN membership.

  • Page 272: Eth Bridge Dynvlan Flush

    Eth Commands eth bridge dynvlan flush Flush all dynamic VLAN membership entries. SYNTAX: eth bridge dynvlan flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 273: Eth Bridge Dynvlan List

    Eth Commands eth bridge dynvlan list Display a dynamic VLAN membership entry. SYNTAX: eth bridge dynvlan list RELATED COMMANDS: eth bridge dynvlan Display the active MAC entries for the dynamic VLAN membership. actlist eth bridge dynvlan add Add a dynamic VLAN membership entry. eth bridge dynvlan Modify the dynamic VLAN membership configuration.

  • Page 274: Eth Bridge Flush

    Eth Commands eth bridge flush Flush bridge interfaces and parameters. The flush command does not impact previously saved configurations. SYNTAX: eth bridge flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 275: Eth Bridge Ifadd

    Eth Commands eth bridge ifadd Create a new bridge interface. SYNTAX: eth bridge ifadd intf = <string> where: intf The name of the new bridge interface. REQUIRED RELATED COMMANDS: eth bridge ifdelete Delete a bridge interface. eth bridge iflist Display the current bridge interfaces. E-DOC-CTC-20060414-0007 v1.0...

  • Page 276: Eth Bridge Ifattach

    Eth Commands eth bridge ifattach Attach a bridge interface. SYNTAX: eth bridge ifattach intf = <string> where: intf The name of the bridge interface to be attached. REQUIRED RELATED COMMANDS: eth bridge ifdetach Detach a bridge interface. E-DOC-CTC-20060414-0007 v1.0...

  • Page 277: Eth Bridge Ifconfig

    The default is forwarding. retry A number between 0 and 65535. OPTIONAL Represents the number of times the SpeedTouch™ retries to set up a WAN connection before giving up. The default is 10. vlan Select the default VLAN. OPTIONAL prioconfig The priority configuration for this interface.
  • Page 278 Eth Commands regenprio The priority regeneration table for tagged ingress packets. OPTIONAL The default is 01234567. ingressfiltering Enable/disable discard of tagged ingress packets if the interface is not part of OPTIONAL the VLAN. The default is disabled. acceptvlanonly Enable or disable receipt of tagged ingress packets. OPTIONAL The default is disabled.

  • Page 279: Eth Bridge Ifdelete

    Eth Commands eth bridge ifdelete Delete a bridge interface. SYNTAX: eth bridge ifdelete intf = <string> where: intf The name of the bridge interface name to be deleted. REQUIRED RELATED COMMANDS: eth bridge ifadd Create a new bridge interface. eth bridge iflist Display the current bridge interfaces.

  • Page 280: Eth Bridge Ifdetach

    Eth Commands eth bridge ifdetach Detach a bridge interface. SYNTAX: eth bridge ifdetach intf = <string> where: intf The name of the bridge interface to be detached. REQUIRED RELATED COMMANDS: eth bridge ifattach Attach a bridge interface. E-DOC-CTC-20060414-0007 v1.0...

  • Page 281: Eth Bridge Iflist

    Eth Commands eth bridge iflist Display the current bridge interfaces. SYNTAX: eth bridge iflist [intf = <string>] where: intf The name of the bridge interface to be displayed. OPTIONAL Note If not specified, all bridge interfaces are shown. RELATED COMMANDS: eth bridge ifadd Create a new bridge interface.

  • Page 282: Eth Bridge Macadd

    Eth Commands eth bridge macadd Add a static MAC address to a bridge interface. This command allows to manually add static MAC addresses, which should normally be dynamically discovered by the bridge itself. SYNTAX: eth bridge macadd intf = <string> hwaddr = <hardware-address>...

  • Page 283: Eth Bridge Macdelete

    Eth Commands eth bridge macdelete Remove a MAC address from the filtering database. SYNTAX: eth bridge macdelete hwaddr = <hardware-address> [vlan = <string>] where: hwaddr The Ethernet MAC address of the entry to be deleted. REQUIRED vlan The VLAN. OPTIONAL EXAMPLE: =>eth bridge maclist 00:0d:9d:47:dd:aa -- dynamic, ethport1...

  • Page 284: Eth Bridge Maclist

    Eth Commands eth bridge maclist Display the MAC address database. SYNTAX: eth bridge maclist EXAMPLE: =>eth bridge maclist 00:0d:9d:47:dd:aa -- dynamic, ethport1, 300 seconds 00:90:d0:72:88:64 -- permanent 01:00:5e:00:00:67 -- static 01:00:5e:7f:ff:fa -- static 01:80:c2:00:00:00 -- permanent 01:80:c2:00:00:01 -- permanent 01:80:c2:00:00:02 -- permanent 01:80:c2:00:00:03 -- permanent 01:80:c2:00:00:04 -- permanent 01:80:c2:00:00:05 -- permanent...

  • Page 285: Eth Bridge Mcdadd

    Eth Commands eth bridge mcdadd Add a multicast group to be dropped to the database. SYNTAX: eth bridge mcdadd srcintfs = <string or combination of strings separated by '+'}> dstintfs = <string or combination of strings separated by '+'}> where: srcports The source bridge interfaces from which multicast packets must be dropped.

  • Page 286: Eth Bridge Mcddelete

    Eth Commands eth bridge mcddelete Delete a multicast group to be dropped from the database. SYNTAX: eth bridge mcddelete RELATED COMMANDS: eth bridge mcdadd Add a multicast group to be dropped to the database. eth bridge mcdlist Display the multicast group to be dropped from the database. E-DOC-CTC-20060414-0007 v1.0...

  • Page 287: Eth Bridge Mcdlist

    Eth Commands eth bridge mcdlist Display the multicast group to be dropped from the database. SYNTAX: eth bridge mcdlist RELATED COMMANDS: eth bridge mcdadd Add a multicast group to be dropped to the database. eth bridge mcddelete Delete a multicast group to be dropped from the database. E-DOC-CTC-20060414-0007 v1.0...

  • Page 288: Eth Bridge Rule Add

    Eth Commands eth bridge rule add Add a new constraint to the VLAN learning system. SYNTAX: eth bridge rule add type = <{shared | independent}> vlan = <string> [vlan2 = <string>] [isi = <number{0-32}>] where: type Type of constraint. REQUIRED Choose between: shared independent.

  • Page 289: Eth Bridge Rule Delete

    Eth Commands eth bridge rule delete Delete a constraint from the VLAN learning system. SYNTAX: eth bridge rule delete index = <number{0-32}> where: index Index of the constraint to be deleted. REQUIRED Use the command :eth bridge rule list to obtain a list of the indexes of the constraints.

  • Page 290: Eth Bridge Rule Flush

    Eth Commands eth bridge rule flush Flush all constraints from the VLAN learning system. SYNTAX: eth bridge rule flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 291: Eth Bridge Rule List

    Eth Commands eth bridge rule list Display all constraints from the VLAN learning system. SYNTAX: eth bridge rule list EXAMPLE: =>eth bridge rule list Index Type VLAN Parameter ----- ---- ---- --------- independant default Independent set identifier: 1 => RELATED COMMANDS: eth bridge rule add Add a new constraint to the VLAN learning system.

  • Page 292: Eth Bridge Vlan Ifadd

    Eth Commands eth bridge vlan ifadd Add a bridge interface to a VLAN. SYNTAX: eth bridge vlan ifadd name = <string> intf = <string> [untagged = <{disabled | enabled}>] where: name The VLAN name to which a bridge interface must be added. REQUIRED intf The name of the bridge interface to be added to the VLAN.

  • Page 293: Eth Bridge Vlan Ifconfig

    Eth Commands eth bridge vlan ifconfig Modify a bridge interface from a VLAN. SYNTAX: eth bridge vlan ifconfig name = <string> intf = <string> untagged = <{disabled | enabled}> where: name The VLAN name for which a bridge interface must be modified. REQUIRED intf The name of the bridge interface to be modified.

  • Page 294: Eth Bridge Vlan Ifdelete

    Eth Commands eth bridge vlan ifdelete Delete a bridge interface from a VLAN. SYNTAX: eth bridge vlan ifdelete name = <string> intf = <string> where: name The VLAN name for which a bridge interface must be deleted. REQUIRED intf The name of the bridge interface to be deleted. REQUIRED RELATED COMMANDS: eth bridge vlan ifadd...

  • Page 295: Eth Bridge Vlan Iflist

    Eth Commands eth bridge vlan iflist Display all VLANs. SYNTAX: eth bridge vlan iflist RELATED COMMANDS: eth bridge vlan ifadd Add a bridge interface to a VLAN. eth bridge vlan ifconfig Modify a bridge interface from a VLAN. eth bridge vlan ifdelete Delete a bridge interface from a VLAN.

  • Page 296: Eth Device Ifconfig

    Eth Commands eth device ifconfig Configure an Ethernet interface. SYNTAX: eth device ifconfig intf = <string> [type = <{auto | 10BaseTHD | 10BaseTFD | 100BaseTHD | 100BaseTFD} or number>] [state = <{enabled | disabled}>] where: intf The name of a physical interface. REQUIRED type The Ethernet type.

  • Page 297: Eth Device Iflist

    Eth Commands eth device iflist Show status of Ethernet interfaces. SYNTAX: eth device iflist EXAMPLE: =>eth device iflist Interface Type Result State ethif1 auto 100BaseTFD UP [forwarding] ethif2 auto 100BaseTFD UP [forwarding] ethif3 auto 100BaseTFD UP [forwarding] ethif4 auto 100BaseTFD UP [forwarding] usbif1 UP [forwarding]...

  • Page 298: Eth Switch Group Flush

    Eth Commands eth switch group flush Set all the ports to the default settings. All the ports are placed in group 0. SYNTAX: eth switch group flush EXAMPLE: =>eth switch group list Group 0 Ports: 4 Group 1 Ports: 1 Group 2 Ports: 2 3 =>eth switch group flush =>eth switch group list...

  • Page 299: Eth Switch Group List

    Eth Commands eth switch group list List all the configured switch groups. SYNTAX: eth switch group list EXAMPLE: =>eth switch group list Group 0 Ports: 4 Group 1 Ports: 1 Group 2 Ports: 2 3 => RELATED COMMANDS: eth switch group move Move a specified port to a specified switch group.

  • Page 300: Eth Switch Group Move

    Eth Commands eth switch group move Move a specified port to a specified switch group. SYNTAX: eth switch group move group = <number{0-3}> port = <number{1-4}> where: group A number between 0 and 4. REQUIRED Represents the group ID to which the port must be moved. port A number between 01 and 4.

  • Page 301: Eth Switch Mirror Capture

    Eth Commands eth switch mirror capture Define the specified port to be the Mirror Capture Port. Only one port can be the Mirror Capture Port at any one time. SYNTAX: eth switch mirror capture port = <number{1-4}> where: port The port to be the Mirror Capture Port. REQUIRED Note If no port number is specified, then the port number of the Mirror Capture Port...

  • Page 302: Eth Switch Mirror Egress

    Eth Commands eth switch mirror egress Enable or disable the specified port to be the Mirror Egress Port. Only one port can be the Mirror Egress Port at any one time. But a port can be the Mirror Egress Port and the Mirror Ingress Port at the same time. SYNTAX: eth switch mirror egress port = <number{1-4}>...

  • Page 303: Eth Switch Mirror Ingress

    Eth Commands eth switch mirror ingress Enable or disable the specified port to be the Mirror Ingress Port. Only one port can be the Mirror Ingress Port at any one time. But a port can be the Mirror Egress Port and the Mirror Ingress Port at the same time. SYNTAX: eth switch mirror ingress port = <number{1-4}>...

  • Page 304: Eth Switch Share Add

    Eth Commands eth switch share add Add a port to be shared. SYNTAX: eth switch share add port = <number{1-4}> shared = <number{1-4}> where: port A number between 1 and 4. REQUIRED Represents the port. shared A number between 1 and 4. REQUIRED Represents the shared port.

  • Page 305: Eth Switch Share Delete

    Eth Commands eth switch share delete Delete a shared port. SYNTAX: eth switch share delete port = <number{1-4}> shared = <number{1-4}> where: port A number between 1 and 4. REQUIRED Represents the port. shared A number between 1 and 4. REQUIRED Represents the shared port.

  • Page 306: Eth Switch Share List

    Eth Commands eth switch share list Display shared ports. SYNTAX: eth switch share list RELATED COMMANDS: eth switch share add Add a port to be shared. eth switch share delete Delete a shared port. E-DOC-CTC-20060414-0007 v1.0...

  • Page 307: Eth Vlan Add

    Eth Commands eth vlan add Add a new VLAN. SYNTAX: eth vlan add name = <string> vid = <number{2-4094}> [addrule = <{disabled | enabled}>] where: name The new VLAN name. REQUIRED A number representing the new VLAN ID. REQUIRED Note The ID 1 is reserved for the default VLAN.

  • Page 308: Eth Vlan Delete

    Eth Commands eth vlan delete Delete a VLAN. SYNTAX: eth vlan delete name = <string> where: name The name of the VLAN to be deleted. REQUIRED EXAMPLE: =>eth vlan list Name ---- default myVLAN =>eth vlan delete name=myVLAN vid=2 =>eth vlan list Name ---- default...

  • Page 309: Eth Vlan Flush

    Eth Commands eth vlan flush Flush all VLANs. All the VLANs, except the default VLAN will be flushed. SYNTAX: eth vlan flush EXAMPLE: =>eth vlan list Name ---- default myVLAN yourVLAN =>eth vlan flush =>eth vlan list Name ---- default =>...

  • Page 310: Eth Vlan List

    Eth Commands eth vlan list Display all VLANs. SYNTAX: eth vlan list EXAMPLE: =>eth vlan list Name ---- default myVLAN => RELATED COMMANDS: eth vlan add Add a new VLAN. eth vlan delete Delete a VLAN. E-DOC-CTC-20060414-0007 v1.0...

  • Page 311: Expr Commands

    Expr Commands Expr Commands Introduction This chapter describes the commands of the expr command group. Contents This chapter covers the following commands: expr add Add a subexpression to an expression. expr delete Delete an expression. expr flush Flush all the expressions. expr list List the expressions.

  • Page 312: Expr Add

    Expr Commands expr add Add a subexpression to an expression. SYNTAX: expr add name = <string> type = <{intf | ip | serv}> addr [!]= <ip-range> [intf [!]= <string>] [intfgroup [!]= <{wan|local|lan|tunnel|dmz|guest} or number>] [tos [!]= <number{0-255}>] [precedence [!]= <IP precedence type> or <number>] [dscp [!]= <DSCP name>...
  • Page 313 Expr Commands A number between 0 and 255. OPTIONAL Represents the Type of Service (ToS) specification in the IP packet. Note The parameters tos, precedence dscp are mutually exclusive. precedence The precedence in the IP packet (part of tos). OPTIONAL Select an IP precedence (see “...
  • Page 314 Expr Commands EXAMPLE: =>expr list name type use flags expression ------------------------------------------------------------------------------------------ _myPPP_ppp intf 1. intf=myPPP_ppp _eth0 intf 1. intf=eth0 intf 1. intfgroup=0 intf 1. intfgroup=2 local intf 1. intfgroup=1 notwan intf 1. intfgroup=2 2. intfgroup=1 _10.0.0.138 1. addr=10.0.0.138 _192.168.1.254 1. addr=192.168.1.254 DiffServ serv 1.

  • Page 315: Expr Delete

    Expr Commands expr delete Delete an expression. SYNTAX: expr delete name = <string> [index = <number>] where: name The name of the expression to be deleted. REQUIRED index The index of the subexpression to be deleted. OPTIONAL Note If not specified, all the subexpressions wil be deleted. E-DOC-CTC-20060414-0007 v1.0...
  • Page 316 Expr Commands EXAMPLE: =>expr list name type use flags expression ------------------------------------------------------------------------------------------ _myPPP_ppp intf 1. intf=myPPP_ppp _eth0 intf 1. intf=eth0 intf 1. intfgroup=0 intf 1. intfgroup=2 local intf 1. intfgroup=1 notwan intf 1. intfgroup=2 2. intfgroup=1 myEXPR intf 1. intf=Internet intfgroup=2 _10.0.0.138 1.

  • Page 317: Expr Flush

    Expr Commands expr flush Flush all the expressions. SYNTAX: expr flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 318: Expr List

    Expr Commands expr list List the expressions. SYNTAX: expr list [name = <string>] [type = <{intf | ip | serv}>] [format = <{pretty | cli}>] where: name The name of an existing expression. OPTIONAL Note If not specified, all the expressions will be listed. type The expression type.
  • Page 319 Expr Commands EXAMPLE 1: E-DOC-CTC-20060414-0007 v1.0...
  • Page 320 Expr Commands =>expr list name type use flags expression ------------------------------------------------------------------------------------------ _Internet intf 1. intf=Internet _LocalNetwork intf 1. intf=LocalNetwork HTTPI_if_0 intf 1. intf=LocalNetwork 2. intf=LocalNetwork 3. intf=LocalNetwork HTTP_if_0 intf 1. intfgroup=2 HTTPs_if_0 intf 1. intfgroup=2 FTP_if_0 intf 1. intfgroup=2 TELNET_if_0 intf 1.
  • Page 321 Expr Commands EXAMPLE 2: E-DOC-CTC-20060414-0007 v1.0...
  • Page 322 Expr Commands =>expr list format=cli :expr add name=_Internet type=intf intf=Internet :expr add name=_LocalNetwork type=intf intf=LocalNetwork :expr add name=HTTPI_if_0 type=intf intf=LocalNetwork :expr add name=HTTPI_if_0 type=intf intf=LocalNetwork :expr add name=HTTPI_if_0 type=intf intf=LocalNetwork :expr add name=HTTP_if_0 type=intf intfgroup=lan :expr add name=HTTPs_if_0 type=intf intfgroup=lan :expr add name=FTP_if_0 type=intf intfgroup=lan :expr add name=TELNET_if_0 type=intf intfgroup=lan :expr add name=DNS-S_if_0 type=intf intfgroup=lan...
  • Page 323 Expr Commands RELATED COMMANDS: expr add Add a subexpression to an expression. expr delete Delete an expression. E-DOC-CTC-20060414-0007 v1.0...

  • Page 324: Expr Modify

    Expr Commands expr modify Modify an expression. SYN TAX: expr modify name = <string> type = <{intf | ip | serv}> index = <number> addr [!]= <ip-range> [intf [!]= <string>] [intfgroup [!]= <{wan|local|lan|tunnel|dmz|guest} or number>] [bridgeport [!]= <number>] [tos [!]= <number{0-255}>] [precedence [!]= <IP precedence type>...
  • Page 325 Expr Commands intfgroup The IP interface group. OPTIONAL Choose between: local tunnel guest. Note Only for expression type intf. bridgeport The bridge port number. OPTIONAL Note Only for expression type intf. A number between 0 and 255. OPTIONAL Represents the ToS specification in the IP packet. Note The parameters tos, precedence...
  • Page 326 Expr Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 327: Firewall Commands

    Firewall Commands Firewall Commands Introduction This chapter describes the commands of the firewall command group. Contents This chapter covers the following commands: firewall config Configure the firewall options. firewall clear Flush the firewall configuration. firewall list List the firewall configuration. firewall debug clear Clear the firewall statistics.

  • Page 328: Firewall Config

    Firewall Commands firewall config Configure the firewall options. SYNTAX: firewall config [state = <{disabled | enabled}>] [keep = <{disabled | enabled}>] [tcpchecks = <{none | fast | exact}>] [udpchecks = <{disabled|enabled}>] [icmpchecks = <{disabled | enabled}>] [logdefault = <{disabled | enabled}>] [logthreshold = <{disabled | enabled}>] [tcpwindow = <number{0-1073725440}>] where:...
  • Page 329 Firewall Commands tcpwindow A number between 0 and 1073725440. OPTIONAL This parameter permits to modify the TCP window for fast TCP checks. The default is 65536. EXAMPLE: =>firewall config :firewall config state=enabled keep=disabled tcpchecks=none udpchecks=enabled icmpchecks=enabled logdefault=disabled logthreshold=enabled tcpwindow=65536 => E-DOC-CTC-20060414-0007 v1.0...

  • Page 330: Firewall Clear

    Firewall Commands firewall clear Flush the firewall configuration. SYNTAX: firewall clear E-DOC-CTC-20060414-0007 v1.0...

  • Page 331: Firewall List

    Firewall Commands firewall list List the firewall configuration. SYNTAX: firewall list [format = <{pretty | cli}>] where: format Select the output format in which the configuration must be shown. OPTIONAL Choose between: pretty: the configuration is shown as intuitive output in clear text. cli: the configuration is shown via the CLI commands configuration.

  • Page 332: Firewall Debug Clear

    Firewall Commands firewall debug clear Clear the firewall statistics. SYNTAX: firewall debug clear EXAMPLE: =>firewall debug stats Statistics ========== Used rule contexts Total rule contexts : 256 Total packets parsed : 2554 Packets parsed in hook sink : 1461 Packets parsed in hook forward : 12 Packets parsed in hook source : 1041...

  • Page 333: Firewall Debug Stats

    Firewall Commands firewall debug stats Display the firewall statistics. SYNTAX: firewall debug stats EXAMPLE: =>firewall debug stats Statistics ========== Used rule contexts Total rule contexts : 256 Total packets parsed : 2554 Packets parsed in hook sink : 1461 Packets parsed in hook forward : 12 Packets parsed in hook source : 1041...

  • Page 334: Firewall Debug Traceconfig

    Firewall Commands firewall debug traceconfig Configure the firewall trace options. SYNTAX: firewall debug traceconfig [tcpchecks = <{disabled | enabled}>] [udpchecks = <{disabled|enabled}>] [icmpchecks = <{disabled | enabled}>] [sink = <{none | all | accept | deny | drop | reset} or number>] [forward = <{none | all | accept | deny | drop reset} or number>] [source = <{none | all | accept | deny | drop...

  • Page 335: Firewall Level Add

    Firewall Commands firewall level add Add a security level. SYNTAX: firewall level add name = <string> [index = <number>] [readonly = <{disabled | enabled}>] [udptrackmode = <{strict | loose}>] [service = <{disabled | enabled}>] [proxy = <{disabled|enabled}>] [text = <quoted string>] where: name The name of the security level to be added.

  • Page 336: Firewall Level Delete

    Firewall Commands firewall level delete Delete a security level. SYNTAX: firewall level delete name = <string> where: name The name of the security level to be deleted. REQUIRED RELATED COMMANDS: firewall level add Add a security level. firewall level list List all the security levels.

  • Page 337: Firewall Level Flush

    Firewall Commands firewall level flush Flush the security level configuration. SYNTAX: firewall level flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 338: Firewall Level List

    Firewall Commands firewall level list List all the security levels. SYNTAX: firewall level list [format = <{pretty | cli}>] where: format Select the output format in which the security levels must be shown. OPTIONAL Choose between: pretty: the security levels are shown as intuitive output in clear text. cli: the security levels are shown via the CLI commands configuration.

  • Page 339: Firewall Level Modify

    Firewall Commands firewall level modify Configure a security level. SYNTAX: firewall level modify name = <string> [index = <number>] [readonly = <{disabled | enabled}>] [udptrackmode = <{strict | loose}>] [service = <{disabled | enabled}>] [proxy = <{disabled|enabled}>] [text = <quoted string>] where: name The name of the security level to be added.

  • Page 340: Firewall Level Set

    Firewall Commands firewall level set Set the security level or display the current security level. SYNTAX: firewall level set [name = <string>] where: name The name of the security level to be set. OPTIONAL Note If no security level is specified, the current security level will be shown. E-DOC-CTC-20060414-0007 v1.0...

  • Page 341: Firewall Rule Add

    Firewall Commands firewall rule add Add a firewall rule. SYNTAX: firewall rule add chain = <chain name> [index = <number>] [name = <string>] [clink = <chain name>] [srcintf [!]= <string>] [srcip [!]= <string>] [dstip [!]= <string>] [serv [!]= <string>] [log = <{disabled | enabled}>] [state = <{disabled | enabled}>] action = <{accept|deny|drop|reset|count|link}>...

  • Page 342: Firewall Rule Delete

    Firewall Commands firewall rule delete Delete a firewall rule. SYNTAX: firewall rule delete chain = <string> index = <number> where: chain The name of the chain in which a rule must be deleted. REQUIRED index The number of the rule in the chain. REQUIRED RELATED COMMANDS: firewall rule add...

  • Page 343: Firewall Rule Flush

    Firewall Commands firewall rule flush Flush all firewall rules. SYNTAX: firewall rule flush [chain = <string>] where: chain The name of the chain for which the rules must be flushed. OPTIONAL Note If not specified, the rules of all the chains will be flushed. E-DOC-CTC-20060414-0007 v1.0...

  • Page 344: Firewall Rule List

    Firewall Commands firewall rule list Show a list of the firewall rules in a chain. SYNTAX: firewall rule list [chain = <string>] [format = <{pretty | cli}>] where: chain The name of the chain for which the rules must be listed. OPTIONAL Note If not specified, the rules of all the chains are shown.
  • Page 345 Firewall Commands EXAMPLE: =>firewall rule list Rules (flags: C=Constant, D=Dynamic, E=Enable, L=Log) ===== Chain Flags Rule --------------------------------------------------------------------------------------- sink : link sink_fire : link sink_system_service sink_fire SSDP : accept ssdp_serv lan.* > *.ssdp_ip sink_system_service HTTPI : accept HTTPI_sv_0 HTTPI_if_0.* > *.* PING_RESPONDER : accept PING_RESPONDER_sv_0 PING_RESPONDER_...

  • Page 346: Firewall Rule Modify

    Firewall Commands firewall rule modify Modify a firewall rule. SYNTAX: firewall rule modify chain = <string> index = <number> [newindex = <number>] [name = <string>] [clink = <chain name>] [srcintf [!]= <string>] [srcip [!]= <string>] [dstintf [!]= <string>] [dstip [!]= <string>] [serv [!]= <string>] [log = <{disabled | enabled}>] [state = <{disabled | enabled}>]...

  • Page 347: Firewall Rule Debug Clear

    Firewall Commands firewall rule debug clear Clear the firewall rule statistics. SYNTAX: firewall rule debug clear [chain = <string>] [index = <number>] where: chain The name of the chain which contains the rule. OPTIONAL index The number of the rule in the chain. OPTIONAL Note If not specified, the statistics for all the rules in the chain will be cleared.
  • Page 348 Firewall Commands RELATED COMMANDS: firewall rule debug stats Show the firewall rule statistics. E-DOC-CTC-20060414-0007 v1.0...

  • Page 349: Firewall Rule Debug Stats

    Firewall Commands firewall rule debug stats Show the firewall rule statistics. SYNTAX: firewall rule debug stats [chain = <chain name>] [index = <number>] where: chain The name of the chain for which the statistics must be shown. OPTIONAL Note If not specified, the statistics for all the chains will be shown. index The number of the rule in the chain.

  • Page 350: Firewall Rule Debug Traceconfig

    Firewall Commands firewall rule debug traceconfig Display or modify the rule trace configuration. SYNTAX: firewall rule debug traceconfig [trace = <{disabled | enabled}>] where: trace Enable or disable rule traces. OPTIONAL The default is disabled. EXAMPLE: =>firewall rule debug traceconfig :firewall rule debug traceconfig state=disabled =>...
  • Page 351 Firewall Commands E-DOC-CTC-20060414-0007 v1.0...
  • Page 352 Firewall Commands E-DOC-CTC-20060414-0007 v1.0...
  • Page 353 Firewall Commands E-DOC-CTC-20060414-0007 v1.0...
  • Page 354 Firewall Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 355: Grp Commands

    GRP Commands GRP Commands Introduction This chapter describes the commands of the grp command group. Contents This chapter covers the following commands: grp ifconfig Configure the interface's routing parameters. grp iflist Show the current interfaces. grp rttadd Add a translation rule to the GRP route translation list. grp rttdelete Delete a translation rule from the GRP route translation list.

  • Page 356: Grp Ifconfig

    GRP Commands grp ifconfig Configure the interface's routing parameters. SYNTAX: grp ifconfig intf = <string> metric = <number{1-16}> where: intf The name of the interface. REQUIRED Use the command :grp iflist to obtain a list of available interfaces. metric A number between 1 and 16 (hops). REQUIRED Represents the metric of the interface.
  • Page 357 GRP Commands EXAMPLE: =>grp iflist Interface : LocalNetwork index : 2 metric : 1 mtu : 1500 flags : <ARP,BROADCAST,UP,ARPTABLE,MULTICAST> address : 192.168.1.254/24 broadcast : 192.168.1.255 address : 10.0.0.138/24 broadcast : 10.0.0.255 Interface : Internet index : 1 metric : 1 mtu : 1500 flags : <POINTOPOINT>...

  • Page 358: Grp Iflist

    GRP Commands grp iflist Show the current interfaces. SYNTAX: grp iflist [intf = <string>] where: intf The name of the interface to be shown. OPTIONAL Note If not specified, all the interfaces will be shown. EXAMPLE: =>grp iflist Interface : LocalNetwork index : 2 metric : 1 mtu : 1500...
  • Page 359 GRP Commands EXAMPLE: =>grp iflist Interface : lan1 index : 3 metric : 1 mtu : 1500 flags : <ARP,BROADCAST,UP,ARPTABLE,MULTICAST> address : 192.168.1.254/24 broadcast : 192.168.1.255 address : 10.0.0.138/24 broadcast : 10.0.0.255 Interface : Internet index : 2 metric : 1 mtu : 1500 flags : <POINTOPOINT>...

  • Page 360: Grp Rttadd

    GRP Commands grp rttadd Add a translation rule to the GRP route translation list. SYNTAX: grp rttadd dst = <ip-address> [dstmsk = <ip-mask(dotted or cidr)>] tdst = <ip-address> [tdstmsk = <ip-mask(dotted or cidr)>] rttype = <{kernel | connect | static | rip}> intf = <string>...
  • Page 361 GRP Commands RELATED COMMANDS: grp rttdelete Delete a translation rule from the GRP route translation list. grp rttlist List the GRP route translation list. E-DOC-CTC-20060414-0007 v1.0...

  • Page 362: Grp Rttdelete

    GRP Commands grp rttdelete Delete a translation rule from the GRP route translation list. SYNTAX: grp rttdelete dst = <ip-address> [dstmsk = <ip-mask(dotted or cidr)>] tdst = <ip-address> [tdstmsk = <ip-mask(dotted or cidr)>] rttype = <{kernel | connect | static | rip}> intf = <string>...

  • Page 363: Grp Rttlist

    GRP Commands grp rttlist List the GRP route translation list. SYNTAX: grp rttlist EXAMPLE: =>grp rttlist GRP route translation list ----------------------------- Codes : K - kernel, C - connected, S - static, R - rip Destination Transl Destination Interface 10.0.0.1/32 =>...

  • Page 364: Grp Rip Bnadd

    GRP Commands grp rip bnadd Add an IP address to the Routing Information Protocol (RIP) black network list. SYNTAX: grp rip bnadd addr = <ip-address> [netmask = <ip-mask(dotted or cidr)>] where: addr The IP network address. REQUIRED Note Supports IP/mask notation. netmask The subnetmask associated with this IP address, either in dotted or in numerical cidr OPTIONAL...

  • Page 365: Grp Rip Bndelete

    GRP Commands grp rip bndelete Delete an IP address from the RIP black network list. SYNTAX: grp rip bndelete addr = <ip-address> [netmask = <ip-mask(dotted or cidr)>] where: addr The IP network address to be deleted. REQUIRED Note Supports IP/mask notation. netmask The subnetmask associated with this IP address, either in dotted or in numerical cidr OPTIONAL...

  • Page 366: Grp Rip Bnlist

    GRP Commands grp rip bnlist Show the RIP black network list. SYNTAX: grp rip bnlist EXAMPLE: =>grp rip bnlist RIP black network address list ---------------------------------- 192.6.11.150/24 192.6.12.150/24 => RELATED COMMANDS: grp rip bnadd Add an IP address to the Routing Information Protocol (RIP) black network list. grp rip bndelete Delete an IP address from the RIP black network list.

  • Page 367: Grp Rip Nbadd

    GRP Commands grp rip nbadd Add a RIP neighbor to the RIP neighbor list. SYNTAX: grp rip nbadd addr = <ip-address> where: addr The IP address of the RIP neighbour to be added. REQUIRED EXAMPLE: =>grp rip nblist RIP neighbor list ====================== =>grp bnadd addr=192.6.11.150 =>grp rip nblist...

  • Page 368: Grp Rip Nbdelete

    GRP Commands grp rip nbdelete Delete a RIP neighbor from the RIP neighbor list. SYNTAX: grp rip nbdelete addr = <ip-address> where: addr The IP address of the RIP neighbour to be deleted. REQUIRED EXAMPLE: =>grp nblist RIP neighbor list ====================== 192.6.11.150 =>grp rip nbdelete addr=192.6.11.150...

  • Page 369: Grp Rip Nblist

    GRP Commands grp rip nblist Show the RIP neighbor list. SYNTAX: grp rip nblist EXAMPLE: =>grp rip nblist RIP neighbor list ====================== 192.6.11.150 => RELATED COMMANDS: grp rip nbadd Add a RIP neighbor to the RIP neighbor list. grp rip nbdelete Delete a RIP neighbor from the RIP neighbor list.

  • Page 370: Grp Rip Rtfadd

    GRP Commands grp rip rtfadd Add a route filter to the RIP route filter list. SYNTAX: grp rip rtfadd addr = <ip-address> [netmask = <ip-mask(dotted or cidr)>] direction = <{incoming | outgoing}> intf = <string> where: addr The IP network address which must be filtered out. REQUIRED netmask The subnetmask associated with this address.

  • Page 371: Grp Rip Rtfdelete

    GRP Commands grp rip rtfdelete Delete a route filter from the RIP route filter list. SYNTAX: grp rip rtfdelete addr = <ip-address> [netmask = <ip-mask(dotted or cidr)>] direction = <{incoming | outgoing}> intf = <string> where: addr The IP network address which must be filtered out. REQUIRED netmask The subnetmask associated with this address.

  • Page 372: Grp Rip Rtflist

    GRP Commands grp rip rtflist List the RIP route filter list. SYNTAX: grp rip rtflist EXAMPLE: =>grp rip rtflist RIP route filter list ------------------------- Codes : I - Incoming, O - Outgoing Network Interface 10.0.0.138/24 PPPoA_1 => RELATED COMMANDS: grp rip rtfadd Add a route filter to the RIP route filter list.

  • Page 373: Hostmgr Commands

    Hostmgr Commands Hostmgr Commands Introduction This chapter describes the commands of the hostmgr command group. Contents This chapter covers the following commands: hostmgr add Add host device info to the host manager. hostmgr clear Remove all the hosts from the list. hostmgr config Configure the host manager parameters.

  • Page 374: Hostmgr Add

    Hostmgr Commands hostmgr add Add host device info to the host manager. SYNTAX: hostmgr add mac_addr = <hardware-address> [ip_addr = <ip-address>] [name = <string>] [type = <{generic_device|desktop_computer|laptop_computer| set_top_box|pda|gaming_console|phone|mobile_phone| printer|mass_storage_device}>] [ipintf = <string>] [ethintf = <string>] [physintf = <string>] where: mac_addr The MAC address of the host to be added.
  • Page 375 Hostmgr Commands EXAMPLE: =>hostmgr list MAC-address IP-address Flags Type Intf Hw Intf Hostname ----------- ---------- ----- ---- ---- ------- -------- 00:10:a4:ad:32:cf 192.168.1.64 Generic Device LocalNetwork ethif4 MyComputer =>hostmgr add mac_addr=00:10:a4:33:56:53 name=Play type=Playstation =>hostmgr list MAC-address IP-address Flags Type Intf Hw Intf Hostname ----------- ----------...

  • Page 376: Hostmgr Clear

    Hostmgr Commands hostmgr clear Remove all the hosts from the list. SYNTAX: hostmgr clear EXAMPLE: =>hostmgr list MAC-address IP-address Flags Type Intf Hw Intf Hostname ----------- ---------- ----- ---- ---- ------- -------- 00:10:a4:33:56:53 0.0.0.0 Playstation ethif1 ethif1 Play 00:10:a4:ad:32:cf 192.168.1.64 Generic Device LocalNetwork ethif4...

  • Page 377: Hostmgr Config

    Hostmgr Commands hostmgr config Configure the host manager parameters. SYNTAX: hostmgr config [state = <{disabled | enabled}>] [scantime = <number{10-600}>] [autosave = <{disabled | enabled}>] [trace = <{disabled | enabled}>] where: state Enable or disable the host manager daemon. OPTIONAL The default is enabled.

  • Page 378: Hostmgr Delete

    Hostmgr Commands hostmgr delete Delete the host device info from the host manager. SYNTAX: hostmgr delete mac_addr = <hardware-address> where: mac_addr The MAC address of the host to be removed. REQUIRED EXAMPLE: =>hostmgr list MAC-address IP-address Flags Type Intf Hw Intf Hostname ----------- ----------...

  • Page 379: Hostmgr Flush

    Hostmgr Commands hostmgr flush Flush the host manager configuration. The host manager configuration is cleaned and returned to default values. SYNTAX: hostmgr flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 380: Hostmgr List

    Hostmgr Commands hostmgr list List all the host devices. SYNTAX: hostmgr list EXAMPLE: =>hostmgr list MAC-address IP-address Flags Type Intf Hw Intf Hostname ----------- ---------- ----- ---- ---- ------- -------- 00:10:a4:33:56:53 0.0.0.0 Playstation ethif1 ethif1 Play 00:10:a4:ad:32:cf 192.168.1.64 Generic Device LocalNetwork ethif4 MyComputer...

  • Page 381: Ids Commands

    IDS Commands IDS Commands Introduction This chapter describes the commands of the ids command group. Contents This chapter covers the following commands: ids clear Reset the IDS statistics. ids config Display/modify the Intrusion Detection System (IDS) configuration. ids parser list Display the IDS parser configuration.

  • Page 382: Ids Clear

    IDS Commands ids clear Reset the IDS statistics. SYNTAX: ids clear RELATED COMMANDS: ids parser list Display the IDS parser configuration. E-DOC-CTC-20060414-0007 v1.0...

  • Page 383: Ids Config

    IDS Commands ids config Display/modify the Intrusion Detection System (IDS) configuration. SYNTAX: ids config [state = <{disabled | enabled}>] [trace = <{disabled|enabled}>] where: state Enable or disable IDS checks. OPTIONAL The default is enabled. trace Enable or disable tracing. OPTIONAL The default is disabled.

  • Page 384: Ids Parser List

    IDS Commands ids parser list Display the IDS parser configuration. SYNTAX: ids parser list [parser = <parser>] where: parser The name of the parser REQUIRED EXAMPLE: =>ids parser list parser state ----------------------------------------- fragment enabled scan enabled enabled proto enabled rate enabled =>...

  • Page 385: Ids Parser Modify

    IDS Commands ids parser modify Modify the IDS parser configuration. SYNTAX: ids parser modify parser = <string> state = <{disabled | enabled}> where: parser The name of the IDS parser of which the configuration must be modified. REQUIRED state Disable or enable the parser. REQUIRED EXAMPLE: =>ids list...

  • Page 386: Ids Pattern Clear

    IDS Commands ids pattern clear Reset the pattern tracker. SYNTAX: ids pattern clear EXAMPLE: =>ids pattern stats Pattern tracker statistics: --------------------------- memory : 32768 bytes maximum number of patterns : 512 number of active patterns number of recycled patterns number of pattern searches number of new patterns maximum number of hash collisions % of hash entries with collisions...

  • Page 387: Ids Pattern List

    IDS Commands ids pattern list Display the patterns in the pattern tracker. SYNTAX: ids pattern list [size = <{10 | 100 | full} or number>] where: size The size of the IDS pattern list that will be shown. OPTIONAL Choose between: full or, alternatively, specify a number.

  • Page 388: Ids Pattern Stats

    IDS Commands ids pattern stats Display the pattern tracker statistics. SYNTAX: ids pattern stats EXAMPLE: =>ids pattern stats Pattern tracker statistics: --------------------------- memory : 32768 bytes maximum number of patterns : 512 number of active patterns number of recycled patterns number of pattern searches number of new patterns maximum number of hash collisions...

  • Page 389: Ids Signature List

    IDS Commands ids signature list Displays the ids signature configuration SYNTAX ids signature list [signature = <fragment_sweep|zero-length_fragment_size| small_fragment_size|fragment_size_overrun| fragment_overlap|fragment_out-of-order| ip_protocol_scan|tcp_port_scan|tcp_syn_scan| stealth_tcp_null_scan|stealth_tcp_fin_scan| stealth_tcp_xmas_scan| stealth_tcp_full_xmas_scan| stealth_tcp_vecna_scan| stealth_tcp_syn-fin_scan| udp_port_scan|ping_sweep_scan|tcp_syn_flood| udp_flood|ping_flood|icmp_unreachable_storm| smurf_broadcast_attack|smurf_storm_attack| fraggle_broadcast_attack| fraggle_storm_attack|land_attack}>] where signature The name of the signature OPTIONAL EXAMPLE: =>ids signature list signature fragment_sweep signature parser hits action...

  • Page 390: Ids Signature Modify

    IDS Commands ids signature modify Modify the states of the signatures. SYNTAX ids signature modify [signature = <fragment_sweep| zero-length_fragment_size| small_fragment_size| fragment_size_overrun| fragment_overlap| fragment_out-of-order| ip_protocol_scan| tcp_port_scan|tcp_syn_scan| stealth_tcp_null_scan| stealth_tcp_fin_scan| stealth_tcp_xmas_scan| stealth_tcp_full_xmas_scan| stealth_tcp_vecna_scan| stealth_tcp_syn-fin_scan| udp_port_scan|ping_sweep_scan| tcp_syn_flood|udp_flood|ping_flood| icmp_unreachable_storm| smurf_broadcast_attack| smurf_storm_attack| fraggle_broadcast_attack| fraggle_storm_attack|land_attack}>] state = <{disabled|enabled}> where signature The name of the signature...

  • Page 391: Ids Threshold Clear

    IDS Commands ids threshold clear Reset the IDS thresholds to their default values. SYNTAX: ids threshold clear EXAMPLE: =>ids threshold list index name window limit scaling ----------------------------------------------------------------- ids scan enabled ids flood disabled ids tcp rate enabled ids udp rate disabled ids icmp rate disabled...

  • Page 392: Ids Threshold List

    IDS Commands ids threshold list Display the IDS thresholds. SYNTAX: ids threshold list EXAMPLE: =>ids threshold list index name window limit scaling ----------------------------------------------------------------- ids scan enabled ids flood disabled ids tcp rate disabled ids udp rate disabled ids icmp rate disabled ids ip rate disabled...

  • Page 393: Ids Threshold Modify

    IDS Commands ids threshold modify Modify the IDS thresholds. SYNTAX: ids threshold modify index = <number> [window = <number>] [limit = <number>] [scaling = <{disabled | enabled}>] where: index The index of the IDS threshold to be modified. REQUIRED Use the command :ids threshold list to obtain the indexes. window A number (of seconds).
  • Page 394 IDS Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 395: Igmp Commands

    IGMP Commands IGMP Commands Introduction This chapter describes the commands of the IGMP command group. Contents This chapter covers the following commands: igmp host config Display or modify global IGMP configuration. igmp host flush Flush the IGMP settings. igmp host list Show the IGMP groups.

  • Page 396: Igmp Host Config

    IGMP Commands igmp host config Display or modify global IGMP configuration. SYNTAX: igmp host config [requirera = <{disabled | enabled}>] where: requirera Enable or disable the router alert IP option check. OPTIONAL The default is disabled. EXAMPLE: =>igmp host confighostmgr list Router alert IP option check : disabled =>...

  • Page 397: Igmp Host Flush

    IGMP Commands igmp host flush Flush the IGMP settings. SYNTAX: igmp host flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 398: Igmp Host List

    IGMP Commands igmp host list Show the IGMP groups. SYNTAX: igmp host list [intf = <string>] [expand = <{disabled | enabled}>] where: intf The IP interface name. OPTIONAL expand Enable or disable expanded listing of IGMP groups. OPTIONAL The default is disabled. EXAMPLE: =>igmp host list Interface...

  • Page 399: Igmp Host Ifconfig

    IGMP Commands igmp host ifconfig Configure an IGMP interface. SYNTAX: igmp host ifconfig intf = <string> version = <{none |IGMPv1 |IGMPv2 |IGMPv3}> where: intf The IP interface name. REQUIRED version The IGMP version of the IP interface. REQUIRED Choose between: IGMPv1 IGMPv2 IGMPv3...

  • Page 400: Igmp Host Iflist

    IGMP Commands igmp host iflist Show the configuration of the IGMP interfaces. SYNTAX: igmp host iflist [expand = <{disabled | enabled}>] where: expand Enable or disable expanded listing of IGMP interfaces configuration. OPTIONAL The default is disabled. EXAMPLE: =>igmp host iflist Interface Version loop...

  • Page 401: Igmp Host Debug Clear

    IGMP Commands igmp host debug clear Clear IGMP statistics. SYNTAX: igmp host debug clear RELATED COMMANDS: igmp host debug stats Print IGMP statistics. E-DOC-CTC-20060414-0007 v1.0...

  • Page 402: Igmp Host Debug Stats

    IGMP Commands igmp host debug stats Print IGMP statistics. SYNTAX: igmp host debug stats EXAMPLE: =>igmp host debug stats Total IGMP messages received Too small IGMP messages received Too long IGMP messages received IGMP messages with bad checksum received IGMP messages with bad TTL received IGMP messages with no router alert IP option received IGMPv1 membership queries received IGMPv2 membership queries received...

  • Page 403: Igmp Proxy Config

    IGMP Commands igmp proxy config Configure the IGMP proxy. SYNTAX: igmp proxy config [state = <{disabled | enabled}>] [qi = <number{1-86400}>] [qri = <number{1-86400}>] [lmqi = <number{1-86400}>] [rv = <number{2-10}>] [requirera = <{disabled | enabled}>] [localgroup = <{disabled | enabled}>] where: state Enable or disable the IGMP proxy.
  • Page 404 IGMP Commands RELATED COMMANDS: igmp proxy grouplist Show the learned groups on an IGMP proxy interface. E-DOC-CTC-20060414-0007 v1.0...

  • Page 405: Igmp Proxy Flush

    IGMP Commands igmp proxy flush Flush all IGMP proxy settings and learned groups. SYNTAX: igmp proxy flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 406: Igmp Proxy Grouplist

    IGMP Commands igmp proxy grouplist Show the learned groups on an IGMP proxy interface. SYNTAX: igmp proxy grouplist [intf = <string>] [expand = <{disabled | enabled}>] where: intf The name of the IGMP proxy interface to be listed. OPTIONAL expand Enable or disable expanded listing of the learned groups on an OPTIONAL IGMP proxy interface.

  • Page 407: Igmp Proxy Ifconfig

    IGMP Commands igmp proxy ifconfig Configure an IGMP proxy interface. SYNTAX: igmp proxy ifconfig intf = <string> [state = <{inactive | downstream | upstream}>] [version = <{IGMPv1 | IGMPv2 | IGMPv3}>] [fastleave = <{disabled | enabled}>] where: intf The name of the IGMP proxy interface to be configured. REQUIRED state The state of the IGMP proxy interface.

  • Page 408: Igmp Proxy Iflist

    IGMP Commands igmp proxy iflist Show the configuration of an IGMP proxy interface. SYNTAX: igmp proxy iflist [expand = <{disabled | enabled}>] where: expand Enable or disable expanded listing of IGMP proxy interface OPTIONAL configuration. The default is disabled. EXAMPLE: =>igmp proxy iflist Interface State...

  • Page 409: Igmp Proxy Mbslist

    IGMP Commands igmp proxy mbslist Show the IGMP proxy membership database (merge of all learned groups. SYNTAX: igmp proxy mbslist E-DOC-CTC-20060414-0007 v1.0...

  • Page 410: Igmp Proxy Debug Clear

    IGMP Commands igmp proxy debug clear Clear IGMP proxy statistics. SYNTAX: igmp proxy debug clear RELATED COMMANDS: igmp proxy debug stats Print IGMP proxy statistics. igmp proxy debug Modify IGMP proxy trace configuration. traceconfig E-DOC-CTC-20060414-0007 v1.0...

  • Page 411: Igmp Proxy Debug Stats

    IGMP Commands igmp proxy debug stats Print IGMP proxy statistics. SYNTAX: igmp proxy debug stats EXAMPLE: =>igmp proxy debug stats IGMP proxy statistics: Total IGMP packets recv Too short IGMP packets recv IGMP packets with bad checksum recv IGMP packets with bad ttl recv IGMP packets with no route alert option recv IGMPv1 queries recv IGMPv2 queries recv...

  • Page 412: Igmp Proxy Debug Traceconfig

    IGMP Commands igmp proxy debug traceconfig Modify IGMP proxy trace configuration. SYNTAX: igmp proxy debug traceconfig [state = <{disabled | enabled}>] where: state Enable or disable tracing. OPTIONAL The default is disabled. RELATED COMMANDS: igmp proxy debug clear Clear IGMP proxy statistics. igmp proxy debug stats Print IGMP proxy statistics.

  • Page 413: Interface Commands

    Interface Commands Interface Commands Introduction This chapter describes the commands of the interface command group. Contents This chapter covers the following commands: interface list Display interfaces. E-DOC-CTC-20060414-0007 v1.0...

  • Page 414: Interface List

    Interface Commands interface list Display interfaces. SYNTAX: interface list [expand = <{disabled | enabled}>] [reverse = <{disabled | enabled}>] where: expand Enable or disable expanded listing of interfaces. OPTIONAL The default is disabled. reverse Enable or disable reverse listing (lower layer first instead of upper layer first). OPTIONAL The default is disabled.
  • Page 415 Interface Commands EXAMPLE: =>interface list Name Type State UL Interfaces ethif1 physical connected bridge ethif4 physical connected bridge usbif1 physical connected bridge RELAY connected Internet_ppp bridge connected eth0 atm_0_35 connected ethoa_0_35 atm_8_35 connected ethoa_8_35 ethoa_0_35 connected ethoa_8_35 connected Internet_ppp ppp not-connected Internet Internet...
  • Page 416 Interface Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 417: Ip Commands

    IP Commands IP Commands Introduction This chapter describes the commands of the ip command group. Contents This chapter covers the following commands: ip arpadd Add an entry to the ARP cache of a broadcast Internet Protocol (IP) interface. ip arpdelete Delete an entry from the ARP cache.
  • Page 418 IP Commands ip debug sendto Send UDP packets. ip debug stats Display IP statistics. ip debug traceconfig Display/modify the IP stack trace configuration. E-DOC-CTC-20060414-0007 v1.0...

  • Page 419: Ip Arpadd

    IP Commands ip arpadd Add an entry to the ARP cache of a broadcast Internet Protocol (IP) interface. SYNTAX: ip arpadd intf = <string> ip = <ip-range> [hwaddr = <hardware-address>] where: intf The IP interface name. REQUIRED The IP address (or range) of the entry to be added to the Address Resolution Protocol REQUIRED (ARP) cache.

  • Page 420: Ip Arpdelete

    IP Commands ip arpdelete Delete an entry from the ARP cache. SYNTAX: ip arpdelete intf = <string> ip = <ip-range> [hwaddr = <hardware-address>] where: intf The IP interface name. REQUIRED The IP address (or range) of the entry to be deleted. REQUIRED hwaddr The hardware address (for example the Ethernet MAC address) of the entry to be...

  • Page 421: Ip Arplist

    IP Commands ip arplist Display the ARP cache. SYNTAX: ip arplist EXAMPLE: =>ip arplist Interface IP-address HW-address Type eth0 10.0.0.1 00:10:a4:ad:32:cf STATIC eth0 10.0.0.2 00:00:00:00:00:00 DYNAMIC eth0 10.0.0.3 00:a0:24:ae:66:e1 STATIC => RELATED COMMANDS: ip arpadd Add an entry to the ARP cache of a broadcast Internet Protocol (IP) interface. ip arpdelete Delete an entry from the ARP cache.

  • Page 422: Ip Config

    IP Commands ip config Show/set global IP stack configuration options. SYNTAX: ip config [forwarding = <{disabled | enabled}>] [redirects = <{disabled | enabled}>] [checkoptions = <{disabled|enabled|transparent}>] [netbroadcasts = <{disabled | enabled}>] [ttl = <number{0-255}>] [defragmode = <{disabled | enabled}>] [addrcheck = <{off | own | static | dynamic}>] [mssclamping = <{disabled | enabled}>] [natloopback = <{disabled|enabled}>] [bitrate-window(sec) = <number{10-3600}>]...
  • Page 423 Minimum level of checking. Only the address configuration on the SpeedTouch™ is checked. static: Checking of the address configuration of the SpeedTouch™ and also of traffic: addresses of incoming packets; this checking is related to constants (for example an address may not be entirely composed of one‘s or zero‘s).

  • Page 424: Ip Flush

    IP Commands ip flush Flush all the static IP parameters. Dynamic configurations (for example from PPP or CIP links) remain. The flush command does not impact previously saved configurations. The command :ip flush deletes all local IP connectivity. Do not use this command during an IP based local connection, for example a Telnet CLI session, or web based CLI access.

  • Page 425: Ip Ifadd

    IP Commands ip ifadd Create an IP interface. SYNTAX: ip ifadd intf = <string> dest = <string> where: intf The name of the IP interface to be created. REQUIRED dest An network interface name. REQUIRED EXAMPLE: =>ip iflist Interface Group TX-Drop Status HW-address loop...

  • Page 426: Ip Ifattach

    IP Commands ip ifattach Attach an IP interface. SYNTAX: ip ifattach intf = <string> where: intf The name of the IP interface to be attached. REQUIRED EXAMPLE: =>ip iflist Interface Group TX-Drop Status HW-address loop local 65535 123966 75177 [UP] 00:0e:50:0f:fc:2c Internet 1500...

  • Page 427: Ip Ifconfig

    IP Commands ip ifconfig Configure the parameters of an IP interface. SYNTAX: ip ifconfig intf = <string> [mtu = <number{68-65535}>] [status = <{down | up}>] [hwaddr = <hardware-address>] [group = <string> or number] [linksensing = <{disabled | enabled}>] [primary = <{disabled | enabled}>] [mcastpromisc = <{disabled|enabled}>] where: intf...
  • Page 428 IP Commands EXAMPLE: =>ip iflist Interface Group TX-Drop Status HW-address loop local 65535 123966 75177 [UP] 00:0e:50:0f:fc:2c Internet 1500 DOWN RtPPPoE_ppp 1500 DOWN LocalNetwork 1500 86589 125262 [UP] 00:0e:50:0f:fc:2c myIPintf 1500 DOWN 00:0e:50:0f:fc:2c =>ip ifconfig intf = myIPintf [mtu] = 1500 [status] = up [hwaddr] = 00:0e:50:0f:fc:2c [group] = wan...

  • Page 429: Ip Ifdelete

    IP Commands ip ifdelete Delete an IP interface. SYNTAX: ip ifdelete intf = <string> where: intf The name of the IP interface to be deleted. REQUIRED EXAMPLE: =>ip iflist Interface Group TX-Drop Status HW-address loop local 65535 123966 75177 [UP] 00:0e:50:0f:fc:2c Internet 1500...

  • Page 430: Ip Ifdetach

    IP Commands ip ifdetach Detach an IP interface. SYNTAX: ip ifdetach intf = <string> where: intf The name of the IP interface to be detached. REQUIRED EXAMPLE: =>ip iflist expand=enabled Interface Group TX-Drop Status HW-address loop local 65535 130597 82240 [UP] 00:0e:50:0f:fc:2c BRHW-address...

  • Page 431: Ip Iflist

    IP Commands ip iflist Display all the IP interfaces. SYNTAX: ip iflist [expand = <{disabled | enabled}>] where: expand Enable or disable expanded listing. OPTIONAL The default is disabled. EXAMPLE: =>ip iflist Interface Group TX-Drop Status HW-address loop local 65535 123966 75177 [UP] 00:0e:50:0f:fc:2c...

  • Page 432: Ip Ifwait

    IP Commands ip ifwait Wait for a status change of an IP interface. SYNTAX: ip ifwait intf = <string> [timeout = <number{1-600000}>] [adminstatus = <{down | up}>] [operstatus = <{down | up}>] [linkstatus = <{down | up}>] where: intf The IP interface name. REQUIRED timeout A number between 1 and 600000 (seconds).

  • Page 433: Ip Ipadd

    IP Commands ip ipadd Assign an IP address to an IP interface. SYNTAX: ip ipadd intf = <string> addr = <ip-address> [netmask = <ip-mask(dotted or cidr)>] [pointopoint = <ip-address>] [addroute = <{disabled | enabled}>] where: intf The IP interface name. REQUIRED addr The new IP address to be added.

  • Page 434: Ip Ipconfig

    IP Commands ip ipconfig Modify an IP address configuration. SYNTAX: ip ipconfig addr = <ip-address> [preferred = <{disabled | enabled}>] [primary = <{disabled | enabled}>] where: addr The IP address to be configured. REQUIRED preferred Make this IP address the preferred address for that subnet (enabled) or not OPTIONAL (disabled).

  • Page 435: Ip Ipdelete

    IP Commands ip ipdelete Remove an IP address from an IP interface. SYNTAX: ip ipdelete addr = <ip-address> where: addr The IP address to be deleted. REQUIRED EXAMPLE: =>ip iplist Interface Type IP-address Point-to-point/Mask eth0 Ethernet 10.0.0.2 255.255.255.0 eth0 Ethernet 10.0.0.138 255.255.255.0 eth0...

  • Page 436: Ip Iplist

    IP Commands ip iplist Display all the configured IP addresses. SYNTAX: ip iplist EXAMPLE: =>ip iplist Interface Type IP-address Point-to-point/Mask LocalNetwork Ethernet 10.0.0.138 255.255.255.0 LocalNetwork Ethernet *192.168.1.254 255.255.255.0 loop Ethernet 127.0.0.1 255.255.255.255 => RELATED COMMANDS: ip ipadd Assign an IP address to an IP interface. ip ipdelete Remove an IP address from an IP interface.

  • Page 437: Ip Mcast Rtadd

    IP Commands ip mcast rtadd Add a multicast route to the multicast routing table. SYNTAX: ip mcast rtadd srcintf = <string> [src = <ip-address>] grp = <ip-address> dstintf = <string> [ttl = <number{1-255}>] [ttlincr = {disabled | enabled}] where: srcintf The source IP interface.

  • Page 438: Ip Mcast Rtdelete

    IP Commands ip mcast rtdelete Delete a multicast route from the multicast routing table. SYNTAX: ip mcast rtdelete srcintf = <string> [src = <ip-address>] grp = <ip-address> dstintf = <string> where: srcintf The source IP interface. REQUIRED The source IP address. OPTIONAL The multicast group IP address.

  • Page 439: Ip Mcast Rtlist

    IP Commands ip mcast rtlist Display the multicast routing table. SYNTAX: ip mcast rtlist [expand = <{disabled | enabled}>}] where: expand Enable or disable expanded listing. OPTIONAL The default is disabled. RELATED COMMANDS: ip mcast rtadd Add a multicast route to the multicast routing table. ip mcast rtdelete Delete a multicast route from the multicast routing table.

  • Page 440: Ip Mcast Flush

    IP Commands ip mcast flush Flush the multicast routing table. SYNTAX: ip mcast flush RELATED COMMANDS: ip mcast rtadd Add a multicast route to the multicast routing table. ip mcast rtdelete Delete a multicast route from the multicast routing table. ip mcast rtlist Display the multicast routing table.

  • Page 441: Ip Rtadd

    IP Commands ip rtadd Add a route to the routing table. SYNTAX: ip rtadd dst = <ip-address> [dstmsk = <ip-mask(dotted or cidr)>] [label = <string>] [gateway = <ip-address>] [intf = <string>] [srcintf = <string>] [metric = <number{0-255}>] where: The destination IP address(es) for this route. REQUIRED Note Supports ip/mask notation.

  • Page 442: Ip Rtdelete

    IP Commands ip rtdelete Delete a route from the routing table. SYNTAX: ip rtdelete dst = <ip-address> [dstmsk = <ip-mask(dotted or cidr)>] [label = <string>] [gateway = <ip-address>] [intf = <string>] where: The destination IP address(es) for this route. REQUIRED Note Supports cidr notation.

  • Page 443: Ip Rtlist

    IP Commands ip rtlist Display the routing table. SYNTAX: ip rtlist [expand = <{disabled | enabled}>] where: expand Enable or disable expanded listing. OPTIONAL The default is disabled. EXAMPLE: =>ip rtlist Destination Label Gateway Interface Metric Status 10.0.0.138/32 127.0.0.1 loop [UP] 127.0.0.1/32 127.0.0.1...

  • Page 444: Ip Auto Flush

    IP Commands ip auto flush Flush the autoIP interfaces. SYNTAX: ip auto flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 445: Ip Auto Ifadd

    IP Commands ip auto ifadd Create an autoIP interface. SYNTAX: ip auto ifadd intf = <string> [addr = <ip-address>] where: intf The name of the IP interface for which a link-local address has to be allocated. REQUIRED dest The preferred link-local IP address. OPTIONAL EXAMPLE: =>ip auto ifadd intf=eth0...

  • Page 446: Ip Auto Ifattach

    IP Commands ip auto ifattach Select and assign a link-local address to an autoIP interface. SYNTAX: ip auto ifattach intf = <string> where: intf The name of the autoIP interface for which a link-local address has to be attached. REQUIRED EXAMPLE: =>...

  • Page 447: Ip Auto Ifconfig

    IP Commands ip auto ifconfig Configure an autoIP interface. SYNTAX: ip auto ifconfig intf = <string> [addr = <ip-address>] [poolstart = <ip-address>] [poolend = <ip-address>] [netmask = <ip-mask(dotted or cidr)>] [claim = <number{0-65535}>] [defence = <number{0-65535}>] [probe = <number{0-65535}>] [interval = <number{1-65535}>] where: intf The name of the autoIP interface to be configured.
  • Page 448 IP Commands EXAMPLE: => ip auto iflist eth0 : [INIT] 0.0.0.0 poolstart = 169.254.1.1 poolend = 169.254.254.254 netmask = 255.255.0.0 claim : 10 defence : 5 probe : 4 interval : 2 (sec) probes sent = 0 collisions =>ip auto ifconfig intf=ipsec0 claim=5 probe=5 =>...

  • Page 449: Ip Auto Ifdelete

    IP Commands ip auto ifdelete Delete an existing autoIP interface. SYNTAX: ip auto ifdelete intf = <string> where: intf The name of the IP interface to be deleted. REQUIRED EXAMPLE: =>ip auto iflist ipsec0 : [SELECTING] 169.254.80.236 poolstart = 169.254.1.1 poolend = 169.254.254.254 netmask = 255.255.0.0 claim : 10...

  • Page 450: Ip Auto Ifdetach

    IP Commands ip auto ifdetach Release the link-local address for the given autoIP interface. SYNTAX: ip auto ifdetach intf = <string> where: intf The name of the autoIP interface for which a link-local address has to be detached. REQUIRED EXAMPLE: =>ip auto iflist ipsec0 : [SELECTING] 169.254.80.236...

  • Page 451: Ip Auto Iflist

    IP Commands ip auto iflist Display the autoIP interfaces. SYNTAX: ip auto iflist [intf = <string>] where: intf The name of the autoIP interface to be listed. OPTIONAL Note If not specified, all the autoIP interfaces are shown. EXAMPLE: =>ip auto iflist eth0 : [CLAIMED] 169.254.138.1 poolstart = 169.254.1.1...

  • Page 452: Ip Debug Httpprobe

    RTT taken to send a request and get a response back from the HTTP Server (the probe retrieves the base HTML page only as body, and does not request hyperlinks within this page). The SpeedTouch will send the HTTP request, receive the reply, and report the RTT statistics (including the size of the page returned).

  • Page 453: Ip Debug Sendto

    IP Commands ip debug sendto Send UDP packets. SYNTAX: ip debug sendto addr = <ip-address> [count = <number{1-1000000}>] [size = <number{0-20000}>] [interval = <number{1-1000000}>] [listen = <{disabled | enabled}>] [dffield = <{disabled | enabled}>] [srcaddr = <ip-address>] [srcport = <number{1-65535}>] dstport = <number{1-65535}>...
  • Page 454 IP Commands EXAMPLE: =>ip debug sendto addr=10.0.0.148 listen=on srcport=19 dstport=1025 =>ip debug sendto addr=10.0.0.148 listen=on srcport=19 dstport=1025 1 bytes from 10.0.0.148:1025 =>ip debug sendto addr=10.0.0.148 count=3 listen=on srcport=19 dstport=1025 1 bytes from 10.0.0.148:1025 1 bytes from 10.0.0.148:1025 1 bytes from 10.0.0.148:1025 =>...

  • Page 455: Ip Debug Stats

    IP Commands ip debug stats Display IP statistics. SYNTAX: ip debug stats EXAMPLE: =>ip debug stats Total datagrams received : 8599 IP header errors Datagrams forwarded : 23 Datagram forwarding errors Datagram forwarding resource errors Total Fragments received Fragments dropped due to resources or timeouts Datagrams reassembled Datagrams fragmented successfully Datagram fragmentation errors...

  • Page 456: Ip Debug Traceconfig

    IP Commands ip debug traceconfig Display/modify the IP stack trace configuration. SYNTAX: ip debug traceconfig [input = <{none | label | -telnet | -host | -broadcast | all}>] [forward = <{none | label | -telnet | -host | -broadcast | all}>] [output = <{none | label | -telnet | -host | -broadcast | all}>] [drop = <{none | label | -telnet | -host | -broadcast...
  • Page 457 IP Commands EXAMPLE: =>ip debug traceroute addr = 192.193.195.250 count=3 size=1 interval=1000 maxhops=30 dstport=33433 maxfail=5 type=icmp utime=yes :ip debug traceroute addr=192.193.195.250 ttl=1 192.193.195.250 676 us 1351 us 648 us => E-DOC-CTC-20060414-0007 v1.0...
  • Page 458 IP Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 459: Ipqos Commands

    IPQoS Commands IPQoS Commands Introduction This chapter describes the commands of the ipqos command group. Contents This chapter covers the following commands: ipqos config Configure IPQoS for a given destination interface for the IPQoS queues instantiation. ipqos list Display the IPQoS configuration. ipqos ef config Configure the IPQoS Expedited Forwarding (EF) timer for an interface.

  • Page 460: Ipqos Config

    IPQoS Commands ipqos config Configure IPQoS for a given destination interface for the IPQoS queues instantiation. When enabling or disabling IPQoS, take the following into account: if the WAN interface (for example PPPoA, IP oA,...) is detached at the time of enabling/disabling IPQoS, then the WAN interface has to be attached in order for the enabling/disabling of IPQoS to take effect.
  • Page 461 IPQoS Commands realtimerate A number between 1 and 100. OPTIONAL Represents a percentage of the interface bandwidth for rate-limiting of the Real Time queue. In case of congestion, the Real Time queue will only use this percentage of the interface bandwidth when there is also traffic on the other queues. The default is 80.

  • Page 462: Ipqos List

    IPQoS Commands ipqos list Display the IPQoS configuration. SYNTAX: ipqos list EXAMPLE: =>ipqos list Name State Discard Priority Size Size Rate Burst Weights (Packets) (KBytes) (KBytes) Weights atm_pvc_0_35 disabled early 25% 25% 25% 25% atm_pvc_8_35 enabled early 25% 25% 25% 25% =>...

  • Page 463: Ipqos Ef Config

    IPQoS Commands ipqos ef config Configure the IPQoS Expedited Forwarding (EF) timer for an interface. SYNTAX: ipqos ef config intf = <string> [state = <{disabled | enabled}>] [timeout = <number{100-10000}>] [mtu = <number{68-65535}>] where: intf The name of the IP interface. REQUIRED state Enable or disable the IPQoS EF timer for the interface.

  • Page 464: Ipqos Ef List

    IPQoS Commands ipqos ef list Display the IPQoS EF timers. SYNTAX: ipqos ef list EXAMPLE: =>ipqos ef list Interface State Timeout (ms) (bytes) loop disabled 1000 65535 Rt_PPPoA2 enabled 1000 1500 eth0 disabled 1000 1500 => RELATED COMMANDS: ipqos ef config Configure the IPQoS Expedited Forwarding (EF) timer for an interface.

  • Page 465: Ipqos Ef Stats

    IPQoS Commands ipqos ef stats Display the IPQoS EF timer statistics. SYNTAX: ipqos ef stats EXAMPLE: =>ipqos ef stats Interface State Remain (ms) loop active Rt_PPPoA2 active eth0 disabled => RELATED COMMANDS: ipqos ef config Configure the IPQoS Expedited Forwarding (EF) timer for an interface. ipqos ef list Display the IPQoS EF timers.

  • Page 466: Ipqos Meter Add

    IPQoS Commands ipqos meter add Add an IPQoS meter. SYNTAX: ipqos meter add name = <string> where: name The name of the IPQoS meter to be added. REQUIRED EXAMPLE: =>ipqos meter add name=Test =>ipqos meter list Test [STOPPED]: LABEL: INTF: DROP : droprate : 102400kbps burst: 64KB...

  • Page 467: Ipqos Meter Clear

    IPQoS Commands ipqos meter clear Clear the IPQoS meter statistics. SYNTAX: ipqos meter clear EXAMPLE: =>ipqos meter stats Name # packets # packets # packets accepted dropped marked Test2 =>ipqos meter clear =>ipqos meter stats Name # packets # packets # packets accepted dropped...

  • Page 468: Ipqos Meter Config

    IPQoS Commands ipqos meter config Modify an IPQoS meter configuration. SYNTAX: ipqos meter config name = <string> [label = <string>] [intf = <string>] [droprate = <number{0-102400}>] [markrate = <number{0-102400}>] [burst = <number{0-128}>] [dropaction = <{count | drop}>] [markaction = <{count | mark}>] [tosmarking = <{disabled | enabled}>] [tos = <number{0-255}>] [dscp = <DSCP name>...
  • Page 469 IPQoS Commands markaction The mark action. OPTIONAL Choose between: count: only the statistics for arriving IP packets that are in excess of the configured markrate will be updated. mark: arriving IP packets that are in excess of the configured markrate, will be marked according to the setting of the parameter classification.

  • Page 470: Ipqos Meter Delete

    IPQoS Commands ipqos meter delete Delete an IPQoS meter. SYNTAX: ipqos meter delete name = <string> where: name The name of the IPQoS meter to be deleted. REQUIRED EXAMPLE: =>ipqos meter list Test2 [STOPPED]: LABEL: DSCP INTF: Internet DROP : droprate : 102400kbps burst: 64KB action: drop...

  • Page 471: Ipqos Meter Flush

    IPQoS Commands ipqos meter flush Flush all IPQoS meters. SYNTAX: ipqos meter flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 472: Ipqos Meter List

    IPQoS Commands ipqos meter list Display the IPQoS meters. SYNTAX: ipqos meter list EXAMPLE: =>ipqos meter list Test2 [STOPPED]: LABEL: DSCP INTF: Internet DROP : droprate : 102400kbps burst: 64KB action: drop MARK : markrate : 102400kbps burst: 64KB action: count tosmarking : enabled type : tos...

  • Page 473: Ipqos Meter Start

    IPQoS Commands ipqos meter start Start an IPQoS meter. SYNTAX: ipqos meter start name = <string> where: name The name of the stopped IPQoS meter. REQUIRED EXAMPLE: =>ipqos meter list Test2 [STOPPED]: LABEL: DSCP INTF: Internet DROP : droprate : 102400kbps burst: 64KB action: drop MARK : markrate...

  • Page 474: Ipqos Meter Stats

    IPQoS Commands ipqos meter stats Display the IPQoS meter statistics. SYNTAX: ipqos meter stats EXAMPLE: =>ipqos meter stats Name # packets # packets # packets accepted dropped marked Test2 => RELATED COMMANDS: ipqos meter clear Clear the IPQoS meter statistics. E-DOC-CTC-20060414-0007 v1.0...

  • Page 475: Ipqos Meter Stop

    IPQoS Commands ipqos meter stop Stop an IPQoS meter. SYNTAX: ipqos meter stop name = <string> where: name The name of the started IPQoS meter. REQUIRED EXAMPLE: =>ipqos meter list Test2 [STARTED]: LABEL: DSCP INTF: Internet DROP : droprate : 102400kbps burst: 64KB action: drop MARK : markrate...

  • Page 476: Ipqos Queue Clear

    IPQoS Commands ipqos queue clear Clear the IPQoS statistics. SYNTAX: ipqos queue clear EXAMPLE: =>ipqos queue stats Name Queue # packets # packets # packets # packets # packets Marking added marked removed dropped replaced PVC_1 0 1240 1240 1345 1345 =>ipqos queue clear =>ipqos queue stats...

  • Page 477: Ipqos Queue Config

    IPQoS Commands ipqos queue config Modify the IPQoS subqueue configuration. SYNTAX: ipqos queue config dest = <string> queue = <number{0-5}> [propagate = <{disabled | enabled}>] [ecnmarking = <{disabled | enabled}>] [ackfiltering = <{disabled | enabled}>] [maxpackets = <number{0-250}>] [maxbytes = <number{0-128}>] [respackets = <number{0-250}>] [resbytes = <number{0-128}>] [hold = <number>]...
  • Page 478 IPQoS Commands maxbytes A number between 0 and 128. OPTIONAL Represents the maximum size in kilobytes of this queue. The default is for the Real time queue and for the other queues. Note 0 means that a maximum size is not enforced. respackets A number between 0 and 250.

  • Page 479: Ipqos Queue List

    IPQoS Commands ipqos queue list Display the IPQoS subqueue configuration. SYNTAX: ipqos queue list [dest = <string}>] where: dest The destination interface for the IPQoS queues instantiation. OPTIONAL This is an ATM phonebook entry. Note If not specified, the IPQoS subqueue configuration for all the interfaces will be shown.

  • Page 480: Ipqos Queue Stats

    IPQoS Commands ipqos queue stats Show the IPQoS subqueue statistics. SYNTAX: ipqos queue stats [dest = <string}>] where: dest The destination interface for the IPQoS queues instantiation. OPTIONAL This is an ATM phonebook entry. Note If not specified, the IPQoS subqueue statistics for all the interfaces will be shown.

  • Page 481: Label Commands

    Label Commands Label Commands Introduction This chapter describes the commands of the label command group. Contents This chapter covers the following commands: label add Create a new label. label delete Delete a label. label flush Flush all labels. label list Display the labels.

  • Page 482: Label Add

    Label Commands label add Create a new label. SYNTAX: label add name = <string> where: name The name of the label to be added. REQUIRED EXAMPLE: =>label list Name Class Bidirect Inherit Tosmark Type Value Ttlover Trace DSCP overwrite dscp defclass disabled disabled disabled tos disabled 0...

  • Page 483: Label Delete

    Label Commands label delete Delete a label. SYNTAX: label delete name = <string> [force = <{disabled | enabled}>] where: name The name of the label to be deleted. REQUIRED force Force delete and cleanup references even when the label is still in use (enabled) or not OPTIONAL (disabled).

  • Page 484: Label Flush

    Label Commands label flush Flush all labels. The flush command does not impact previously saved configurations. SYNTAX: label flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 485: Label List

    Label Commands label list Display the labels. SYNTAX: label list [name = <string>] where: name The name of the label to be displayed. OPTIONAL Note If not specified, all the labels will be displayed. EXAMPLE: =>label list Name Class Bidirect Inherit Tosmark Type Value...

  • Page 486: Label Modify

    Label Commands label modify Modify a label configuration. SYNTAX: label modify name = <string> [classification = <{ignore | overwrite | increase}>] [defclass = <number{0-15} | dscp | default>] [ackclass = <number{0-15} | defclass | prioritize>] [bidirectional = <{disabled | enabled}>] [inheritance = <{disabled | enabled}>] [tosmarking = <{disabled | enabled}>] [tos = <number{0-255}>]...
  • Page 487 Label Commands bidirectional The label applies to the initiator stream, the returning stream (the current OPTIONAL connection) as well as to the child connections (enabled) or not (disabled). The default is disabled. inheritance The label will be copied to all child connection streams in the same direction OPTIONAL (enabled) or not (disabled).

  • Page 488: Label Chain Add

    Label Commands label chain add Add a new label chain. SYNTAX: label chain add chain = <string> where: chain The name of the chain to be added. REQUIRED EXAMPLE: =>label chain list Chains ====== Name Description ------------------------------------------------- routing_labels system rt_user_labels user rt_default_labels user...

  • Page 489: Label Chain Delete

    Label Commands label chain delete Delete a label chain. SYNTAX: label chain delete chain = <string> where: chain The name of the chain to be deleted. REQUIRED EXAMPLE: =>label chain list Chains ====== Name Description ------------------------------------------------- routing_labels system rt_user_labels user rt_default_labels user qos_labels...

  • Page 490: Label Chain Flush

    Label Commands label chain flush Flush all label chains. SYNTAX: label chain flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 491: Label Chain List

    Label Commands label chain list Display a list of chains. SYNTAX: label chain list [format = <{pretty | cli}>] where: format Select the output format of the list. OPTIONAL Choose between: pretty: the configuration is shown as intuitive output in clear text. cli: the configuration is shown via the CLI commands configuration.

  • Page 492: Label Rule Add

    Label Commands label rule add Add a label rule. SYNTAX: label rule add chain = <chain name> [index = <number>] [name = <string>] [clink = <chain name>] [srcintf [!]= <string>] [srcip [!]= <{ip address | private}>] [dstip [!]= <{ip address | private}>] [serv [!]= <{service name}>] [log = <{disabled | enabled}>] [state = <{disabled | enabled}>]...
  • Page 493 Label Commands EXAMPLE: =>label rule list Rules (flags: C=Constant, D=Dynamic, E=Enable, L=Log) ===== Chain Flags Rule -------------------------------------------------------------------------------------------------- routing_labels : link rt_user_labels : link rt_default_labels qos_labels : link qos_user_labels : link qos_default_labels qos_default_labels : VoIP sip *.* > *.* : VoIP h323 *.* >...
  • Page 494 Label Commands RELATED COMMANDS: label rule delete Delete a label rule. label rule list Display a list of label rules. E-DOC-CTC-20060414-0007 v1.0...

  • Page 495: Label Rule Delete

    Label Commands label rule delete Delete a label rule. SYNTAX: label rule delete chain = <string> index = <number> where: chain The name of the chain in which a rule must be deleted. REQUIRED index The index number of the rule in the chain. REQUIRED Use the command :label rule list to obtain the index number of the applicable rule.
  • Page 496 Label Commands RELATED COMMANDS: label rule add Add a label rule. label rule list Display a list of label rules. E-DOC-CTC-20060414-0007 v1.0...

  • Page 497: Label Rule Flush

    Label Commands label rule flush Flush all label rules. The chains themselves are not removed. The flush command does not impact previously saved configurations. SYNTAX: label rule flush [chain = <string>] where: chain The name of the chain to be flushed. OPTIONAL Note If not specified, all the rules for all the chains are flushed.

  • Page 498: Label Rule List

    Label Commands label rule list Display a list of label rules. SYNTAX: label rule list [chain = <string>] [format = <{pretty | cli}>] where: chain The name of the chain for which the rules must be listed. OPTIONAL Note If not specified, all rules for all chains are shown. format Select the output format of the list.
  • Page 499 Label Commands EXAMPLE: =>label rule list format=cli :label rule add chain=qos_default_labels index=1 serv=sip log=disabled state=enabled label=VoIP :label rule add chain=qos_default_labels index=2 serv=h323 log=disabled state=enabled label=VoIP :label rule add chain=qos_default_labels index=3 serv=telnet log=disabled state=enabled label=Interactive :label rule add chain=qos_default_labels index=4 serv=smtp log=disabled state=enabled label=Interactive :label rule add chain=qos_default_labels index=5 serv=imap4-ssl log=disabled state=enabled label=Interactive...

  • Page 500: Label Rule Modify

    Label Commands label rule modify Modify a label rule. SYNTAX: label rule modify chain = <chain name> index = <number> [newindex = <number>] [name = <string>] [clink = <chain name>] [srcintf [!]= <string>] [srcip [!]= <{ip address | private}>] [dstip [!]= <{ip address | private}>] [serv [!]= <{service name}>] [log = <{disabled | enabled}>] [state = <{disabled | enabled}>]...

  • Page 501: Label Rule Debug Clear

    Label Commands label rule debug clear Clear the label rule statistics. SYNTAX: label rule debug clear [chain = <string>] [index = <number>] where: chain The name of the chain in which the rule is to be found. OPTIONAL Note If not specified, the statistics for all the rules in all chains will be cleared. index The index number (determined by the position) of the rule in the chain.

  • Page 502: Label Rule Debug Stats

    Label Commands label rule debug stats Display the label rule statistics. SYNTAX: label rule debug stats [chain = <string>] [index = <number>] where: chain The name of the chain for which the statistics must be shown. OPTIONAL Note If not specified, the statistics for the rules applicable to all chains are shown. index The index number of the rule for which the statistics must be shown.

  • Page 503: Label Rule Debug Traceconfig

    Label Commands label rule debug traceconfig Display or modify the rule trace configuration. SYNTAX: label rule debug traceconfig [trace = <{disabled | enabled}>] where: trace Disable or enable rule traces. OPTIONAL The default is disabled. EXAMPLE: =>label rule debug traceconfig :label rule debug traceconfig state=disabled =>...
  • Page 504 Label Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 505: Language Commands

    Language Commands Language Commands Introduction This chapter describes the commands of the language command group. Contents This chapter covers the following commands: language config Select a language. language delete Delete one or all language archives. language list List the available language archives. E-DOC-CTC-20060414-0007 v1.0...

  • Page 506: Language Config

    Language Commands language config Select a language. SYNTAX: language config [language = <string>] [complete = <{yes | no}>] where: language Language code: OSI language code (2 chars) for language. OPTIONAL Example: for english. complete Enable translation for expert pages. OPTIONAL The default is yes.

  • Page 507: Language Delete

    Language Commands language delete Delete one or all language archives. SYNTAX: language delete [file = <string>] [all = <{yes | no}>] where: file The filename of the language archive to be removed. OPTIONAL Remove all languages archives (yes) or not (no). OPTIONAL The default is no.

  • Page 508: Language List

    Language Commands language list List the available language archives. SYNTAX: language list EXAMPLE: =>language list CODE LANGUAGE VERSION FILENAME en* English 5.3.0.10.0 <system> => The currently selected language is indicated by a “*” next to the OSI language code. RELATED COMMANDS: language config Select a language.

  • Page 509: Mbus Commands

    MBUS Commands MBUS Commands Introduction This chapter describes the commands of the mbus command group. Contents This chapter covers the following commands: mbus config Modify mbus parameters. mbus client config Modify client parameters. mbus client exec Execute mbus command. mbus client register Register cli client to mbus.

  • Page 510: Mbus Config

    MBUS Commands mbus config Modify mbus parameters. SYNTAX: mbus config [autoload = <{disabled | enabled}>] where: autoload Enable or disable autoload object tree at boot time. OPTIONAL The default is enabled. E-DOC-CTC-20060414-0007 v1.0...

  • Page 511: Mbus Client Config

    MBUS Commands mbus client config Modify client parameters. SYNTAX: mbus client config [writelock = <{enabled | disabled}>] [wlgetimeout = <number>] [wlidletimeout = <number>] [path = <quoted string>] [type = <idpath | keypath>] where: writelock Enable or disable mbus writelock. OPTIONAL The default is enabled.

  • Page 512: Mbus Client Exec

    MBUS Commands mbus client exec Execute mbus command. SYNTAX: mbus client exec cmd = <{addobject | deleteobject | getparamattributes | getparamcount | getparamnames | getparamvalues | getpath | setparamvalue}> [param = <quoted string>] [value = <quoted string>] [gettype = <{object | parameter | path}>] [depth = <number>] [processcmd = <{disabled | enabled}>] [readcommitted = <{disabled | enabled}>]...
  • Page 513 MBUS Commands RELATED COMMANDS: mbus client config Modify client parameters. mbus client register Register cli client to mbus. mbus client test Test functionality invoked. E-DOC-CTC-20060414-0007 v1.0...

  • Page 514: Mbus Client Register

    MBUS Commands mbus client register Register cli client to mbus. SYNTAX: mbus client register RELATED COMMANDS: mbus client config Modify client parameters. mbus client exec Execute mbus command. mbus client test Test functionality invoked. E-DOC-CTC-20060414-0007 v1.0...

  • Page 515: Mbus Client Test

    MBUS Commands mbus client test Test functionality invoked. SYNTAX: mbus client test [path = <quoted string>] [type = <{idpath | keypath}>] where: path Fully qualified mbus path. OPTIONAL type Path type. OPTIONAL Choose between: idpath keypath. The default is idpath. EXAMPLE: =>mbus client test pool name...

  • Page 516: Mbus Debug Stats

    MBUS Commands mbus debug stats Display mbus statistics. SYNTAX: mbus debug stats RELATED COMMANDS: mbus debug traceconfig Modify mbus trace settings. E-DOC-CTC-20060414-0007 v1.0...

  • Page 517: Mbus Debug Traceconfig

    MBUS Commands mbus debug traceconfig Modify mbus trace settings. SYNTAX: mbus debug traceconfig [level = <number{0-4}>] where: level A number between 0 and 4. OPTIONAL Represents the mbus trace level. RELATED COMMANDS: mbus debug stats Display mbus statistics. E-DOC-CTC-20060414-0007 v1.0...

  • Page 518: Mbus Listobjects

    MBUS Commands mbus listobjects Display the object instances. SYNTAX: mbus listobjects [path = <quoted string>] [type = <{idpath | keypath}>] [output = <{list | tree}>] [expand = <{disabled | enabled}>] where: path Fully qualified mbus path to list. OPTIONAL type Path type.

  • Page 519: Mbus Listtypes

    MBUS Commands mbus listtypes Display the registered objecttypes. SYNTAX: mbus listtypes [path = <quoted string>] [expand = <{disabled | enabled}>] where: path Fully qualified mbus path to list. OPTIONAL expand Enable or disable details. OPTIONAL The default is disabled. EXAMPLE: =>mbus listtypes - root + InternetGatewayDevice...

  • Page 520: Mbus Loadobjects

    MBUS Commands mbus loadobjects Load object instances of registered objecttypes. SYNTAX: mbus loadobjects [path = <quoted string>] [type = <{idpath | keypath}>] where: path Fully qualified mbus path. OPTIONAL type Path type. OPTIONAL Choose between: idpath keypath. The default is idpath. RELATED COMMANDS: mbus unloadobjects Unload object instances.

  • Page 521: Mbus Unloadobjects

    MBUS Commands mbus unloadobjects Unload object instances. SYNTAX: mbus unloadobjects [path = <quoted string>] [type = <{idpath | keypath}>] where: path Fully qualified mbus path. OPTIONAL type Path type. OPTIONAL Choose between: idpath keypath. The default is idpath. RELATED COMMANDS: mbus loadobjects Load object instances of registered objecttypes.
  • Page 522 MBUS Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 523: Memm Commands

    MEMM Commands MEMM Commands Introduction This chapter describes the commands of the memm command group. Contents This chapter covers the following commands: memm debug lock Modify lock trace settings. traceconfig memm debug traceconfig Modify memm trace settings. memm listobjects Display objects. memm stats Display memm statistics.

  • Page 524: Memm Debug Lock Traceconfig

    MEMM Commands memm debug lock traceconfig Modify lock trace settings. SYNTAX: memm debug lock traceconfig [level = <number{0-4}>] [name = <string>] where: level A number between 0 and 4. OPTIONAL Represents the memm trace level. name Application name filter for lock traces (empty displays all lock OPTIONAL traces).

  • Page 525: Memm Debug Traceconfig

    MEMM Commands memm debug traceconfig Modify memm trace settings. SYNTAX: memm debug traceconfig [level = <number{0-4}>] where: level A number between 0 and 4. OPTIONAL Represents the memm trace level. E-DOC-CTC-20060414-0007 v1.0...

  • Page 526: Memm Listobjects

    MEMM Commands memm listobjects Display objects. SYNTAX: memm listobjects [name = <quoted string>] where: name Select typename(s) to list (supports partial typename). OPTIONAL E-DOC-CTC-20060414-0007 v1.0...

  • Page 527: Memm Stats

    MEMM Commands memm stats Display memm statistics. SYNTAX: memm stats [name = <quoted string>] where: name Select typename(s) to list (supports partial typename). OPTIONAL EXAMPLE: =>memm stats pool name bytes cur,max,avail (max.%) count cur,max,avail ref cur,max,avail --------- ---------------------------- ------------------- ----------------- memm_pooldesc 1196, 1196,...
  • Page 528 MEMM Commands EXAMPLE: =>memm stats pool name bytes cur,max,avail (max.%) count cur,max,avail cur,max,avail ------------- --------------------------- ------------------- memm_pooldesc 1196, 1196, 1300 ( 92%) dynstr_pool 120 ( 60%) mbus_llist 2460, 2532, 4920 ( 51%) 205, 211, mbus_dynstr 2316, 2424, 4920 ( 49%) 193, 202, - strings buffer...

  • Page 529: Mlp Commands

    MLP Commands MLP Commands Introduction This chapter describes the commands of the mlp command group. Contents This chapter covers the following commands: mlp flush Flush all the Multi-Level access Policies (MLP) structures. mlp import Import all the scores. mlp debug export Export all the scores.

  • Page 530: Mlp Flush

    MLP Commands mlp flush Flush all the Multi-Level access Policies (MLP) structures. SYNTAX: mlp flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 531: Mlp Import

    MLP Commands mlp import Import all the scores. SYNTAX: mlp import [trace = <{disabled | enabled | full}>] where: trace Select the import trace level. OPTIONAL Choose between: disabled enabled full. The default is disabled. RELATED COMMANDS: mlp debug export Export all the scores.

  • Page 532: Mlp Debug Export

    MLP Commands mlp debug export Export all the scores. SYNTAX: mlp debug export RELATED COMMANDS: mlp import Import all the scores. E-DOC-CTC-20060414-0007 v1.0...

  • Page 533: Mlp Debug Stats

    MLP Commands mlp debug stats Display MLP statistics. SYNTAX: mlp debug stats EXAMPLE: =>mlp debug stats Roles (cur/free/max) : 8/7/15 Privileges (cur/free/max) : 35/25/60 ListItems (cur/free/max) : 31/119/150 => E-DOC-CTC-20060414-0007 v1.0...

  • Page 534: Mlp Debug Traceconfig

    MLP Commands mlp debug traceconfig Modify the MLP trace settings. SYNTAX: mlp debug traceconfig [trace = <{disabled | enabled | full}>] where: trace Select the trace level. OPTIONAL Choose between: disabled enabled full. The default is disabled. EXAMPLE: =>mlp debug traceconfig mlp trace: disabled =>...

  • Page 535: Mlp Privilege Add

    MLP Commands mlp privilege add Add a privilege. SYNTAX: mlp privilege add name = <quoted string> type = <{access | service}> [descr = <quoted string>] where: name The name of the new privilege. REQUIRED Note The maximum number of privileges is 60. type Select the privilege type.
  • Page 536 MLP Commands RELATED COMMANDS: mlp privilege delete Delete a privilege. mlp privilege list Display the privileges. E-DOC-CTC-20060414-0007 v1.0...

  • Page 537: Mlp Privilege Addzone

    MLP Commands mlp privilege addzone Add a zone to a privilege. Only one zone can be added at a time to a privilege. If multiple zones need to be added, the command :mlp privilege addzone must be executed for each zone to be added. SYNTAX: mlp privilege addzone name = <string>...

  • Page 538: Mlp Privilege Config

    MLP Commands mlp privilege config Modify a privilege. SYNTAX: mlp privilege config name = <string> [descr = <quoted string>] [score = <{hex-word}[:{hex-word}] ex: 'a12:c30f'>] where: name The name of the privilege to be modified. REQUIRED descr Set the privilege description. OPTIONAL Note The maximum length is 63 characters.

  • Page 539: Mlp Privilege Delete

    MLP Commands mlp privilege delete Delete a privilege. SYNTAX: mlp privilege delete name = <string> where: name The name of the privilege to be deleted. REQUIRED EXAMPLE: =>mlp privilege list type=access Privilege (type) Description ---------------------------- anyaccess (access) All access privileges granted AP1 (access) LAN _Local_all AP2 (access) LAN_Local with all secured channels AP3 (access) LAN_Local with all channels &...

  • Page 540: Mlp Privilege List

    MLP Commands mlp privilege list Display the privileges. SYNTAX: mlp privilege list [name = <string>] [type = <{access | service}>] [verbose = <{minimal | medium | all}>] where: name The name of the privilege to be listed. OPTIONAL Note If not specified, all the privileges will be shown. type Select the privilege type to be shown.
  • Page 541 MLP Commands RELATED COMMANDS: mlp privilege delete Add a privilege. mlp privilege delete Delete a privilege. E-DOC-CTC-20060414-0007 v1.0...

  • Page 542: Mlp Privilege Removezone

    MLP Commands mlp privilege removezone Remove a zone from a privilege. Only one zone can be removed at a time from a privilege. If multiple zones need to be removed, the command :mlp privilege removezone must be executed for each zone to be removed. SYNTAX: mlp privilege removezone name = <string>...

  • Page 543: Mlp Role Add

    MLP Commands mlp role add Add a role. SYNTAX: mlp role add name = <quoted string> parent = <string> [descr = <quoted string>] where: name The name of the new role. REQUIRED Note The maximum number of roles is 15. parent The name of the parent role.

  • Page 544: Mlp Role Addpriv

    MLP Commands mlp role addpriv Add a privilege to a role. SYNTAX: mlp role addpriv name = <string> access = <string> service = <string> where: name The name of the role. REQUIRED access The name of the access privilege to be added. REQUIRED service The name of the service privilege to be added.

  • Page 545: Mlp Role Config

    MLP Commands mlp role config Modify the role. SYNTAX: mlp role config name = <string> [parent = <string>] [descr = <quoted string>] where: name The name of the role to be configured. REQUIRED parent The name of the parent role. OPTIONAL descr The role description.

  • Page 546: Mlp Role Delete

    MLP Commands mlp role delete Delete a role. SYNTAX: mlp role delete name = <string> where: name The name of the role to be deleted. REQUIRED EXAMPLE: =>mlp role list Role (parent) Description ------------------------- root (-) The superuser SuperUser (root) Any service and any access from LAN/WAN/LOCAL TechnicalSupport (SuperUser) Any service and any channels from WAN Administrator (TechnicalSupport) Any service and any access from LAN/Local origin only PowerUser (Administrator) GUI(Service/overview page)via http/https from LAN origin...

  • Page 547: Mlp Role List

    MLP Commands mlp role list Display the roles. SYNTAX: mlp role list [name = <string>] [verbose = <{minimal | medium | all}>] where: name The name of the role to be listed. OPTIONAL Note If not specified, all the roles will be listed. verbose Limit the output list.

  • Page 548: Mlp Role Removepriv

    MLP Commands mlp role removepriv Remove a privilege from a role. SYNTAX: mlp role removepriv name = <string> access = <string> [service = <string>] where: name The name of the role. REQUIRED access The name of the access privilege to be deleted. REQUIRED service The name of the service privilege to be deleted.

  • Page 549: Nat Commands

    NAT Commands NAT Commands Introduction This chapter describes the commands of the nat command group. Contents This chapter covers the following commands: nat config Display/modify global NAT configuration options. nat flush Flush the current NAT configuration. nat ifconfig Modify address translation on an IP interface. nat iflist Display the address translation configuration on all the interfaces.

  • Page 550: Nat Config

    NAT Commands nat config Display/modify global NAT configuration options. SYNTAX: nat config [trace = <{disabled | enabled}>] where: trace Enable or disable traces. REQUIRED The default is disabled. EXAMPLE: =>nat config NAT traces : disabled =>nat config trace=enabled =>nat config NAT traces : enabled =>...

  • Page 551: Nat Flush

    NAT Commands nat flush Flush the current NAT configuration. SYNTAX: nat flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 552: Nat Ifconfig

    Address translation is disabled. enabled: Address translation is enabled. transparent: An inside address is translated into the same outside IP address. In fact, no translation happens and the IP packets passing through the SpeedTouch™ remain untouched. The default is disabled. EXAMPLE: =>nat iflist...

  • Page 553: Nat Iflist

    NAT Commands nat iflist Display the address translation configuration on all the interfaces. SYNTAX: nat iflist EXAMPLE: =>nat iflist Interface loop disabled Internet enabled RtPPPoE_ppp enabled LocalNetwork transparent => RELATED COMMANDS: nat ifconfig Modify address translation on an IP interface. E-DOC-CTC-20060414-0007 v1.0...

  • Page 554: Nat Mapadd

    NAT Commands nat mapadd Add an address mapping to a Network Address Translation (NAT) enabled interface. SYNTAX: nat mapadd intf = <string> [type = <{napt | nat}>] [outside_addr = <ip-range>] [inside_addr = <ip-range>] [access_list = <ip-range>] [foreign_addr = <ip-range>] [protocol = <{supported IP protocol} or number>] [outside_port = <port-range>] [inside_port = <port-range>] [mode = <{auto | inbound | outbound}>]...
  • Page 555 NAT Commands access_list The range of inside addresses to which the mapping is restricted. OPTIONAL This parameter is used for outbound traffic only. Represents the list of inside IP addresses (LAN devices) allowed to make use of this map. Allowed values are: An IP address (A.B.C.D or A.D, meaning A.0.0.D).
  • Page 556 NAT Commands mode The mode to create the portmap. OPTIONAL Choose between: auto inbound outbound. The standard is auto. EXAMPLE: =>nat maplist Idx Type Interface Outside Address Inside Address 1 NAPT eth0 any:80 127.0.0.1:8080 2 NAPT eth0 any:1080 127.0.0.1:8080 3 NAPT eth0 any:8080 127.0.0.1:8080 =>nat mapadd intf=myPPP_ppp type=napt outside_addr=100.100.100.1 access_list=10.0.0.0/24...

  • Page 557: Nat Mapdelete

    NAT Commands nat mapdelete Delete an address mapping from a NAT enabled interface. SYNTAX: nat mapdelete intf = <string> index = <number> where: intf The IP interface name. REQUIRED index The map index. REQUIRED Use the command :nat maplist to obtain a list of the mapindexes. EXAMPLE: =>nat maplist Idx Type Interface...

  • Page 558: Nat Maplist

    NAT Commands nat maplist Display the address mapping for a NAT enabled interface. SYNTAX: nat maplist [intf = <string>] [expand = <{disabled | enabled}>] where: intf The IP interface name. OPTIONAL Note If not specified, the address mapping for all the NAT enabled interfaces will be shown.

  • Page 559: Nat Tmpladd

    NAT Commands nat tmpladd Add an address mapping template. SYNTAX: nat tmpladd [intf = <string>] [group = <{wan|local|lan|tunnel|dmz|guest} or number>] [timeout = <number{0-65535}>] [type = <{napt | nat}>] outside_addr = <ip-range> [inside_addr = <ip-range>] [access_list = <ip-range>] [foreign_addr = <ip-range>] [protocol = <{supported IP protocol} or number>] [outside_port = <port-range>] [inside_port = <port-range>]...
  • Page 560 NAT Commands inside_addr The inside (typically private) IP address. OPTIONAL for NAT maps Inbound: Represents the address(es) to be used as destination address and NAPT after translation. maps. Outbound: This map will only apply if the source IP address is part of the inside address(es).
  • Page 561 NAT Commands outside_port The outside port number or range (only for maps of type napt). OPTIONAL for NAPT map. For a NAPT map: Represents the range of TCP/UDP ports to be used as dynamic port REQUIRED for range during the NAPT process. port-shifting map.

  • Page 562: Nat Tmpldelete

    NAT Commands nat tmpldelete Delete an address mapping template. SYNTAX: nat tmpldelete index = <number> where: index The index of the address mapping template to be deleted. REQUIRED Use the command :nat tmpllist to view the address mapping templates. EXAMPLE: =>nat tmpllist Idx Type Interface Ifgroup...

  • Page 563: Nat Tmpllist

    NAT Commands nat tmpllist Display the address mapping templates. SYNTAX: nat tmpllist [expand = <{disabled | enabled}>] where: expand Enable or disable expanded listing. OPTIONAL The default is disabled. EXAMPLE: =>nat tmpllist Idx Type Interface Ifgroup Outside Address Inside Address 1 NAPT any 100.200.100.1 unmapped...

  • Page 564: Nat Tmplinst

    NAT Commands nat tmplinst Instantiate address mapping templates for a given dynamic address. SYNTAX: nat tmplinst intf = <string> addr_index = <ip-address> dynamic_addr = <ip-address> where: intf The IP interface name. REQUIRED addr_index The outside IP address index/key to instantiate for. REQUIRED dynamic_addr The dynamic address to substitute the index/key with.

  • Page 565: Ppp Commands

    PPP Commands PPP Commands Introduction This chapter describes the commands of the ppp command group. Contents This chapter covers the following commands: ppp flush Flush all PPP interfaces. ppp ifadd Create a new PPP interface. ppp ifattach Attach a PPP interface. ppp ifconfig Configure a PPP interface.

  • Page 566: Ppp Flush

    PPP Commands ppp flush Flush all PPP interfaces. The flush command does not impact previously saved configurations. SYNTAX: ppp flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 567: Ppp Ifadd

    PPP Commands ppp ifadd Create a new PPP interface. SYNTAX: ppp ifadd intf = <string> where: intf The name for the new PPP interface. REQUIRED Note If not specified, the destination parameter must be specified. In this case the name of the destination will double as interface name. EXAMPLE: =>ppp iflist Internet: dest : RELAY...

  • Page 568: Ppp Ifattach

    PPP Commands ppp ifattach Attach a PPP interface. SYNTAX: ppp ifattach intf = <string> where: intf The name of the PPP interface to be attached. REQUIRED EXAMPLE: =>ppp iflist Internet: dest : RELAY [00:00:00] Retry : 10 mode = IP routing flags = echo magic accomp restart mru addr savepwd demanddial dns metric = 0 mru = 1492...
  • Page 569 PPP Commands RELATED COMMANDS: ppp ifdetach Detach a PPP interface. E-DOC-CTC-20060414-0007 v1.0...

  • Page 570: Ppp Ifconfig

    PPP Commands ppp ifconfig Configure a PPP interface. The interface to be configured must not be connected at the time of configuration. If this should be the case, use the command :ppp ifdetach before using the command :ppp ifconfig. SYNTAX: ppp ifconfig intf = <string>...
  • Page 571 The access concentrator is on this side of the PPPoE connection. OPTIONAL Choose between: enabled: the PPP connection is terminated on the Access Concentrator (here the SpeedTouch™ itself) disabled: the SpeedTouch™ is PPP client. The default is disabled. auth Select the authentication protocol. OPTIONAL Choose between: pap: Password Authentication Protocol (PAP) authentication will be forced.
  • Page 572 The IP address of the primary DNS server. OPTIONAL In case a primary DNS server is specified, the SpeedTouch™ will negotiate this IP address with the remote side. Note If not specified, the SpeedTouch™ will accept any IP address.
  • Page 573 PPP Commands idletrigger Consider the link being idle if no traffic is sent and/or received during the idle OPTIONAL time. Choose between: RxTx: The idle time period restarts when a packet is transmitted or received. Rx: The idle time period restarts when a packet is received. Transmitted packets are ignored.

  • Page 574: Ppp Ifdelete

    PPP Commands ppp ifdelete Delete a PPP interface. SYNTAX: ppp ifdelete intf = <intfname> where: intf The name of the PPP interface to be deleted. REQUIRED EXAMPLE: =>ppp iflist Internet: dest : RELAY [00:00:00] Retry : 10 mode = IP routing flags = echo magic accomp restart mru addr savepwd demanddial dns metric = 0 mru = 1492...

  • Page 575: Ppp Ifdetach

    PPP Commands ppp ifdetach Detach a PPP interface. SYNTAX: ppp ifdetach intf = <intfname> where: intf The name of the PPP interface to be detached. REQUIRED EXAMPLE: =>ppp iflist Internet: dest : RELAY [00:00:00] Retry : 10 mode = IP routing flags = echo magic accomp restart mru addr savepwd demanddial dns metric = 0 mru = 1492...
  • Page 576 PPP Commands RELATED COMMANDS: ppp ifattach Attach a PPP interface. E-DOC-CTC-20060414-0007 v1.0...

  • Page 577: Ppp Iflist

    PPP Commands ppp iflist Display the PPP interfaces. SYNTAX: ppp iflist [intf = <intfname>] where: intf The name of the PPP interface. OPTIONAL Note If not specified, all PPP interfaces are shown. EXAMPLE INPUT/OUTPUT : =>ppp iflist Internet: dest : RELAY [00:00:00] Retry : 10 mode = IP routing...

  • Page 578: Ppp Ifscan

    PPP Commands ppp ifscan Scan a PPPoE interface for available Access Concentrator and Service names. Use the command :ppp ifdetach for this interface before performing a scan on it. SYNTAX: ppp ifscan intf = <string> [time = <number{0-36000}>] where: intf The name of the PPPoE interface to be scanned.

  • Page 579: Ppp Rtadd

    PPP Commands ppp rtadd Add a route to the routing table when the PPP link comes up. This route configuration will determine which local hosts are allowed to use this link and/or which remote destinations should be or should not be reachable. The interface must not be connected when a route configuration is added.
  • Page 580 PPP Commands EXAMPLE: =>ppp iflist Internet: dest : RELAY [00:00:00] Retry : 10 mode = IP routing flags = echo magic accomp restart mru addr savepwd demanddial dns metric = 0 mru = 1492 Tx inactivity = 1200s left = 0s auth = auto user = password =...

  • Page 581: Ppp Rtdelete

    PPP Commands ppp rtdelete Delete the route for a PPP link. The interface must not be connected when a route configuration must be deleted. If the interface is connected, use the command :ppp ifdetach for this interface. SYNTAX: ppp rtdelete intf = <intfname>...
  • Page 582 PPP Commands EXAMPLE: =>ppp iflist Internet: dest : RELAY [00:00:00] Retry : 10 mode = IP routing flags = echo magic accomp restart mru addr savepwd demanddial dns metric = 0 mru = 1492 Tx inactivity = 1200s left = 0s auth = auto user = password =...

  • Page 583: Ppp Relay Flush

    PPP Commands ppp relay flush Remove all Ethernet interfaces from the PPP relay agent list and terminate all sessions. The flush command does not impact previously saved configurations. SYNTAX: ppp relay flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 584: Ppp Relay Ifadd

    PPP Commands ppp relay ifadd Add an Ethernet interface to the PPP relay list. SYNTAX: ppp relay ifadd intf = <string> where: intf The Ethernet interface to be added to the PPP relay agent list. REQUIRED EXAMPLE: =>ppp relay iflist Interface HWaddr Status...

  • Page 585: Ppp Relay Ifconfig

    PPP Commands ppp relay ifconfig Modify an ethernet interface from the PPP relay agent list. SYNTAX: ppp relay ifconfig intf = <string> hwaddr = <hardware-address> where: inft The ethernet intf to be added to the PPP relay agent list. REQUIRED hwaddr The hardware address (e.g.

  • Page 586: Ppp Relay Ifdelete

    PPP Commands ppp relay ifdelete Delete an Ethernet interface from the PPP relay agent list. SYNTAX: ppp relay ifdelete intf = <string> where: intf The Ethernet interface to be deleted from the PPP relay agent list. REQUIRED EXAMPLE: =>ppp relay iflist Interface HWaddr Status...

  • Page 587: Ppp Relay Iflist

    PPP Commands ppp relay iflist Display all Ethernet interfaces added to the PPP relay agent list. SYNTAX: ppp relay iflist where: intf The Ethernet interface to be added to the PPP relay agent list. REQUIRED EXAMPLE: =>ppp relay iflist Interface HWaddr Status ethoa_0_35...

  • Page 588: Ppp Relay Sesslist

    PPP Commands ppp relay sesslist Add an Ethernet interface to the PPP relay list. SYNTAX: ppp relay ifadd intf = <string> where: intf The Ethernet interface to be added to the PPP relay agent list. REQUIRED E-DOC-CTC-20060414-0007 v1.0...

  • Page 589: Pptp Commands

    PPTP Commands PPTP Commands Introduction This chapter describes the commands of the pptp command group. Contents This chapter covers the following commands: pptp ifadd Add a Point-to-Point Tunneling Protocol (PPTP) profile. pptp flush Flush the complete PPTP configuration. pptp list Show the current PPTP configuration.

  • Page 590: Pptp Ifadd

    PPTP Commands pptp ifadd Add a Point-to-Point Tunneling Protocol (PPTP) profile. Backwards compatible with previous release, use profiles instead. SYNTAX: pptp ifadd dest = <string> [rate = <number{10-10000}>] [encaps = <{vcmux | nlpid}>] [ac = <{never | always | keep}>] where: dest The WAN destination for this PPTP tunnel.

  • Page 591: Pptp Flush

    PPTP Commands pptp flush Flush the complete PPTP configuration. The flush command does not impact previously saved configurations. SYNTAX: pptp flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 592: Pptp List

    PPTP Commands pptp list Show the current PPTP configuration. SYNTAX: pptp list EXAMPLE: =>pptp list Dialstr Destination Encaps State User DIALUP_PPP3 default vcmux never CONNECTED (10.0.0.2) => E-DOC-CTC-20060414-0007 v1.0...

  • Page 593: Pptp Profadd

    PPTP Commands pptp profadd Define a new PPTP profile. SYNTAX: pptp profadd name = <string> [qos = <string>] [encaps = <{vcmux | nlpid}>] [ac = <{never | always | keep}>] where: name The name of the new PPTP profile. REQUIRED The name of the qosbook entry, containing the settings for this profile.

  • Page 594: Pptp Profdelete

    PPTP Commands pptp profdelete Delete a PPTP profile. SYNTAX: pptp profdelete name <string> where: name The name of the PPTP profile to be deleted. REQUIRED EXAMPLE: =>pptp proflist Profile Encaps Relay_PPP1 default nlpid always PPTPLink default vcmux never =>pptp profdelete name=PPTPLink =>pptp proflist Profile Encaps...

  • Page 595: Pptp Proflist

    PPTP Commands pptp proflist Display all the current PPTP profiles. SYNTAX: pptp proflist EXAMPLE: =>pptp proflist Profile Encaps Relay_PPP1 default nlpid always PPTPLink default vcmux never => RELATED COMMANDS: pptp profadd Define a new PPTP profile. pptp profdelete Delete a PPTP profile. E-DOC-CTC-20060414-0007 v1.0...
  • Page 596 PPTP Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 597: Script Commands

    Script Commands Script Commands Introduction This chapter describes the commands of the script command group. Scripting is not a general purpose mechanism but is only used in the autoPVC/ILMI mechanism. It is recommended not to change the default scripts. Contents This chapter covers the following commands: script add Add a line to a script.

  • Page 598: Script Add

    Script Commands script add Add a line to a script. SYNTAX: script add name = <string> [index = <number>] command = <quoted string> where: name Name of the script in which a line must be added. REQUIRED index Line number OPTIONAL Note Use 0 to add a line.

  • Page 599: Script Delete

    Script Commands script delete Delete a complete script or a line from a script. SYNTAX: script delete name = <string> [index = <number>] where: name Name of the script to be deleted. REQUIRED index Line number to be deleted. OPTIONAL Use the command :script list to view the line numbers.

  • Page 600: Script Flush

    Script Commands script flush Flush all scripts. The flush command does not impact previously saved configurations. SYNTAX: script flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 601: Script List

    Script Commands script list Display a script or all scripts. SYNTAX: script list [name = <string>] where: name Name of the script to be listed. OPTIONAL Note If not specified, all the scripts are displayed. EXAMPLE Some of the default scripts are shown below: =>script list Script: autopvc_add_qos 0: qosbook add name _auto_$1_$2 class $3 tx_peakrate $4 tx_sustrate $5 tx_maxburst $6...

  • Page 602: Script Run

    Script Commands script run Run a script. SYNTAX: script run name = <string> pars = <string> where: name Name of the script to be run. REQUIRED Use the command :script list to obtain the names of the different scripts. pars Parameters separated with comma.

  • Page 603: Service Commands

    Service Commands Service Commands Introduction This chapter describes the commands of the service command group. Contents This chapter covers the following commands: service host assign Assign a host service to a LAN device. service host config Get/set global host service configuration options. service host add Add a host service.

  • Page 604: Service Host Assign

    Service Commands service host assign Assign a host service to a LAN device. SYNTAX: service host assign name = <quoted string> [host = <ip-address>] [log = <{disabled|enabled}>] where: name The name of an existing host service. REQUIRED host The IP address of the LAN device. OPTIONAL Enable or disable logging.

  • Page 605: Service Host Config

    Service Commands service host config Get/set global host service configuration options. SYNTAX: service host config [trace = <{disabled | enabled}>] where: trace Enable or disable traces. REQUIRED The default is disabled. EXAMPLE: =>service host config Service traces : disabled l=> E-DOC-CTC-20060414-0007 v1.0...

  • Page 606: Service Host Add

    Service Commands service host add Add a host service. SYNTAX: service host add name = <quoted string> [mode = <{server | client | custom}>] where: name The name of the new host service. REQUIRED mode The service mode. OPTIONAL Choose between: server: The service is defined for server purposes.

  • Page 607: Service Host Delete

    Service Commands service host delete Delete a host service. SYNTAX: service host delete name = <quoted string> where: name The name of the host service to be deleted. REQUIRED EXAMPLE: =>service host list Service Name Host User-Defined Mode --------------------------------------------------------------------------- Age of Empires unassigned server AIM Talk...

  • Page 608: Service Host Disable

    Service Commands service host disable Disable a host service. SYNTAX: service host disable [name = <quoted string>] where: name The name of the host service to be disabled. OPTIONAL Note If not specified, all the host services will be disabled. EXAMPLE: =>service host list Service Name...

  • Page 609: Service Host Flush

    Service Commands service host flush Flush all host services. SYNTAX: service host flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 610: Service Host List

    Service Commands service host list Display a list of host services. SYNTAX: service host list [name = <quoted string>] where: name The name of the host service to be listed. REQUIRED Note If not specified, all the host services will be listed. EXAMPLE: =>service host list Service Name...

  • Page 611: Service Host Stats

    Service Commands service host stats Show the host service statistics. SYNTAX: service host stats EXAMPLE: =>service host stats Services : 113 of 150 in use. Service maps : 225 of 300 in use. Trigger ports: 0 of 25 in use. =>...

  • Page 612: Service Host Triggerlist

    Service Commands service host triggerlist List all triggers. SYNTAX: service host triggerlist EXAMPLE: =>service triggerlist Triggerport Portrange Timeout ----------- --------- ------- => E-DOC-CTC-20060414-0007 v1.0...

  • Page 613: Service Host Rule Add

    Service Commands service host rule add Create/define a host service portmap. SYNTAX: service host rule add name = <quoted string> [protocol = <{any|tcp|udp} or number>] [baseport = <supported UDP port | number>] portrange = <port-range> [triggerport = <supported UDP port | number>] [triggerprotocol = <{any|tcp|udp} or number>] where: name...

  • Page 614: Service Host Rule Delete

    Service Commands service host rule delete Delete a host service portmap. SYNTAX: service host rule delete name = <quoted string> [protocol = <{any|tcp|udp} or number>] [baseport = <supported UDP port | number>] portrange = <port-range> [triggerport = <supported UDP port | number>] [triggerprotocol = <{any|tcp|udp} or number>] where: name...

  • Page 615: Service System Ifadd

    Service Commands service system ifadd Add an interface group to the access list. SYNTAX: service system ifadd name = <string> group = <{wan|local|lan|tunnel|dmz|guest} or number> where: name The name of the system service for this access list. REQUIRED group The interface group for this access list. REQUIRED EXAMPLE: =>service system list name=SIPPBX expand=enabled...

  • Page 616: Service System Ifdelete

    Service Commands service system ifdelete Delete an interface group from the access list. SYNTAX: service system ifdelete name = <string> group = <{wan|local|lan|tunnel|dmz|guest} or number> where: name The name of the system service for this access list. REQUIRED group The interface group for this access list. REQUIRED EXAMPLE: =>service system list name=SIPPBX expand=enabled...

  • Page 617: Service System Ipadd

    Service Commands service system ipadd Add an IP address (range) to the access list. SYNTAX: service system ipadd name = <string> ip = <ip-range> where: name The name of the system service for this access list. REQUIRED The IP address (range) for this access list. REQUIRED EXAMPLE: =>service system list name=SIPPBX expand=enabled...

  • Page 618: Service System Ipdelete

    Service Commands service system ipdelete Delete an IP address (range) from the access list. SYNTAX: service system ipdelete name = <string> ip = <ip-range> where: name The name of the system service for this access list. REQUIRED The IP address (range) for this access list. REQUIRED EXAMPLE: =>service system list name=SIPPBX expand=enabled...

  • Page 619: Service System List

    Service Commands service system list Display the system services. SYNTAX: service system list [name = <string>] [expand = <{disabled | enabled}>] [dynamics = <{disabled | enabled}>] [members = <{disabled | enabled}>] where: name The name of the system service to be displayed. OPTIONAL Note If not specified, all the system services will be displayed.
  • Page 620 Service Commands EXAMPLE: =>service system list Idx Name Protocol SrcPort DstPort Group State --------------------------------------------------------------------------------- 1 DNS-C enabled 2 SNTP enabled 3 SLA_ICMP_PING icmp enabled 4 SLA_UDP_PING enabled 5 SLA_ICMP_TRRT icmp enabled 6 SLA_UDP_TRRT 33434 enabled 7 SYSLOG enabled 8 HTTP enabled 9 HTTPs enabled...

  • Page 621: Service System Mapadd

    Service Commands service system mapadd Add a port map for a system service. SYNTAX: service system mapadd name = <{string}> intf = <{auto|loop|Internet|LocalNetwork}> port = <supported port or number> where: name The name of the system service for this map. REQUIRED intf The interface for this map.

  • Page 622: Service System Mapdelete

    Service Commands service system mapdelete Delete a port map for a system service. SYNTAX: service system mapdelete name = <string> intf = <{auto|loop|Internet|LocalNetwork}> port = <supported port or number> where: name The name of the system service for this map. REQUIRED intf The interface for this map.

  • Page 623: Service System Modify

    Service Commands service system modify Modify a system service. SYNTAX: service system modify name = <string> [state = <{disabled | enabled}>] [port = <supported port or number>] [srcintf = <string>] [log = <{disabled|enabled}>] [forward = <{disabled|enabled}>] where: name The name of the system service for this map. REQUIRED state Disable or enable this system service.
  • Page 624 Service Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 625: Shdsl Commands

    SHDSL Commands SHDSL Commands Introduction This chapter describes the commands of the Single Pair High-speed Digital Subscriber Line (SHDSL) command group. This command group is ONLY applicable for the SHDSL variant. Contents This chapter covers the following commands: shdsl info Displays shdsl lines &...

  • Page 626: Shdsl Info

    SHDSL Commands shdsl info Displays shdsl lines & device informations. SYNTAX: shdsl info EXAMPLE: =>shdsl line SHDSL Line in 2 Wires Line UP at 2312 kbit/s for 00:06:22 now Total bytes since power on Downstream : 18073 bytes Upstream : 33496 bytes Line Conditions : PBO Current State : Selected...

  • Page 627: Shdsl Device_Mode

    SHDSL Commands shdsl device_mode change device operational mode (CPE / CO)help d. SYNTAX: shdsl device_mode Startup = <{CPE|CO}> where: Startup Side to be used. REQUIRED Choose between: EXAMPLE: =>:shdsl device_mode Startup=cpe Device mode CPE selected! => E-DOC-CTC-20060414-0007 v1.0...

  • Page 628: Shdsl Local_Loopback

    SHDSL Commands shdsl local_loopback Local Loopback commands. SYNTAX: shdsl local_loopback enabled enabled = <{no | yes}> [timeout = <number{0-1000}>] [type = <{analog|digital}>] where: enabled Activate (yes) or deactivate (no) loopback.The default is no. REQUIRED timeout A number between 0 and 1000 (minutes). OPTIONAL Represents the loopback timeout value.

  • Page 629: Shdsl Remote_Loopback

    SHDSL Commands shdsl remote_loopback Remote Loopback commands. SYNTAX: shdsl remote loopback enabled = <{no | yes}> [timeout = <number{0-1000}>] [type = <{cpe|repeater}>] where: enabled Activate (yes) or deactivate (no) loopback.The default is no. REQUIRED timeout A number between 0 and 1000 (minutes). OPTIONAL Represents the loopback timeout value.

  • Page 630: Shdsl Version

    SHDSL Commands shdsl version Show the SHDSL version information. SYNTAX: shdsl version EXAMPLE: =>:shdsl version Firmware IDC version: 1.2.4.3 Vendor & Version Infos: CountryCode : 0x0f EOC Version : 0x01 SHDSL Version : 0x08 Vendor Code : TMMB Specific Code : 0 0 Vendor List : 20 20 20...

  • Page 631: Shdsl Config Show

    SHDSL Commands shdsl config show Show the SHDSL configuration. SYNTAX: shdsl config show EXAMPLE: =>:shdsl config show DEVICE CONFIGURATION -------------------- Device Mode: Wire Mode: 2-Wire Mode => E-DOC-CTC-20060414-0007 v1.0...

  • Page 632: Shdsl Config Co Annex

    SHDSL Commands shdsl config CO annex Configure the SHDSL annex. The line is restarted after execution of this command. SYNTAX: shdsl config CO annex Startup = <{AF|BG}> where: Startup Annex to comply with. REQUIRED Choose between: E-DOC-CTC-20060414-0007 v1.0...

  • Page 633: Shdsl Config Co Margins

    SHDSL Commands shdsl config CO margins Set the target Signal-to-Noise Ratio (SNR) margins. SYNTAX: shdsl config CO margins [enablecurrent = <{no | yes}>] [current = <{0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10}>] [enableworst = <{no | yes}>] [worst = <{-10 | -9 | -8 | -7 | -6 | -5 | -4 | -3...

  • Page 634: Shdsl Config Co Monitoring

    SHDSL Commands shdsl config CO monitoring Enables/Disables Transmission Quality (SNR) monitoring. SYNTAX: shdsl config CO monitoring Steady_State = <{disabled|enabled}> where: Steady_State Enable/disable monitoring of SNR. REQUIRED Choose between: enabled disabled E-DOC-CTC-20060414-0007 v1.0...

  • Page 635: Shdsl Config Co Rate

    SHDSL Commands shdsl config CO rate Set the line rate to be used. SYNTAX: shdsl config CO rate Min = <{192|256|320|384|448|512|576|640|704|768|832|896|960|1024| 1088|1152|1216|1280|1344|1408|1472|1536|1600|1664|1728| 1792|1856|1920|1984|2048|2112|2176|2240|2304|2312|2304| 2368|2432|2496|2560|2624|2688|2752|2816|2880|2944|3008| 3072|3136|3200|3264|3328|3392|3456|3520|3584|3648|3712| 3776|3840|3904|3968|4032|4096|4160|4224|4288|4352|4416| 4480|4544|4608|4672|4736|4800|4864|4928|4992|5056|5120| 5184|5248|5312|5376|5440|5504|5568|5632|5696}> Max = <{192|256|320|384|448|512|576|640|704|768|832|896|960|1024| 1088|1152|1216|1280|1344|1408|1472|1536|1600|1664|1728| 1792|1856|1920|1984|2048|2112|2176|2240|2304|2312|2304| 2368|2432|2496|2560|2624|2688|2752|2816|2880|2944|3008| 3072|3136|3200|3264|3328|3392|3456|3520|3584|3648|3712| 3776|3840|3904|3968|4032|4096|4160|4224|4288|4352|4416| 4480|4544|4608|4672|4736|4800|4864|4928|4992|5056|5120| 5184|5248|5312|5376|5440|5504|5568|5632|5696}> where: The minimum rate for the CO Side (for 1 loop). REQUIRED The maximum rate for the CO Side (for 1 loop).

  • Page 636: Shdsl Qual Lov

    SHDSL Commands shdsl qual LOV LOV test. SYNTAX: shdsl qual LOV annex = <{AF|BG}> [rate = <{192|256|320|384|448|512|576|640|704|768|832|896|960| 1024|1088|1152|1216|1280|1344|1408|1472|1536|1600|1664| 1728|1792|1856|1920|1984|2048|2112|2176|2240|2304|2312| 2304|2368|2432|2496|2560|2624|2688|2752|2816|2880|2944| 3008|3072|3136|3200|3264|3328|3392|3456|3520|3584|3648| 3712|3776|3840|3904|3968|4032|4096|4160|4224|4288|4352| 4416|4480|4544|4608|4672|4736|4800|4864|4928|4992|5056| 5120|5184|5248|5312|5376|5440|5504|5568|5632|5696}>] [pbo = <number{0-31}>] [pam = <{16|32}>] where: annex annex type. REQUIRED rate shdsl rate. OPTIONAL Power back off. OPTIONAL A number between 0 and 31.

  • Page 637: Shdsl Qual Lcl

    SHDSL Commands shdsl qual LCL LCL test. SYNTAX: shdsl qual LCL E-DOC-CTC-20060414-0007 v1.0...
  • Page 638 SHDSL Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 639: Snmp Commands

    SNMP Commands SNMP Commands Introduction This chapter describes the commands of the snmp command group. Contents This chapter covers the following commands: snmp config Show/set global Simple Network Management Protocol (SNMP) parameters. snmp get Get from the supplied SNMP Object IDentifier (OID). snmp getnext GetNext from the supplied SNMP OID.

  • Page 640: Snmp Config

    The default is Customer Premises. EXAMPLE: =>snmp config SNMP System Contact : Service Provider SNMP System Name : SpeedTouch SNMP System Location : Customer Premises All SNMP traps : ENABLED Delay, in secs before first trap is sent : 90 =>...

  • Page 641: Snmp Get

    The Object Identifier. Object ID to get from ... must include the instance which is 0 OPTIONAL for scalar objects, for example .1.3.6.1.2.1.1.1.0 sysDescription. Note If not specified, the sysDescription OID .1.3.6.1.2.1.1.1.0 is assumed. Its value is SpeedTouch™. EXAMPLE: =>snmp get VB_octetStr .1.3.6.1.2.1.1.1.0 SpeedTouch™...

  • Page 642: Snmp Getnext

    SNMP Commands snmp getnext GetNext from the supplied SNMP OID. SYNTAX: snmp getnext [ObjectId = <string>] where: ObjectID The Object Identifier. OPTIONAL Object ID to getnext from for example .1.3.6.1.2.1.1 system returns sysDescription. EXAMPLE: =>snmp getnext ObjectId=.1.3.6.1.2.1.1.4.0 VB_octetStr .1.3.6.1.2.1.1.5.0 Sascha =>...

  • Page 643: Snmp Walk

    [ObjectId = <string>] where: ObjectID The Object Identifier. OPTIONAL Object ID to walk from for example .1.3.6.1.2.1.1 system walks the system group. EXAMPLE: =>snmp walk ObjectId=.1.3.6.1.2.1.1 VB_octetStr .1.3.6.1.2.1.1.1.0 SpeedTouch™ 620 VB_objId .1.3.6.1.2.1.1.2.0 .1.3.6.1.4.1.637.61.2 VB_timeTicks .1.3.6.1.2.1.1.3.0 2927636 VB_octetStr .1.3.6.1.2.1.1.4.0 Service Provider VB_octetStr .1.3.6.1.2.1.1.5.0...

  • Page 644: Snmp Community Add

    SNMP Commands snmp community add Configure an SNMP community string to allow SNMP access over IP. SYNTAX: snmp community add securityname = <{RWCommunity | ROCommunity}> communityname = <password> where: securityname Configure access rights/restrictions control for the community name. REQUIRED Choose between: RWCommunity: read/write access rights ROCommunity: read only access rights.

  • Page 645: Snmp Community Delete

    SNMP Commands snmp community delete Delete an SNMP community string to prevent SNMP access over IP. SYNTAX: snmp community delete securityname = <{RWCommunity | ROCommunity}> where: securityname Select the access rights/restrictions control for the community name to be REQUIRED deleted. Choose between: RWCommunity: read/write access rights ROCommunity: read only access rights.

  • Page 646: Snmp Community List

    SNMP Commands snmp community list List all SNMP community strings in use for SNMP access over IP. SYNTAX: snmp community list EXAMPLE: =>snmp community list Read-write SNMP community name ***** Read-only SNMP community name ***** => RELATED COMMANDS: snmp community add Configure an SNMP community string to allow SNMP access over IP.

  • Page 647: Snmp Community Modify

    SNMP Commands snmp community modify Modify an SNMP community string to allow SNMP access over IP. SYNTAX: snmp community modify securityname = <{RWCommunity | ROCommunity}> communityname = <password> where: securityname Configure access rights/restrictions control for the community name. REQUIRED Choose between: RWCommunity: read/write access rights ROCommunity: read only access rights.

  • Page 648: Snmp Ifadd

    SNMP Commands snmp ifadd Create a new SNMP interface. SYNTAX: snmp ifadd intf = <string> dest = <string> where: intf The name for the new SNMP interface. REQUIRED dest The destination interface for this SNMP interface. REQUIRED EXAMPLE: =>snmp ifadd intf = new dest = Internet :snmp ifadd intf=new dest=Internet...

  • Page 649: Snmp Ifdelete

    SNMP Commands snmp ifdelete Delete an SNMP interface. SYNTAX: snmp ifdelete intf = <string> where: intf The name of the SNMP interface. REQUIRED EXAMPLE: =>snmp ifdelete intf = new :snmp ifdelete intf=new => RELATED COMMANDS: snmp ifadd Create a new SNMP interface. snmp ifattach Attach an SNMP interface.

  • Page 650: Snmp Ifattach

    SNMP Commands snmp ifattach Attach an SNMP interface. SYNTAX: snmp ifattach intf = <string> where: intf The name of the SNMP interface. REQUIRED EXAMPLE: =>snmp ifattach intf = Internet :snmp ifattach intf=Internet => RELATED COMMANDS: snmp ifadd Create a new SNMP interface. snmp ifdelete Delete an SNMP interface.

  • Page 651: Snmp Ifdetach

    SNMP Commands snmp ifdetach Detach an SNMP interface. SYNTAX: snmp ifdetach intf = <string> where: intf The name of the SNMP interface. REQUIRED EXAMPLE: =>snmp ifdetach intf = Internet :snmp ifdetach intf=Internet => RELATED COMMANDS: snmp ifadd Create a new SNMP interface. snmp ifdelete Delete an SNMP interface.

  • Page 652: Snmp Ifconfig

    SNMP Commands snmp ifconfig Modify an SNMP interface. SYNTAX: snmp ifconfig intf = <string> [securityname = <{RWCommunity | ROCommunity}>] [communityname = <password>] where: intf The name of the SNMP interface to configure. REQUIRED securityname Configure access rights/restrictions control for the community OPTIONAL name.

  • Page 653: Snmp Iflist

    SNMP Commands snmp iflist Display the SNMP interfaces. SYNTAX: snmp iflist [intf = <string>] where: intf The name of an SNMP interface to configure. OPTIONAL E-DOC-CTC-20060414-0007 v1.0...
  • Page 654 SNMP Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 655: Sntp Commands

    SNTP Commands SNTP Commands Introduction This chapter describes the commands of the Simple Network Time Protocol (SNTP) command group. Contents This chapter covers the following commands: sntp add Add a Network Time Protocol (NTP) server to the NTP server list. sntp config Modify/display the SNTP client configuration.

  • Page 656: Sntp Add

    SNTP Commands sntp add Add a Network Time Protocol (NTP) server to the NTP server list. The internal SpeedTouch™ real time clock (SNTP client) will be synchronized with the NTP server. SYNTAX: sntp add [addr = <ip-address>] [name = <string>] [version = <number{1-4}>]...

  • Page 657: Sntp Config

    SYNTAX: sntp config [enable = <{enabled | disabled}>] [poll = <number{1-60}>] where: enable Enable or disable the SpeedTouch™ SNTP client. OPTIONAL The default is enabled. poll A number between 1 and 60 (minutes). OPTIONAL Represents the time interval for the SNTP client to poll the configured NTP server and, if needed, (re-)synchronize its internal clock.

  • Page 658: Sntp Delete

    SNTP Commands sntp delete Delete an NTP server from the NTP server list. SYNTAX: sntp delete [addr = <ip-address>] [name = <string>] where: addr The IP address of the NTP server to be removed from the list. OPTIONAL Note This parameter is optional in this respect that either an IP address or the name of an NTP server must be specified.

  • Page 659: Sntp Flush

    SNTP Commands sntp flush Flush the NTP server list and the SNTP client configuration. SYNTAX: sntp flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 660: Sntp List

    Contacting...: The SpeedTouch™ SNTP client is trying to contact this NTP server. Unable to contact: The SpeedTouch™ SNTP client is unable to contact this NTP server. It may be down, or no end-to-end connectivity exists (no connection, no DSL,...). Synchronized: The SpeedTouch™ SNTP client was able to contact this NTP server. If required the internal clock has been synchronized with this NTP server.

  • Page 661: Software Commands

    Duplicate the active software version as the passive software version. software setpassive Mark a file as the passive software version. software switch Switch the active and passive versions and reboot the SpeedTouch™. software upgrade Reboot the modem to initiate the SW upgrade. software version Display the software version.

  • Page 662: Software Cleanup

    Software Commands software cleanup Check whether a disk clean-up is required. If necessary, garbage collection is performed. SYNTAX: software cleanup RELATED COMMANDS: software deletepassive Delete the passive software version. software setpassive Mark a file as the passive software version. E-DOC-CTC-20060414-0007 v1.0...

  • Page 663: Software Deletepassive

    Software Commands software deletepassive Delete the passive software version. SYNTAX: software deletepassive EXAMPLE: =>software version Flash image : 5.3.0.10.0 Active SW : ZZUIAA5.30A (5.3.0.a.0) Passive SW : ZZUIAA5.30A (5.3.0.a.0) =>software deletepassive =>software version Flash image : 5.3.0.10.0 Active SW : ZZUIAA5.30A (5.3.0.a.0) Passive SW =>...

  • Page 664: Software Download

    Software Commands software download Download parameters. SYNTAX: software download filetype = <{firmware | configuration}> url = <string> [username = <string>] [password = <string>] filesize = <string> [targetfilename = <string>] where: filetype The type of the file to be downloaded. REQUIRED Set the HTTP URL where the file is to be found including remote REQUIRED filename.

  • Page 665: Software Duplicate

    Software Commands software duplicate Duplicate the active software version as the passive software version. SYNTAX: software duplicate EXAMPLE: =>software version Flash image : 5.3.0.10.0 Active SW : ZZUIAA5.30A (5.3.0.a.0) Passive SW =>software duplicate =>software version Flash image : 5.3.0.10.0 Active SW : ZZUIAA5.30A (5.3.0.a.0) Passive SW : ZZUIAA5.30A (5.3.0.a.0)

  • Page 666: Software Setpassive

    Software Commands software setpassive Mark a file as the passive software version. Only correctly uploaded software, valid for the SpeedTouch™, can be marked as passive software. SYNTAX: software setpassive file = <string> where: file The filename (without directory path) of the software package.

  • Page 667: Software Switch

    Software Commands software switch Switch the active and passive versions and reboot the SpeedTouch™. Because rebooting implies a flush of all non-saved configurations, it is highly recommended to save the current configuration, for example via :saveall or :config save before executing a software switch.

  • Page 668: Software Upgrade

    Software Commands software upgrade Reboot the modem to initiate the SW upgrade. New software available on a remote LAN host will be uploaded to the modem. SYNTAX: software upgrade E-DOC-CTC-20060414-0007 v1.0...

  • Page 669: Software Version

    Software Commands software version Display the software version. SYNTAX: software version E-DOC-CTC-20060414-0007 v1.0...
  • Page 670 Software Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 671: Syslog Commands

    Syslog Commands Syslog Commands Introduction This chapter describes the commands of the syslog command group. Contents This chapter covers the following commands: syslog config Show/set the Syslog configuration. syslog flush Delete all rules from the Syslog collector rule list. syslog list Delete all rules from the Syslog collector rule list.

  • Page 672: Syslog Config

    Syslog Commands syslog config Show/set the Syslog configuration. SYNTAX: syslog config [activate = <{disabled | enabled}>] [timeout = <number{0-60}>] [format = <{standard|welf}>] where: activate Allow the Syslog daemon to send messages to collectors, present in the collector rule OPTIONAL list (enabled) or not (disabled). The default is enabled.

  • Page 673: Syslog Flush

    Syslog Commands syslog flush Delete all rules from the Syslog collector rule list. SYNTAX: syslog flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 674: Syslog List

    Syslog Commands syslog list Display the current syslog configuration. The Syslog collector rule list can hold up to 16 rules. SYNTAX: syslog list EXAMPLE: =>syslog list 1: all.debug 10.0.0.1 2: kern,auth,security,ftp.warning 10.10.10.101 => RELATED COMMANDS: syslog ruleadd Add a new rule to the Syslog configuration. syslog ruledelete Delete a rule from the syslog configuration.

  • Page 675: Syslog Ruleadd

    Specifying a severity actually means specifying to send syslog messages with a severity as specified, and all messages with a higher severity. For example, use sev=debug (lowest priority) to allow the SpeedTouch™ to send syslog messages of any severity to the collector; use sev=alert to only send alert messages (one but highest priority severity) and emergency messages (highest priority severity) to the collector.

  • Page 676: Syslog Ruledelete

    Syslog Commands syslog ruledelete Delete a rule from the syslog configuration. SYNTAX: syslog ruledelete rule_index = <number{1-16}> where: rule_index A number between 1 and 16. REQUIRED Represents the index of the rule to be deleted. Use the command :syslog list to view the index number of the rules. EXAMPLE: =>syslog list 1: all.debug...

  • Page 677: Syslog Msgbuf Flush

    Syslog Commands syslog msgbuf flush Flush all messages in the syslog message buffer. SYNTAX: syslog msgbuf flush EXAMPLE: =>syslog msgbuf show fac=kern sev=emerg hist=yes <0> SysUpTime: 14:45:43 KERNEL Controlled restart (after internal error or explicit system reboot) <0> SysUpTime: 02:58:18 KERNEL Controlled restart (after internal error or explicit system reboot) <0>...

  • Page 678: Syslog Msgbuf Show

    730). Note If not specified, the messages of all the facilities are shown. hist The show messages over several SpeedTouch™ reboots (enabled) or show only OPTIONAL messages since latest startup (disabled). Note If not specified, only the recent messages will be shown.

  • Page 679: Syslog Msgbuf Send

    “ Supported System Logging Severities” on page 730). hist Show messages over several SpeedTouch™ reboots (enabled) or show only messages OPTIONAL since latest startup (disabled). dest The IP address of the Syslog rule destination, in other words, the IP address to which the REQUIRED syslog messages must be sent.
  • Page 680 Syslog Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 681: System Commands

    Set/get the regional settings. system reboot Reboot the SpeedTouch™. system reset Reset the SpeedTouch™ to its factory or ISP defaults and reboot the device. system timedreboot Set or change a timed reboot for the SpeedTouch™. system debug autosave Autosave debugging commands system debug stats Show the SpeedTouch™...

  • Page 682: System Config

    System Commands system config Set/change the system configuration parameters. For a good operation of UPnP and the discovery mechanism, it is highly recommended not to change the system configuration settings. SYNTAX: system config [upnp = <{disabled | enabled}>] [tr64 = <{disabled | enabled}>] [mdap = <{disabled | enabled}>] [drst = <{disabled | enabled}>] [led = <{green | red | orange | flash | off}>]...
  • Page 683 System Commands autosavedelay A number between 0 and 600. OPTIONAL Represents the autosave delay in seconds (0 for immediate save). EXAMPLE: =>system config upnp discovery : enabled TR-64 discovery : disabled mdap discovery : enabled drst support : disabled reset button : enabled digest authentication : enabled : enabled...

  • Page 684: System Flush

    System Commands system flush Flush the current system configuration. The system password and the system config settings (dcache excluded) are flushed. The flush command does not impact previously saved configurations. SYNTAX: system flush EXAMPLE: =>system flush Security notification: Password changed, use 'saveall' to make it permanent. =>...

  • Page 685: System Locale

    System Commands system locale Set/get the regional settings. SYNTAX: system locale [dec_symbol = <{, | .}>] [group_symbol = <{. | ,}>] [date_separator = <{/ | - | .}>] [date_format = <{iso | ddmmyyyy | ddmmyy | mmddyyyy | mmddyy}>] [time_format = <{iso | hmmss}>] [datetime_format = <{iso | date+time | time+date}>] [duration_format = <{dhmmss | hmmss}>] where:...
  • Page 686 System Commands time_format Set the time format. OPTIONAL Choose between: hmmss. The default is iso. Note h = hours; mm = minutes; ss = seconds. datetime_format Set the date-time format. OPTIONAL Choose between: date+time time+date. The default is date+time. duration_format Set the duration format.

  • Page 687: System Reboot

    Reboot the SpeedTouch™. Non-saved configuration settings will be lost after reboot. SYNTAX: system reboot EXAMPLE: =>system reboot ..(lost session connectivity due to reboot) ..RELATED COMMANDS: system timedreboot Set or change a timed reboot for the SpeedTouch™.. E-DOC-CTC-20060414-0007 v1.0...

  • Page 688: System Reset

    System Commands system reset Reset the SpeedTouch™ to its factory or ISP defaults and reboot the device. All user specific settings and all saved configuration changes are lost after reboot. SYNTAX: system reset factory yes/no = <{yes | no}> proceed no/yes = <{no | yes}>...

  • Page 689: System Timedreboot

    System Commands system timedreboot Set or change a timed reboot for the SpeedTouch™. SYNTAX timedreboot [state = <{disabled|enabled}>] [time = <number{0-16384}>] [date = <string>] where: state Enable/Disable timed reboot. OPTIONAL The default is disabled. time Change default countdown time (Min).

  • Page 690: System Debug Autosave

    System Commands system debug autosave Autosave debugging commands SYNTAX: system debug autosave [trace = <{disabled|enabled}>] where: trace Enable or disable autosave traces OPTIONAL E-DOC-CTC-20060414-0007 v1.0...

  • Page 691: System Debug Stats

    Memory used by the CPU (first MB from the RAM) – not cached since it has to be realtime. Application memory: Memory used by the applications. min: The least amount of free memory detected during the uptime of the SpeedTouch™. E-DOC-CTC-20060414-0007 v1.0...

  • Page 692: System Ra Config

    System Commands system ra config Configure Remote management access parameters. SYNTAX: system ra config [secure = <{disabled | enabled}>] [port = <number>] [timeout = <number>] where: secure Enable or disable https. OPTIONAL The default is enabled. port Set the destination port for remote access. OPTIONAL The default is 51003.

  • Page 693: System Rtc Synchronize

    System Commands system rtc synchronize Do a SNTP update and synchronize the realtime clock. SYNTAX: system rtc synchronize E-DOC-CTC-20060414-0007 v1.0...

  • Page 694: System Rtc Settime

    Set/get date, time, timezone, daylight savings time, uptime. When synchronization with an external NTP server via the SpeedTouch™ SNTP client fails, this command allows to manually configure its internal clock. In cases without regular synchronization, accurate realtime clock settings can not be guaranteed.

  • Page 695: Tunnel Commands

    Tunnel Commands Tunnel Commands Introduction This chapter describes the commands of the tunnel command group. Contents This chapter covers the following commands: tunnel list Lists all tunnels. tunnel gre add Add a Generic Routing Encapsulation (GRE) tunnel. tunnel gre delete Delete a GRE tunnel.

  • Page 696: Tunnel List

    Tunnel Commands tunnel list Lists all tunnels. SYNTAX: tunnel list E-DOC-CTC-20060414-0007 v1.0...

  • Page 697: Tunnel Gre Add

    Tunnel Commands tunnel gre add Add a Generic Routing Encapsulation (GRE) tunnel. SYNTAX: tunnel gre add ifname = <quoted string> source = <ip-address> destination = <ip-address> [key = <string>] [checksum = <{disabled | enabled}>] where: ifname The name of the new GRE interface. REQUIRED source The source address of outer IP header.

  • Page 698: Tunnel Gre Delete

    Tunnel Commands tunnel gre delete Delete a GRE tunnel. SYNTAX: tunnel gre delete ifname = <quoted string> where: ifname The name of the GRE interface to be deleted. REQUIRED EXAMPLE: =>tunnel gre list # ifname encap source destination checksum 5 myGREintf 192.168.1.64 150.150.150.150 enabled 01234567...

  • Page 699: Tunnel Gre Flush

    Tunnel Commands tunnel gre flush Remove all GRE tunnels. SYNTAX: tunnel gre flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 700: Tunnel Gre List

    Tunnel Commands tunnel gre list List all GRE tunnels. SYNTAX: tunnel gre list EXAMPLE: =>tunnel gre list # ifname encap source destination checksum 5 myGREintf 192.168.1.64 150.150.150.150 enabled 01234567 6 yourGREintf gre 192.168.1.50 160.160.160.160 enabled 55667788 => RELATED COMMANDS: tunnel gre add Add a Generic Routing Encapsulation (GRE) tunnel.

  • Page 701: Tunnel Gre Modify

    Tunnel Commands tunnel gre modify Configure a GRE tunnel. SYNTAX: tunnel gre modify ifname = <quoted string> source = <ip-address> destination = <ip-address> [key = <string>] [checksum = <{disabled | enabled}>] where: ifname The name of the GRE interface to be modified. REQUIRED source The source address of outer IP header.

  • Page 702: Tunnel Ipip Add

    Tunnel Commands tunnel ipip add Add an IPIP tunnel. SYNTAX: tunnel ipip add ifname = <quoted string> source = <ip-address> destination = <ip-address> where: ifname The name of the new IPIP interface. REQUIRED source The source address of outer IP header. REQUIRED destination The destination address of outer IP header.

  • Page 703: Tunnel Ipip Delete

    Tunnel Commands tunnel ipip delete Delete an IPIP tunnel. SYNTAX: tunnel ipip delete ifname = <quoted string> where: ifname The name of the IPIP interface to be deleted. REQUIRED EXAMPLE: =>tunnel ipip list # ifname encap source destination 3 myIPIPtunnel ipip 10.0.0.1 100.100.100.1 4 yourIPIPtunnel ipip...

  • Page 704: Tunnel Ipip Flush

    Tunnel Commands tunnel ipip flush Remove all IPIP tunnels. SYNTAX: tunnel ipip flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 705: Tunnel Ipip List

    Tunnel Commands tunnel ipip list List all IPIP tunnels. SYNTAX: tunnel ipip list EXAMPLE: =>tunnel ipip list # ifname encap source destination 3 myIPIPtunnel ipip 10.0.0.1 100.100.100.1 4 yourIPIPtunnel ipip 10.0.0.2 100.200.100.1 => RELATED COMMANDS: tunnel ipip add Add an IPIP tunnel. tunnel ipip delete Delete an IPIP tunnel.

  • Page 706: Tunnel Ipip Modify

    Tunnel Commands tunnel ipip modify Configure an IPIP tunnel. SYNTAX: tunnel ipip modify ifname = <quoted string> source = <ip-address> destination = <ip-address> where: ifname The name of the IPIP interface to be modified. REQUIRED source The source address of outer IP header. REQUIRED destination The destination address of outer IP header.

  • Page 707: Upgrade Commands

    Upgrade Commands Upgrade Commands Introduction This chapter describes the commands of the upgrade command group. Contents This chapter covers the following commands: upgrade config Change the upgrade daemon configuration. upgrade start Start a new upgrade. upgrade debug traceconfig Enable/disable upgrade daemon tracing. upgrade debug sesslist Display the list of sessions.

  • Page 708: Upgrade Config

    Upgrade Commands upgrade config Change the upgrade daemon configuration. SYNTAX: upgrade config [state = <{disabled|enabled}>] [protocol = <{tftp|ftp|http|https}>] where: state Set the upgrade daemon state to enabled or disabled. OPTIONAL The default is disabled. protocol The transfer protocol to be used for file download. OPTIONAL Choose between: tftp...

  • Page 709: Upgrade Start

    Upgrade Commands upgrade start Start a new upgrade. SYNTAX: upgrade start protocol = <{tftp|ftp|http|https}> [server = <string>] [filename = <string>] where: protocol The protocol to be used for the download. REQUIRED Choose between: tftp http https The default is disabled. server The server name or IP address OPTIONAL...

  • Page 710: Upgrade Debug Traceconfig

    Upgrade Commands upgrade debug traceconfig Enable/disable upgrade daemon tracing. SYNTAX: upgrade debug traceconfig state = <{disabled|enabled}> where: state Set the upgared daemon state to enabled or disabled. REQUIRED E-DOC-CTC-20060414-0007 v1.0...

  • Page 711: Upgrade Debug Sesslist

    Upgrade Commands upgrade debug sesslist Display the list of sessions. SYNTAX: upgrade debug sesslist EXAMPLE: =>:upgrade debug sesslist Session 0: --------------------------------------------------------------- SessionId : 0x80c25850 State : IDLE Protocol : TFTP ServerName: FileName DestFile ServerIP : 0.0.0.0 Error Session 1: --------------------------------------------------------------- SessionId : 0x80c25c20 State : IDLE...

  • Page 712: Upgrade Profile Add

    Upgrade Commands upgrade profile add Add a new file profile description. SYNTAX: upgrade profile add extension = <{sts|ini}> [maxsize(KBytes) = <number>] action = <{none|config_load|script_load|reboot}> where: extension The extension of the new file profile. REQUIRED Choose between: maxsize The maximum filesize (in KBytes) allowed for files with the OPTIONAL extension of this profile.

  • Page 713: Upgrade Profile Modify

    Upgrade Commands upgrade profile modify Modify a file profile description. SYNTAX: upgrade profile modify extension = <{sts|ini}> [maxsize(KBytes) = <number>] action = <{none|config_load|script_load|reboot}> where: extension The extension of the new file profile. REQUIRED Choose between: maxsize The maximum filesize (in KBytes) allowed for files with the OPTIONAL extension of this profile.

  • Page 714: Upgrade Profile Delete

    Upgrade Commands upgrade profile delete Delete a file profile description. SYNTAX: upgrade profile delete extension = <{sts|ini}> where: extension The extension of the profile to be deleted. REQUIRED Choose between: RELATED COMMANDS: upgrade profile add Add a new file profile description. upgrade profile list Display a list of the file profile descriptions.

  • Page 715: Upgrade Profile List

    Upgrade Commands upgrade profile list Display a list of the file profile descriptions. SYNTAX: upgrade profile list RELATED COMMANDS: upgrade profile delete Delete a file profile description. upgrade profile modify Modify a file profile description. E-DOC-CTC-20060414-0007 v1.0...
  • Page 716 Upgrade Commands E-DOC-CTC-20060414-0007 v1.0...

  • Page 717: Upnp Commands

    UPnP Commands UPnP Commands Introduction This chapter describes the commands of the upnp command group. Contents This chapter covers the following commands: upnp config Configure the UPnP™ parameter(s). upnp flush Flush the UPnP™ configuration. upnp list List all registered devices. E-DOC-CTC-20060414-0007 v1.0...

  • Page 718: Upnp Config

    A number between 60 and 999999. OPTIONAL This parameter allows to configure how often the SpeedTouch™ sends a notification message to advertise its presence as an Internet Gateway Device (IGD) on the network. The default is 1800. Note...

  • Page 719: Upnp Flush

    UPnP Commands upnp flush Flush the UPnP™ configuration. The UPnP configuration will be reset to the default configuration. SYNTAX: upnp flush E-DOC-CTC-20060414-0007 v1.0...

  • Page 720: Upnp List

    UPnP Commands upnp list List all registered devices. Use this command to check whether a PPP connection is properly configured and thus advertised as a PPP service. SYNTAX: upnp list [verbose = <number{0-2}>] where: verbose Verbose level. OPTIONAL The default is 1. EXAMPLE: =>upnp list ---------------- device: IGD.xml ------------...

  • Page 721: User Commands

    User Commands User Commands Introduction This chapter describes the commands of the user command group. Contents This chapter covers the following commands: user add Add a user. user config Modify a user. user delete Delete a user. user flush Flush the users. user list Display the users.

  • Page 722: User Add

    User Commands user add Add a user. You can only add a user whose privileges are the same or lower than your own privileges. SYNTAX: user add name = <quoted string> password = <password> role = <string> [hash2 = <string>] [descr = <quoted string>] [defuser = <{disabled | enabled}>] [defremadmin = <{disabled | enabled}>]...
  • Page 723 User Commands In the example below, the user Administrator creates a new user JohnDoe. This user has lower access rights than the user “Poweruser”. {Administrator}=>user list User Flags Role ---- ----- ---- Administrator Administrator tech TechnicalSupport {Administrator}[user]=>add name = JohnDoe password = **** Please retype password for verification.

  • Page 724: User Config

    User Commands user config Modify a user. You can only modify a user whose privileges are the same or lower than your own privileges. SYNTAX: user config name = <string> [password = <password>] [role = <string>] [descr = <quoted string>] [defuser = <{disabled | enabled}>] [defremadmin = <{disabled | enabled}>] [deflocadmin = <{disabled | enabled}>]...
  • Page 725 User Commands EXAMPLE: {Superuser}=>user list User Role ==== ==== Superuser root aPoweruser Poweruser {Superuser}=>user config name=aPoweruser role=LAN_admin {Superuser}=>user list User Role ==== ==== Superuser root aPoweruser LAN_admin {Superuser}=> E-DOC-CTC-20060414-0007 v1.0...

  • Page 726: User Delete

    User Commands user delete Delete a user. You can only delete a user whose privileges are the same or lower than your own privileges. SYNTAX: user delete name = <string> where: name The name of the user to be deleted. REQUIRED EXAMPLE: {Administrator}=>user list...

  • Page 727: User Flush

    Flush the users. After execution of this command, the access to the SpeedTouch™ will no longer be protected by a password. The first user that logs on, after initiating a new Telnet session, will have the same administrative rights as a user with the role root.

  • Page 728: User List

    User Commands user list Display the users. SYNTAX: user list [name = <string>] [channel = <{ftp | telnet | http | mdap | serial}>] [origin = <{lan | wan | local}>] [secure = <{disabled | enabled}>] where: name The user name. OPTIONAL Note If not specified, all the users will be listed.
  • Page 729 User Commands EXAMPLE: {Administrator}=>user list User Flags Role ---- ----- ---- Administrator Administrator tech TechnicalSupport {Administrator}=>user list name=tech channel=http origin=wan service(s): r_lan, r_wan, r_fs_view, r_fs_retrieve, r_rtg, r_fwdg, r_nat, r_frwl, r_ipsec_norm, r_ipsec_adv, r_certificates, r_remote_mgnt, r_local, r_qos, w_lan, w_wan, w_fs_passive, w_rtg, w_fwdg, w_nat, w_frwl_norm, w_frwl_adv, w_frwe_mgnt, w_ipsec, w_certificates, w_remote_mgnt, w_local, w_qos, snd_lan, snd_wan, snd_local, and_lan, and_wan, and_frwl, and_local, user_admin, mlp_admin, secure_ipsec_term, secure_br, cli, cgi, ftp, mdap,...

  • Page 730: User Rights

    User Commands user rights Display the session rights. The user rights of the currently logged-in user are shown. SYNTAX: user rights EXAMPLE: {Administrator}=>user rights Current session info: user: name='Administrator', role='Administrator' access: lan (origin_lan), telnet (channel_telnet), unsecure (unsecure_connection) service(s): r_lan, r_wan, r_fs_view, r_fs_retrieve, r_rtg, r_fwdg, r_nat, r_frwl, r_ipsec_norm, r_ipsec_adv, r_certificates, r_remote_mgnt, r_local, r_qos, w_lan, w_wan, w_fs_passive, w_rtg, w_fwdg, w_nat, w_frwl_norm, w_frwl_adv, w_frwe_mgnt, w_ipsec, w_certificates, w_remote_mgnt, w_local, w_qos,...

  • Page 731: Abbreviations

    Abbreviations Abbreviations The table below lists all the abbreviations used in the CLI Reference Guide. Abbreviation Description AAL5 ATM Adaption Layer 5 Access Control List ADSL Asymmetric Digital Subscriber Line Advanced Encryption System Assured Forwarding Access Point Address Resolution Protocol Asynchronous Transfer Mode BSSID Base Service Set IDentifier...
  • Page 732 Abbreviations Abbreviation Description HDLC High-level Data Link Control HTTP HyperText Transfer Protocol ICMP Internet Control Message Protocol Intrusion Detection System Internet Gateway Device IGMP Internet Group Management Protocol Internet Key Exchange Internet Protocol IP oA IP over ATM IPCP Internet Protocol Control Protocol IPSec IP Security ISDN...
  • Page 733 Abbreviations Abbreviation Description Point-to-Point Protocol PPPoA PPP over ATM PPPoE PPP over Ethernet PPTP Point-to-Point Tunneling Protocol Power Spectral Density Pre-Shared Key Permanent Virtual Channel Quality of Service Routing Information Protocol Real Time Clock Round Trip Time Security Associations SFTP Secure File Transfer Protocol SHDSL Single Pair High-speed Digital Subscriber Line...
  • Page 734 Abbreviations Abbreviation Description VLAN Virtual Local Area Network VLSM Variable Length Subnet Masking Virtual Path Virtual Path Identifier Virtual Private Networking Wide Area Network Wireless Distribution System Wired Equivalent Privacy Weighted Fair Queueing WINS Windows Internet Naming Service WLAN Wireless LAN Wi-Fi Protected Access Weighted Round Robin E-DOC-CTC-20060414-0007 v1.0...

  • Page 735: System Logging Messages

    System Logging Messages System Logging Messages Introduction This chapter lists the different System Logging messages. Contents This chapter lists the different System Logging messages of the following modules: Auto-PVC Module Configuration Module DHCP Client Module DHCP Relay Module DHCP Server Module Dyndns Module Firewall Module LOGIN Module...

  • Page 736: Auto-Pvc Module

    System Logging Messages Auto-PVC Module Facility Severity Contents LOCAL5 WARNING AUTOPVC script <script_name> failed LOCAL5 WARNING AUTOPVC script <script_name> failed LOCAL5 WARNING AUTOPVC script <script_name> (name1, qosb_name) failed LOCAL5 WARNING AUTOPVC script <script_name> (name1, qosb_name, name2) failed LOCAL5 WARNING AUTOPVC script 'autopvc_change_qos (itable[i].intf, name1, qosb_name) failed LOCAL5 WARNING AUTOPVC script <script_name>...

  • Page 737: Dhcp Relay Module

    System Logging Messages DHCP Relay Module Facility Severity Contents LOCAL2 WARNING DHCR relay: Dropping boot rqs on interface <intf_id> due to invalid giaddr for server (<ip-address>) LOCAL2 WARNING DHCR relay: Dropping boot reply with invalid relay agent option from <intf_id> LOCAL2 WARNING DHCR relay: Dropping boot request containing the relay agent option from...

  • Page 738: Dyndns Module

    System Logging Messages Dyndns Module Facility Severity Contents DYNDNS WARNING <DYNDNS_ STR_ID> Connection failed to <dyndns_service> for client <dyndns_client> DYNDNS WARNING <DYNDNS_ STR_ID> Failed to resolve host name <dyndns_service> for client <dyndns_client> DYNDNS WARNING <DYNDNS_ STR_ID> Server Timeout(<dyndns_service>) for client <dyndns_client>...

  • Page 739: Login Module

    System Logging Messages LOGIN Module Facility Severity Contents AUTH NOTICE LOGOUT User <user_id> logged out on <connection_type> (<ip-address>) AUTH NOTICE LOGOUT User <user_id> logged out on <connection_type> AUTH NOTICE LOGOUT <session_name> session of user <user_id> killed (<ip-address>) AUTH NOTICE LOGOUT <session_name> session of user <user_id> killed AUTH NOTICE LOGIN User <user_id>...

  • Page 740: Ppp Module

    System Logging Messages PPP Module Facility Severity Contents LOCAL0 WARNING PPP Link up (<intf name>) LOCAL0 WARNING PPP Link down (<intf name>) AUTH ERROR PPP PAP authentication failed (<intf name>) [protocol reject] AUTH INFO PPP PAP on intf <intf_id> no response to authenticate-request AUTH NOTICE PPP PAP remote user <remote_user_name>...

  • Page 741: Rip Module

    System Logging Messages RIP Module Facility Severity Contents LOCAL1 INFO RIP Packet received from unknown interface LOCAL1 INFO RIP Packet size is smaller than minimum size LOCAL1 INFO RIP Packet size is greater than maximum size LOCAL1 INFO RIP Wrong RIP packet alignment LOCAL1 INFO RIP RIP version 0 with command <command-name>...

  • Page 742: Routing Module

    System Logging Messages Routing Module Facility Severity Contents LOCAL1 INFO GRP Default destination is routed via gateway <ip_address> LOCAL1 INFO GRP Default destination is not routed anymore via gateway <ip_address> SECURITY INFO LABEL Rule Id:<rule_id> Protocol: ICMP Src_ip: <ip_address> Dst_ip: <ip_address> ICMP message type: <message_type_name || message_type_id >...

  • Page 743: Software Module

    System Logging Messages Software Module Facility Severity Contents KERN INFO SOFTWARE Copying all data files from <file_location> to <file_location> KERN INFO SOFTWARE Switchover going down in <number> seconds KERN INFO SOFTWARE No passive software found, duplicating active software KERN INFO SOFTWARE Duplication of active software failed KERN INFO...
  • Page 744 System Logging Messages E-DOC-CTC-20060414-0007 v1.0...

  • Page 745: Supported Key Names

    Supported Key Names Supported Key Names Contents This chapter lists all the key names supported by the SpeedTouch™, that can be used for completing CLI command parameters: Supported IP Protocols Supported TCP/UDP Port Names Supported ICMP Type Names Supported System Logging Facilities...

  • Page 746: Supported Ip Protocols

    Supported Key Names Supported IP Protocols For more information on the listed IP protocols, see RFC1340 or www.iana.org. Protocol name Number Description Authentication Header (AH) Exterior Gateway Protocol (EGP) Encapsulating Security Payload (ESP) Gateway Gateway Protocol (GGP) General Routing Encapsulation (GRE) Host Monitoring Protocol (HMP) icmp Internet Control Message Protocol (ICMP)

  • Page 747: Supported Tcp/Udp Port Names

    Supported Key Names Supported TCP/UDP Port Names For more information on the listed TCP/UDP port assignments, see RFC1340 or www.iana.org. Port name Number Description echo Echo discard Discard systat Active Users daytime Daytime qotd Quote of the Day chargen Character Generator ftp-data File Transfer (Default data) File Transfer (Control)
  • Page 748 Supported Key Names Port name Number Description sntp Simple Network Time Protocol (SNTP) ingres-net INGRES-NET Service netbios-ns NETBIOS Naming System netbios-dgm NETBIOS Datagram Service netbios-ssn NETBIOS Session Service imap2 Internet Message Access Protocol (IMAP) v2 sql-net SQL-NET pcmail-srv PCMail Server snmp Simple Network Management Protocol (SNMP) snmptrap...
  • Page 749 Supported Key Names Port name Number Description utime UNIX Time Local routing process (on site); uses variant of Xerox NS Routing Information Protocol (RIP) timed Timeserver netwall For emergency broadcasts new-rwho uucpd remote who is uucp uucpd uucp-rlogin uucpd remote login rtsp Real Time Streaming Protocol (RTSP) whoami...

  • Page 750: Supported Icmp Type Names

    Supported Key Names Supported ICMP Type Names For more information on the listed ICMP type names, see RFC1340 or www.iana.org. ICMP Type name Number Description echo-reply Echo Reply destination-unreachable Destination Unreachable source-quench Source Quench redirect Redirect echo-request Echo router-advertisement Router Advertisement router-solicitation Router Solicitation time-exceeded...

  • Page 751: Supported System Logging Facilities

    UUCP subsystem cron Clock daemon security Security messages FTP daemon NTP subsystem audit Log audit logalert Log alert clock Clock daemon local0 Local use messages local1 local2 local3 local4 local5 local6 local7 All facilities (SpeedTouch™ specific facility parameter value. E-DOC-CTC-20060414-0007 v1.0...

  • Page 752: Supported System Logging Severities

    Error conditions warning Warning conditions notice Normal but significant conditions info Informational messages debug Debug-level messages IP Precedence For more information on IP Precedence, see the SpeedTouch™ IPQoS Configuration Guide. Precedence Number Routine Priority Immediate Flash Flash-Override CRITIC-ECP Internetwork-Control Network-Control...

  • Page 753: Differentiated Services Code Point (Dscp)

    Supported Key Names Differentiated Services Code Point (DSCP) For more information on DSCP, see RFC3260. PHB Name Binary value Expedited Forwarding 101110 af41 Assured Forwarding 41 100110 af42 Assured Forwarding 42 100100 af43 Assured Forwarding 43 100010 af31 Assured Forwarding 31 011110 af32 Assured Forwarding 32...
  • Page 754 Supported Key Names E-DOC-CTC-20060414-0007 v1.0...
  • Page 755 Index Index adsl config 10 aal5stats info 11 atm debug aal5stats 37 annex actlist shdsl config CO annex 610 eth bridge dynvlan actlist 246 appconfig connection appconfig 78 atm bundle add 23 appinfo atm oam vclb add 48 connection appinfo 80 atm phonebook add 51 atm qosbook add 56 applist...
  • Page 756 Index list 45 capture modify 46 eth switch mirror capture 279 send 47 clean config 40 list 41 connection clean 84 modify 42 cleanup ping 44 software cleanup 640 vclb add 48 clear del 49 atm bundle clear 26 list 50 connection clear 85 phonebook dhcp client debug clear 115...
  • Page 757 Index igmp proxy config 381 ip config 400 ipqos config 438 debug ipqos ef config 441 connection debug 87 ipqos meter config 446 exec 102 ipqos queue config 455 language config 484 list 73 atm oam vclb del 49 load 74 delete mbus client config 489 atm bundle delete 27...
  • Page 758 Index device_mode option flush 156 shdsl device_mode 605 instadd 157 dhcp instdelete 158 instlist 159 client tmpladd 160 debug tmpldelete 161 clear 115 tmpllist 162 stats 116 policy 146 traceconfig 117 pool flush 105 add 163 ifadd 106 config 164 ifattach 107 delete 166 ifconfig 108...
  • Page 759 Index dnsdelete list 232 set 233 dns client dnsdelete 178 unset 234 dnslist dns client dnslist 179 bridge clear 244 config 245 config 200 dynvlan debug actlist 246 connection add 247 list 202 config 248 proxy 203 delete 249 recycling 204 flush 250 stats 205 list 251...
  • Page 760 Index delete 283 dhcp client flush 105 list 284 dhcp relay flush 131 vlan dhcp rule flush 142 add 285 dhcp server flush 145 delete 286 dhcp server lease flush 154 flush 287 dhcp server option flush 156 list 288 dhcp server pool flush 167 dns client flush 180 exec...
  • Page 761 Index snmp getnext 620 stats 366 signature getaddress list 367 dns server debug spoof getaddress 187 modify 368 threshold getflags clear 369 dns server debug spoof getflags 188 list 370 grouplist modify 371 igmp proxy grouplist 384 ifadd atm bundle ifadd 30 atm ifadd 16 ifconfig 334 dhcp client ifadd 106...
  • Page 762 Index ip auto ifdelete 427 iflist 386 ip ifdelete 407 mbslist 387 ppp ifdelete 552 import ppp relay ifdelete 564 mlp import 509 service system ifdelete 594 snmp ifdelete 627 info ifdetach adsl info 11 autopvc info 67 atm ifdetach 21 connection info 90 dhcp client ifdetach 110 shdsl info 604...
  • Page 763 Index rtlist 417 rtadd 419 rtdelete 420 label rtlist 421 add 460 ipadd chain add 466 ip ipadd 411 delete 467 service system ipadd 595 flush 468 ipconfig list 469 ip ipconfig 412 delete 461 flush 462 ipdelete list 463 ip ipdelete 413 modify 464 service system ipdelete 596...
  • Page 764 Index eth switch group list 277 eth switch share list 284 eth vlan list 288 macadd expr list 296 eth bridge macadd 260 firewall level list 316 macdelete firewall list 309 firewall rule list 322 eth bridge macdelete 261 hostmgr list 358 maclist ids list 362 eth bridge maclist 262...
  • Page 765 Index stats 511 tmplinst 542 traceconfig 512 tmpllist 541 flush 508 nbadd import 509 grp rip nbadd 345 privilege add 513 nbdelete addzone 515 grp rip nbdelete 346 config 516 nblist delete 517 list 518 grp rip nblist 347 removezone 520 nslookup role dns client nslookup 181...
  • Page 766 Index iflist 565 traceroute 5 sesslist 566 rtadd rtadd 557 dhcp server pool rtadd 171 rtdelete 559 ip mcast rtadd 415 pptp ip rtadd 419 flush 569 ppp rtadd 557 ifadd 568 rtdelete list 570 dhcp server pool rtdelete 172 profadd 571 ip mcast rtdelete 416 profdelete 572...
  • Page 767 Index send version 608 atm oam cc send 47 show syslog msgbuf send 657 shdsl config show 609 sendto syslog msgbuf show 656 ip debug sendto 431 snmp service community add 622 host delete 623 add 584 list 624 assign 582 modify 625 config 583 config 618...
  • Page 768 Index service host stats 589 system debug stats 669 telnet stop telnet root command 7 ipqos meter stop 453 test switch mbus client test 493 software switch 645 timerclear synchronize connection timerclear 94 system rtc synchronize 671 timerconfig syslog connection timerconfig 95 config 650 flush 651 tmpladd...
  • Page 769 Index list 683 modify 684 list 674 walk snmp walk 621 unbind connection unbind 96 unloadobjects mbus unloadobjects 499 unset env unset 234 update dns server debug spoof update 190 upgrade config 686 debug sesslist 689 traceconfig 688 profile add 690 delete 692 modify 691 software upgrade 646...
  • Page 770 Index E-DOC-CTC-20060414-0007 v1.0...
