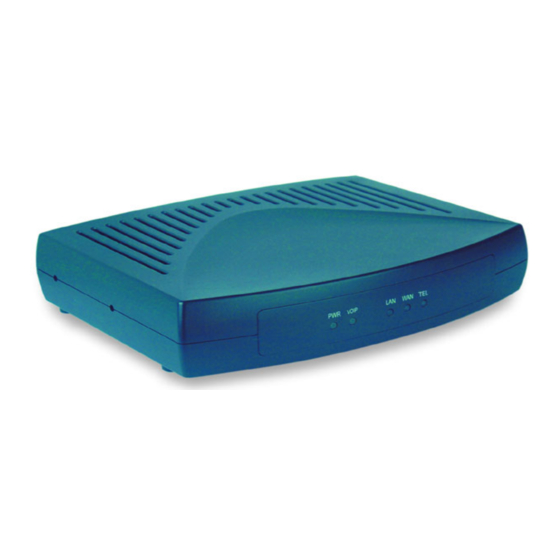

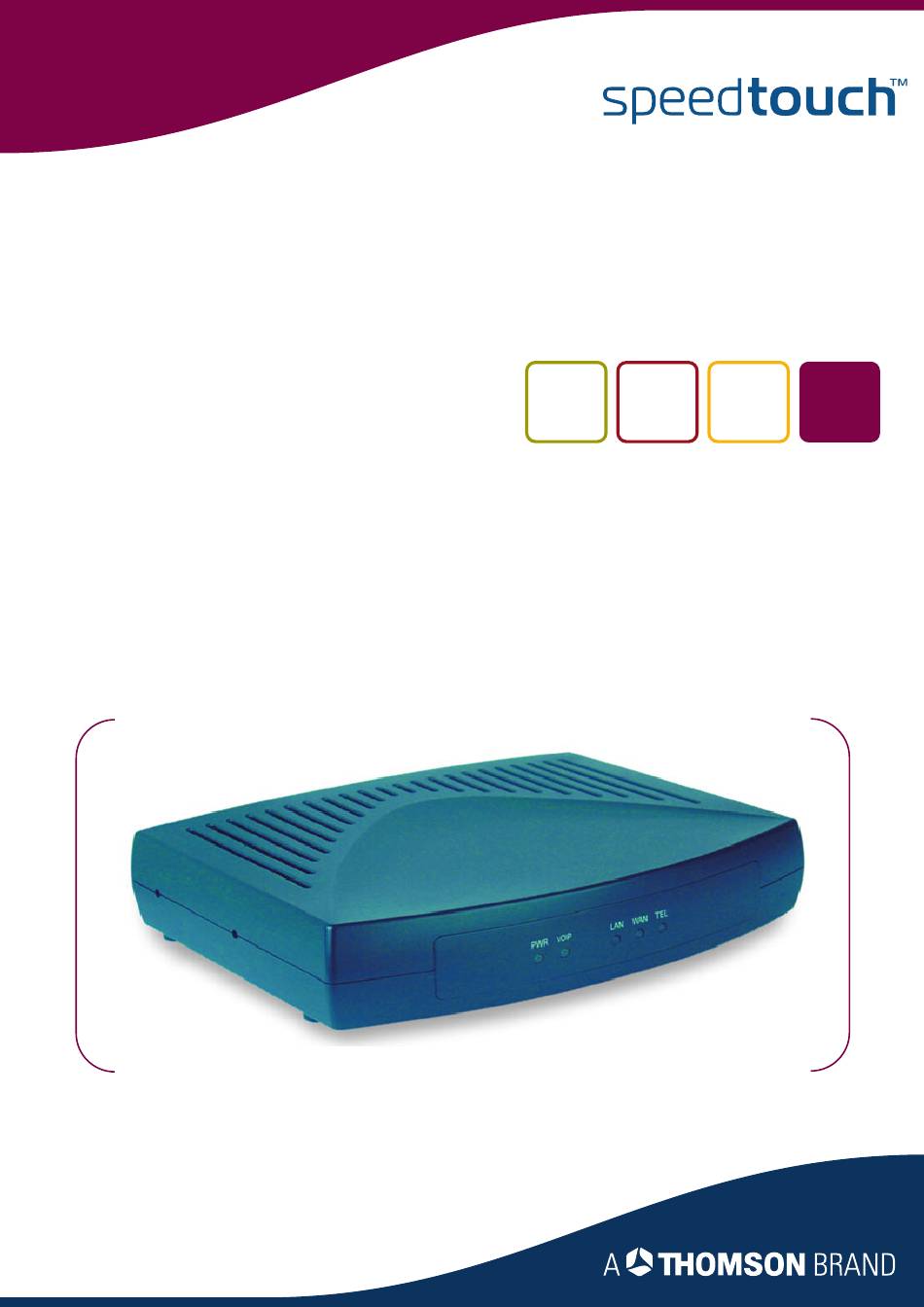

- Page 1 SpeedTouch™190 SIP Gateway Operator’s Guide Release R1.0...
- Page 3 SpeedTouch™ Operator’s Guide Release R1.0...
- Page 4 Status v2.0 Reference E-DOC-CTC-20040422-0010 Short Title Operator’s Guide ST190 R1.0 Copyright © 2004 THOMSON. All rights reserved. Passing on, and copying of this document, use and communication of its contents is not permitted without written authorization from THOMSON. The content of this document is furnished for informational use only, may be subject to change without notice, and should not be construed as a commitment by THOMSON.
- Page 5 Contents 1 SpeedTouch™190 Product Description ...... 5 2 SpeedTouch™190 Product Configuration....9 3 SpeedTouch™190 Calling Services ......25 E-DOC-CTC-20040422-0010 v2.0...
- Page 6 E-DOC-CTC-20040422-0010 v2.0...
- Page 7 1 SpeedTouch™190 Product Description 1 SpeedTouch™190 Product Description Introduction The SpeedTouch™190 SIP analog telephone adapter allows regular phones, fax or modems to call a compatible peer SIP User over a broadband Internet connection. Contents This Operator’s Guide will teach you to configure every aspect of the Speed- Touch™190 SIP Gateway.
- Page 8 1 SpeedTouch™190 Product Description Product Layout Indicator Description Name State Power Power On, normal operation Power Off VOIP Registration successful to the SIP server Registration failed to the SIP server Ethernet connection with the user’s PC No ethernet connection with the user’s PC Ethernet connection with the user’s Internet Gateway...
- Page 9 To connect the user’s local network RESET To reset the SpeedTouch™190 12V AC To connect the power supply SIP Service To be able to configure the SpeedTouch™190, following settings most be provided for requirements each user: • A user name (logon ID) •...
- Page 10 1 SpeedTouch™190 Product Description E-DOC-CTC-20040422-0010 v2.0...
- Page 11 In most cases the SpeedTouch™190 is correctly configured for Internet Telephony via the appropriate configuration profile/file and no further configuration on the web inter- face is needed. This chapter aims to give a full overview of the SpeedTouch™190’s web pages and their respective functionality. Preconditions For local configuration via the SpeedTouch™190’s web pages, make sure that:...
- Page 12 Start Page Topic menu and links On the top of each of the SpeedTouch™190’s web pages a topics menu is provided. This menu navigates you via links through all aspects of the SpeedTouch™190. The following table list all topic links.
- Page 13 Mask, Default Gateway, DNS Address, Domain Name, VLAN Tag, Priority Tag, Broadcast Limit and the Multicast Limit. By default the WAN interface is configured as a DHCP client. You can manually change the SpeedTouch™190’s WAN configu- Note ration on the WAN Settings Page.
- Page 14 2 SpeedTouch™190 Product Configuration • WAN Settings to view the WAN Settings page. By default the WAN interface is configured as DHCP client. However you are able to configure a fixed IP address. Proceed as follows: Select Specify fixed WAN configuration.
- Page 15 2 SpeedTouch™190 Product Configuration • MAC Spoofing to view the Mac Spoofing Settings page. You are able to assign a custom MAC Address to the SpeedTouch™190. Proceed as follows: Provide the custom MAC Address in the WAN MAC Address field.
- Page 16 2 SpeedTouch™190 Product Configuration • LAN Settings to view the LAN Settings page. By default the LAN interface is configured with a fixed IP address. To modify the fixed IP address, proceed as follows: Type the IP address in the IP address text box Type the subnet mask of the IP address in the Subnet Mask text box.
- Page 17 State Explanation Status Register The SpeedTouch™190 is successfully Success registered with the ONSP. Register Failed The SpeedTouch™190 did not register with the ONSP. Phone Number 123456 The SpeedTouch™190’s phone number. (example) SIP State On Hook The phone is on hook.
- Page 18 2 SpeedTouch™190 Product Configuration • SIP Settings to view the SIP Settings page. • SIP Server Settings Type the IP address or Fully Qualified Domain Name (FQDN) format and Port value of the SIP server. Select whether FQDN or IP format depending on how you are going to fill in the Domain Name Address.
- Page 19 The user=phone parameter distinguishes that the user address is a tele- phone number rather than a user name • Registration Expire Time Specify the valid life time (in seconds) after which the SpeedTouch™ 190 has to re-register to the SIP Server. • 18X Timer Specify the time out for 18x responses during session setup.
- Page 20 Every log page has a maximum of 10 entries. If there is an NTP server defined on the System page the SpeedTouch™190 will add a timestamp to each entry. This page is the home page for the end-users. The end-users are able Note to browse to this page via http://192.168.1.190/ where no password is...
- Page 21 2 SpeedTouch™190 Product Configuration • OOB Signalling to view and configure the RTP Telephone Event Settings page. • Send Out-Of-Band Telephone Events • Select none if telephone events are going to be sent in-band. • Select SIP Info if telephone events are going to be sent out-of-band, using the SIP info method (as defined in RFC2976).
- Page 22 2 SpeedTouch™190 Product Configuration • Select VLAN to view and configure the VoIP VLAN Settings page. The SIP VLAN page allows to set a VLAN tag value and a Priority tag value for RTP packets and Call Signalling packets. CODECS The CODEC page allows you to view and configure the Audio/CODEC Settings page.
- Page 23 • Select Security to view and configure the Set Security Password page. This page allows an administrator to configure the SpeedTouch™190 with an access password. Type the password and retype to confirm it. There are 2 levels of access rights supported by the SpeedTouch™190.
- Page 24 • AutoConfig to view the AutoConfig page. During the SpeedTouch™190 boot process, it gets extra information from the DHCP server containing -among others- the IP address of a TFTP server and a file name. In the corresponding configuration file, you are able to specify the user’s SIP settings.
- Page 25 The Download Page allows you to manually download a configuration file or to do a firmware upgrade. The SpeedTouch™190 is equipped with built-in flash memory which allows easy upgrading. When a new version of the software or a configuration file is available, you can upgrade the SpeedTouch™190...
- Page 26 Reset The Reset page provides options to reset the SpeedTouch™190. Select whether you wish to reset the SpeedTouch™190 and start executing the main (default) application, or whether you wish to reset the SpeedTouch™190 and start executing the internal downloader application. The SpeedTouch™190 restarts and your browser session will be disconnected.
- Page 27 3 SpeedTouch™190 Calling Services 3 SpeedTouch™190 Calling Services Supported telephone The SpeedTouch™190 supports the following telephone calling services: calling services • Basic Call with Calling Line Identification This feature allows you to see the number of whom is calling you.
- Page 28 3 SpeedTouch™190 Calling Services Call waiting with Calling To get the waiting call and put the other one automatically on hold: Line Identification Press the “R“ key on your phone. Press the “*“ key on your phone. To toggle between the two calls: Press the “R“...
- Page 30 Need more help? Additional help is available online at www.speedtouch.com.
