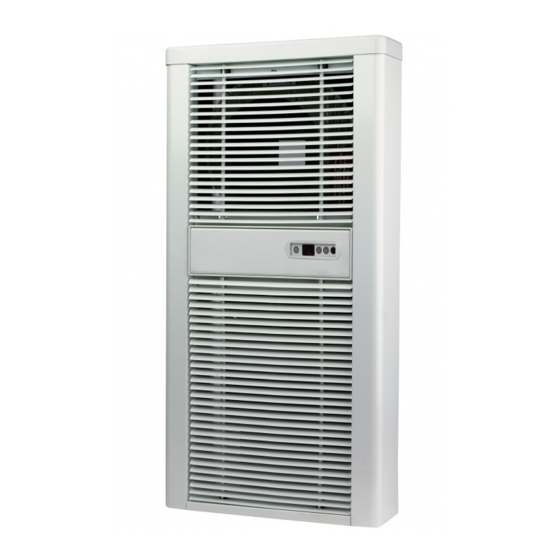

Myson SLIM-LINE RC Installation, Operating, Maintenance & After Sales Manual
Hide thumbs
Also See for SLIM-LINE RC:
- Installation & maintenance manual (12 pages) ,
- Installation, operating, maintenance & after sales manual (12 pages)
Table of Contents
Related Manuals for Myson SLIM-LINE RC
Summary of Contents for Myson SLIM-LINE RC
- Page 1 Installation, Operating, Maintenance and After Sales Manual. SLIM-LINE RC heatingthroughinnovation. Product Serial Number: Please leave this manual with the end user. Part Number: 1371057 Tested to UL & CSA Standards Issue 3...
-
Page 2: Table Of Contents
Contents General Information Heating System Design Unit Selection/Sizing Location Preparation Fixing Water Connections Electrical Connection Commissioning Procedure 10.0 Technical Data 11.0 Operating Instructions 12.0 Troubleshooting 13.0 Maintenance... -
Page 3: General Information
Fan only - allows user selection of any of the 3 available fan speeds irrespective of room temperature or water l The SLIM-LINE RC can be used on heat pump systems, for temperature in the coil. heating only. -
Page 4: Preparation
SLIM-LINE RC 5.0 Preparation Before proceeding with the installation, unpack the carton contents and check against the checklist below: 1. SLIM-LINE RC unit. 2. Instruction manual. 3. Fixing kit (rubber mounts and cable gland). 4. Remote control handset. 6.0 Fixing l Using the fixing dimensions (see fig. -
Page 5: Water Connections
Ensure system is flushed in accordance with recognised best Note: For SLIM-LINE RC installations pipe-work must not be practice and a suitable inhibitor is added to the system as routed directly underneath the unit as this will adversely affect necessary. -
Page 6: Electrical Connection
SLIM-LINE RC 8.0 Electrical Connection WARNING: This appliance must be grounded. The electrical installation must comply with state and local codes. l Electrical cable entry to the unit should be made at the bottom left hand side of the unit. -
Page 7: Commissioning Procedure
SLIM-LINE RC 9.0 Commissioning Procedure l Fill and vent the system. l Refit outer cover. l Open both valves fully and vent air from the heat exchanger l Switch on electrical supply. by unscrewing the air bleed valve situated at the top of the coil and accessible through the right hand side of the chassis. -
Page 8: Technical Data
SLIM-LINE RC 10.0 Technical Data Heating Performance Data Heat Output (Btu/h) Flowrate Flowrate Entering Water Temperature (°F), Entering Air Temperature 65°F Setting Boost 5029 5663 6657 7661 8664 9668 10572 11678 12680 13864 Medium 4385 4881 5887 6745 7651 8559... -
Page 9: Operating Instructions
This SLIM-LINE RC unit is fitted with a control system that provides either automatic or manual control of the unit. In In manual mode, with water temperature control, any of the 3... -
Page 10: Troubleshooting
An apparent problem with this unit may be the result of system controls being incorrectly set and can be solved easily without calling out your installer or MYSON. Before calling your installer or MYSON, please carry out the checks listed opposite. -
Page 11: Maintenance
If the fan convector is still faulty after checking the above, call your installer or MYSON. Common Installation Faults heat, and the heating system must be correctly designed to provide adequate flow of hot water to the unit (see Section 2). - Page 12 MYSON Hercules Drive, Suite 4904, Colchester VT0446 802 654 7500, 802 654 7022, info@mysoninc.com, www.mysoninc.com heatingthroughinnovation. Spare parts and technical help on all Convector products are available from MYSON Service.
