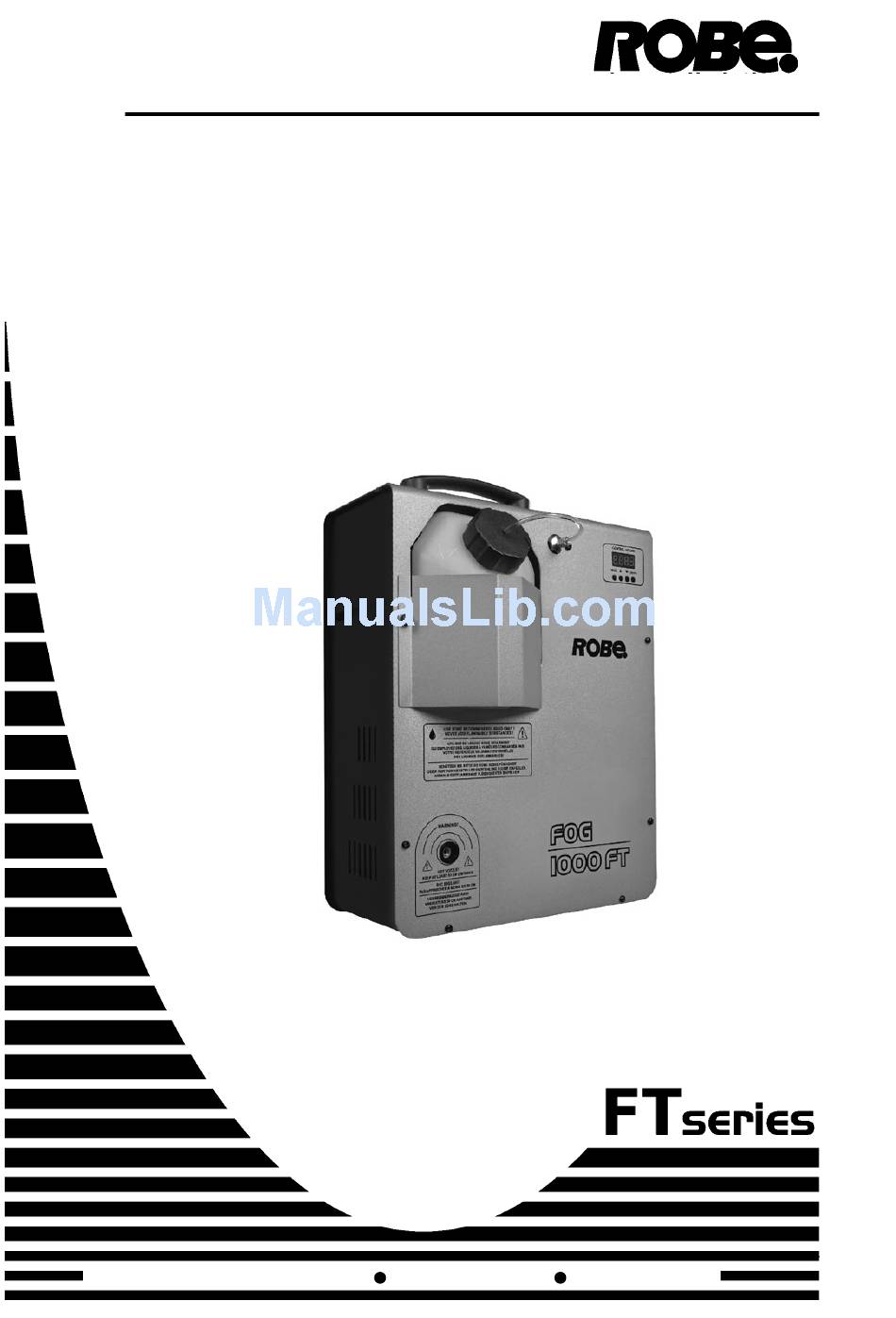

Fog 1000 FT
USER MANUAL
Version: 1.1
ROBE Lighting s.r.o.
Czech Republic
www.robe.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fog 1000 FT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Robe Fog 1000 FT

  • Page 1 Fog 1000 FT USER MANUAL Version: 1.1 ROBE Lighting s.r.o. Czech Republic www.robe.cz...
  • Page 2 Fog 1000 FT Table of contents 1. Introduction ........................3 2. Cautions .......................... 3 3. Unpacking ........................4 4. Setup..........................4 5. Operation......................... 4 6. Remote control specifications ..................4 7. DMX setting ........................5 8. Performance Notes......................5 9. Maintenance ........................5 10.
  • Page 3 1. Introduction Thank you for choosing an ROBE Fog 1000 FT. You now own a rugged and powerful state-of-the-art machine. Prior to use, we sug- gest that you carefully read all of the instructions. By following the suggestions found in this user manual, you can look forward to the reliable and satisfactory performance of your ROBE Fog 1000 FT machine for years to come.
  • Page 4 Before beginning initial setup of your ROBE Fog Machine, make sure that there is no evident damage caused by transportation. In the event that the unit's housing or cable is damaged, do not plug it in and do not attempt to use it until after contacting your ROBE distributor for assistance.
  • Page 5: Dmx Setting

    7. DMX setting The model use 1 channel to control on/off operation. If this channel has a value from 0 to 18, the unit is off. Betwen the values 129 and 255 the volume of fog output is at maximum. Channel Value Function Volume 0 - 18 Max. volume output 129-255 The starting DMX address is defined as the first channel from which the device will respond to the controller . This address has to be set via the device control panel 8.
  • Page 6: Specifications

    11. Specifications Power: 230/240V AC, 50-60 Hz ; ( or 100 /120 V AC, 50-60 Hz optionally) Heater: 1000 W Output: 10,000 Cu.ft/min. First heat up time: 10 min. Tank capacity: 2. liter Fluid consumption rate: 13 min. /liter (100% output) DMX in/out: 5-pin XLR Weight: 9.8 kg (without liquid) Dimensions (mm): 370 L x 295 W x 135 H Liquid used: Stamdard Fog /Performance Fog/ Premium Fog 3 meter wire remote controller VR-1...
